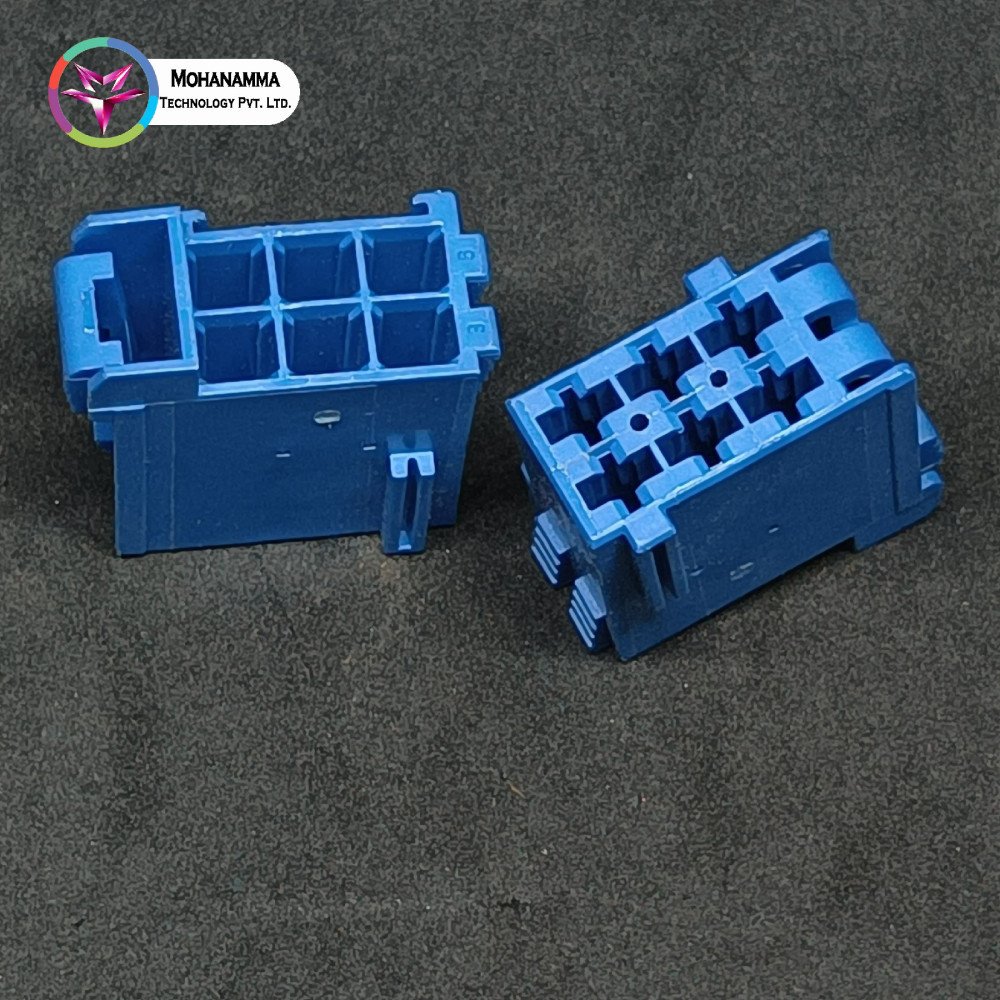

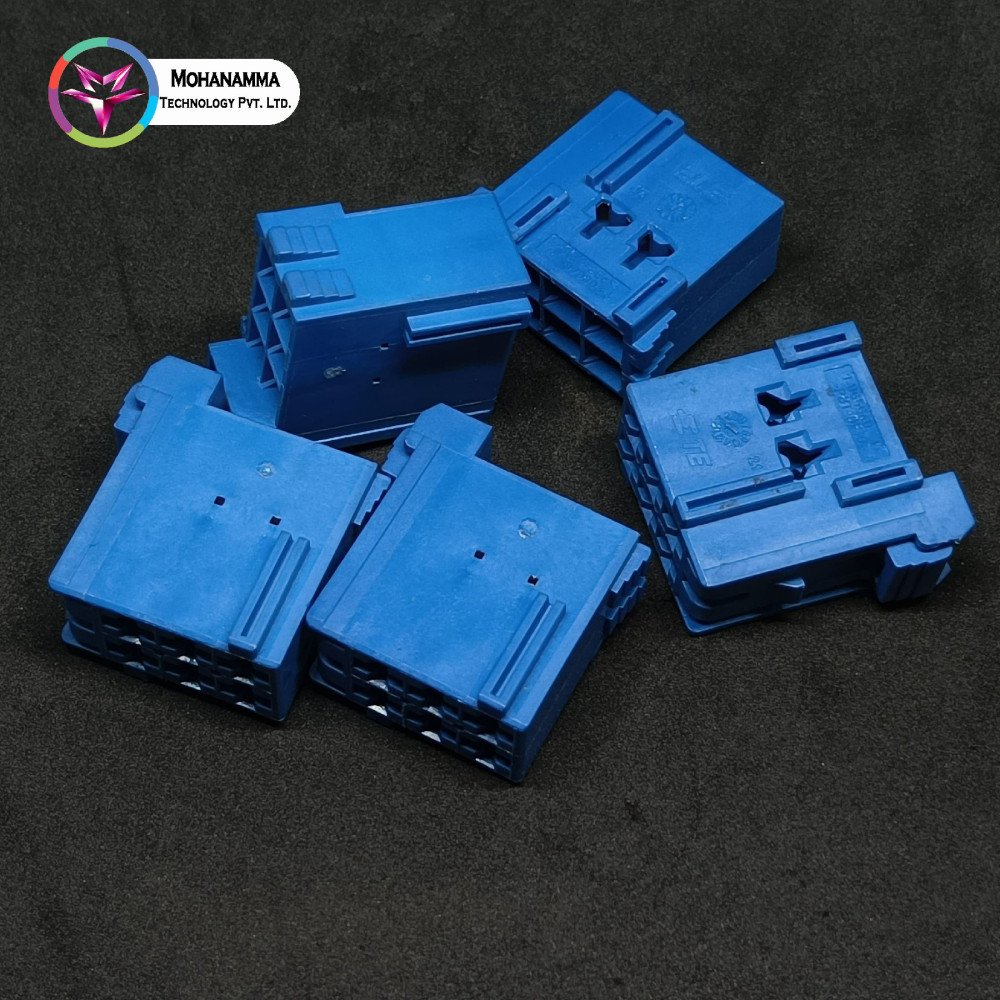

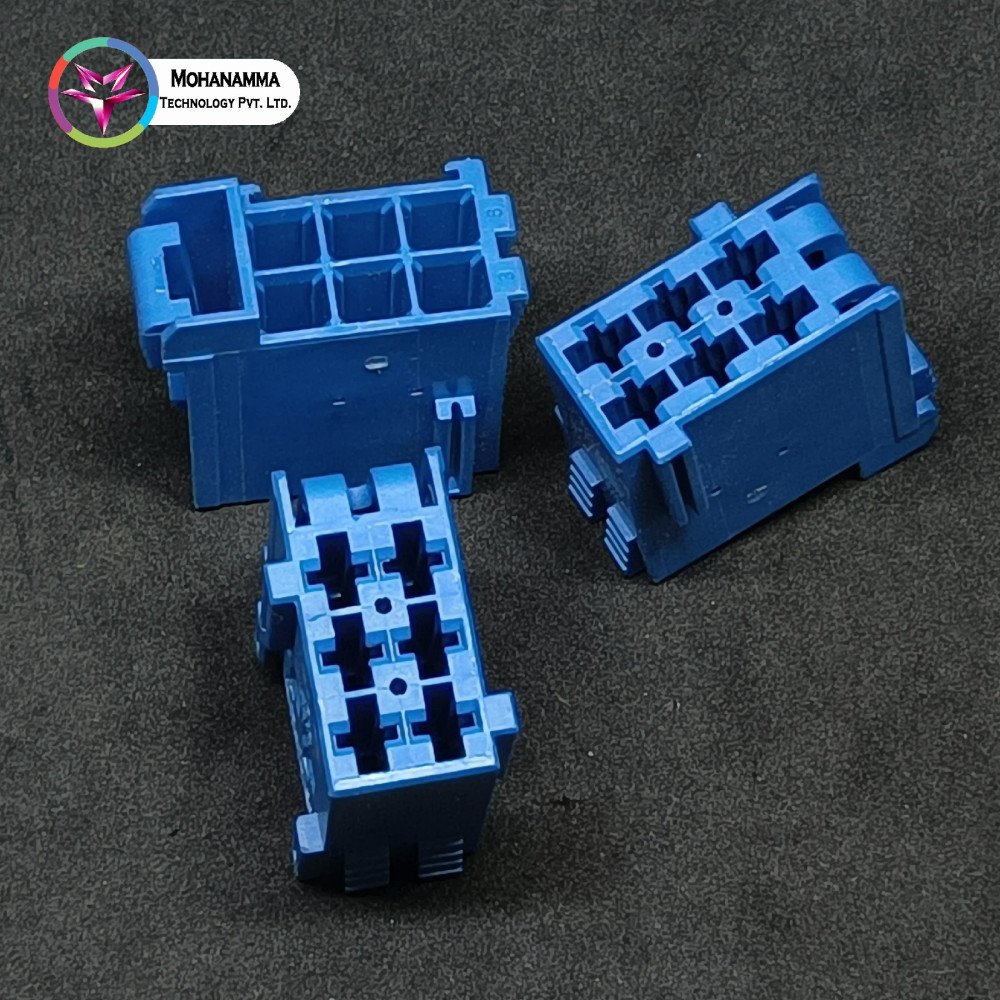

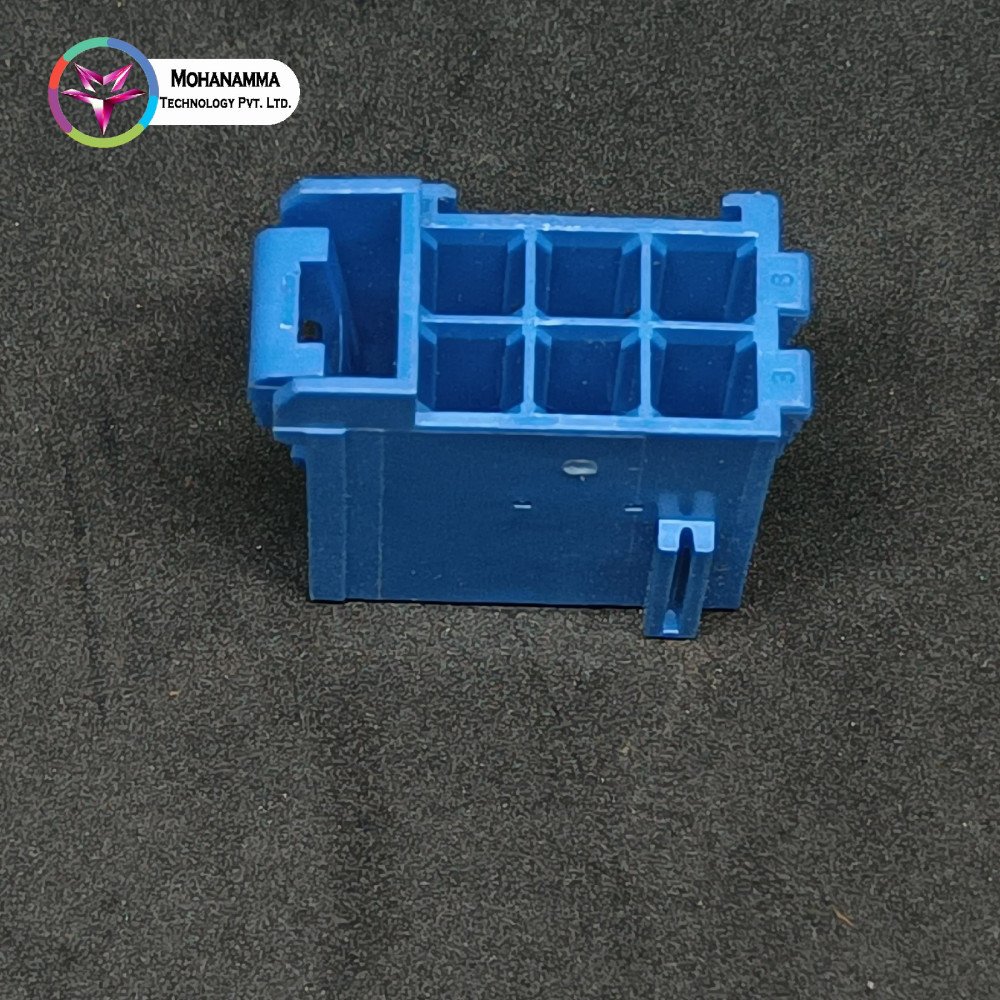

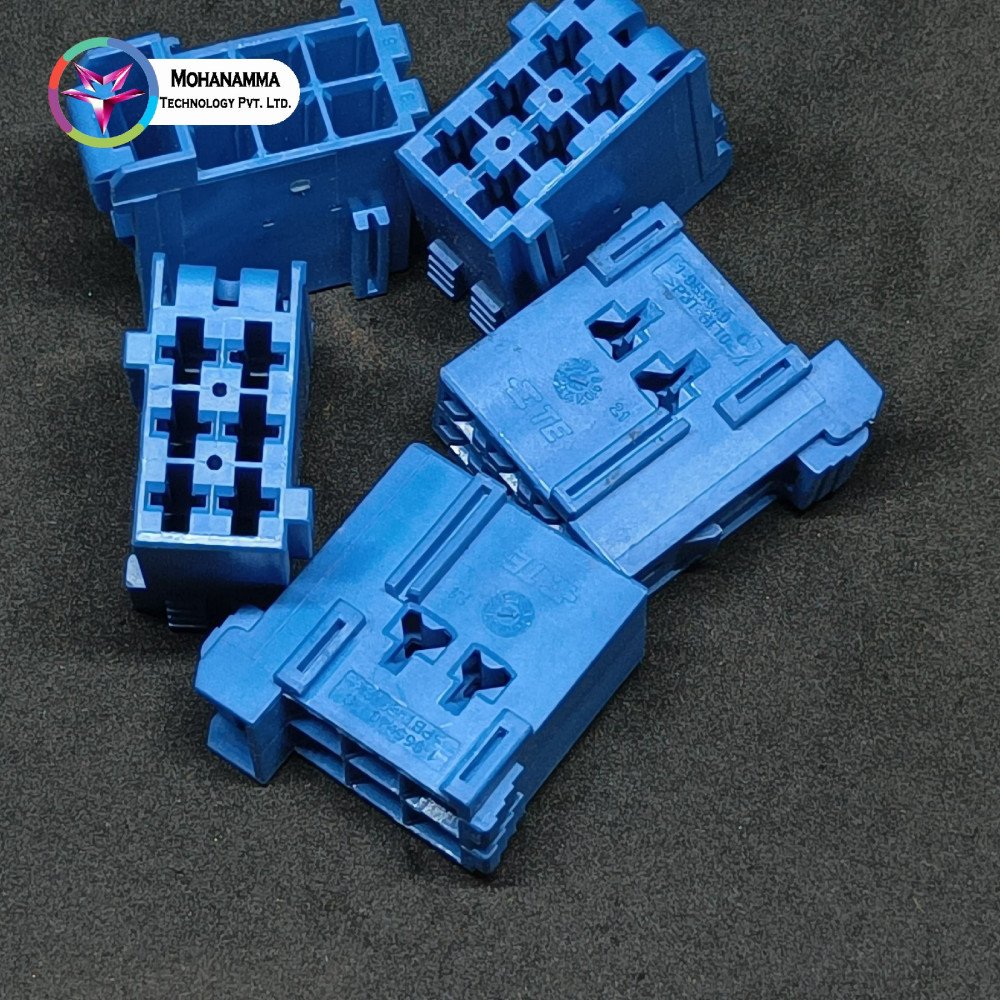

1-965640-1 Female TE Automotive connector

SKU: -

Category: Automotive Connectors

Availability: Unlimited

0.00/5 (0 Review)

₹ 78.85

Tag: connector , te , automotive , female , mohanammatechnology

Quantity:

Total: ₹ 78.85

Add to wishlist Add To Compare

Share on:

Description

Housing for Female Terminals, Wire-to-Wire, 6 Position, .197 in [5 mm] Centerline, Blue, Power, Cable Mount (Free-Hanging), Junior Power Timer

Product Specifications

Brand: TE Connectivity

Model Number: 1-965640-1

Availability: In stock

Product SKU:

Minimum order quantity: 1

Maximum order quantity:

Listed date: 1st Mar, 2024

Product Type Features

Connector Shape : Rectangular
Connector System : Wire-to-Wire
Connector & Housing Type : Housing for Female Terminals
Sealable : No
Primary Locking Feature : Integrated in Housing
Mixed & Hybrid Connector : No

Configuration Features

Number of Positions : 6
Number of Rows : 2

Electrical Characteristics

Nominal Voltage Architecture (V): 28

Body Features

Primary Product Color : Blue
Connector & Keying Code : A

Contact Features

Contact Type : Receptacle
Contact Size : 2.8mm
Mating Tab Width : 2.8 mm [ .11 in ]

Mechanical Attachment

Mating Alignment : With
Mating Alignment Type : Keyed
Strain Relief : Without
Connector Mounting Type : Cable Mount (Free-Hanging)
Terminal Position Assurance : Yes

Housing Features

Housing Material : PBT GF
Centerline (Pitch) : 5 mm [ .197 in ]

Dimensions

Row-to-Row Spacing : 5 mm [ .196 in ]
Product Length : 11.2 mm [ .441 in ]
Connector Height : 26.5 mm [ 1.043 in ]

Usage Conditions

Operating Temperature (Max) : 100 °C [ 212 °F ]
Operating Temperature Range : -30 – 130 °C [ -22 – 266 °F ]

Operation/Application

Circuit Application : Power

Packaging Features

Packaging Method : Carton

Other

Connector Position Assurance Capable : No
Serviceable : No

Pdf Specifications
