1-967624-1 JUN-POW-TIM HOUSING TE Connectivity
1-967624-1 JUN-POW-TIM HOUSING TE Connectivity
1-967624-1 JUN-POW-TIM HOUSING TE Connectivity
1-967624-1 JUN-POW-TIM HOUSING TE Connectivity
1-967624-1 JUN-POW-TIM HOUSING TE Connectivity
In stock

1-967624-1 JUN-POW-TIM HOUSING TE Connectivity

SKU: -

Category: Automotive Connectors

Availability: Unlimited

0.00/5 (0 Review)
Quantity:
Total: ₹ 85.00
Share on:

Description

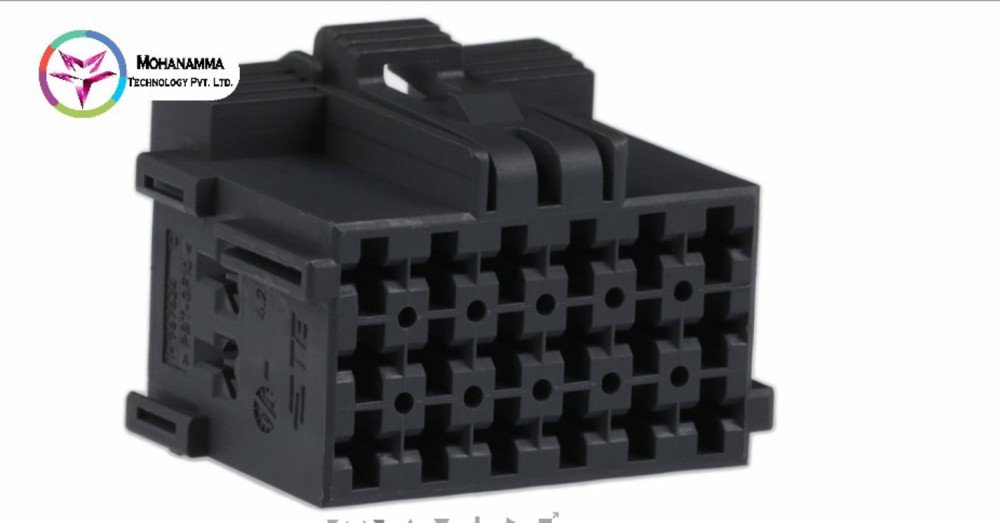

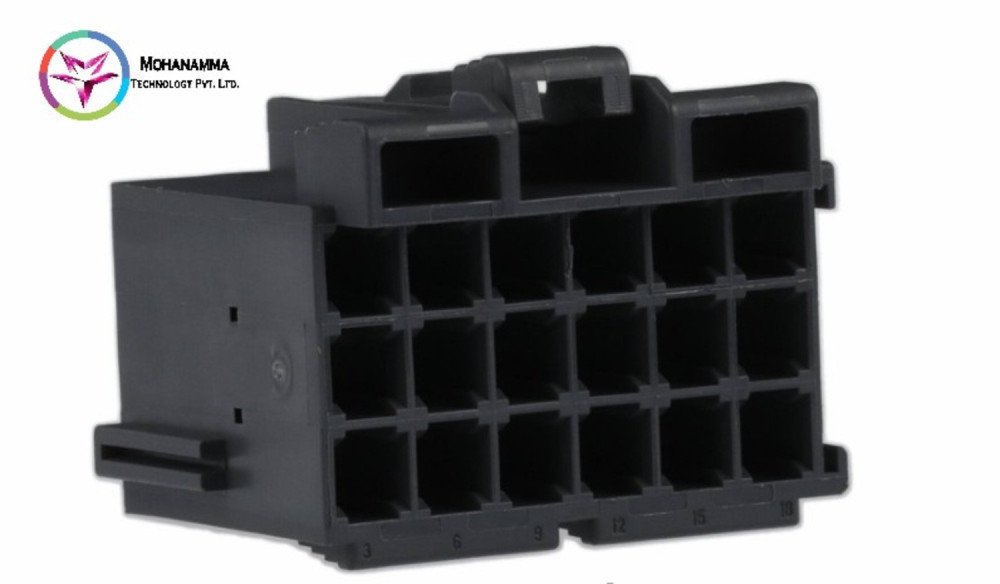

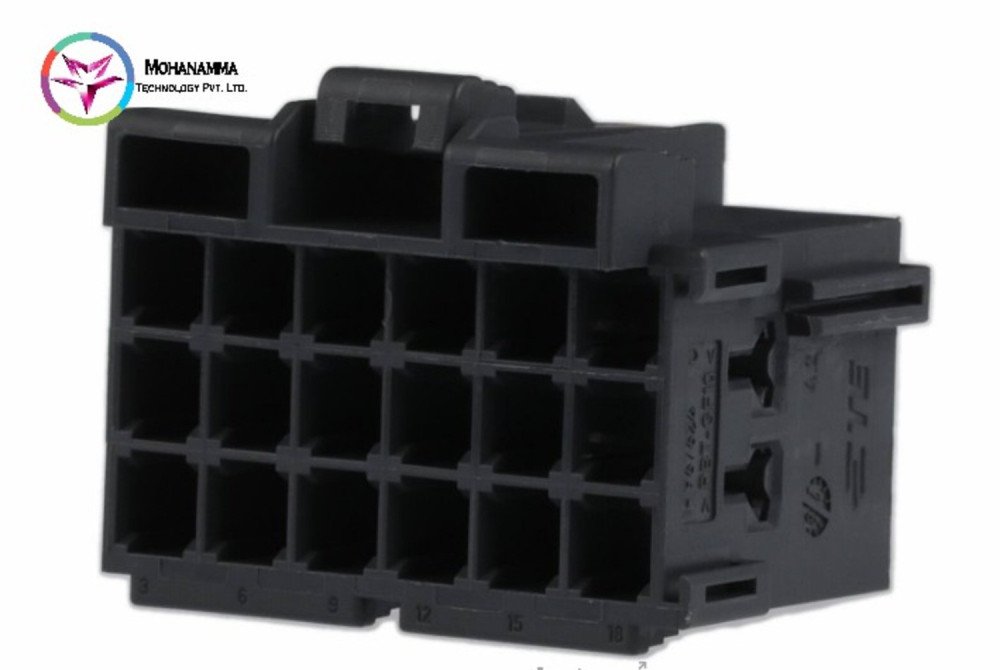

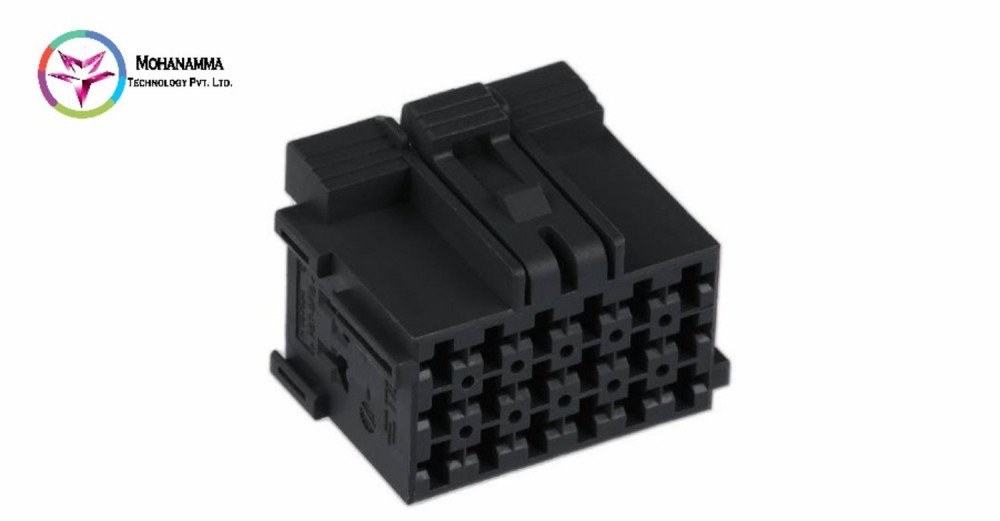

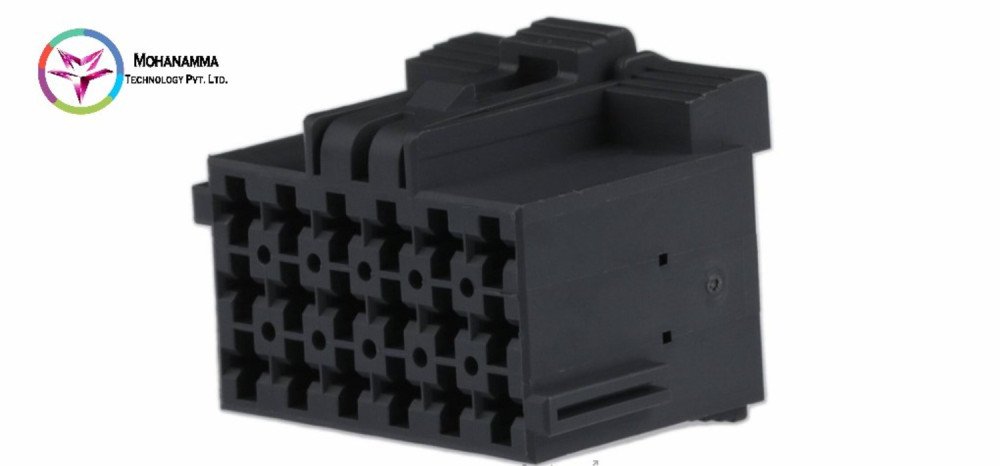

Housing for Female Terminals, Wire-to-Board / Wire-to-Wire, 18 Position, .197 in [5 mm] Centerline, Gray, Wire & Cable, Signal, Junior Power Timer

Product Specifications

Brand: TE Connectivity

Model Number: 1-967624-1

Availability: In stock

Product SKU:

Minimum order quantity: 1

Maximum order quantity:

Listed date: 26th Feb, 2024

Product Type Features


  • Connector Shape : Rectangular

  • Connector System : Wire-to-Board, Wire-to-Wire

  • Connector & Housing Type : Housing for Female Terminals

  • Sealable : No

  • Connector & Contact Terminates To : Wire & Cable

  • Primary Locking Feature : On the Terminal

  • Mixed & Hybrid Connector : No

Configuration Features


  • Number of Positions : 18

  • Number of Rows : 3

Electrical Characteristics


  • Nominal Voltage Architecture (V): 28

Body Features


  • Primary Product Color : Gray

  • Connector & Keying Code : A

Contact Features


  • Contact Type : Receptacle

  • Contact Size : 2.8mm

  • Mating Tab Width : 2.8 mm [ .11 in ]

  • Contact Current Rating (Max) (A): 30

Mechanical Attachment


  • Mating Alignment : With

  • Mating Alignment Type : Keyed

  • Strain Relief : Without

  • Connector Mounting Type : Cable Mount (Free-Hanging)

  • Terminal Position Assurance : Yes

Housing Features


  • Housing Material : PBT GF

  • Centerline (Pitch) : 5 mm [ .197 in ]

Dimensions


  • Product Length : 34.8 mm [ 1.37 in ]

  • Connector Height : 26.5 mm [ 1.043 in ]

Usage Conditions


  • Operating Temperature (Max) : 100 °C [ 212 °F ]

  • Operating Temperature Range : -30 – 100 °C [ -22 – 212 °F ]

Operation/Application


  • Circuit Application : Signal

Packaging Features


  • Packaging Method : Carton

Other


  • Connector Position Assurance Capable : No

  • Serviceable : No
