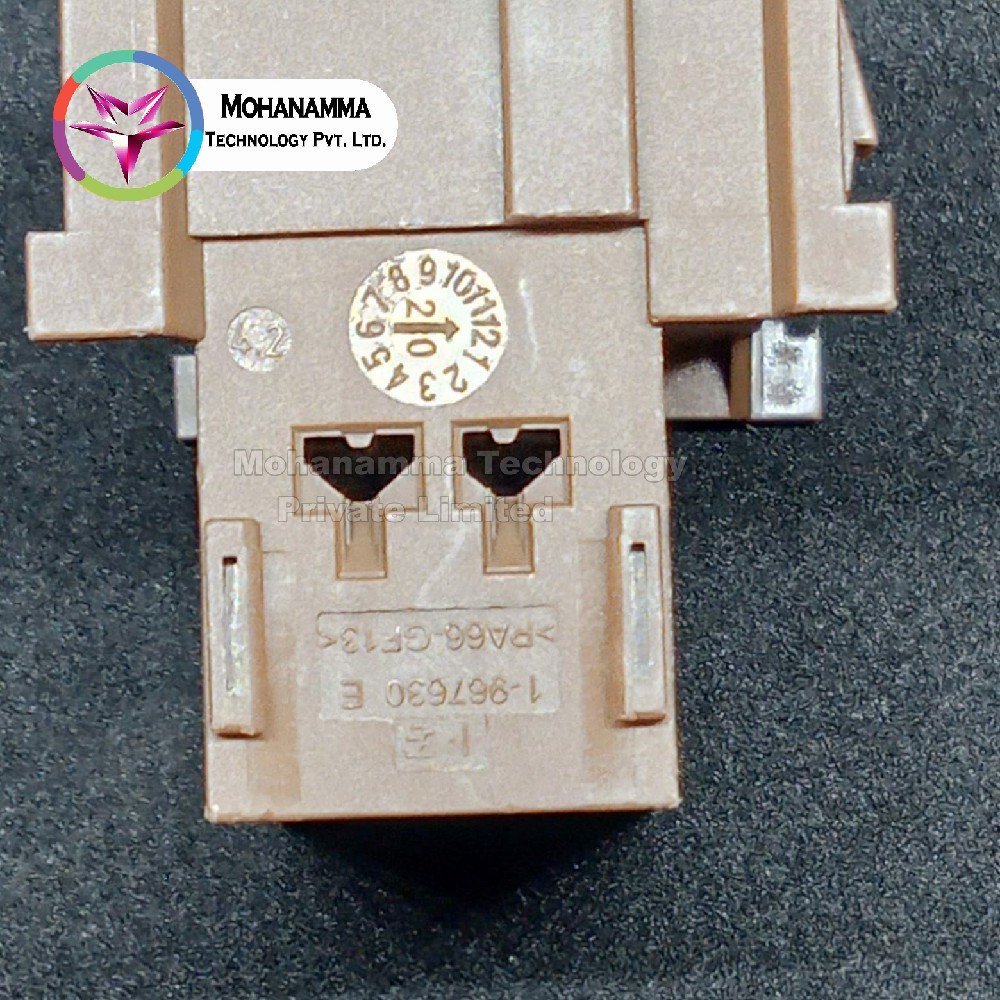

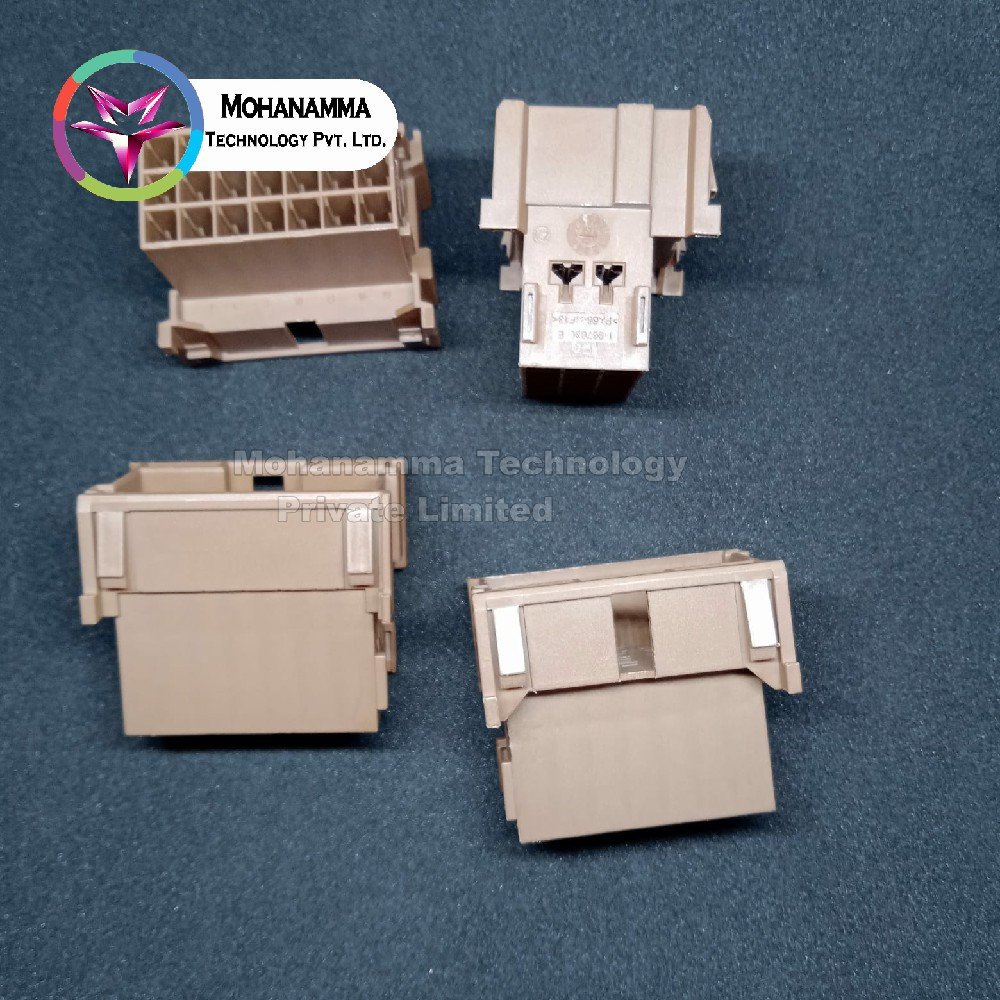

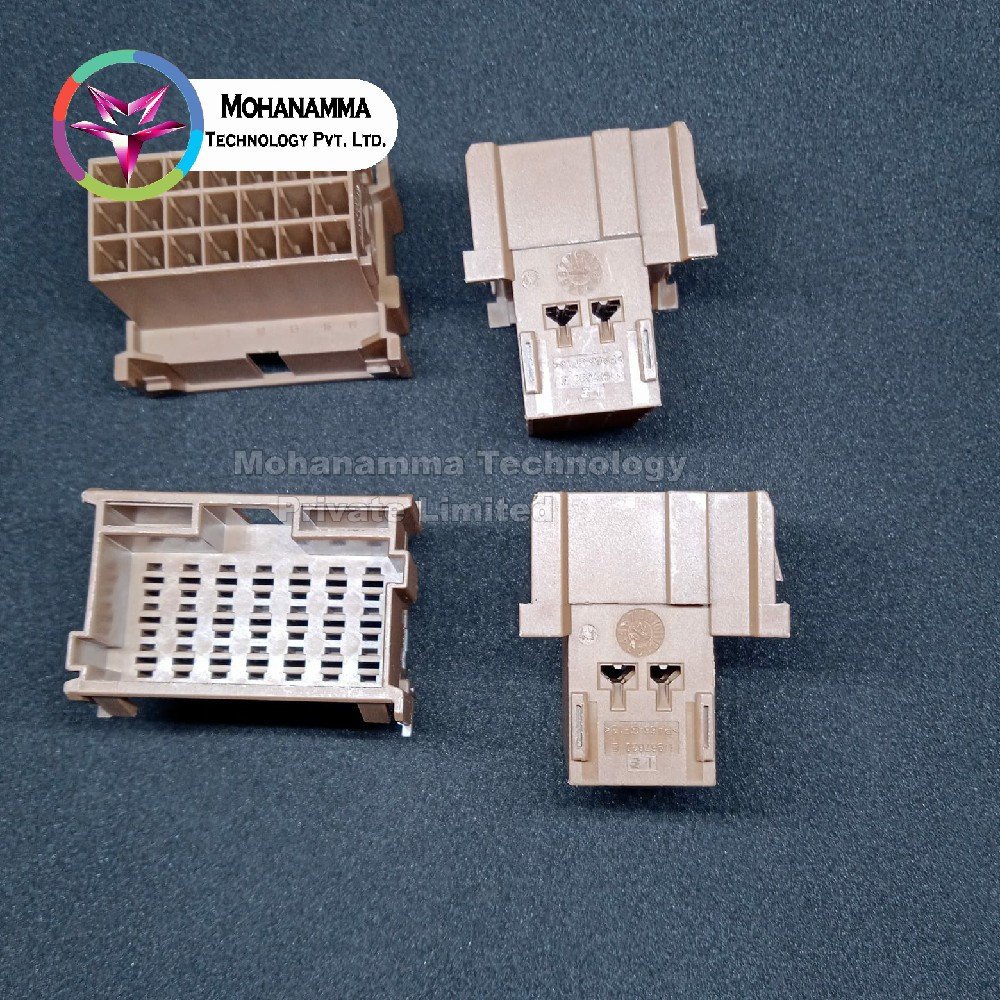

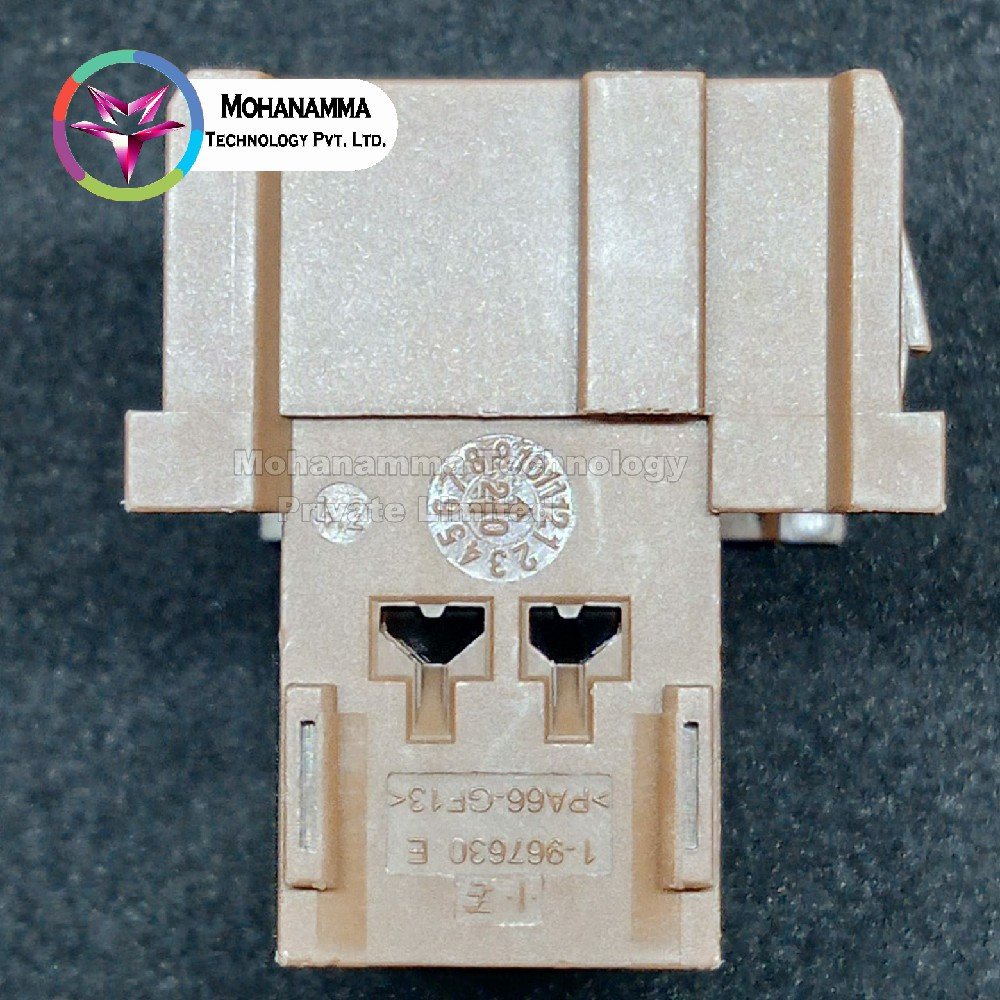

1-967630-1 TE Connectivty Automotive Connector

In stock

1-967630-1 TE Connectivty Automotive Connector

SKU: -

Category: Automotive Connectors

Availability: Unlimited

0.00/5 (0 Review)

₹ 267.00

Tag: teconnectivty , automotiveconnectors , 21pole

Quantity:

Total: ₹ 267.00

Add to wishlist Add To Compare

Share on:

Description

Housing for Male Terminals, Wire-to-Wire, 21 Position, .197 in [5 mm] Centerline, Brown, Signal, Panel Mount, -40 – 248 °F [-40 – 120 °C], Hybrid

Product Specifications

Brand: TE Connectivity

Model Number: 1-967630-1

Availability: In stock

Product SKU:

Minimum order quantity: 1

Maximum order quantity:

Listed date: 24th Feb, 2024

Product Type Features

Connector Shape : Rectangular
Connector System : Wire-to-Wire
Connector & Housing Type : Housing for Male Terminals
Sealable : No
Primary Locking Feature : On the Terminal
Mixed & Hybrid Connector : No

Configuration Features

Number of Positions : 21
Number of Rows : 3

Electrical Characteristics

Operating Voltage (VDC): 28
Nominal Voltage Architecture (V): 12, 24

Body Features

Cable Exit Angle : 180°
Primary Product Color : Brown
Connector & Keying Code : A

Contact Features

Contact Type : Tab
Contact Size : 2.8mm
Mating Tab Width : 2.8 mm [ .11 in ]

Mechanical Attachment

Mating Alignment : With
Mating Alignment Type : Keyed
Strain Relief : Without
Connector Mounting Type : Panel Mount
Terminal Position Assurance : No

Housing Features

Housing Material : PA GF
Centerline (Pitch) : 5 mm [ .197 in ]

Dimensions

Product Length : 42.5 mm [ 1.673 in ]
Product Width : 35.45 mm [ 1.396 in ]
Connector Height : 30.6 mm [ 1.205 in ]

Usage Conditions

Operating Temperature (Max) (°C): 70, 75, 80, 85, 90, 100, 105, 110, 120
Operating Temperature (Max) (°F): 158, 167, 176, 185, 194, 212, 221, 230, 248
Operating Temperature Range : -40 – 120 °C [ -40 – 248 °F ]

Operation/Application

Circuit Application : Signal

Packaging Features

Packaging Method : Bag
Packaging Quantity : 600

Other

Connector Position Assurance Capable : No
Serviceable : No
