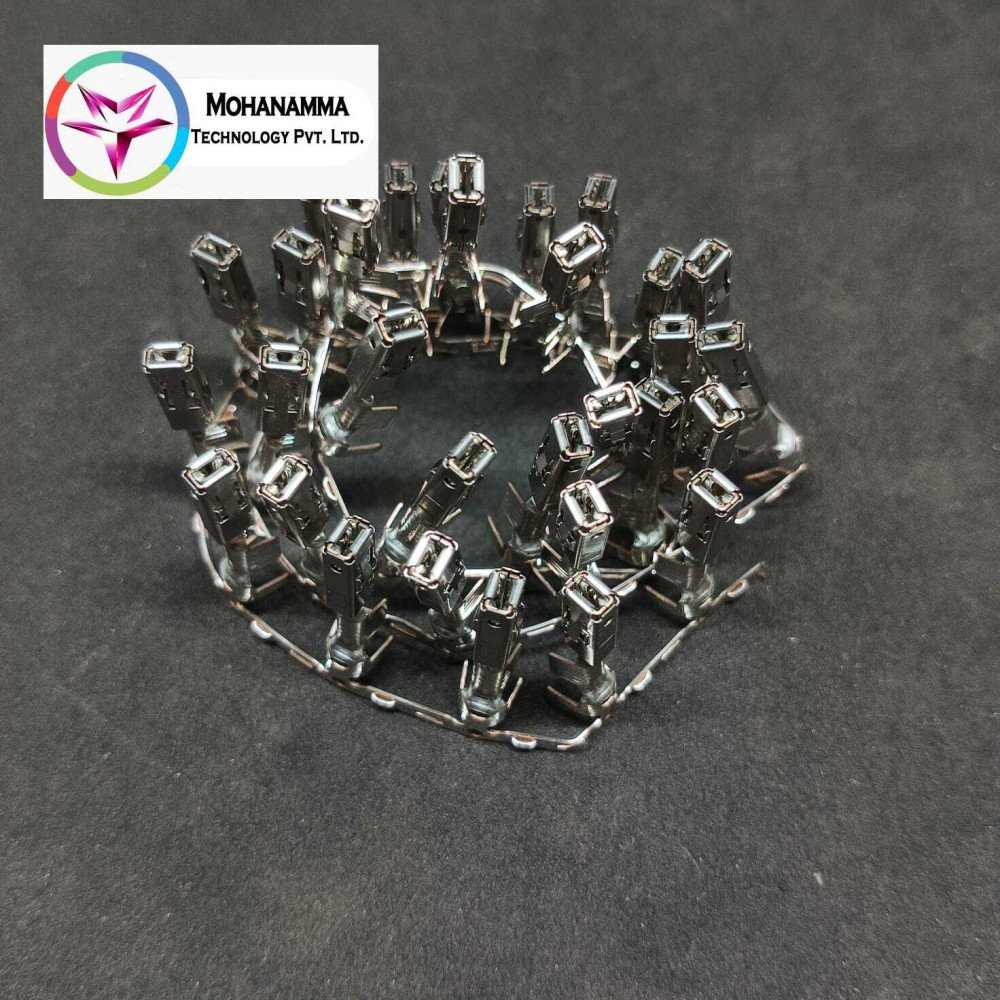

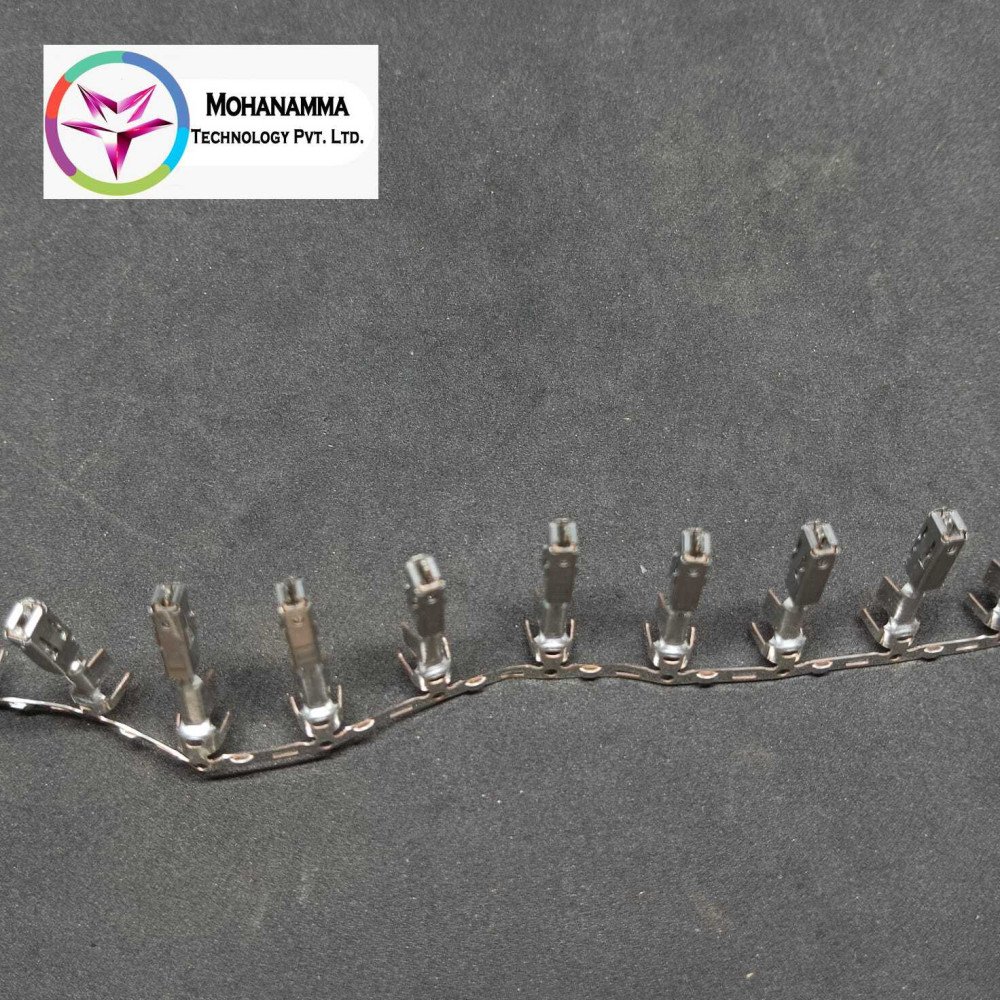

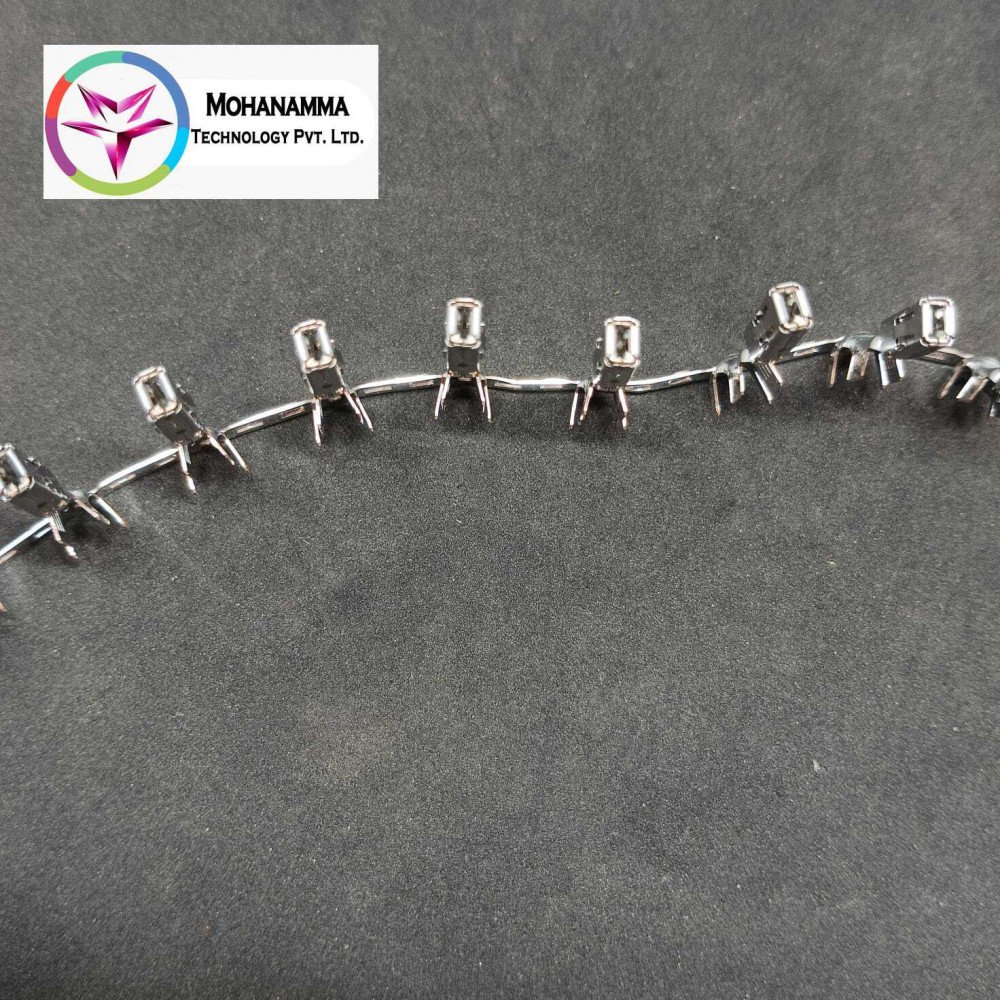

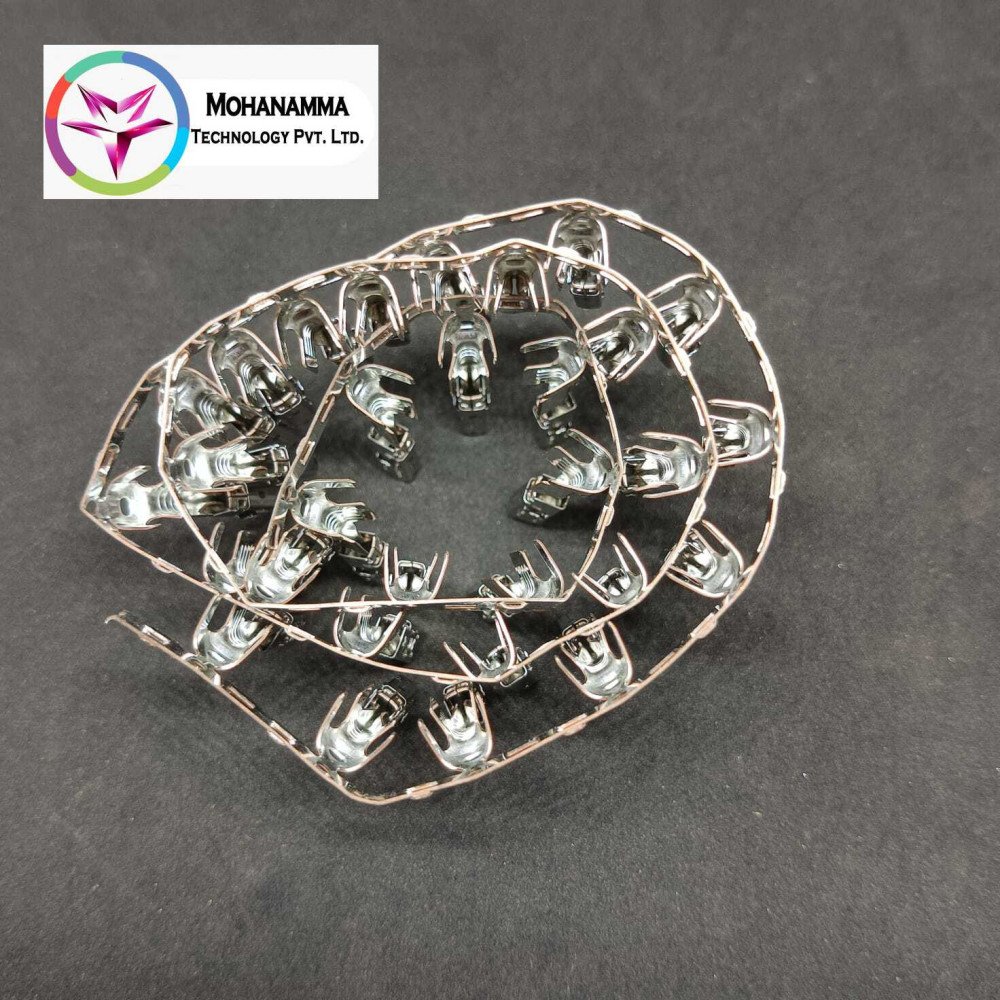

1-968859-1 Automotive Terminals

SKU: 1-968859-1

Category: Automotive Terminals

Availability: Unlimited

0.00/5 (0 Review)

₹ 26.90

Tag: automotive , terminals

Quantity:

Total: ₹ 26.90

Add to wishlist Add To Compare

Share on:

Description

This TE Connectivity Locking Lance Automotive Terminal with a silver finish is the perfect solution for your wiring needs. With crimp connector style and a receptacle termination type, it offers reliable connectivity for a single copper contact material pin. Ideal for use in wire and cable connectors, terminal blocks, and conduit, this Automotive Terminal is a must-have for those in the electrical equipment and supplies industry. Purchase it today and experience the quality and durability of TE Connectivity products.

Product Specifications

Brand: TE Connectivity

Model Number: 1-968859-1 Automotive Terminals

Availability: In stock

Product SKU: 1-968859-1

Minimum order quantity: 1

Maximum order quantity:

Listed date: 9th Feb, 2024

Product Type Features

Sealable : Yes
Primary Locking Feature : Locking Lance
Receptacle Style : 180°

Body Features

Terminal Seal Type : Single Wire Seal (SWS)

Contact Features

Crimp Type : F-Crimp
Typical Current Rating (A): 25
Wire Contact Termination Area Plating Material : Tin
Contact Fabrication : Stamped & Formed
Contact Size : 2.8mm
Terminal Type : Receptacle
Mating Tab Width : 2.8 mm [ .11 in ]
Mating Tab Thickness : .8 mm [ .031 in ]
Interface Plating : Tin (Sn)

Termination Features

Termination Method to Wire & Cable : Crimp
Product Terminates To : Wire

Dimensions

Compatible Insulation Diameter Range : 3.4 – 3.7 mm [ .106 – .146 in ]
Wire Size (AWG): 11
Wire Size (mm²): 4
Wire Size Search (mm²): 4
Wire Size Search (AWG): 11

Usage Conditions

Insulation Option : Uninsulated
Operating Temperature (Max) (°C): 80, 85, 90, 100, 105, 110, 120, 125, 130
Operating Temperature (Max) (°F): 176, 185, 194, 212, 221, 230, 248, 257, 266
Operating Temperature Range : -40 – 130 °C [ -40 – 266 °F ]

Operation/Application

Compatible With Wire Base Material : Copper

Industry Standards

Compatible With Agency/Standards Products : LV214

Packaging Features

Packaging Method : Reel
Packaging Quantity : 2500

Other

Terminal Transmits : 25 – 40 A (Power)
