Description

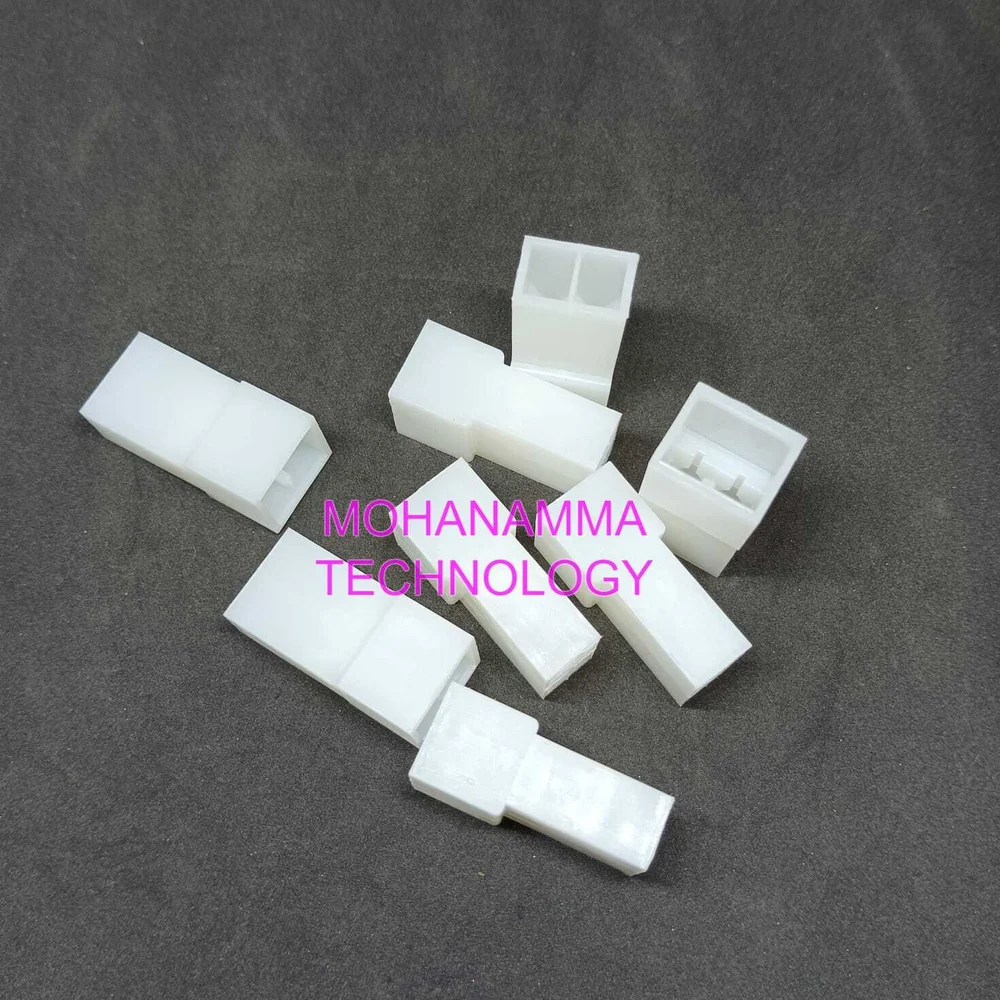

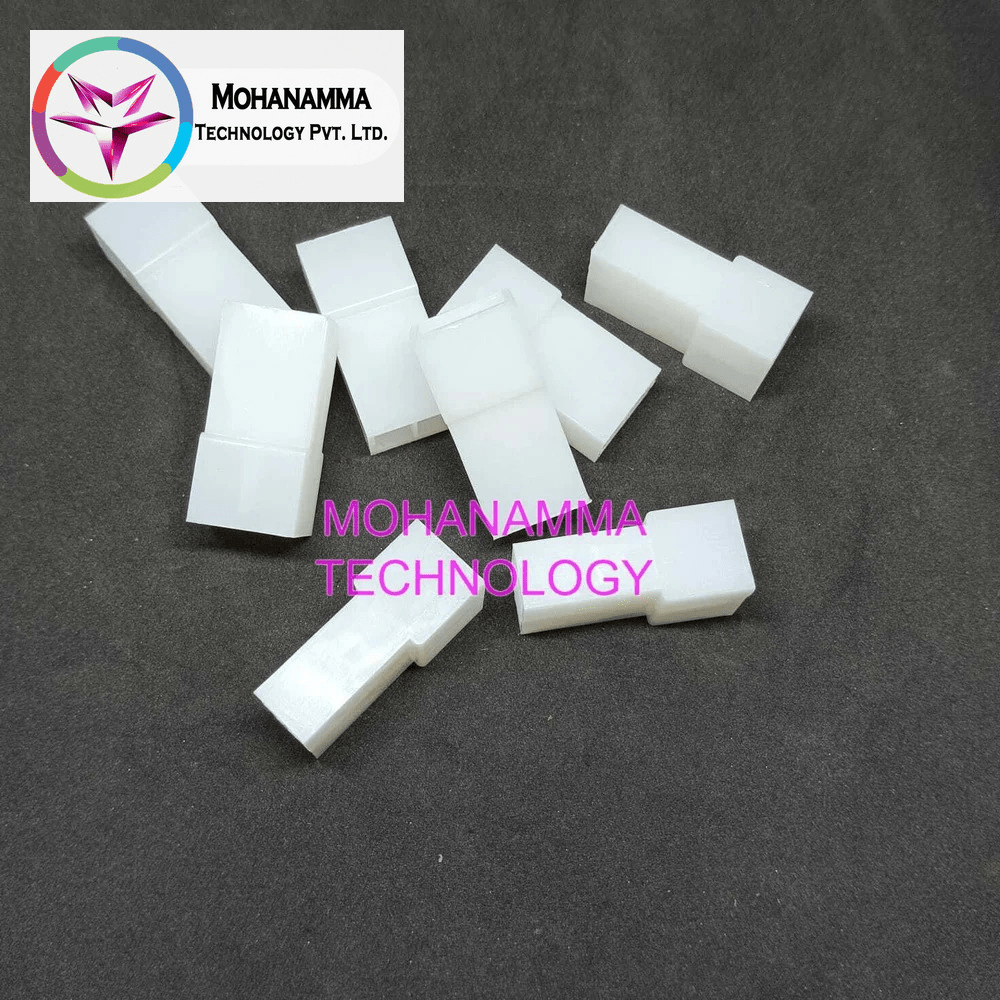

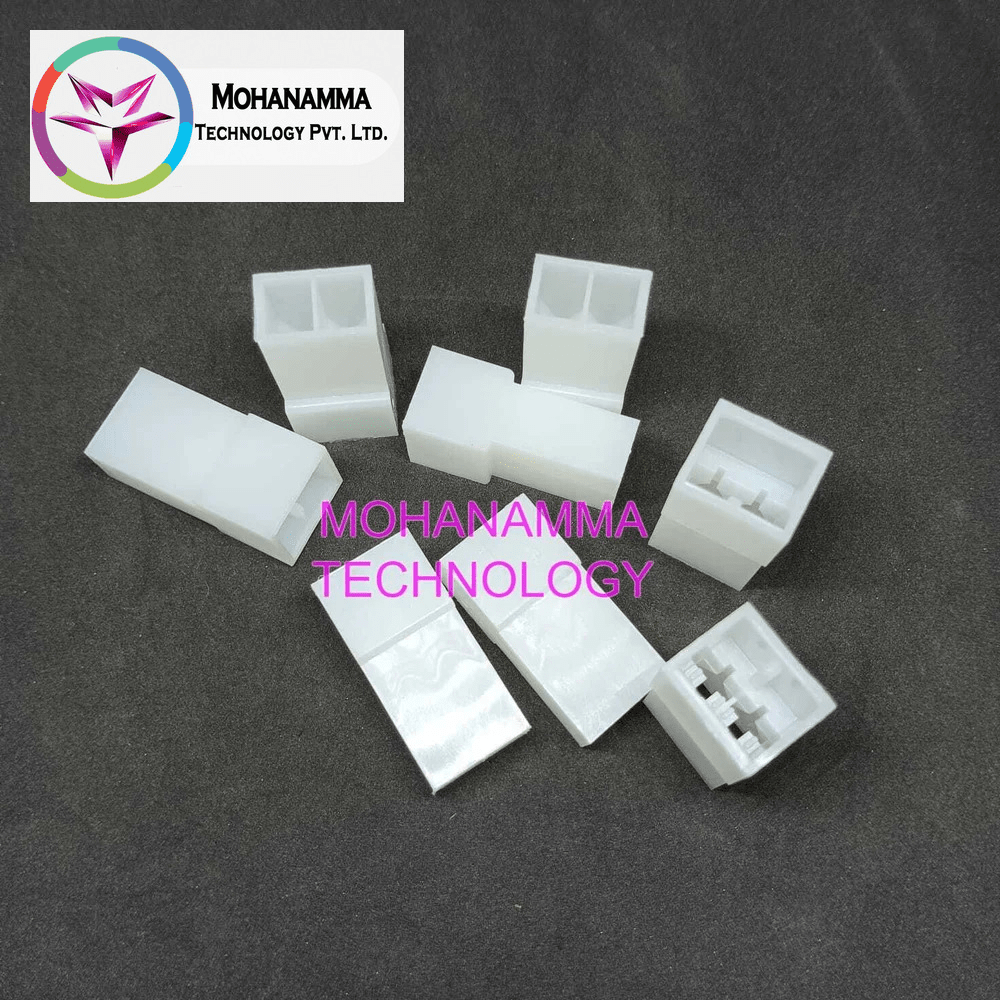

The 180924 is a FASTIN-FASTON Crimp Terminal Housing manufactured by TE Connectivity. It is designed for use with FASTIN-FASTON 250 connectors and has the following specifications:

Number of Positions: 2
Terminal Orientation: Straight
UL Flammability Rating: UL 94V-0
Material: Natural Polyamide
Contact Mating Retention
Compatible Connector Type: Tab Connector
Compatible Connector Part Number: 964586-1

Product Specifications

Brand: TE Connectivity

Model Number: 180924

Availability: In stock

Product SKU:

Minimum order quantity: 1

Maximum order quantity:

Listed date: 10th Feb, 2024

Product Type Features

Connector & Contact Terminates To : Wire & Cable
Sealable : No
Connector & Housing Type : Tab Housing

Configuration Features

Number of Positions : 2

Body Features

Primary Product Color : Natural

Contact Features

Terminal Type : Tab
Terminal Orientation : Straight
Contact Mating Retention : With

Mechanical Attachment

Mating Retention Type : Latch
Mating Alignment : With
Connector Mounting Type : Cable Mount (Free-Hanging)

Housing Features

Housing Material : Polyamide
Centerline (Pitch) : 6.35 mm [ .25 in ]

Dimensions

Product Length : 31.8 mm [ 1.25 in ]

Usage Conditions

Operating Temperature Range : -40 – 105 °C [ -40 – 221 °F ]

Industry Standards

UL Flammability Rating : UL 94V-0

Packaging Features

Packaging Quantity : 3500
Packaging Method : Carton
