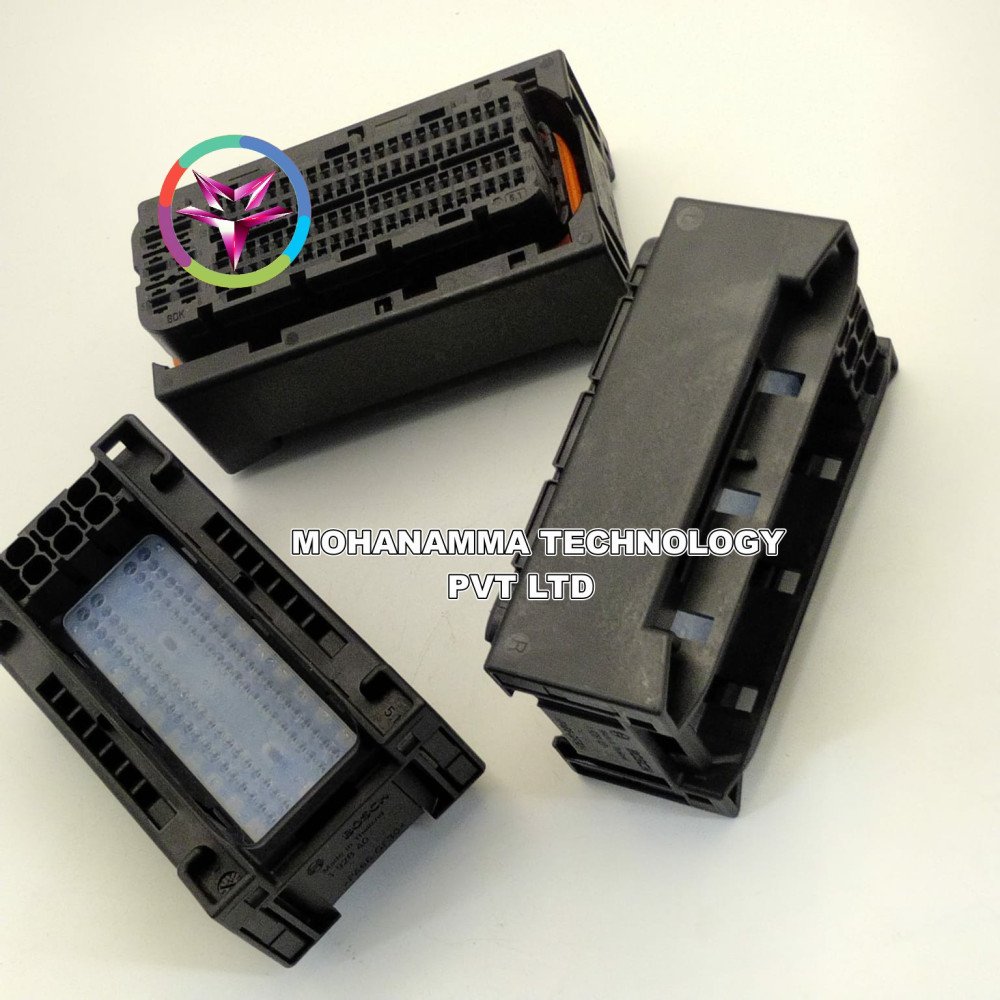

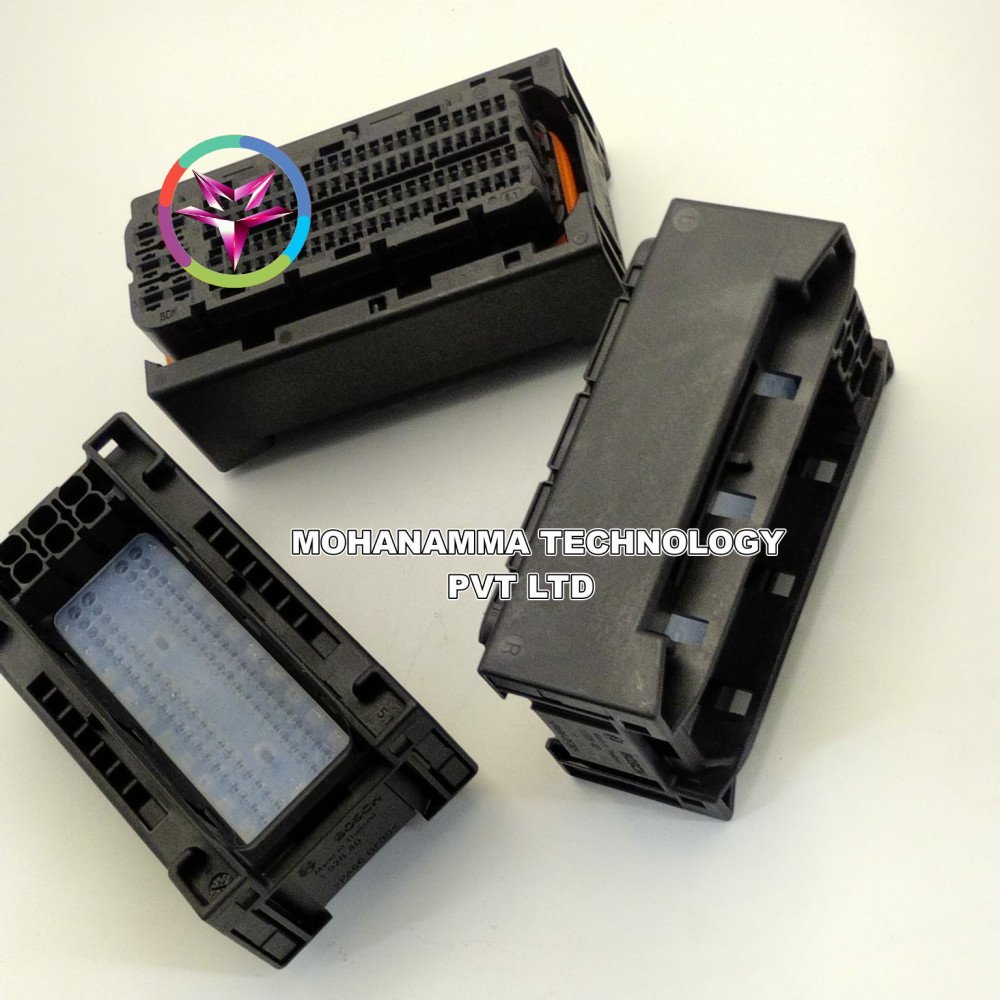

SKU: 1928405063 Bosch Female 154P
Category: Automotive Connectors
Availability: 1000
Tag: 1928405063 , bosch connector , 94-way connector , ems 154p-v , female connector housing , ecu connector , automotive connector , bosch wiring harness , bosch ecu housing , radial seal connector , multi-pin connector , 0.6mm terminal connector , 1.5mm terminal connector , 2.8mm blade connector , pa66 gf connector , sealed automotive connector , bosch engine control connector , oem ecu plug , bosch 154p series
Brand: Bosch
Model Number: 1928405063
Availability: In stock
Product SKU: 1928405063 Bosch Female 154P
Minimum order quantity: 50
Maximum order quantity:
Listed date: 21st Jul, 2025
| Attribute | Details |
|---|---|
| Manufacturer | Bosch |
| Part Number | 1928405063 |
| Series | 154P-V EMS Series (Code C) |
| Connector Type | Female Connector Housing |
| Number of Positions | 94-way |
| Mounting Type | Cable Mount |
| Terminal Types Supported | 0.6 mm, 1.5 mm, and 2.8 mm blade terminals |
| Sealing Type | Radial Seal with Single-Wire and Mat Seals |
| Locking Mechanism | Primary and Secondary Locking (TPA supported) |
| Material | Polyamide PA66 GF30 (Glass-Fiber Reinforced) |
| Flame Rating | UL94 V-0 |
| Operating Temperature | –40 °C to +105 °C |
| Ingress Protection (IP) | IPX9 (with seals and terminals) |
| Color | Black |
| Dimensions (L × W × H) | ~81 mm × 44 mm × 36.4 mm |
| Weight | Approx. 52 grams |
| Packaging | Bulk (Box of 108 pcs) |
| RoHS Compliance | Yes |
| Applications | Automotive ECUs, engine harnesses, powertrain systems, OEM integrations |
