SKU: 1928405453 bosch holding plate
Category: Automotive Connectors
Availability: 1000
Tag: bosch 1928405453 , bosch 1-928-405-453 , ems retaining plate , bosch connector parts , 91 way connector , bosch ems lock plate , automotive connectors , bosch cpc series , 196p ems connector , 85 cavity retainer , connector retainer , terminal locking plate , wire harness components , bosch high pole connectors , black retainer plate , pa66 gf15 material , automotive retainer , ems housing lock , bosch retention component , bosch connector lock , high density connector , 91 pin retainer , flange retainer bosch , bosch socket plate , bosch plastic housing , engine control connector , secure terminal retainer , bosch connector accessory , bosch automotive series , bosch panel mount plate
Brand: Bosch
Model Number: 1928405453
Availability: In stock
Product SKU: 1928405453 bosch holding plate
Minimum order quantity: 50
Maximum order quantity:
Listed date: 19th Jul, 2025
| Attribute | Value |
|---|---|
| Manufacturer | Bosch (Robert Bosch GmbH) |
| Part Number | 1928405453 / 1‑928‑405‑453 |

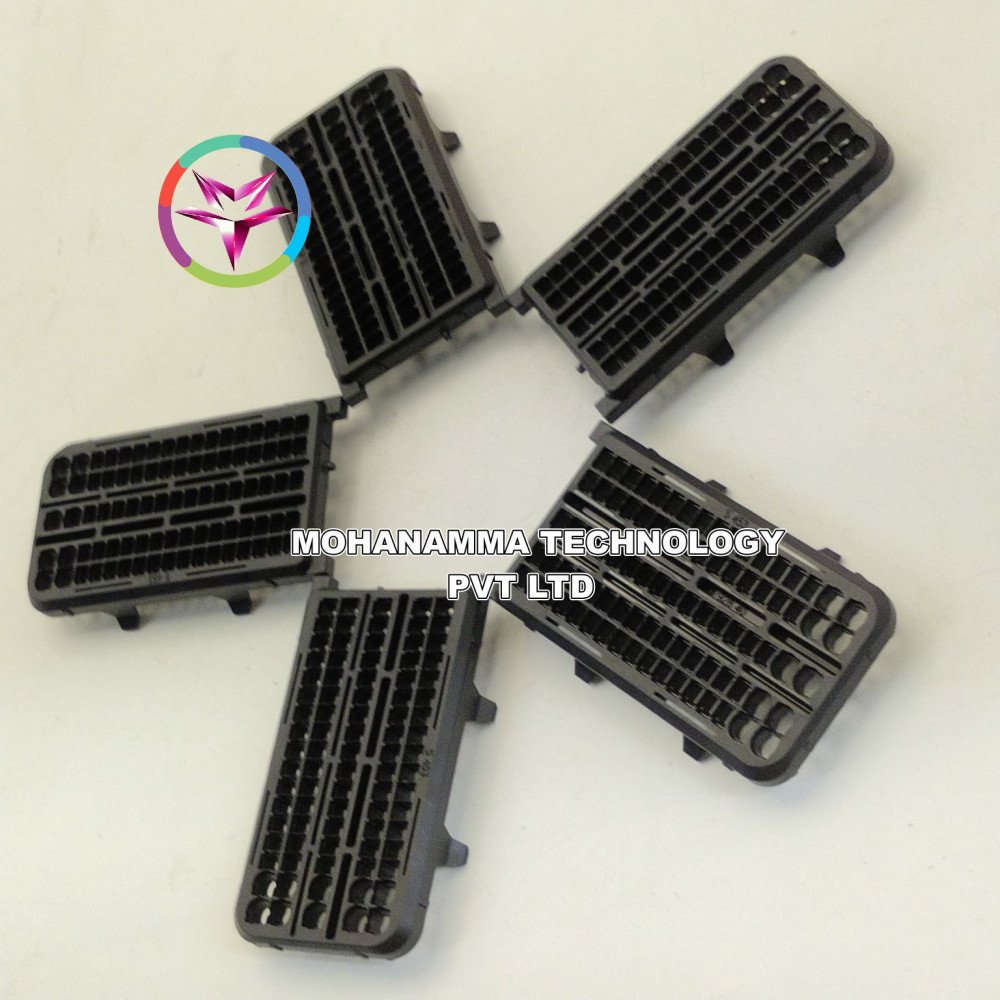

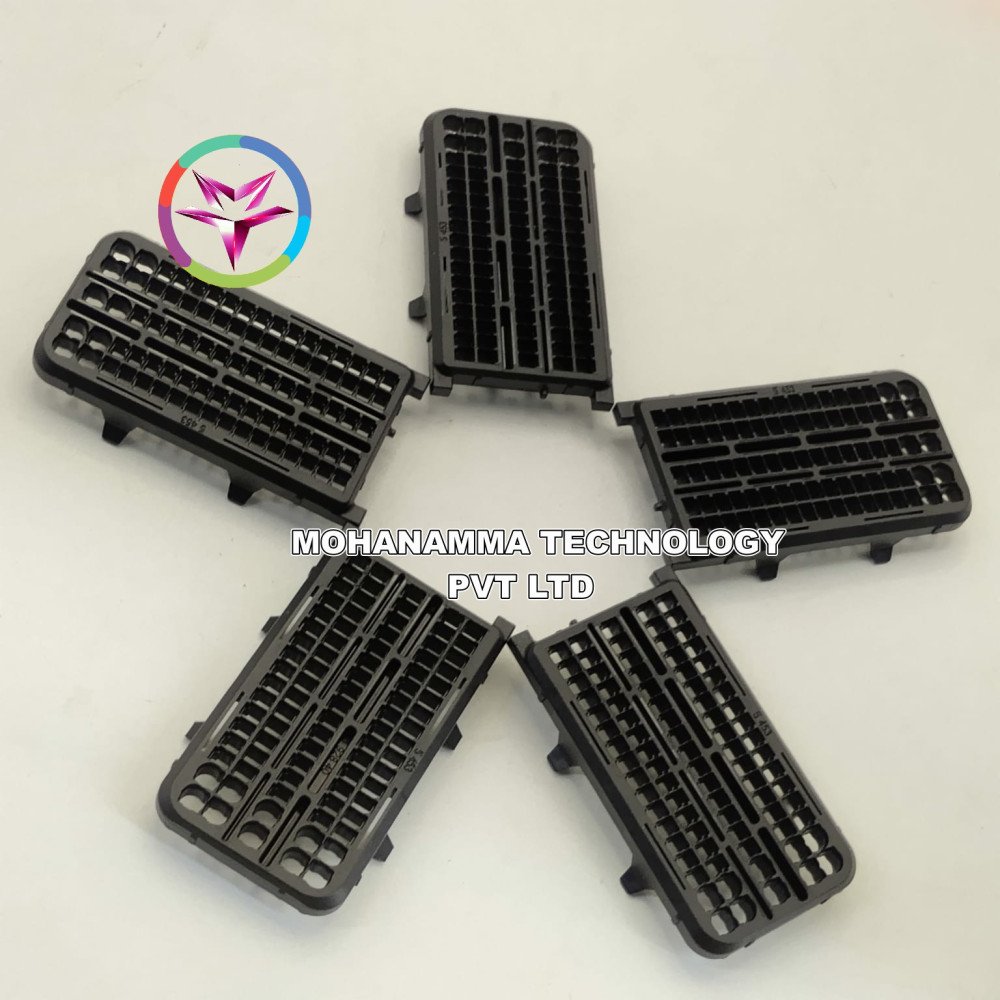

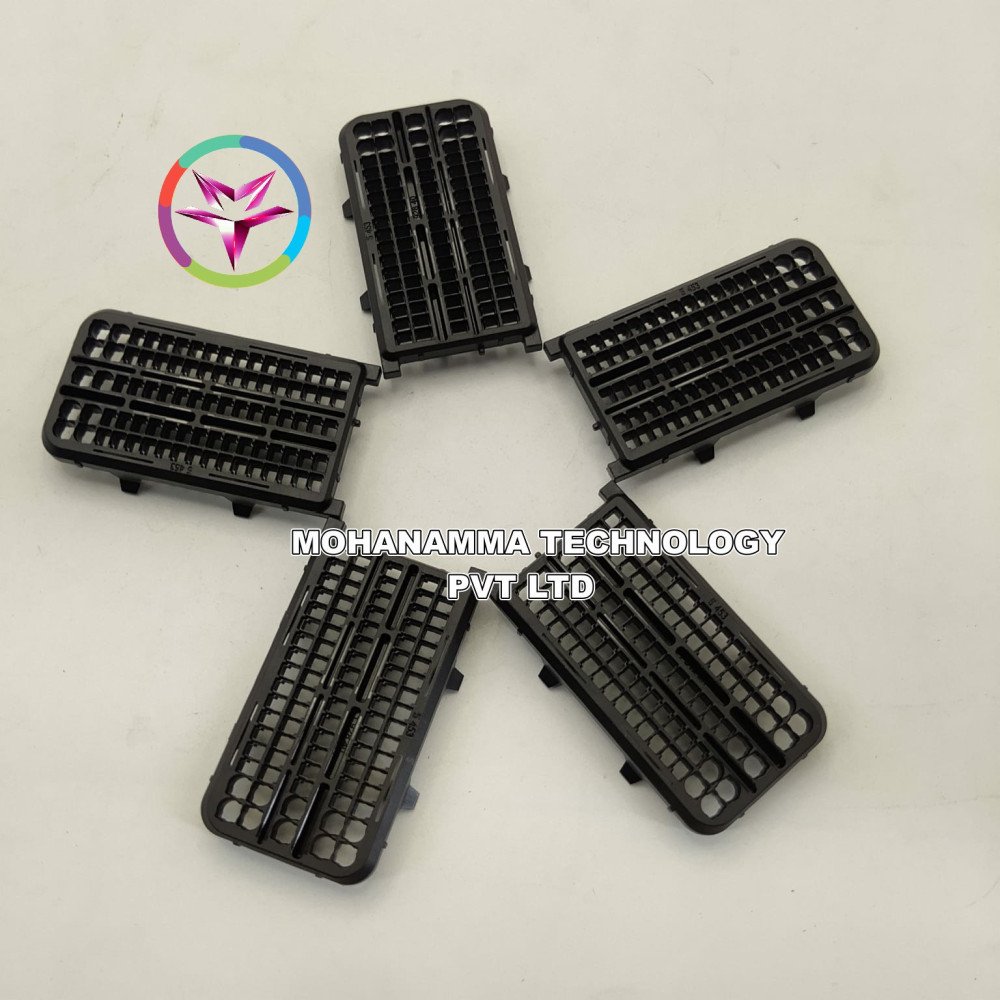

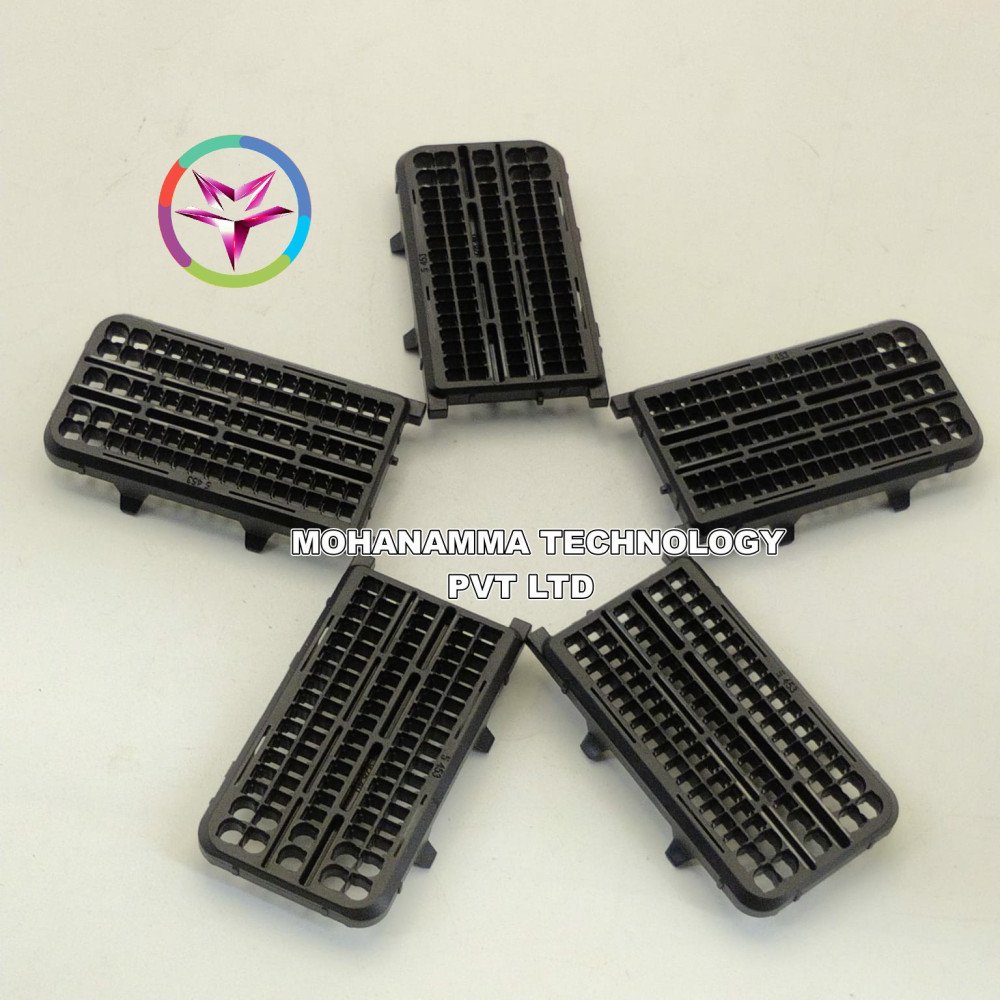

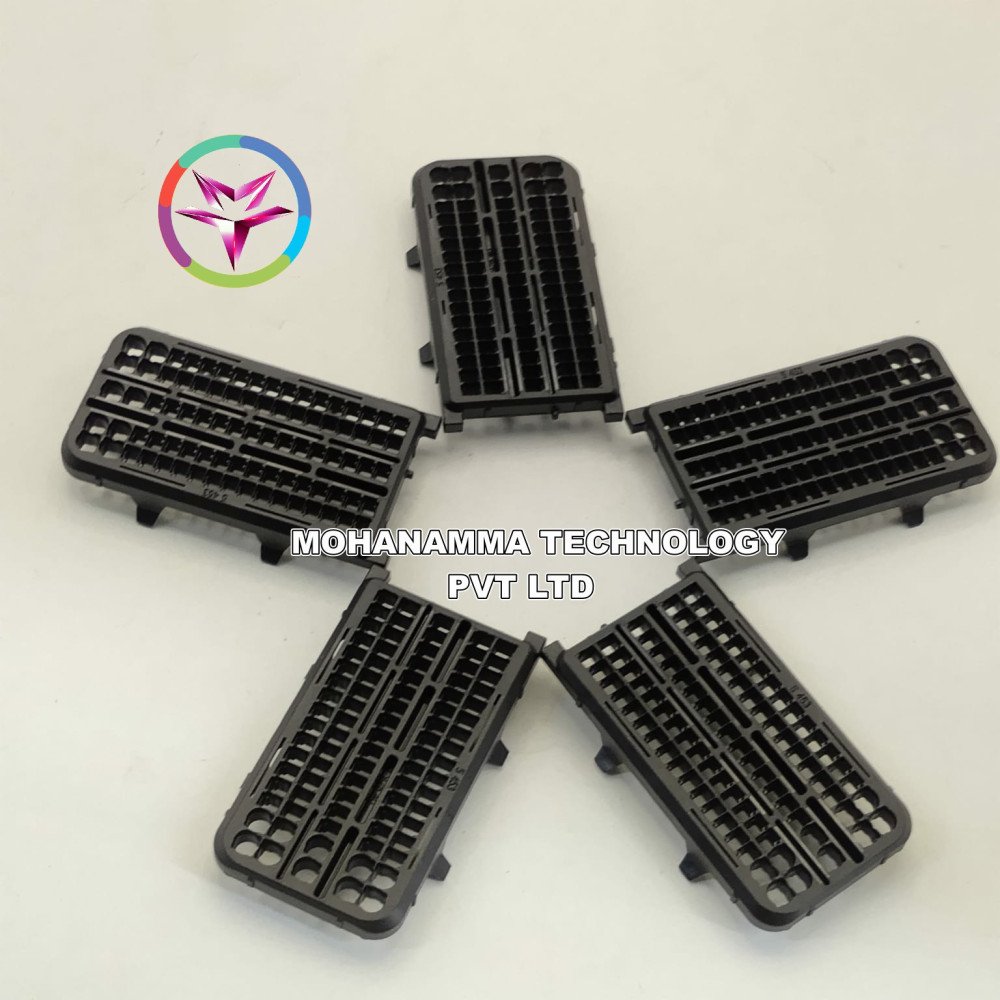

| Product Type | Holding (Retaining) Plate – Wire-to-Device support |
| Connector Series | 196P EMS, 91‑way housing, accommodating 85 terminals |
| Number of Cavities | 85 open cavities |
| Material | PA66 GF15 (Polyamide 66 with 15% glass fiber) |
| Color | Black |
| Dimensions | Length 50.85 mm × Width 30.7 mm × Height 8.15 mm |
| Weight | Approximately 4 g |
| Mounting Style | Snap‑fit retaining plate inserted post-terminal insertion |
| RoHS Compliance | Not compliant (explicitly non-RoHS) |
