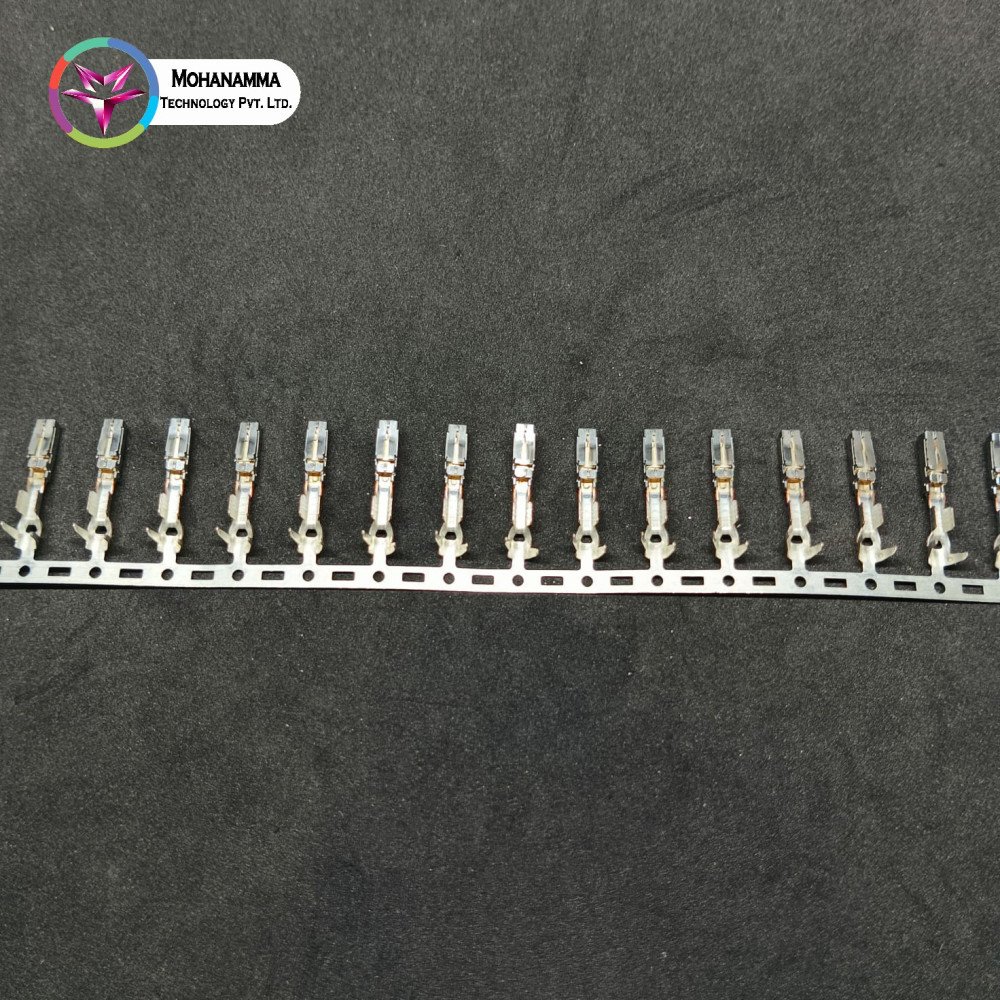

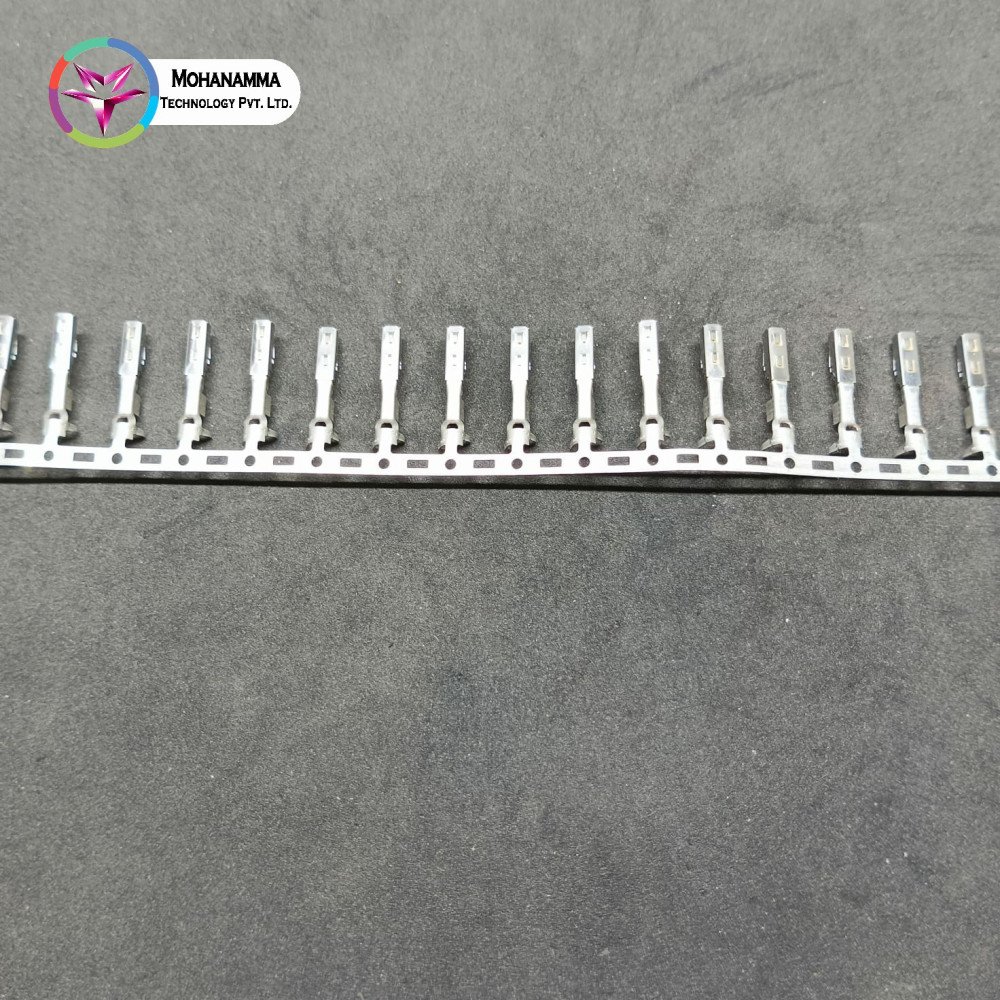

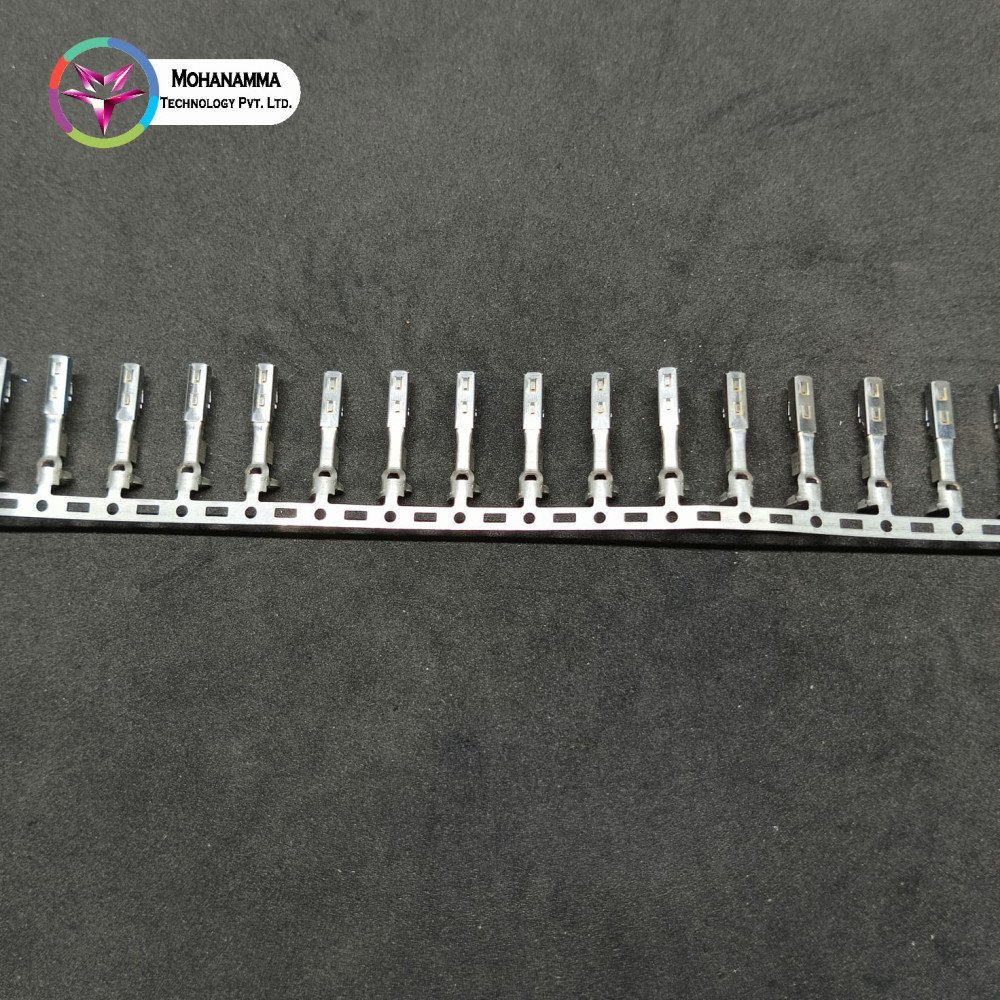

2208360-3 TE Connectivity Automotive terminal

In stock

2208360-3 TE Connectivity Automotive terminal

SKU: -

Category: Automotive Terminals

Availability: Unlimited

0.00/5 (0 Review)

₹ 34.36

Tag: terminal , teconnectivity , mohanammatechnology

Quantity:

Total: ₹ 34.36

Add to wishlist Add To Compare

Share on:

Description

Product Type Features

Sealable : Yes
Primary Locking Feature : Locking Lance
Receptacle Style : 180°

Body Features

Terminal Seal Type : Single Wire Seal (SWS)

Contact Features

Crimp Type : F-Crimp
Typical Current Rating (A): 20
Wire Contact Termination Area Plating Material : Silver
Contact Fabrication : Stamped & Formed
Contact Size : 1.2mm
Terminal Type : Receptacle
Mating Tab Width : 1.2 mm [ .047 in ]
Mating Tab Thickness : .6 mm [ .023 in ]
Interface Plating : Silver (Ag)

Termination Features

Termination Method to Wire & Cable : Crimp
Product Terminates To : Wire

Dimensions

Compatible Insulation Diameter Range : 2.7 mm [ .106 in ]
Wire Size (AWG): 18 – 17
Wire Size (mm²): .75 – 1
Wire Size Search (mm²): .75, 1
Wire Size Search (AWG): 17, 18

Usage Conditions

Insulation Option : Uninsulated
Operating Temperature (Max) (°C): 80, 85, 90, 100, 105, 110, 120, 125, 130, 140, 145, 150
Operating Temperature (Max) (°F): 176, 185, 194, 212, 221, 230, 248, 257, 266, 284, 293, 302
Operating Temperature Range : -40 – 150 °C [ -40 – 302 °F ]

Operation/Application

Compatible With Wire Base Material : Copper

Packaging Features

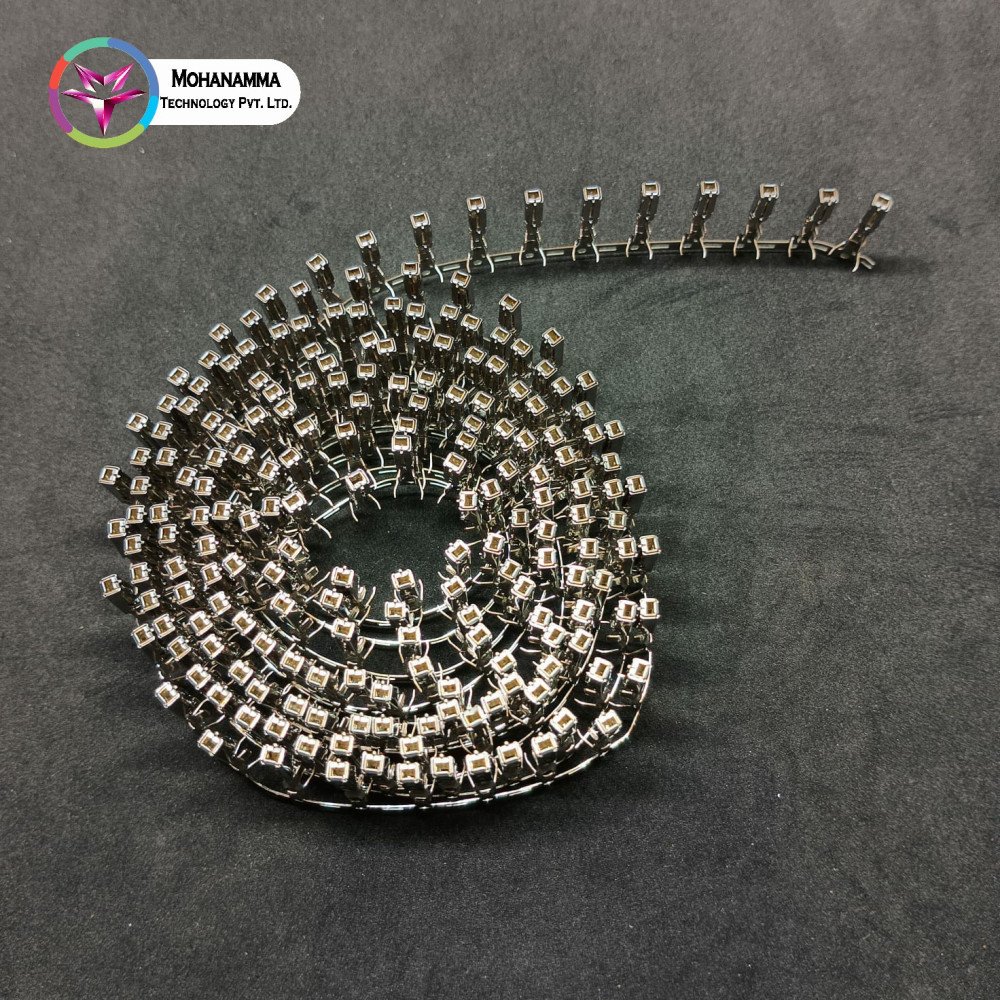

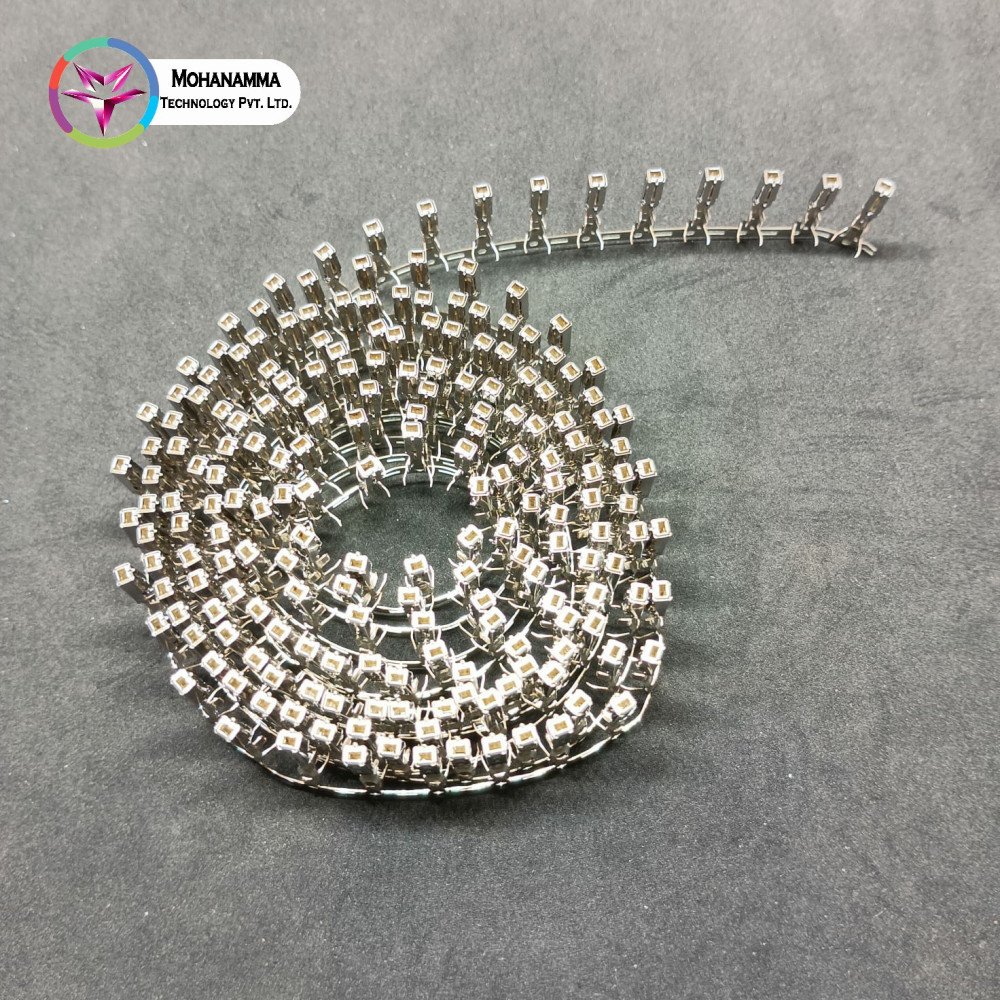

Packaging Method : Reel
Packaging Quantity : 5000

Other

Terminal Transmits : 0 – 24 A (Low Power)
Customer Preferred Contact : No

Product Specifications

Brand: TE Connectivity

Model Number: 2208360-3

Availability: In stock

Product SKU:

Minimum order quantity: 1

Maximum order quantity:

Listed date: 28th Feb, 2024

Product Type Features

Sealable : Yes
Primary Locking Feature : Locking Lance
Receptacle Style : 180°

Body Features

Terminal Seal Type : Single Wire Seal (SWS)

Contact Features

Crimp Type : F-Crimp
Typical Current Rating (A): 20
Wire Contact Termination Area Plating Material : Silver
Contact Fabrication : Stamped & Formed
Contact Size : 1.2mm
Terminal Type : Receptacle
Mating Tab Width : 1.2 mm [ .047 in ]
Mating Tab Thickness : .6 mm [ .023 in ]
Interface Plating : Silver (Ag)

Termination Features

Termination Method to Wire & Cable : Crimp
Product Terminates To : Wire

Dimensions

Compatible Insulation Diameter Range : 2.7 mm [ .106 in ]
Wire Size (AWG): 18 – 17
Wire Size (mm²): .75 – 1
Wire Size Search (mm²): .75, 1
Wire Size Search (AWG): 17, 18

Usage Conditions

Insulation Option : Uninsulated
Operating Temperature (Max) (°C): 80, 85, 90, 100, 105, 110, 120, 125, 130, 140, 145, 150
Operating Temperature (Max) (°F): 176, 185, 194, 212, 221, 230, 248, 257, 266, 284, 293, 302
Operating Temperature Range : -40 – 150 °C [ -40 – 302 °F ]

Operation/Application

Compatible With Wire Base Material : Copper

Packaging Features

Packaging Method : Reel
Packaging Quantity : 5000

Other

Terminal Transmits : 0 – 24 A (Low Power)
Customer Preferred Contact : No
