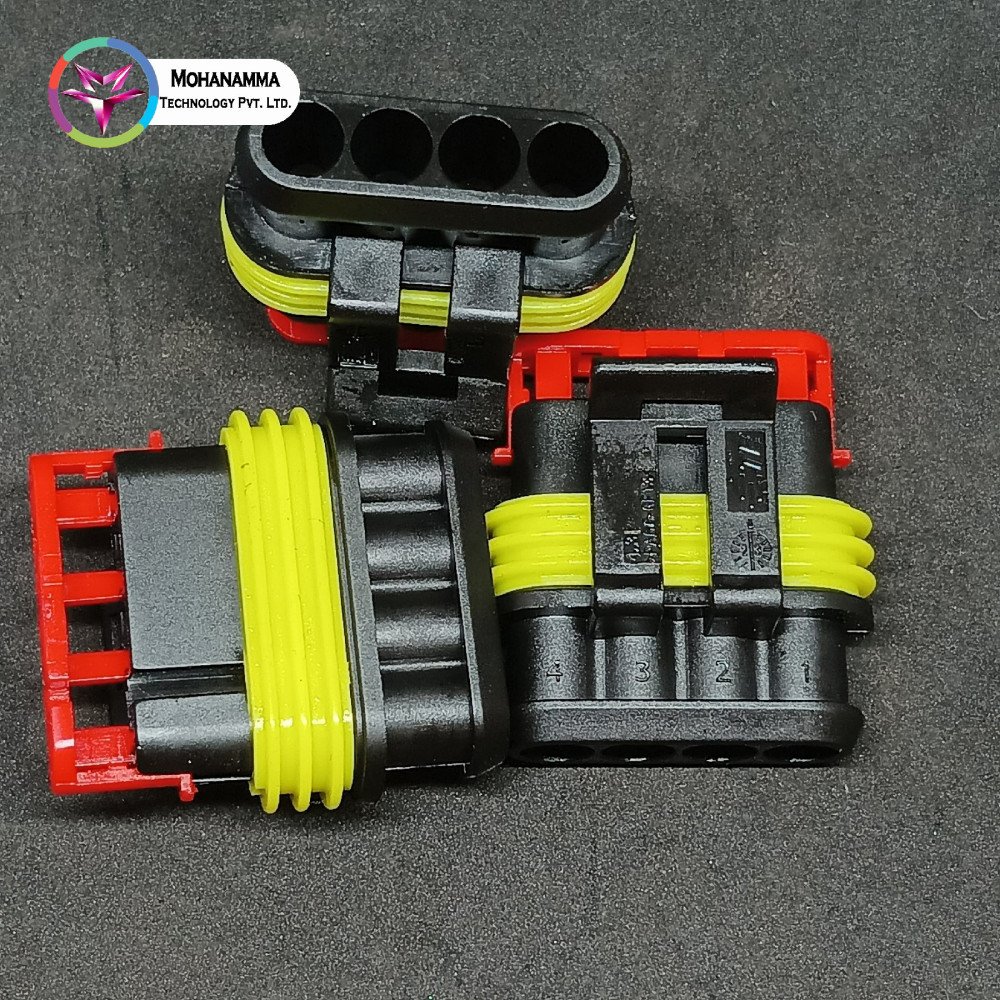

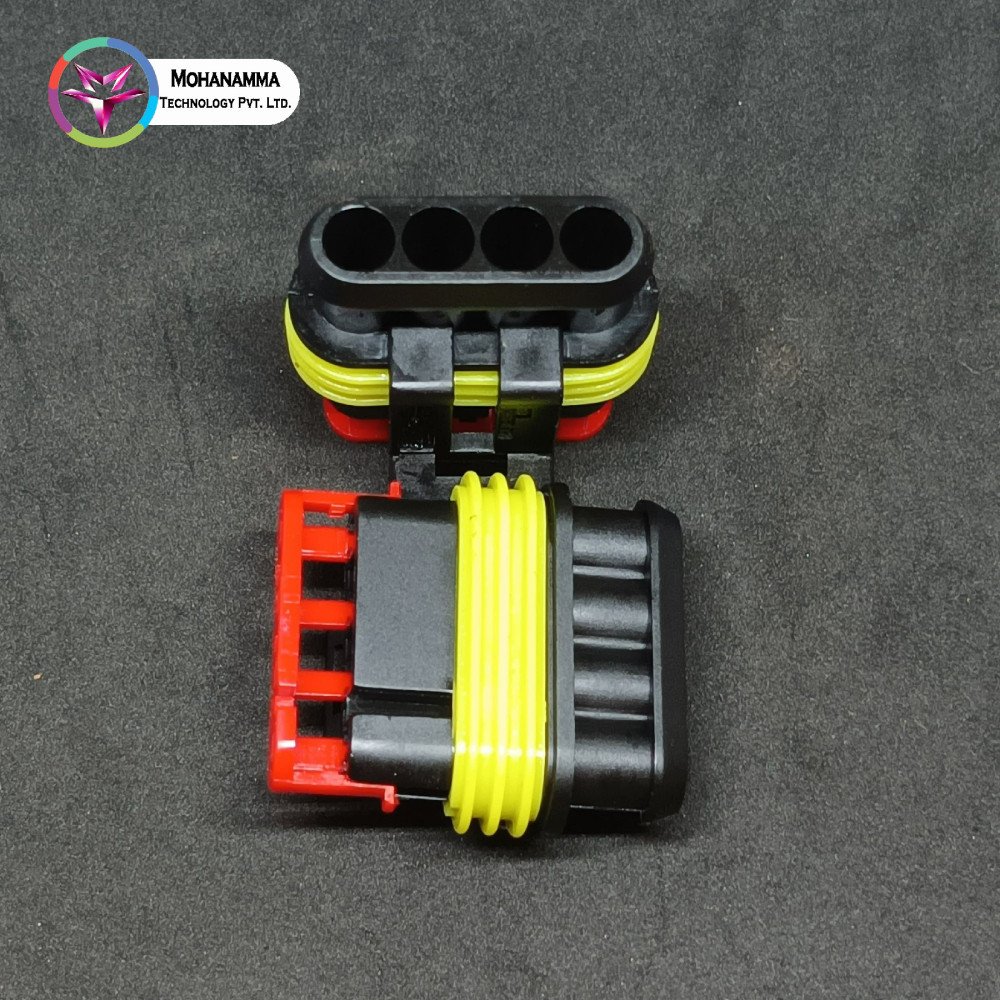

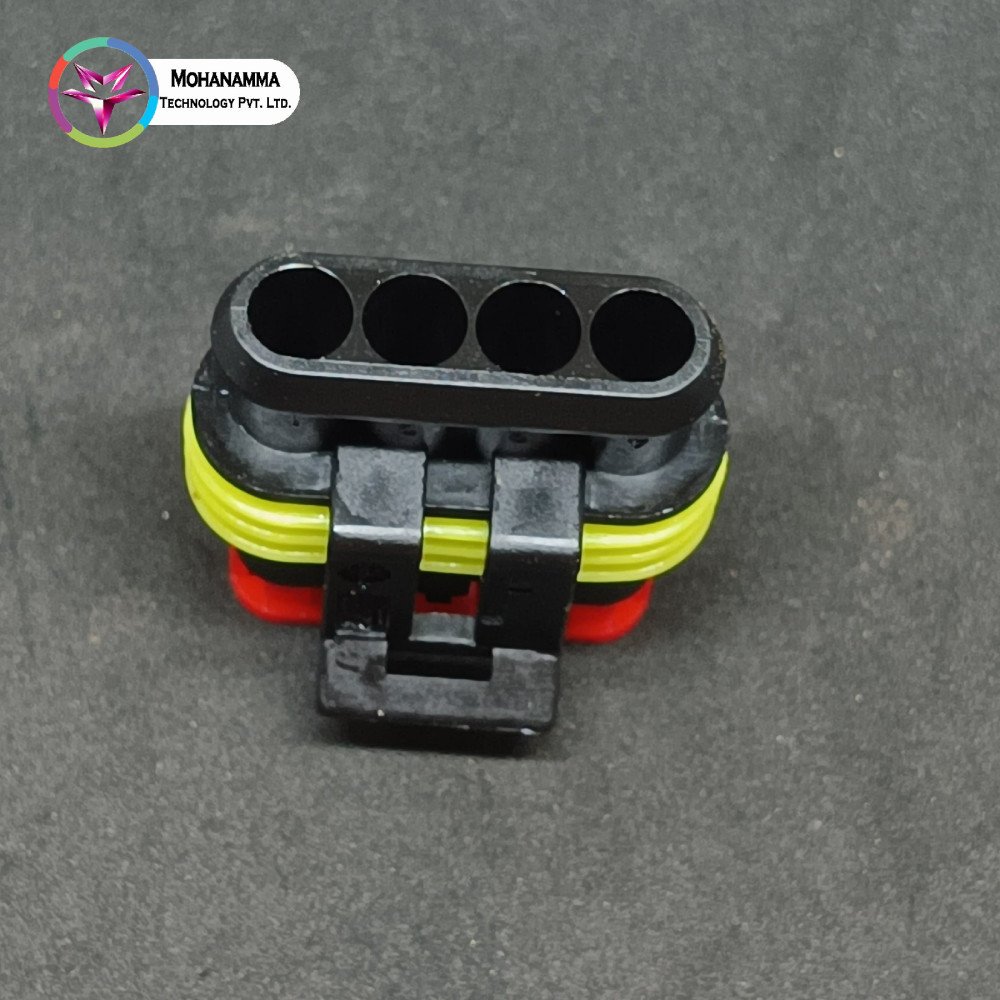

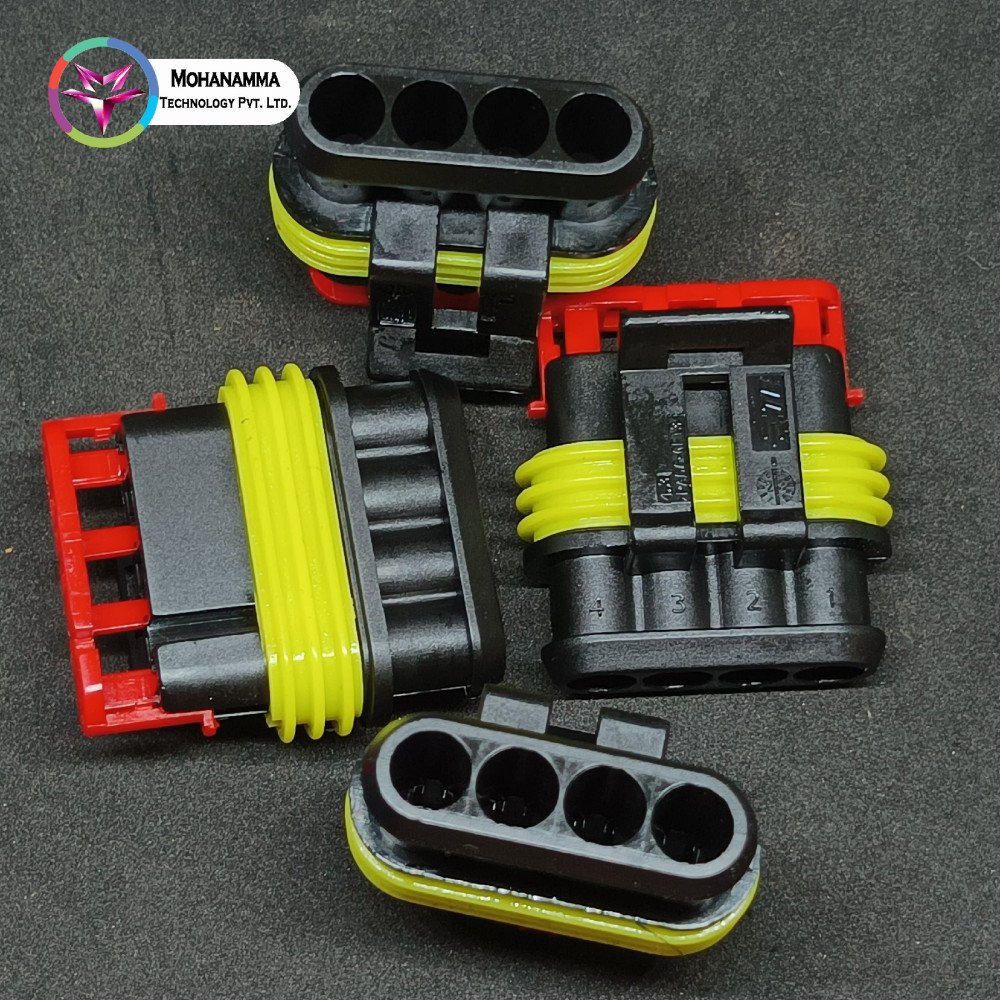

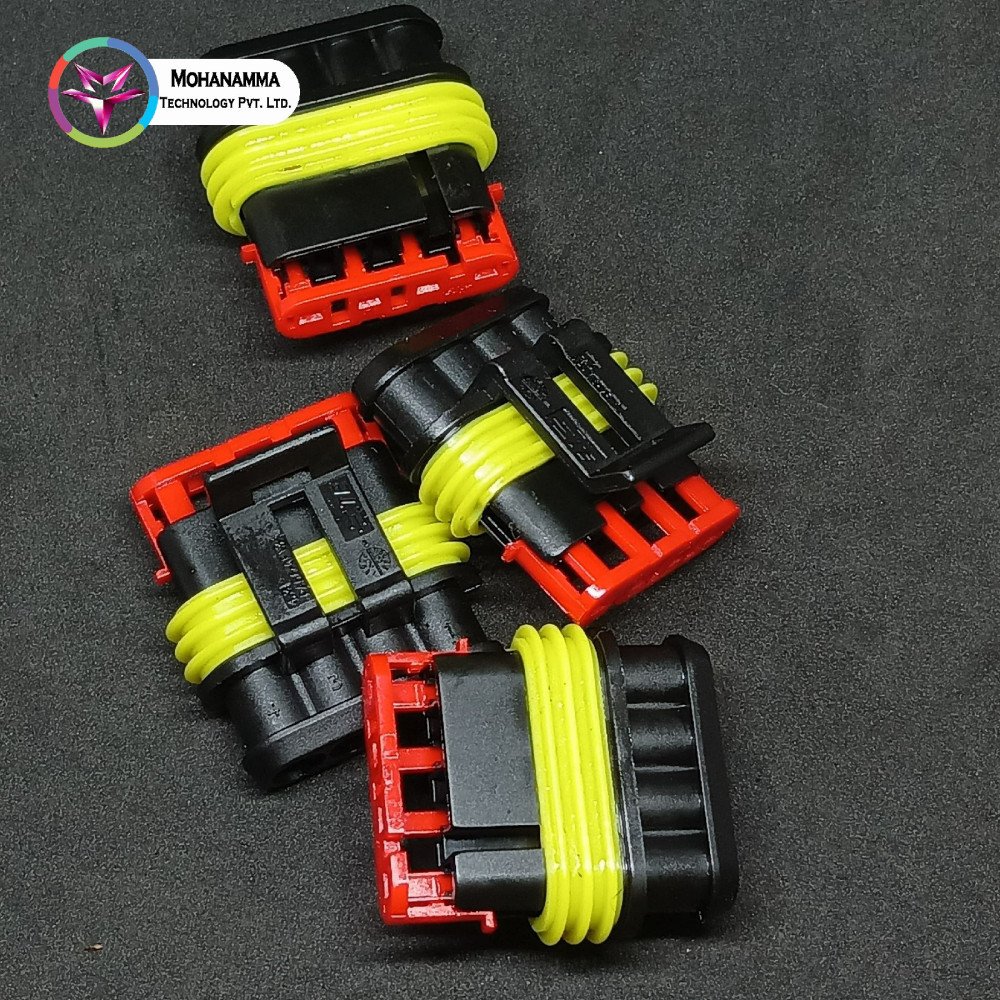

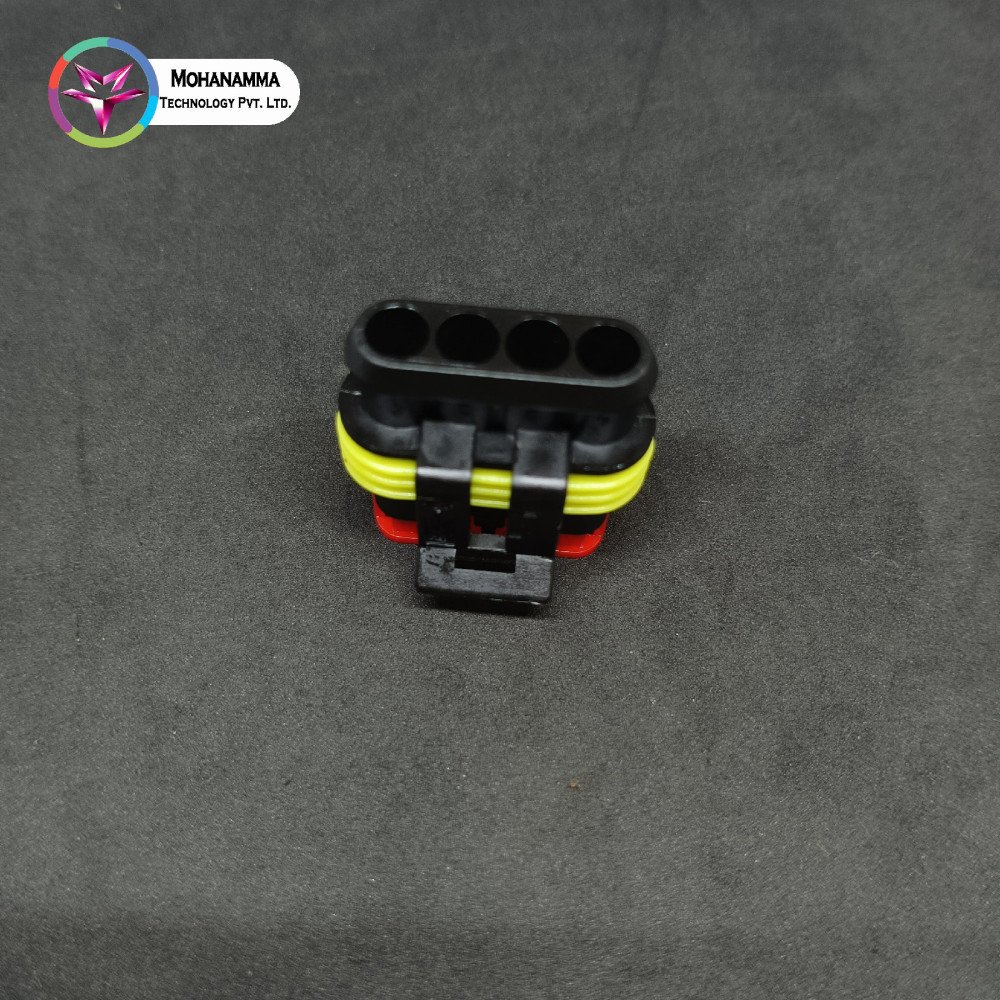

282103-1 TE connector Male Connector

SKU: -

Category: Automotive Connectors

Availability: Unlimited

0.00/5 (0 Review)

₹ 78.85

Tag: te , connector , 282103-1 , mohanammatechnology

Quantity:

Total: ₹ 78.85

Add to wishlist Add To Compare

Share on:

Description

Housing for Male Terminals, Wire-to-Board / Wire-to-Device / Wire-to-Wire, 1 Position, Sealable, Black, Wire & Cable, AMP Superseal 1.5mm Series

Product Specifications

Brand: TE Connectivity

Model Number: 282103-1

Availability: In stock

Product SKU:

Minimum order quantity: 1

Maximum order quantity:

Listed date: 1st Mar, 2024

Product Type Features

Connector Shape : Circular
Connector System : Wire-to-Board, Wire-to-Device, Wire-to-Wire
Connector & Housing Type : Housing for Male Terminals
Sealable : Yes
Connector & Contact Terminates To : Wire & Cable
Primary Locking Feature : Integrated in Housing
Mixed & Hybrid Connector : No

Configuration Features

Number of Positions : 1
Number of Rows : 1

Electrical Characteristics

Operating Voltage (VDC): 24
Nominal Voltage Architecture (V): 12, 24

Body Features

Cable Exit Angle : 180°
Primary Product Color : Black
Connector & Keying Code : Neutral

Contact Features

Contact Type : Tab
Contact Size : 1.5mm
Contact Current Rating (Max) (A): 14

Mechanical Attachment

Mating Alignment : With
Mating Alignment Type : Polarizing Rib
Strain Relief : Without
Connector Mounting Type : Cable Mount (Free-Hanging)
Terminal Position Assurance : Yes

Housing Features

Housing Material : PA GF

Dimensions

Product Length : 13.6 mm [ .535 in ]
Product Width : 9.3 mm [ .366 in ]
Connector Height : 42 mm [ 1.654 in ]

Usage Conditions

Operating Temperature (Max) (°C): 70, 75, 80, 85, 90, 100, 105, 110, 120, 125
Operating Temperature (Max) (°F): 158, 167, 176, 185, 194, 212, 221, 230, 248, 257
Operating Temperature Range : -40 – 125 °C [ -40 – 257 °F ]

Operation/Application

Circuit Application : Signal

Industry Standards

Degree of Protection : IP67

Packaging Features

Packaging Method : Box
Packaging Quantity : 2200

Other

Connector Position Assurance Capable : No
Serviceable : Yes
