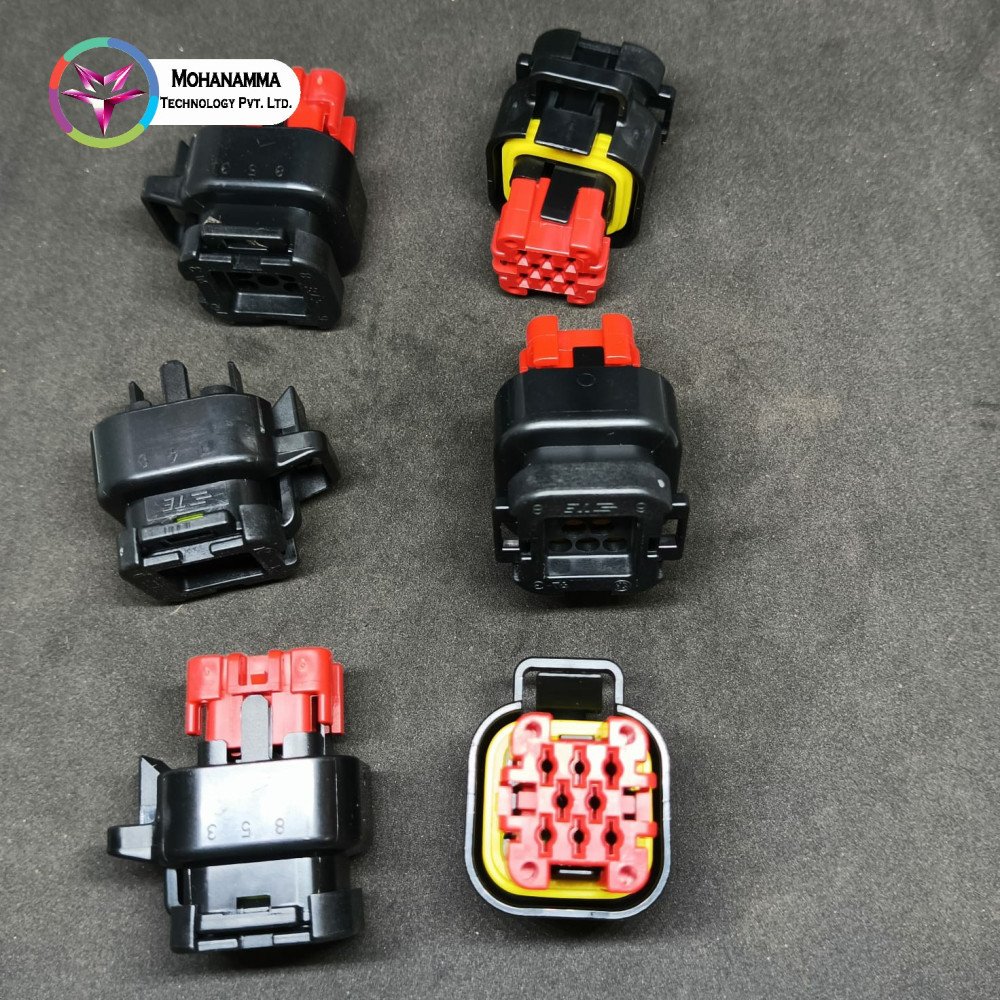

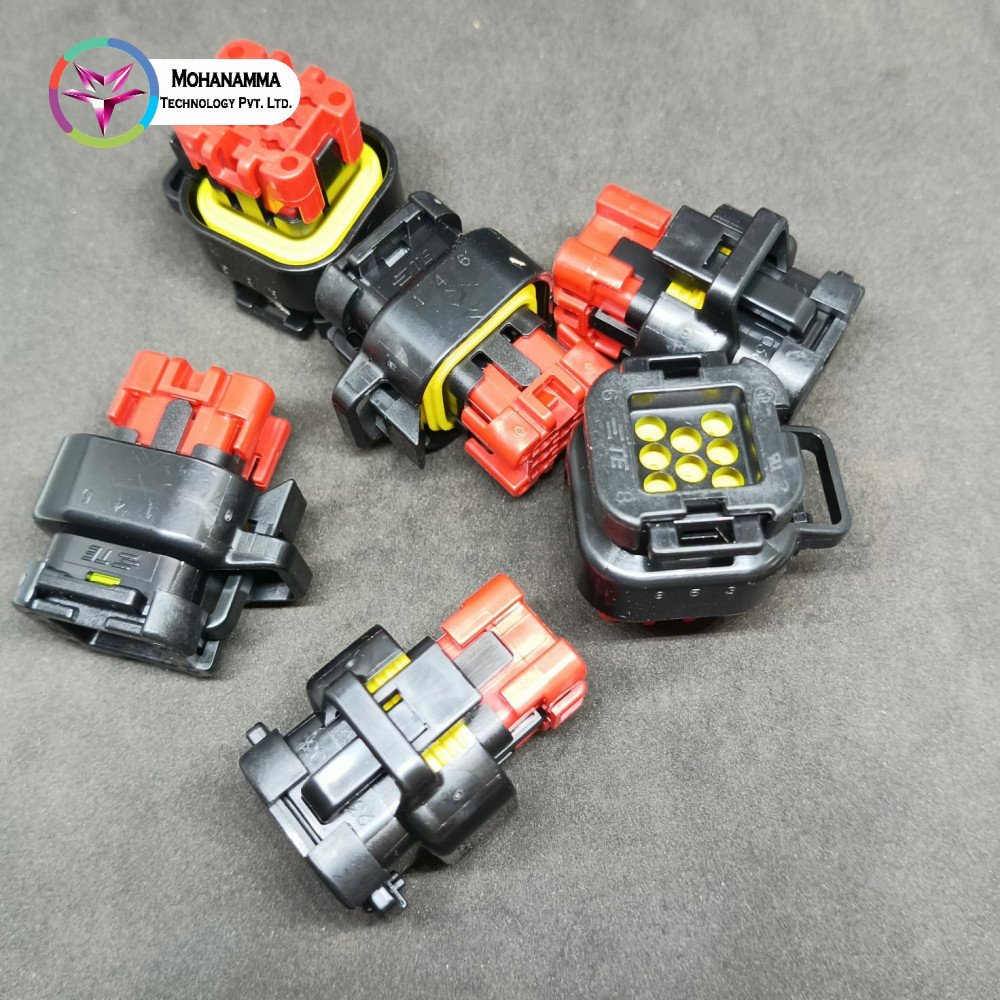

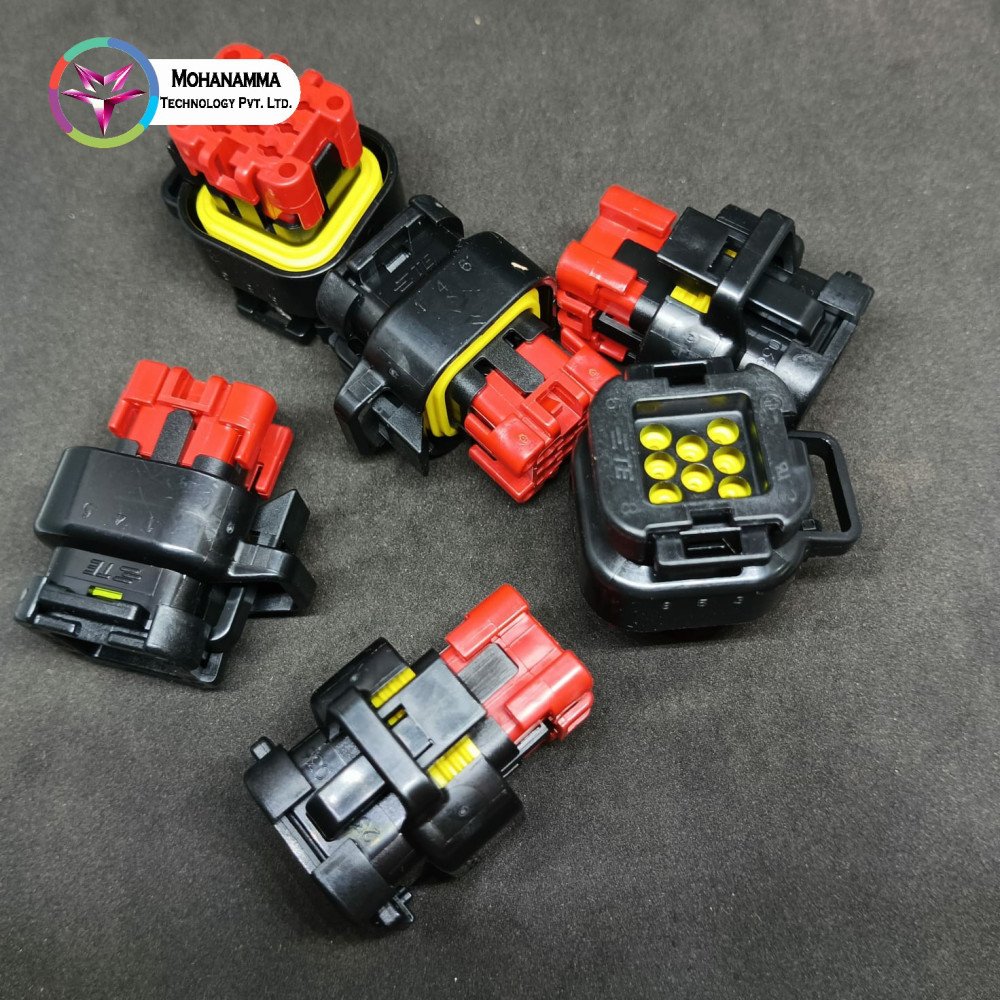

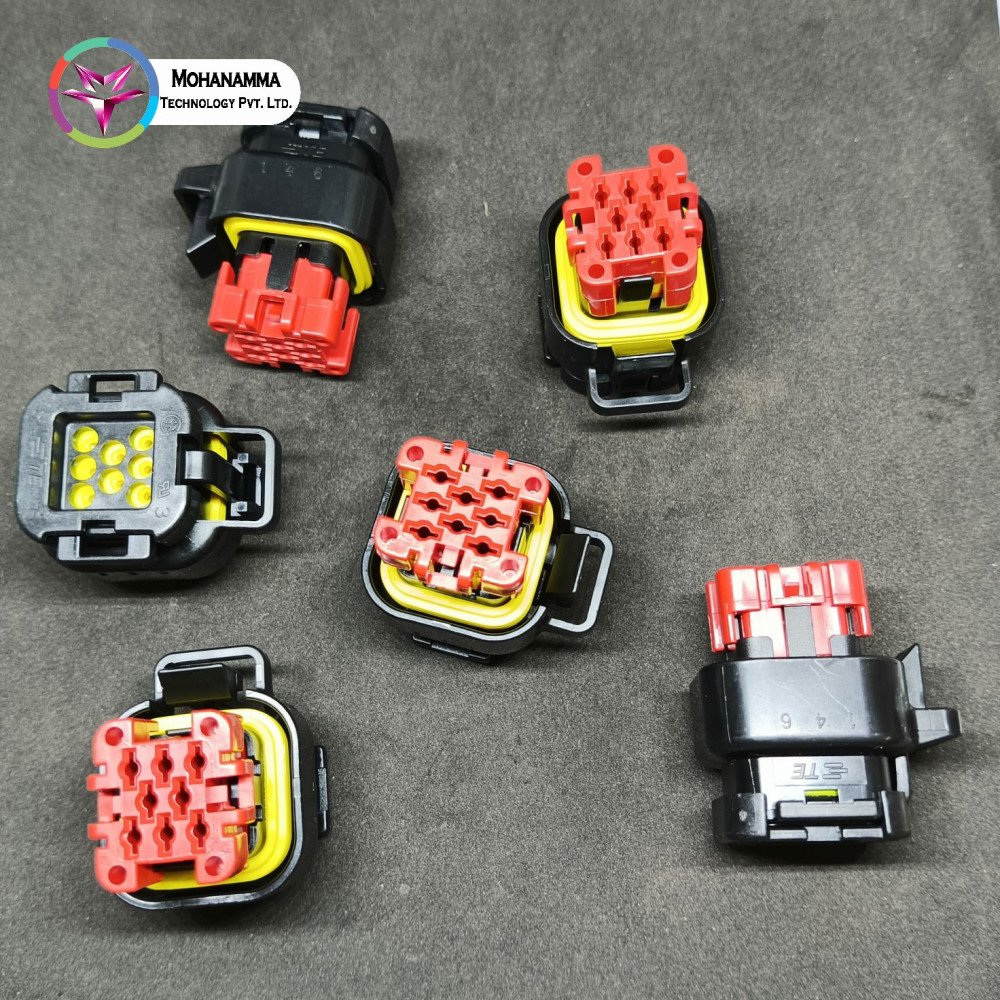

776286-1 TE-Connectivity 8Pole Ampseal

SKU: -

Category: Automotive Connectors

Availability: Unlimited

0.00/5 (0 Review)

₹ 424.11

Tag: mohanammatechnology , te-connectivity , 776286-1

Quantity:
Total: ₹ 424.11
Add to wishlist Add To Compare
Share on:

Description

Product Type Features
  • Connector Shape : Rectangular
  • Connector System : Wire-to-Board
  • Connector & Housing Type : Housing for Female Terminals
  • Sealable : Yes
  • Connector & Contact Terminates To : Wire & Cable
  • Primary Locking Feature : Integrated in Housing
  • Mixed & Hybrid Connector : No
Configuration Features
  • Number of Positions : 8
  • Number of Rows : 3
Electrical Characteristics
  • Operating Voltage (VAC): 250
  • Nominal Voltage Architecture (V): 250
Body Features
  • Cable Exit Angle : 180°
  • Primary Product Color : Black
  • Connector & Keying Code : 1
Contact Features
  • Contact Type : Socket
  • Contact Size : 1.3mm
  • Mating Pin Diameter : 1.3 mm [ .051 in ]
  • Contact Current Rating (Max) (A): 17
Mechanical Attachment
  • Mating Alignment : With
  • Mating Alignment Type : Keyed
  • Strain Relief : Add By Accessory
  • Connector Mounting Type : Cable Mount (Free-Hanging)
  • Terminal Position Assurance : Yes
Housing Features
  • Housing Material : PBT GF
  • Centerline (Pitch) : 4 mm [ .157 in ]
Dimensions
  • Row-to-Row Spacing : 4 mm [ .157 in ]
  • Product Length : 27.4 mm [ 1.079 in ]
  • Product Width : 33.6 mm [ 1.323 in ]
  • Connector Height : 34.6 mm [ 1.362 in ]
Usage Conditions
  • Operating Temperature (Max) : 125 °C [ 257 °F ]
  • Operating Temperature Range : -40 – 125 °C [ -40 – 257 °F ]
Operation/Application
  • Circuit Application : Power & Signal
Industry Standards
  • UL Flammability Rating : UL 94V-0
  • Degree of Protection : IP67, IP69K
Packaging Features
  • Packaging Method : Box & Tray
  • Packaging Quantity : 280
Other
  • Connector Position Assurance Capable : Yes
  • Serviceable : Yes

Product Specifications

Brand:

Model Number:

Availability: In stock

Product SKU:

Minimum order quantity: 1

Maximum order quantity:

Listed date: 27th Feb, 2024

  • Black
  • Female
  • PBT GF
  • Connector
  • TE Connectivity
  • Automotive
