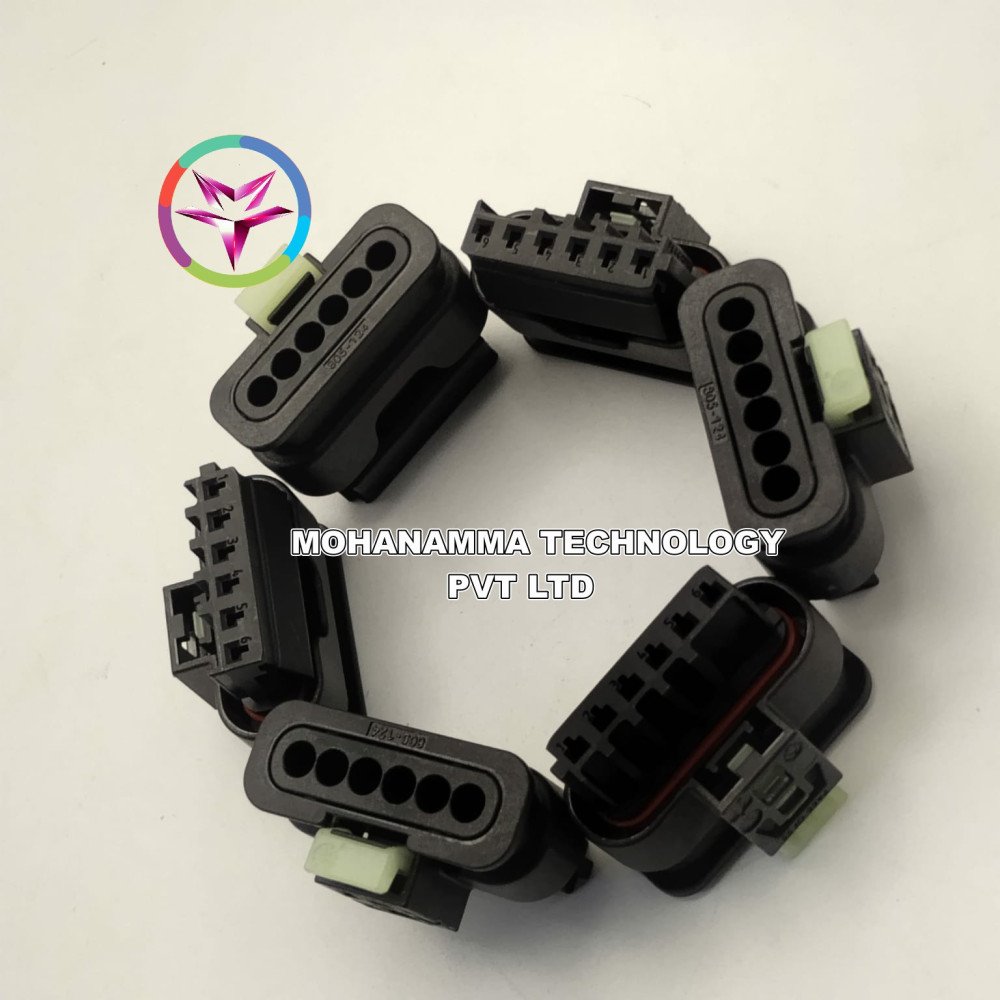

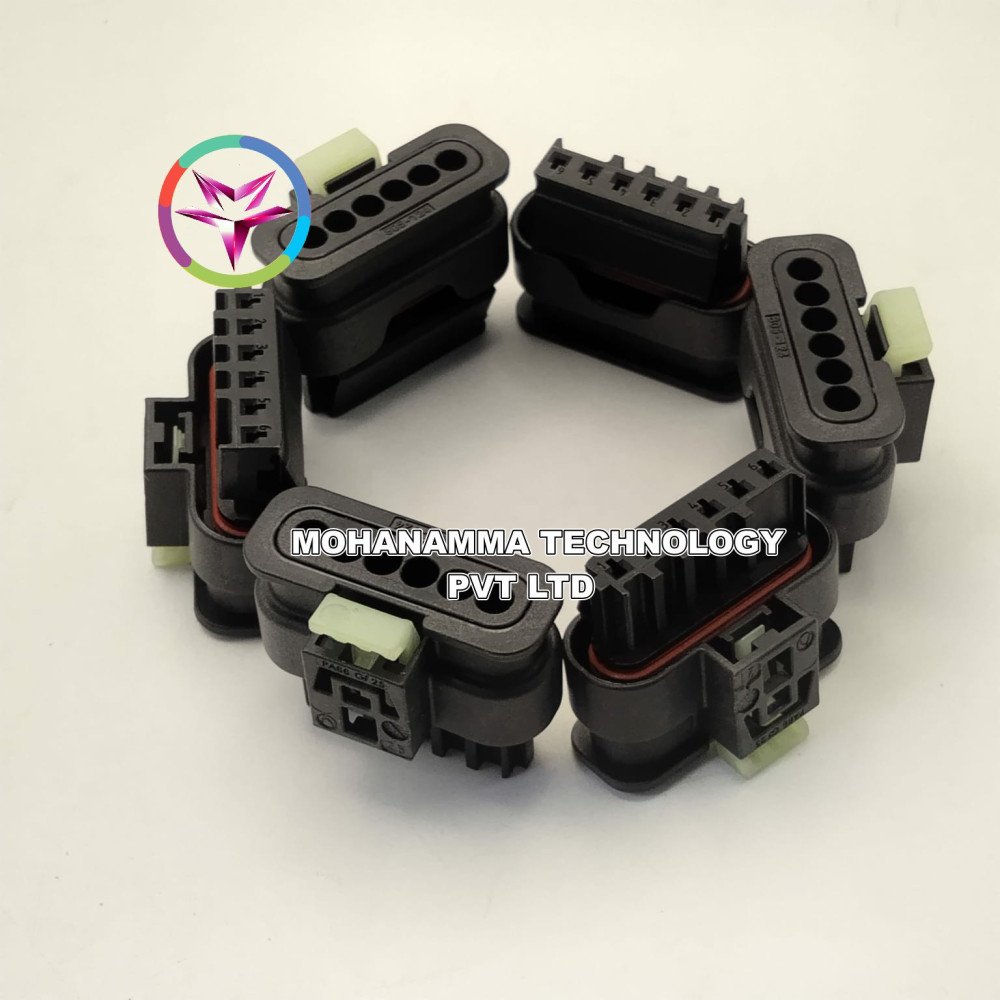

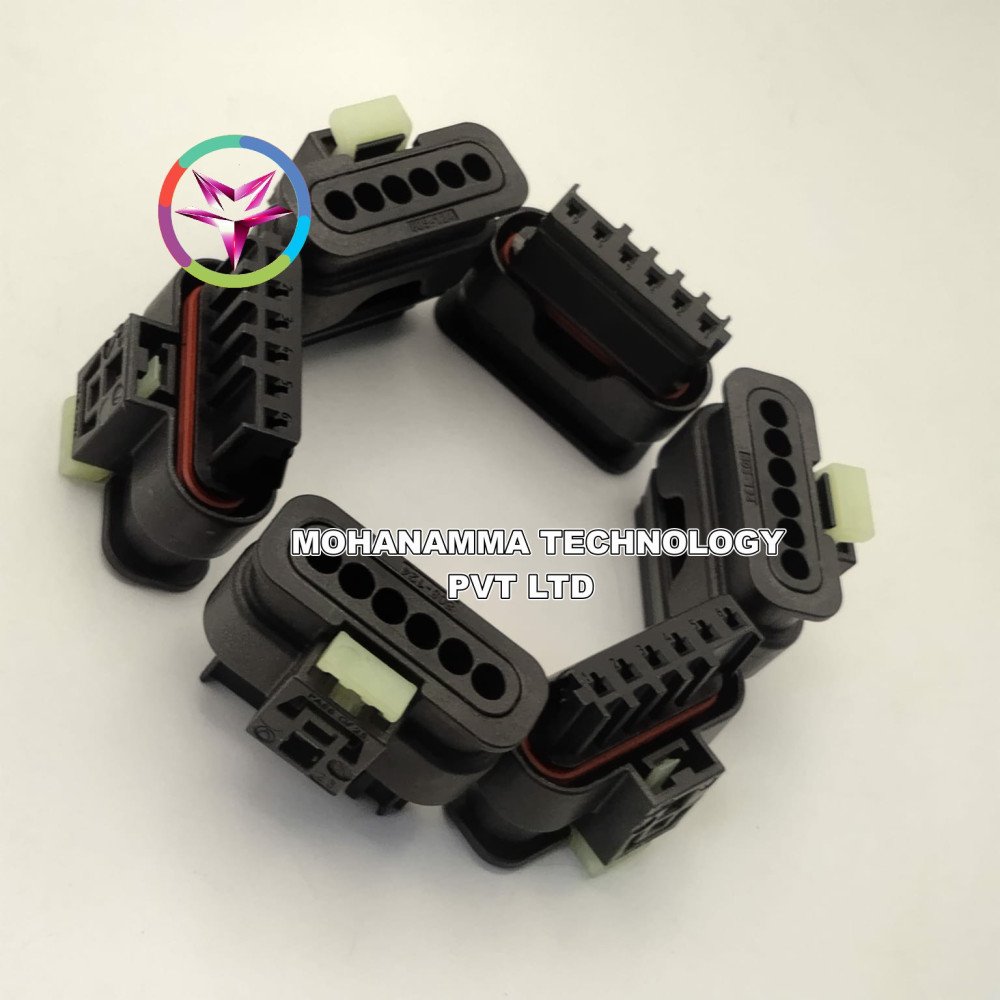

SKU: 805-124-561. 6way 1.2 SealStar FA Connector
Category: Automotive Connectors
Availability: 1000
Tag: 805-124-561 , sealstar fa connector , 6-way connector , aptiv connector , delphi automotive connector , 1.2 mm terminal housing , sealed female connector , automotive connector housing , weatherproof connector , compact 6-pin connector , wire-to-wire connector , aptiv 805 series , vehicle harness connector , moisture-resistant connector , lighting system connector , body electronics connector , 1.2 sealstar fa housing.805-124-561 , 1.2 sealstar fa housing.
Brand: HIRSCHMAN AUTOMOTIVE
Model Number: 805-124-561
Availability: In stock
Product SKU: 805-124-561. 6way 1.2 SealStar FA Connector
Minimum order quantity: 50
Maximum order quantity:
Listed date: 24th Jul, 2025
| Contact Carrier Color | black |
|---|---|
| Connector Type | Housing for female terminals |
| Connector Position Assurance | with CPA |
| Contact Carrier Material | PA66 GF25 |
| IP-Code | IPX8, IPX9K |
| LV214 | TK4/SG4 |
| Max. Mating/Unmating Force | ≤ 80 N |
| Number of Terminal Rows | 1 row |
| Number of Pins | 6way |
| Center Line of Terminals | 4.0 mm² |
| Sealed Application | sealed |
| Compatible Terminal System | Kostal MLK 1.2-Sm: DOC00072546, Kostal MLK 1.2-Sm: DOC00079128, TE MCON 1.2 LL: C-1452674 |
| Terminal Blade Size | 1.2 mm |
| Type of Compatible Terminal | Locking Lance (LL) |
| Terminal Position Assurance | with TPA Latch |
| USCAR2 | T3/V2/S2 V S3 |
| Voltage Class | ≤ 60 V |
| Wire Size Range | max. 1.0 mm² |
