In stock

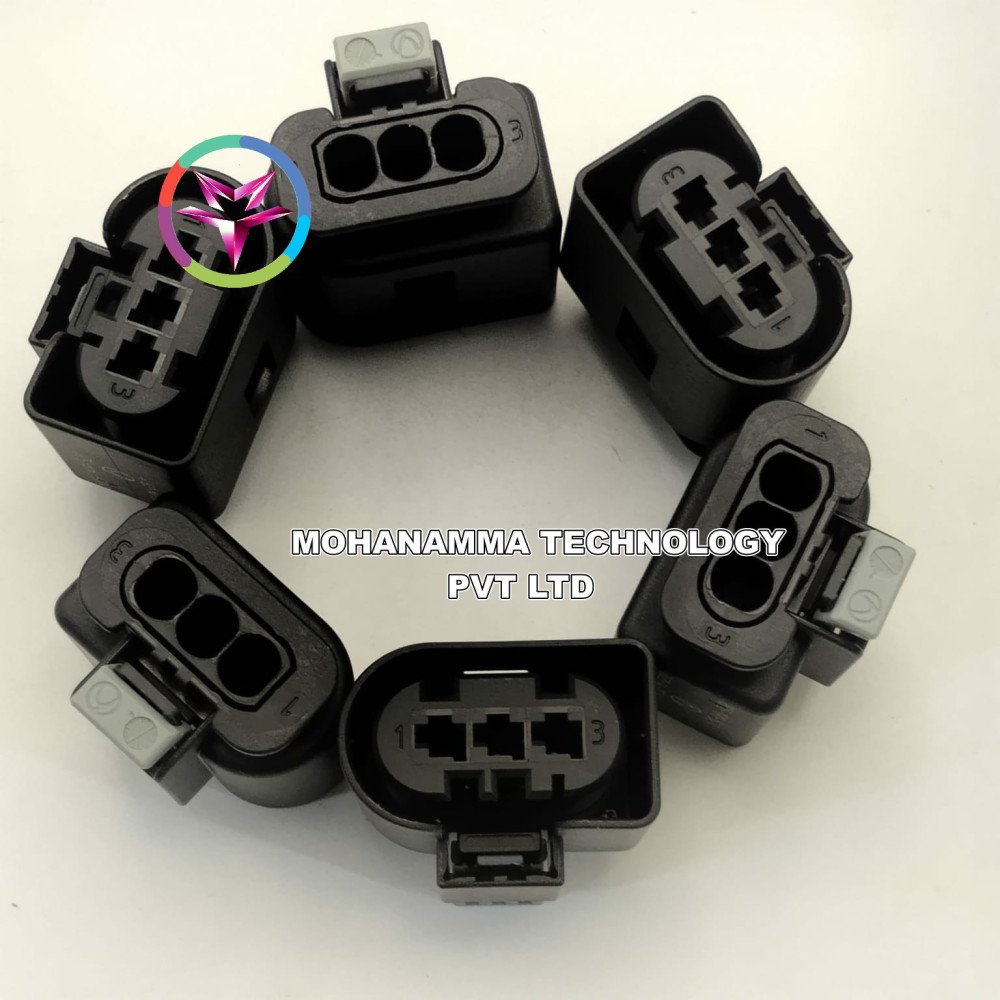

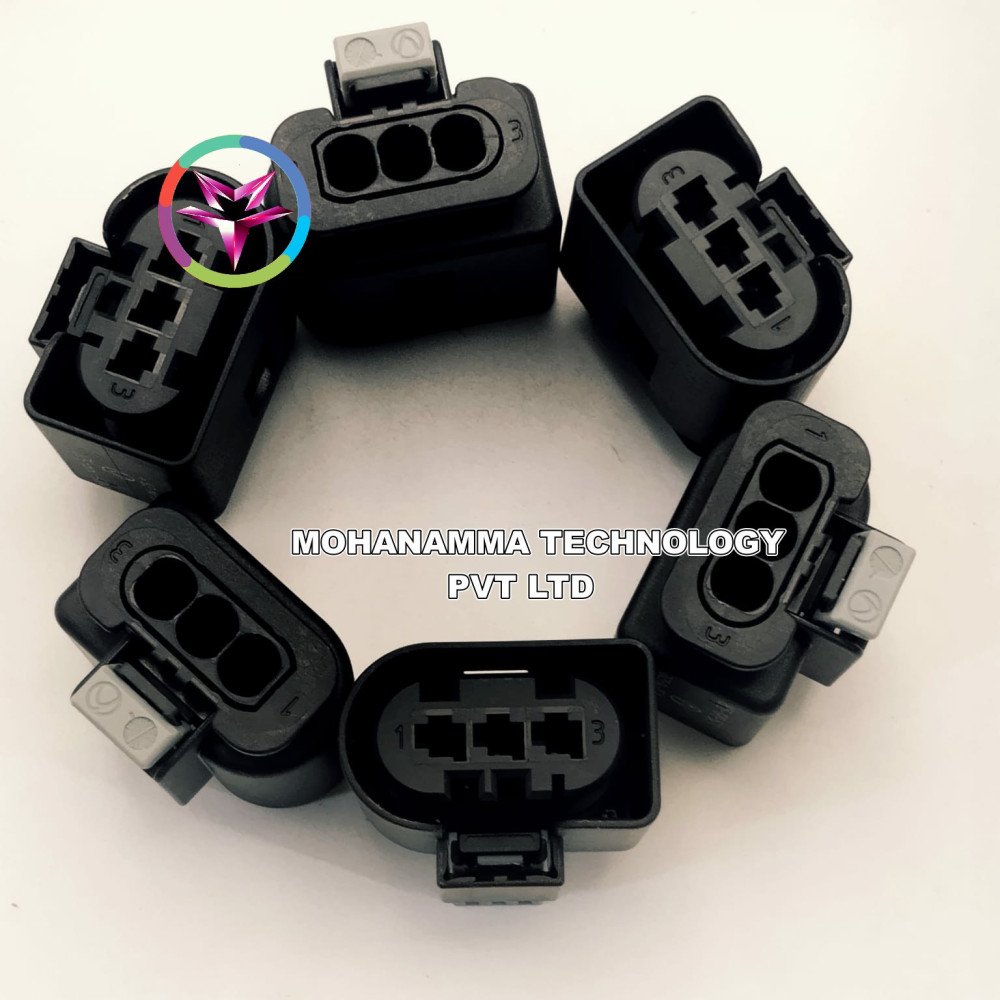

805-199-521. 3way 2.8 SealStar FA Connector

SKU: 805-199-521. 3way 2.8 SealStar FA Connector

Category: Automotive Connectors

Availability: 1000

0.00/5 (0 Review)

₹ 315.76

Tag: 805-199-521 , hirschmann connector , 3‑way connector , 2.8 sealstar fa , sealed female housing , automotive connector , ipx8 rated , ipx9k rated , cpa locking , lv214 compliant , uscar‑2 connector , wire‑to‑wire connector , pa66 thermoplastic , 2.5 mm² wire , key code a.

Quantity:
Total: ₹ 15,788.00
Add to wishlist Add To Compare
Share on:

Description

805-199-521 is a 3‑way sealed female connector housing from Hirschmann’s 2.8 SealStar FA series, optimized for automotive wire‑to‑wire applications. It supports 2.8 mm terminals, features robust IP X8/IP X9K sealing, and includes both primary latch locking and CPA (Connector Position Assurance) for secure connections. Engineered to meet harsh under‑hood and chassis requirements, it supports ≤ 60 V systems, wire sizes up to 2.5 mm², and complies with LV214 and USCAR‑2 standards

Product Specifications

Brand: HIRSCHMAN AUTOMOTIVE

Model Number: 805-199-521

Availability: In stock

Product SKU: 805-199-521. 3way 2.8 SealStar FA Connector

Minimum order quantity: 50

Maximum order quantity:

Listed date: 24th Jul, 2025

Attribute Specification
Part Number 805‑199‑521
Manufacturer Hirschmann Automotive
Series SealStar FA (2.8 mm terminal)
Connector Type Female Housing
Positions 3
Terminal Size 2.8 mm
Sealing IP X8 / IP X9K
Locking Primary latch + CPA
Voltage Class ≤ 60 V DC
Wire Size Range Up to 2.5 mm²
Temperature Range –40 °C to +120 °C
Standards Compliance

LV214, USCAR‑2 S2/S3
Pitch (Center Line) 5.0 mm
Mating System 2.8 MCP / CTS / MAK contacts
Housing Material PA66 GF25 (PBT/PA66 thermoplastic)

Pdf Specifications

download file
