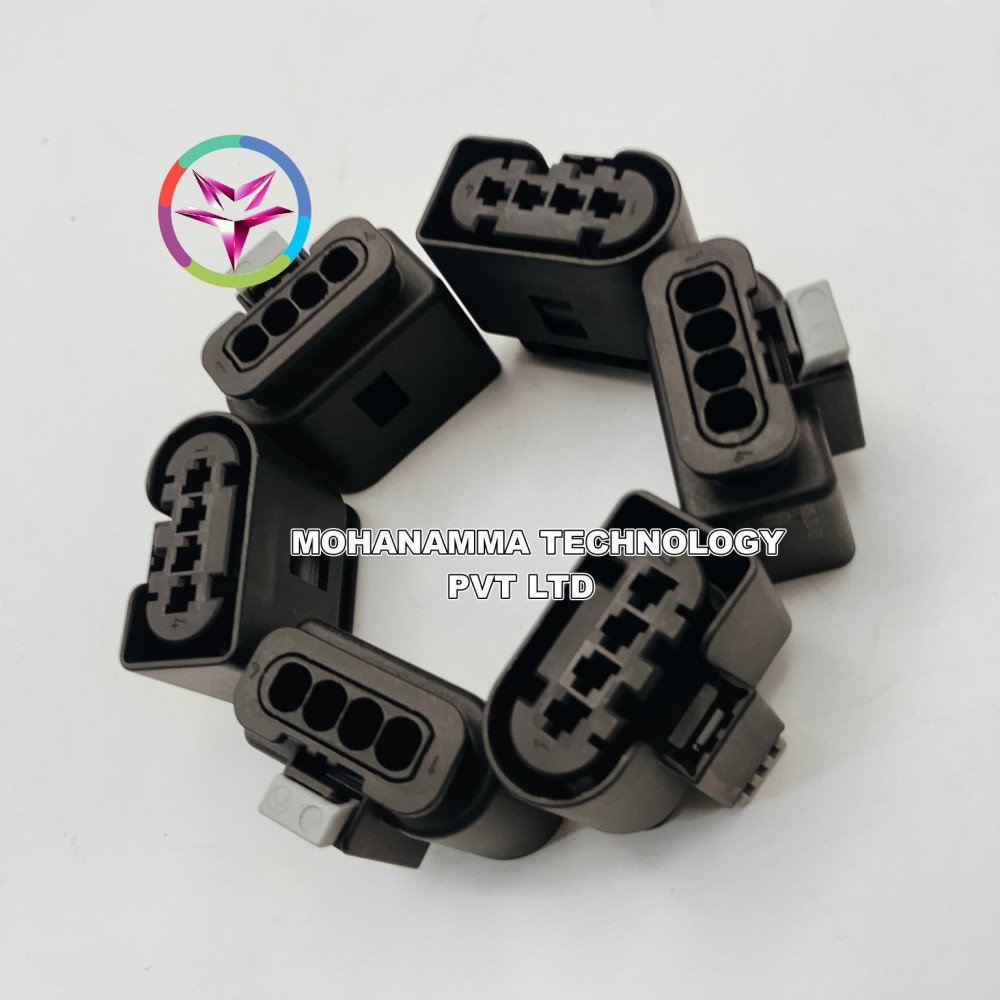

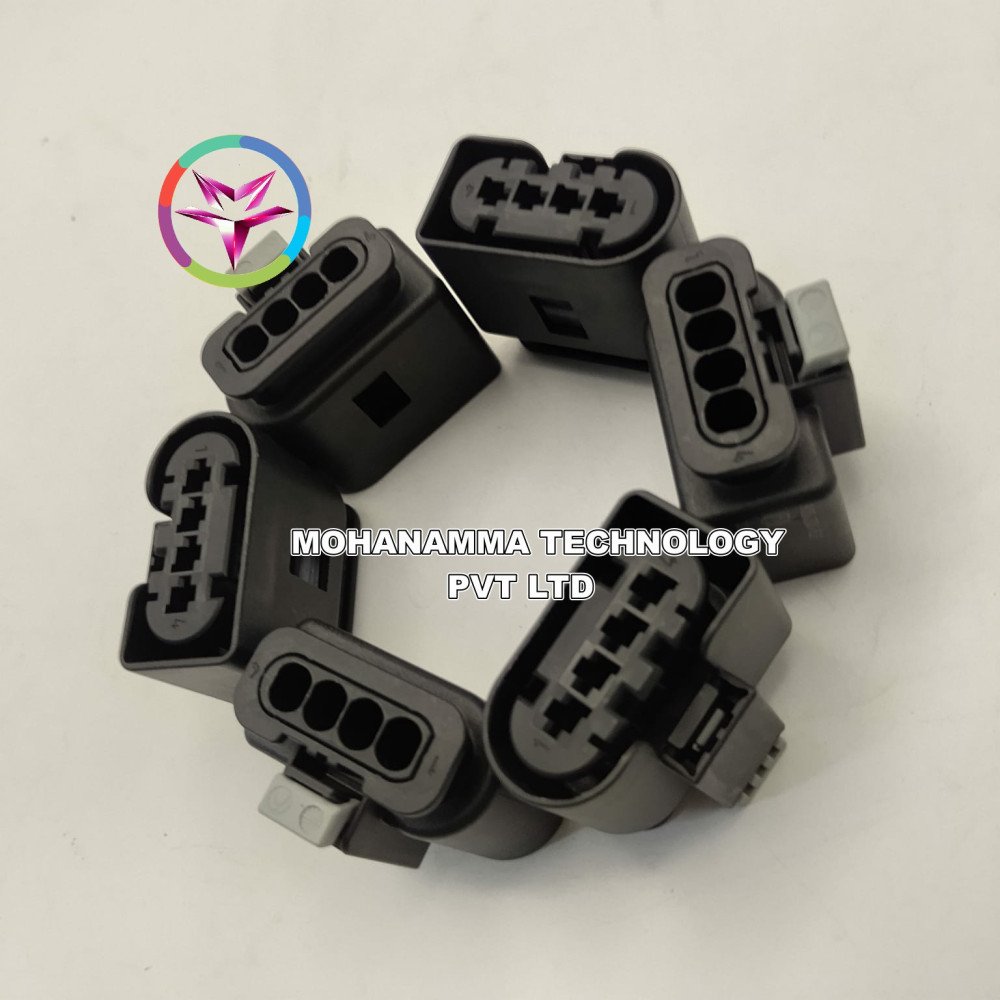

SKU: 805-200-521. 4way 2.8 SealStar FA Connector
Category: Automotive Connectors
Availability: 1000
Tag: 805-200-521 , aptiv connector , 4-way connector , sealstar fa , 2.8 mm terminal housing , sealed female connector , automotive wiring connector , delphi connector , weatherproof connector , high current connector , 4-pin sealed housing , wire-to-wire automotive connector , vehicle electrical connector , 2.8 sealstar fa series , rugged automotive connector.
Brand: HIRSCHMAN AUTOMOTIVE
Model Number: 805-200-521
Availability: In stock
Product SKU: 805-200-521. 4way 2.8 SealStar FA Connector
Minimum order quantity: 50
Maximum order quantity:
Listed date: 24th Jul, 2025
| Attribute | Specification |
|---|---|
| Part Number | 805-200-521 |
| Manufacturer | Aptiv (formerly Delphi) |
| Series | SealStar FA |
| Connector Type | Female Housing |
| Number of Positions | 4 |
| Terminal Size | 2.8 mm |
| Contact Type | Receptacle (female) |
| Connector System | Wire-to-Wire |
| Sealing | Yes (Integrated silicone seal) |
| Locking Feature | Primary latch with CPA (Connector Position Assurance) |
| Mounting Type | Free Hanging (In-Line) |
| Housing Material | High-temperature resistant thermoplastic |
| Color | Typically Gray or Black (may vary by configuration) |
| Wire Size Range | 0.5 – 2.5 mm² |
| Operating Temperature | -40°C to +125°C |
| Ingress Protection | IP67 (when mated) |
| Mating Component | Corresponding 4-way SealStar FA male housing |
| Applications | Automotive wiring, engine bay, lighting, power distribution |
| Standards Compliance | RoHS, USCAR-2 (automotive-grade) |
