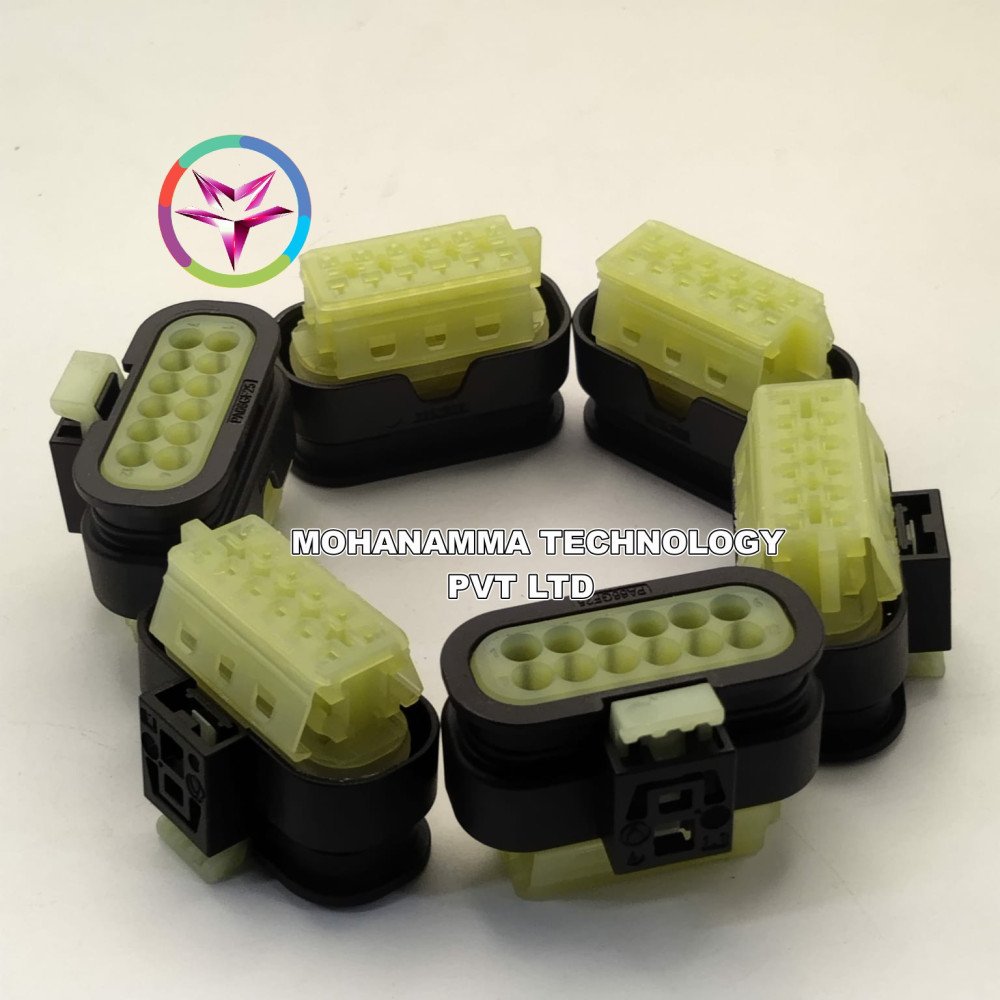

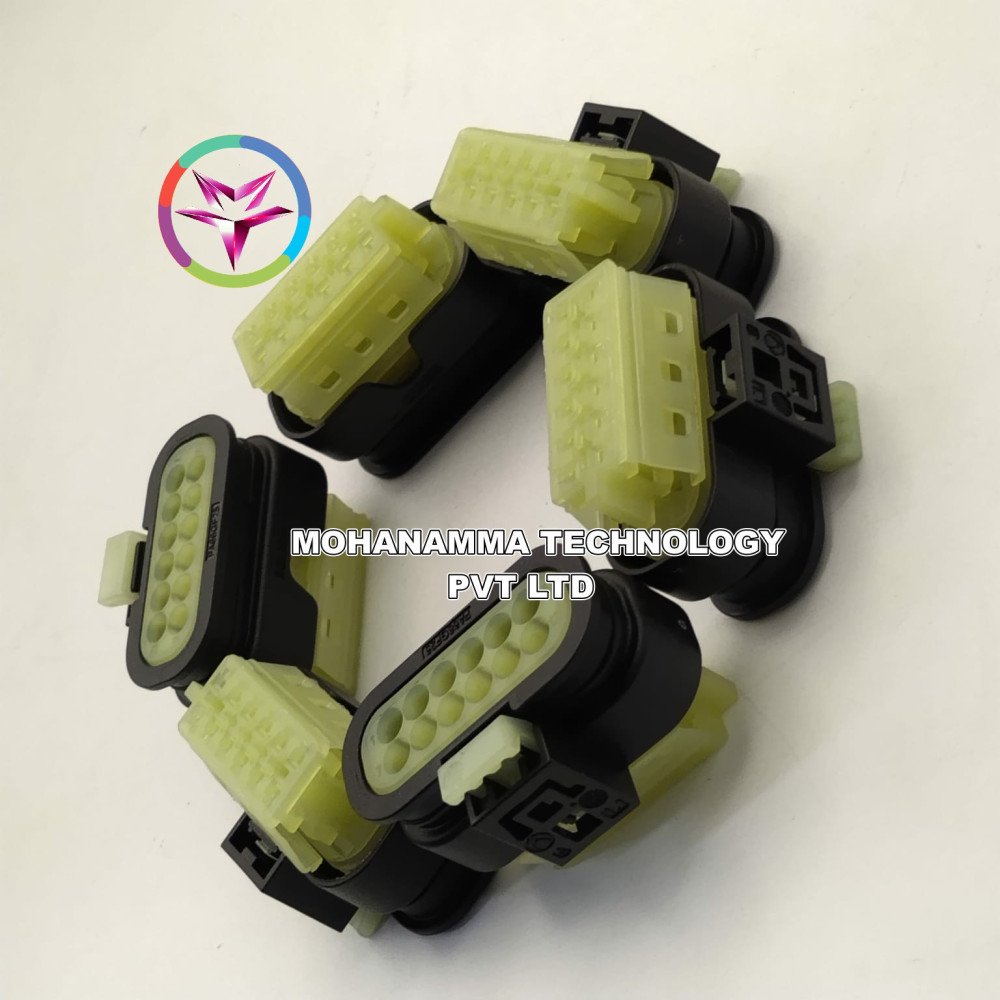

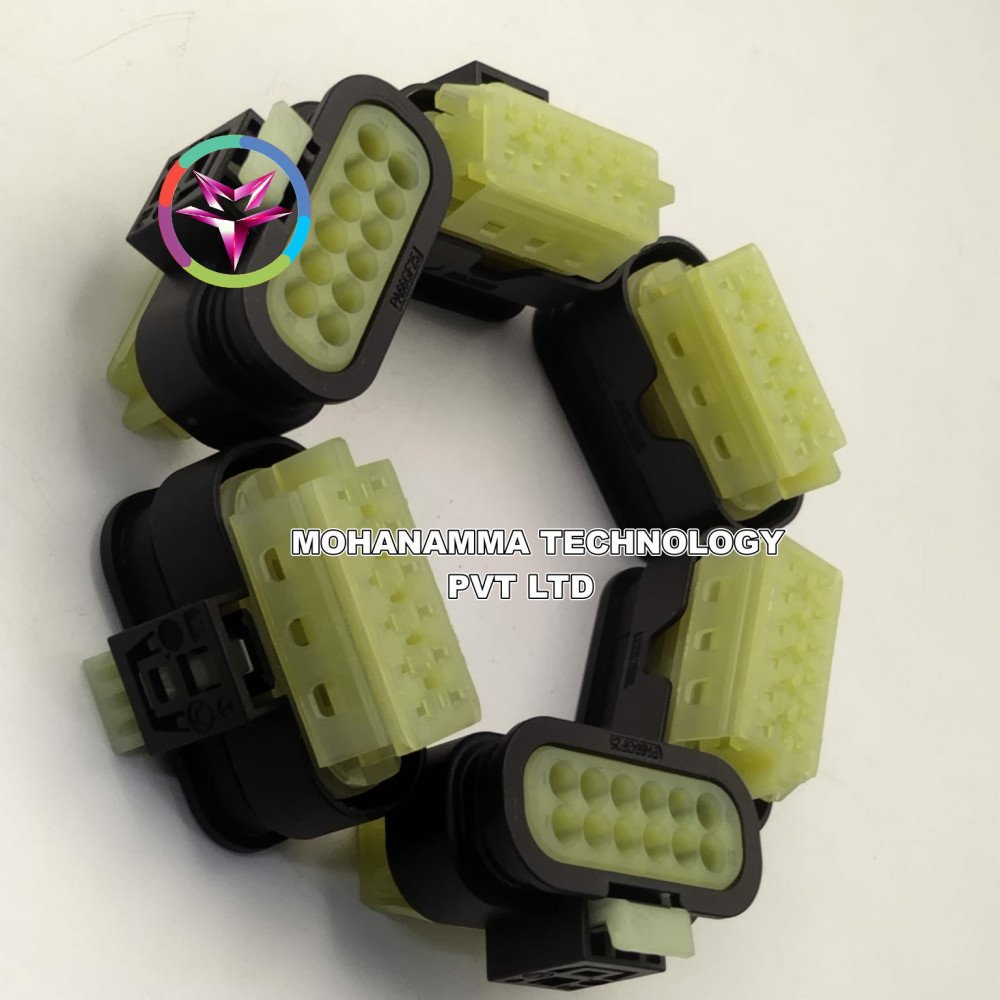

SKU: 806-344-542 Hirschmann 12 Way 1.2 SealStar FB connector
Category: Automotive Connectors
Availability: 1000
Tag: hirschmann connector , 12-way connector , 1.2 mm terminal housing , sealstar fb series , automotive connector , sealed connector , key way b , female connector housing , wire-to-wire connector , cpa locking connector , ip67 connector , black and clear connector , ecu connector , high-performance automotive connector , under-hood wiring
Brand: HIRSCHMAN AUTOMOTIVE
Model Number: 806-344-542
Availability: In stock
Product SKU: 806-344-542 Hirschmann 12 Way 1.2 SealStar FB connector
Minimum order quantity: 50
Maximum order quantity:
Listed date: 24th Jul, 2025
| Attribute | Specification |
|---|---|
| Part Number | 806-344-542 |
| Manufacturer | Hirschmann Automotive GmbH |
| Series | SealStar FB Series |
| Connector Type | Female Housing |
| Number of Positions | 12 |
| Terminal Size | 1.2 mm |
| Keying | Key Way B |
| Housing Color | Black (main body), Clear (secondary lock/CPA) |
| Sealing | Yes (Sealed, with integrated grommet) |
| Connector System | Wire-to-Wire |
| Mounting Type | Free Hanging (In-Line) |
| Locking Mechanism | CPA (Connector Position Assurance) + Primary Latch |
| Housing Material | High-temperature resistant thermoplastic |
| Operating Temperature | -40°C to +125°C |
| Ingress Protection | IP67 (when mated) |
| Wire Size Range | 0.35 – 1.0 mm² |
| Mating Component | Corresponding 12-way SealStar FB male housing |
| Application | Automotive sensors, ECUs, lighting, power systems |
| Compliance | RoHS, automotive-grade, ISO/TS compliant |
