Brand: TE Connectivity

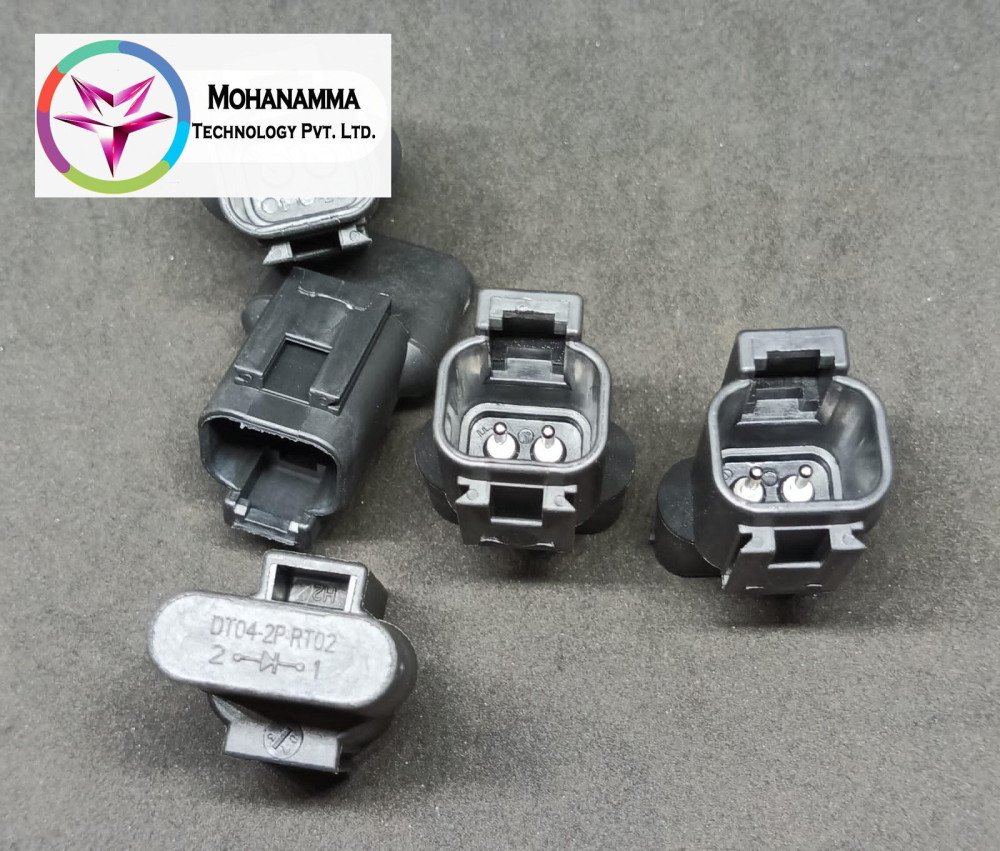

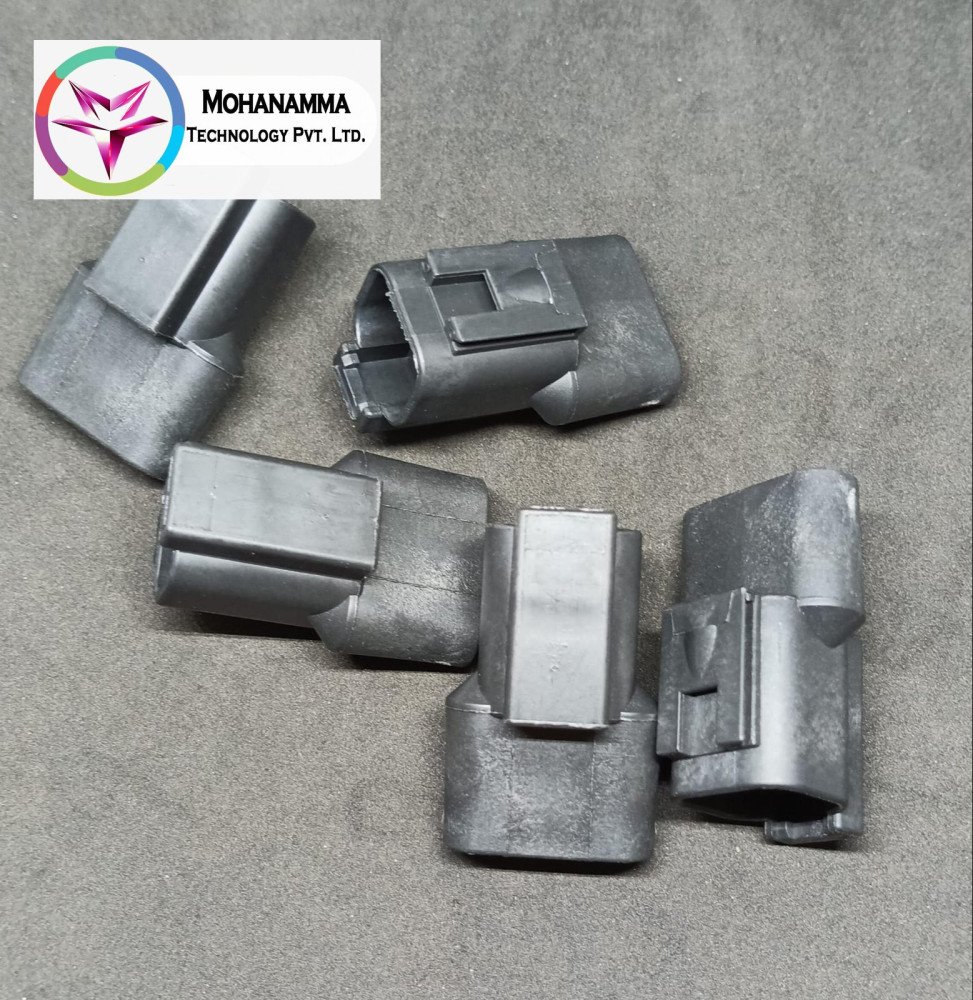

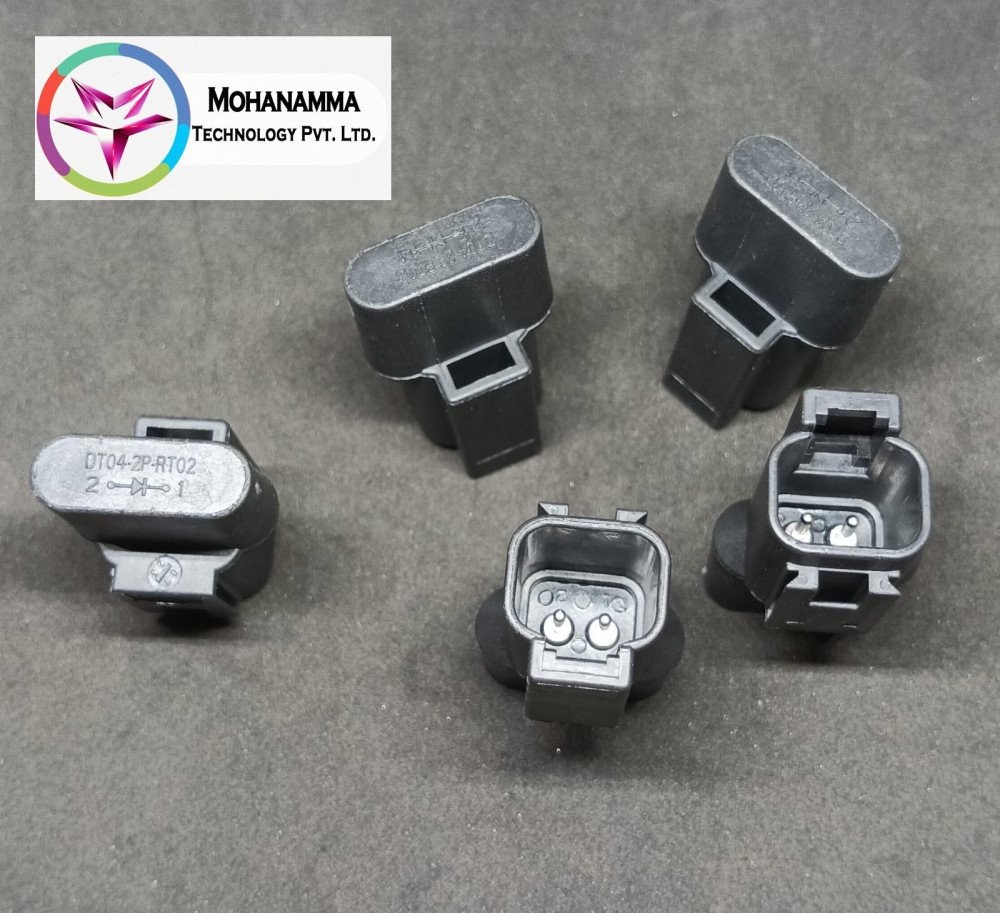

Model Number: DT04-2P-RT02
Availability:
In stock
Product SKU:
Minimum order quantity: 1
Maximum order quantity:
Listed date: 10th Feb, 2024
Product Type Features
Connector Shape : Rectangular
Connector System : Component-to-Wire
Sealable : Yes
Connector & Contact Terminates To : Wire & Cable
Primary Locking Feature : Overmolded
Mixed & Hybrid Connector : No
Configuration Features
Connector Modification : Molded-In Diode (Vishay 1N5625GP)
Number of Positions : 2
Number of Rows : 1
Blank Cavity Position : 0
Electrical Characteristics
Operating Voltage (VAC): 250
Operating Voltage (VDC): 250
Nominal Voltage Architecture (V): 12, 24, 48
Body Features
Primary Product Color : Black
Contact Features
Mating Pin Diameter : 1.59 mm [ .063 in ]
Contact Current Rating (Max) (A): 13
Mechanical Attachment
Mating Alignment : With
Mating Alignment Type : Polarized
Strain Relief : Add By Accessory
Terminal Position Assurance : No
Housing Features
Housing Material : PA GF
Centerline (Pitch) : 5.46 mm [ .215 in ]
Dimensions
Product Length : 39.5 mm [ 1.555 in ]
Product Width : 25.4 mm [ 1 in ]
Connector Height : 22.71 mm [ .873 in ]
Usage Conditions
Operating Temperature (Max) : 125 °C [ 257 °F ]
Operating Temperature Range : -55 – 125 °C [ -67 – 257 °F ]
Operation/Application
Circuit Application : Power & Signal
Industry Standards
UL Flammability Rating : Not tested
Compatible With Agency/Standards Products : SAE J2030
Degree of Protection : IP68, IP6K9K
Packaging Features
Packaging Method : Box
Packaging Quantity : 650
Other
Connector Position Assurance Capable : No
Serviceable : No
