DEUTSCH HD10-9-1939PE

In stock

SKU: -

Category: Automotive Connectors

Availability: 50

0.00/5 (0 Review)

₹ 512.00

Share on:

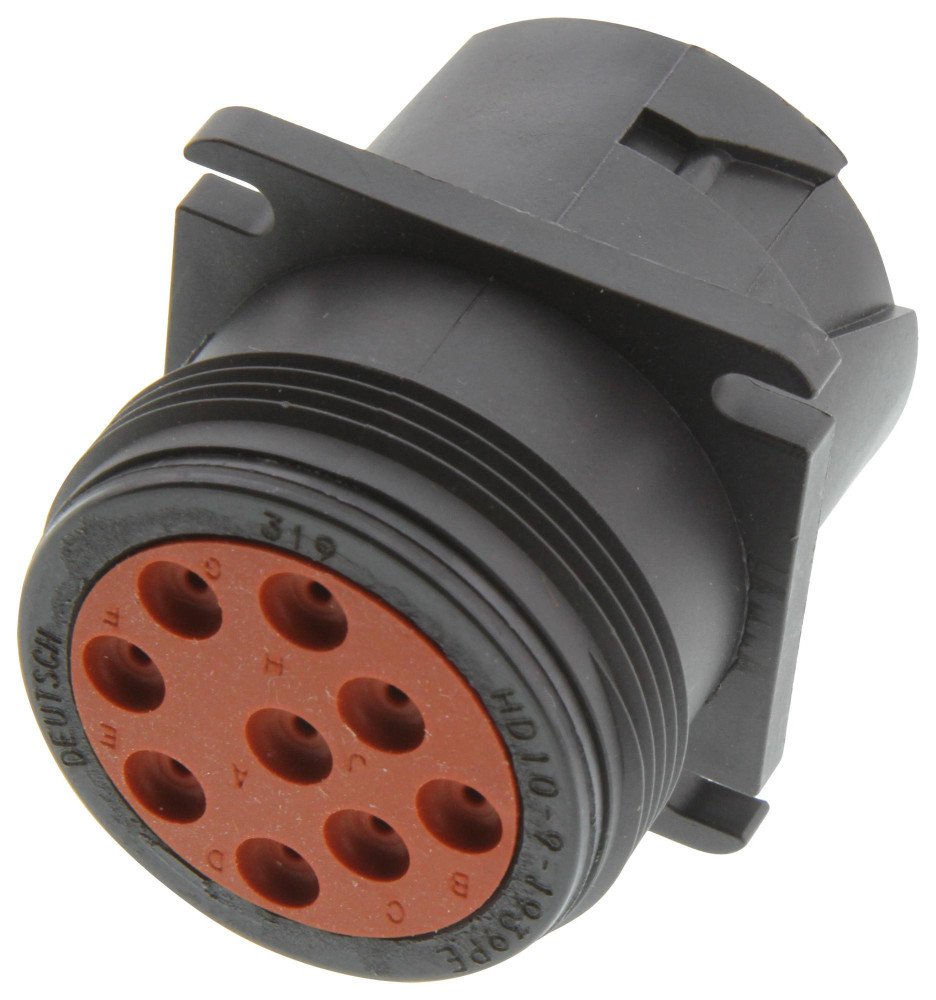

Automotive Connectors RECP HD10 9 WAY FLANGE

HD10-9-1939PE Automotive 9 pole female connector

Brand: Deutsch

Model Number: HD10-9-1939PE

Availability: In stock

Product SKU:

Minimum order quantity: 1

Maximum order quantity:

Listed date: 16th Feb, 2024

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	TE Connectivity
Product Category:	Automotive Connectors
RoHS:
REACH - SVHC:
Product:	Connectors
Accessory Type:	-
Number of Positions:	9 Position
Gender:	Receptacle (Female)
Mounting Style:	Mounting Flange
Termination Style:	Crimp
Wire Gauge Min:	20 AWG
Wire Gauge Max:	14 AWG
Color:	Black
Series:	HD10
Tradename:	HD
Packaging:	Bulk
Application:	Wire to Wire
Attachment Hole Diameter:	1.5 mm
Brand:	TE Connectivity / DEUTSCH
Contact Gender:	Without Pin Contacts
Current Rating:	13 A
Dimensions:	36.5 mm x 36.5 mm x 42.18 mm
Flammability Rating:	UL 94 V-1
Height:	36.5 mm
Housing Material:	Polyamide (PA)
Ingress Protection:	IP68, IP6K9K
Insulation:	Insulated
Length:	42.18 mm
Locking Mechanism:	Integrated in Housing
Material:	Plastic
Maximum Operating Temperature:	+ 125 C
Minimum Operating Temperature:	- 55 C
Mounting Angle:	Straight
Product Type:	Automotive Connectors
	1
Subcategory:	Automotive Connectors
Type:	Receptacle
Voltage Rating:	250 V
Width:	36.5 mm
Wire Gauge Range:	14 AWG to 20 AWG
Part # Aliases:	ZPF000000000130530 $$HD10-9-1939PE HD10-9-1939PE-LS HD10-9-1939PE-L HD10-9-1939PE-LD
Unit Weight:	38 g
