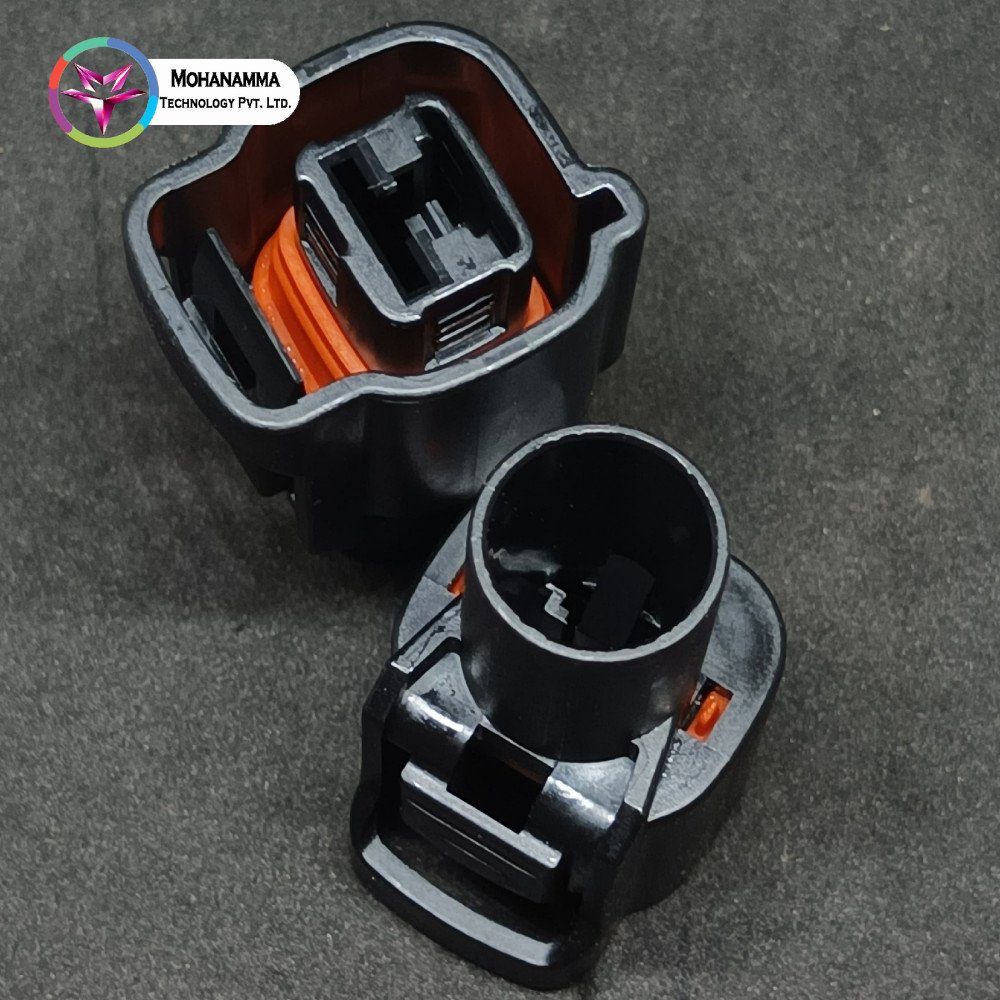

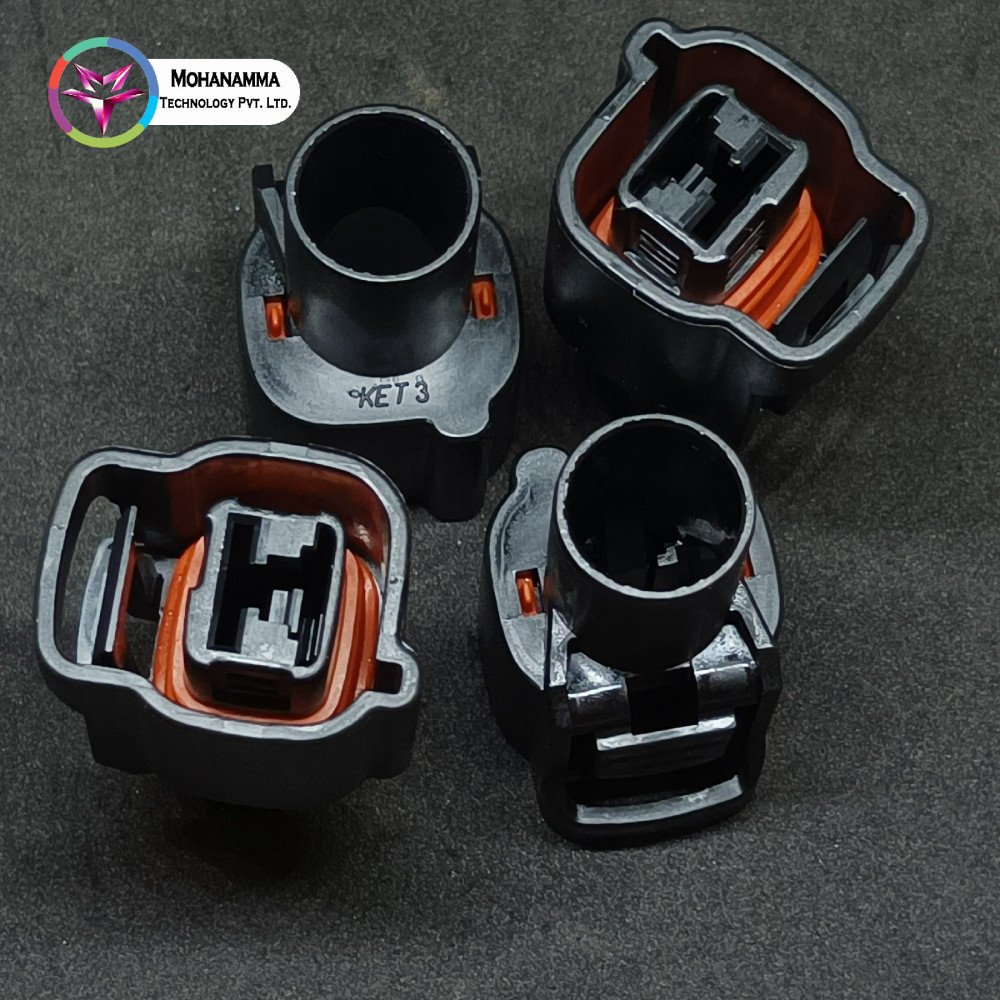

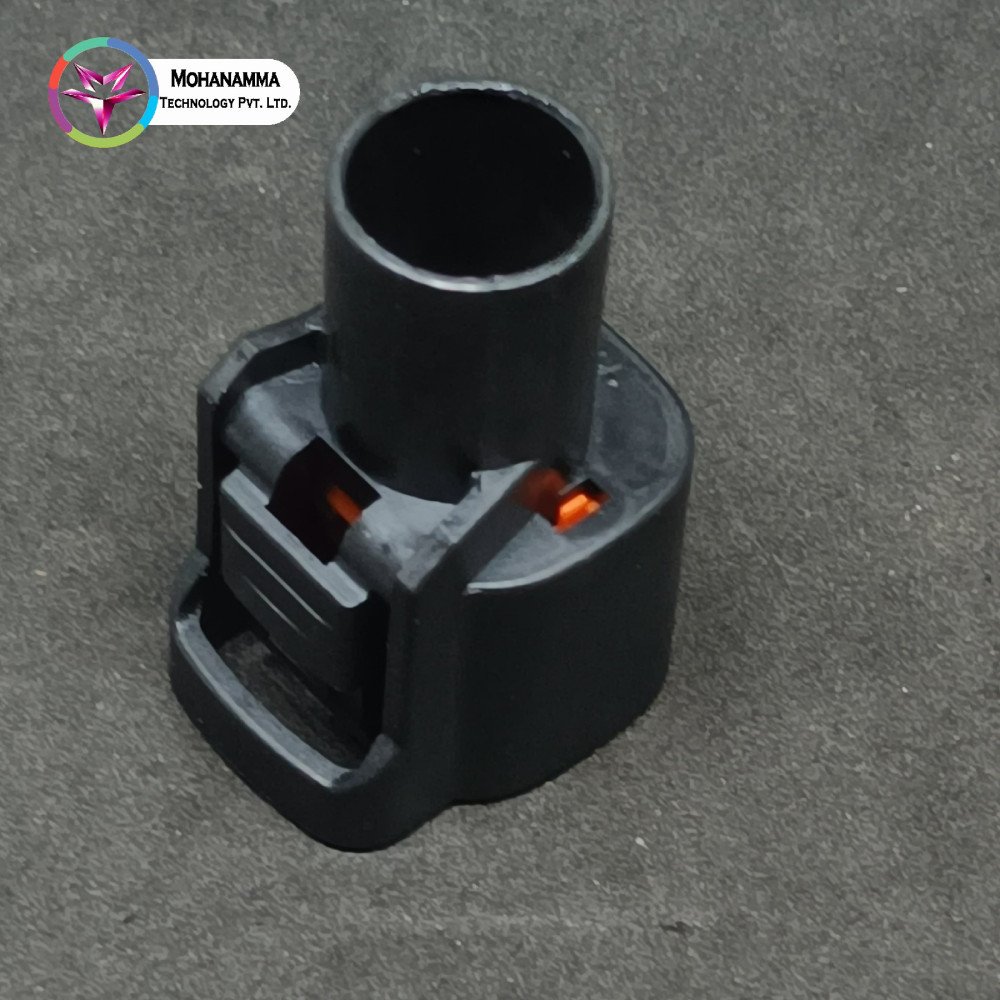

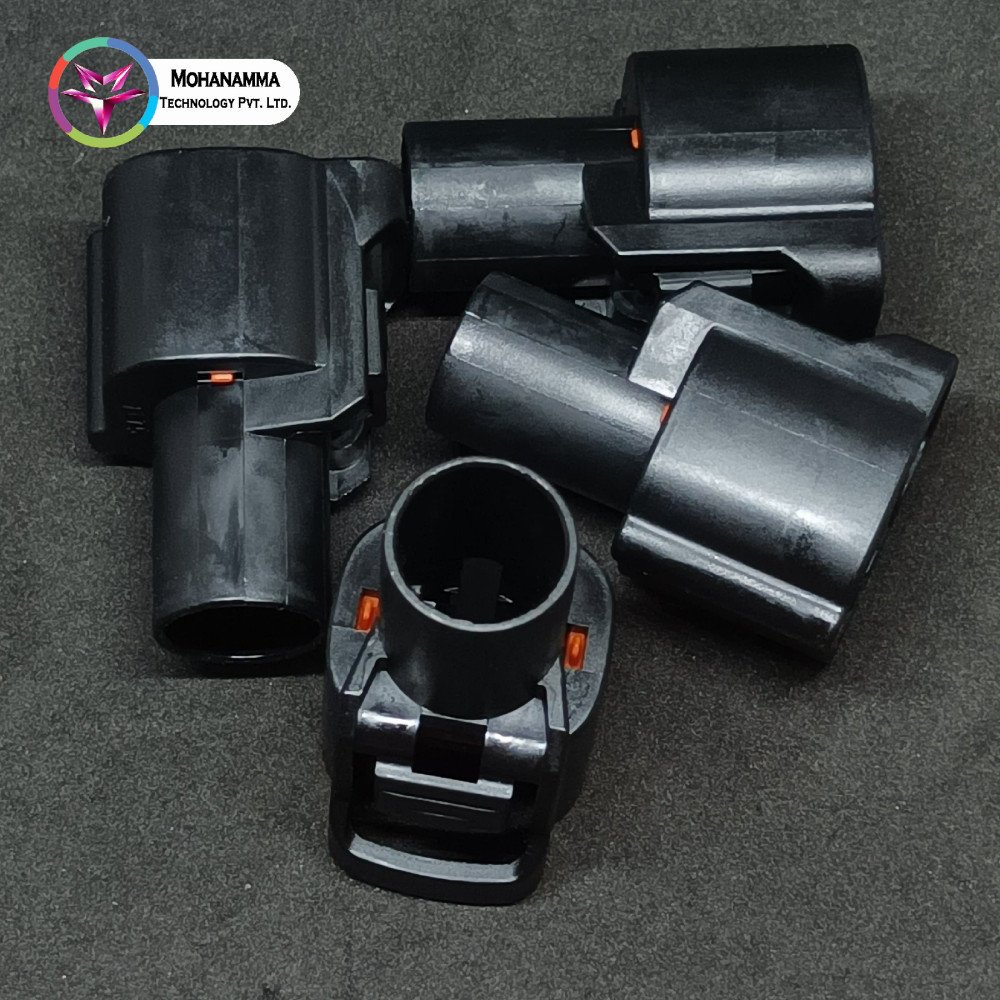

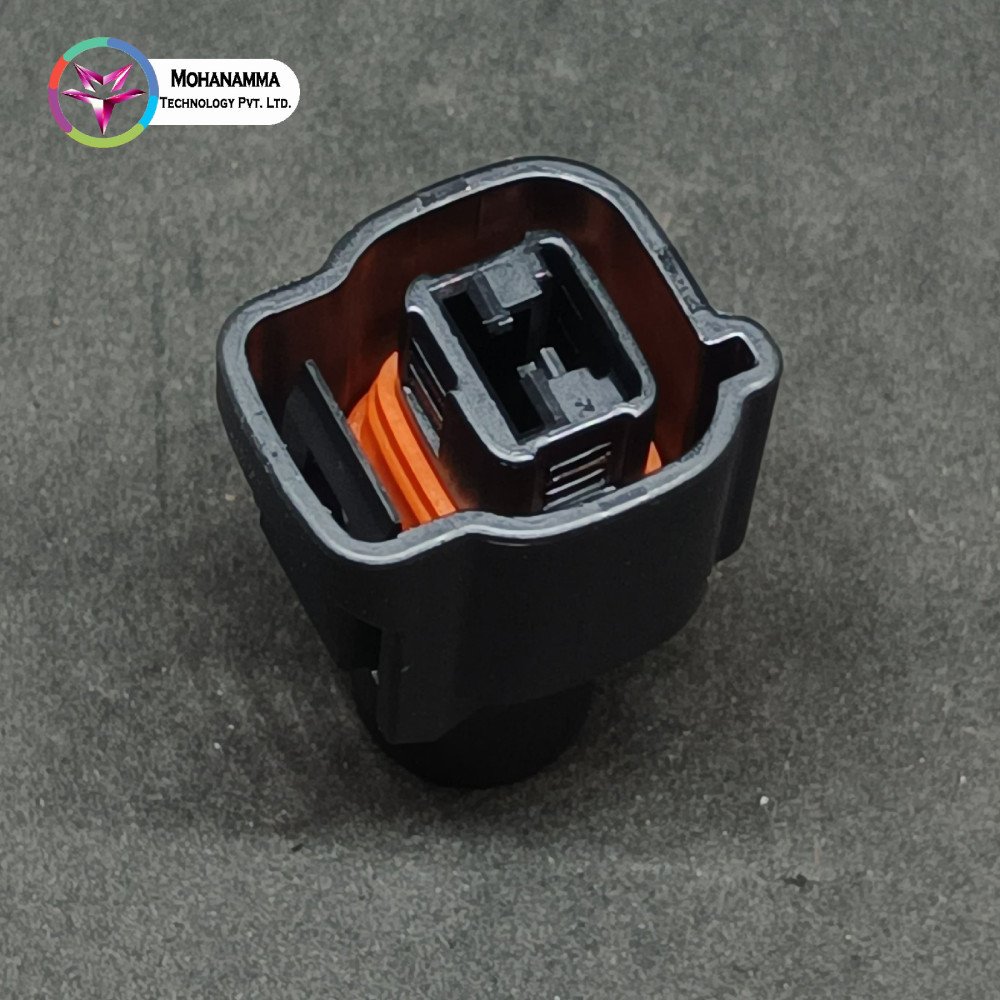

MG640944-5 Female KET Connectors

SKU: -

Category: Automotive Connectors

Availability: Unlimited

0.00/5 (0 Review)

₹ 356.00

Tag: connectors , female , ket , mohanammatechnology

Quantity:

Total: ₹ 356.00

Add to wishlist Add To Compare

Share on:

Description

General Feature

Series: 312 II SERIES

Dimensions: 20.8*25.7*35.8

Material Type: PBT

Physical Feature

Sealed: YES

Color: Black

TPA: NO

Number of Poles: 1

Mating Clip: MG632278

Mating Terminal: ST730650-3, ST730651-3, ST730652-3, ST730893-3, ST730936-3

Mating Connector: MG650943

Mating Tab Width(in): .312

Electrical Feature

Wire Range: AVS1.25,AVS2.0~3.0,AVS5.0,AEXF5.0,AVS8.0,AEXF 8.0

Insulation Resistance: DC 500V 100MΩ MIN

Contact Resistance: 3mΩ

Terminal Transmits(A): 42

Product Specifications

Brand: KET Connector

Model Number: MG640944-5

Availability: In stock

Product SKU:

Minimum order quantity: 1

Maximum order quantity:

Listed date: 1st Mar, 2024

General Feature

Series: 312 II SERIES

Dimensions: 20.8*25.7*35.8

Material Type: PBT

Physical Feature

Sealed: YES

Color: Black

TPA: NO

Number of Poles: 1

Mating Clip: MG632278

Mating Terminal: ST730650-3, ST730651-3, ST730652-3, ST730893-3, ST730936-3

Mating Connector: MG650943

Mating Tab Width(in): .312

Electrical Feature

Wire Range: AVS1.25,AVS2.0~3.0,AVS5.0,AEXF5.0,AVS8.0,AEXF 8.0

Insulation Resistance: DC 500V 100MΩ MIN

Contact Resistance: 3mΩ

Terminal Transmits(A): 42
