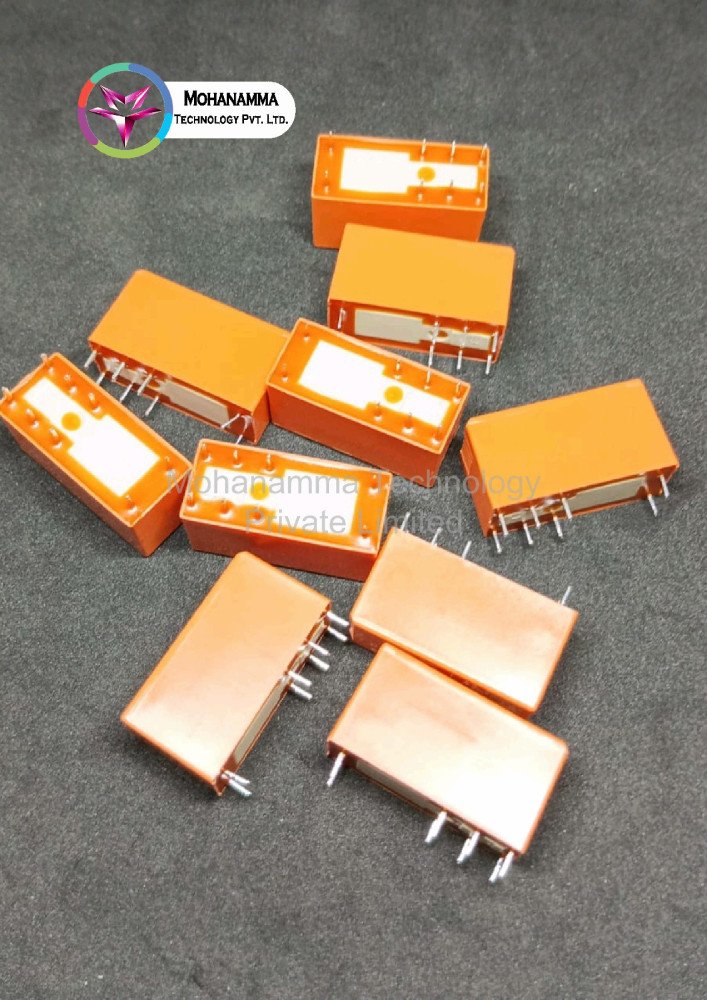

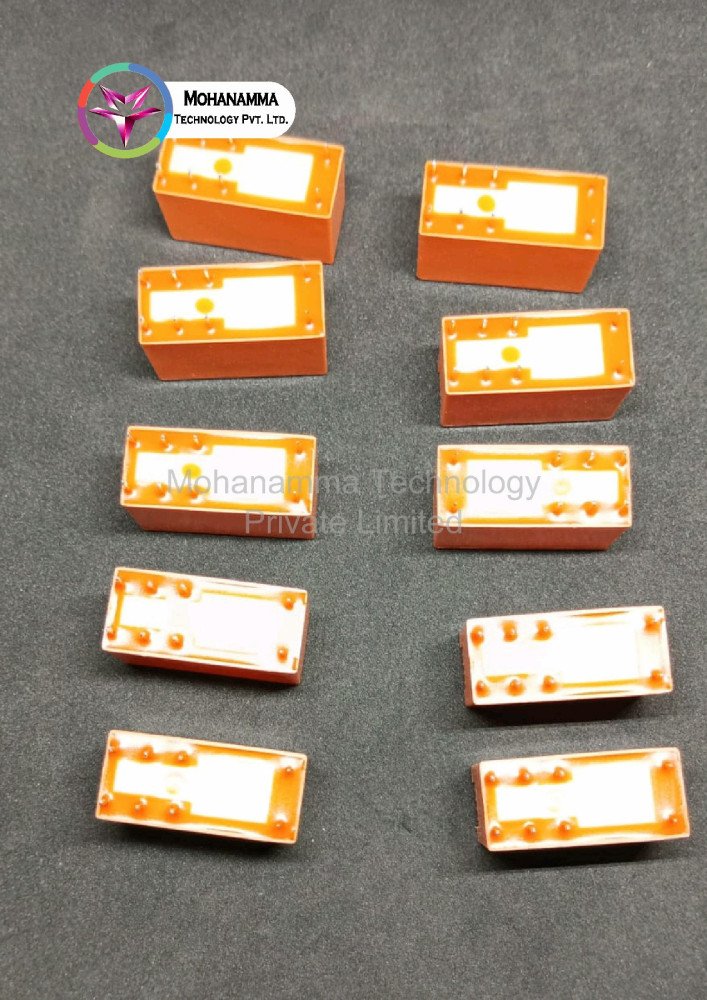

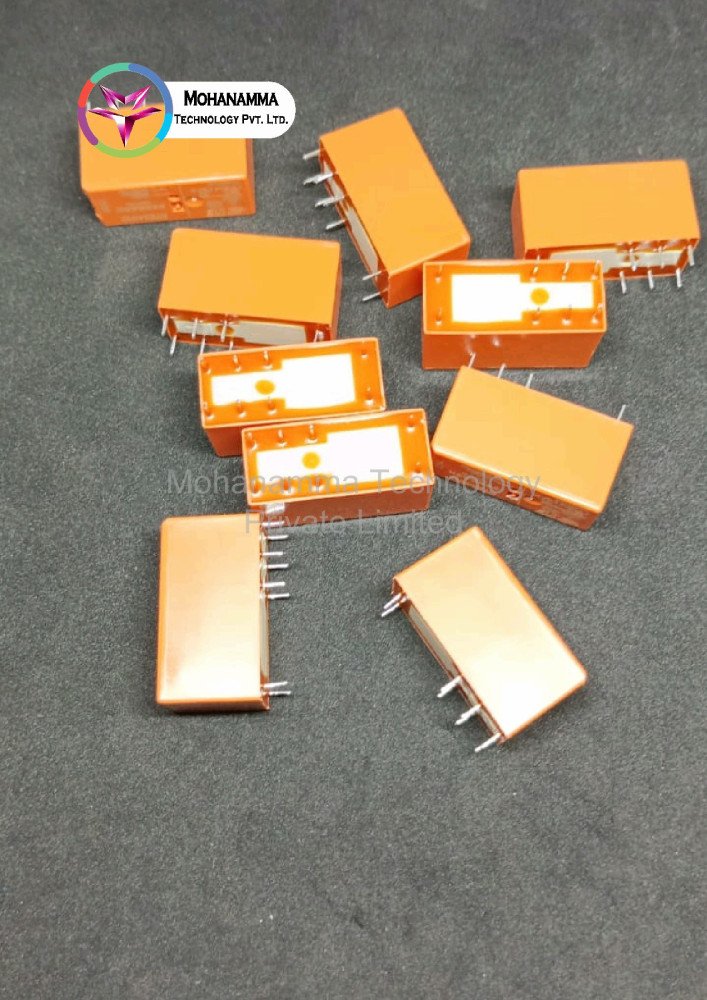

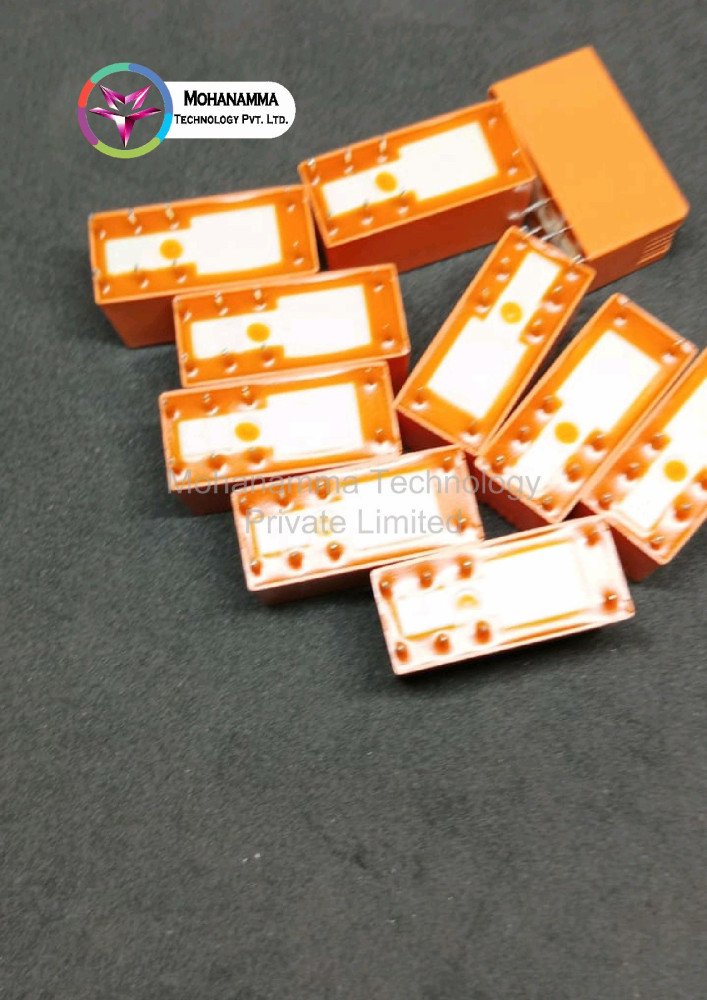

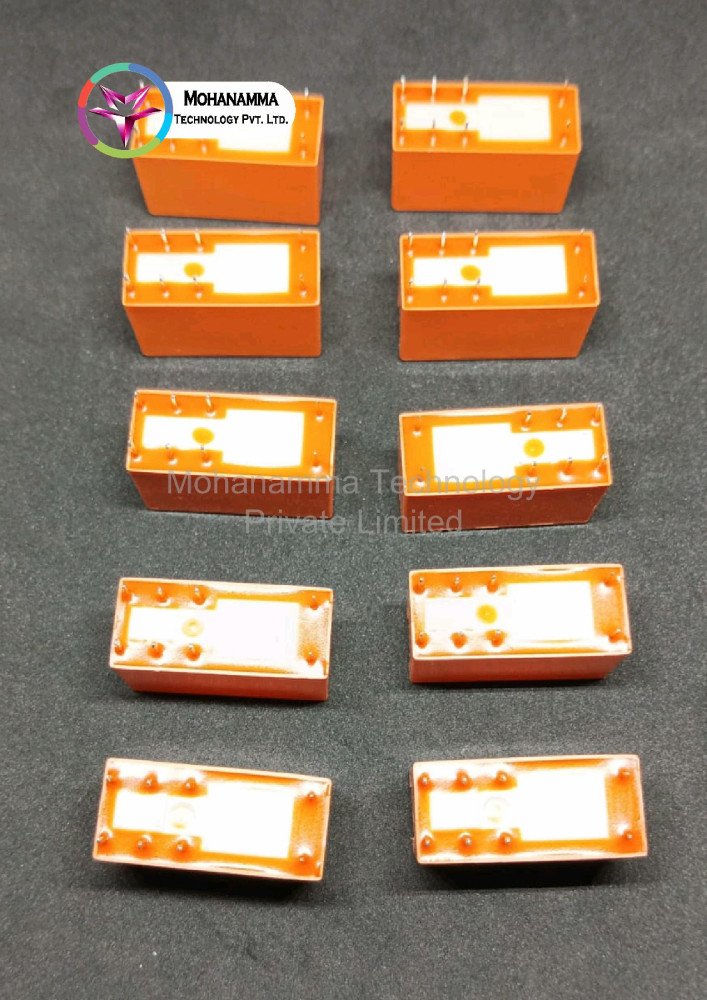

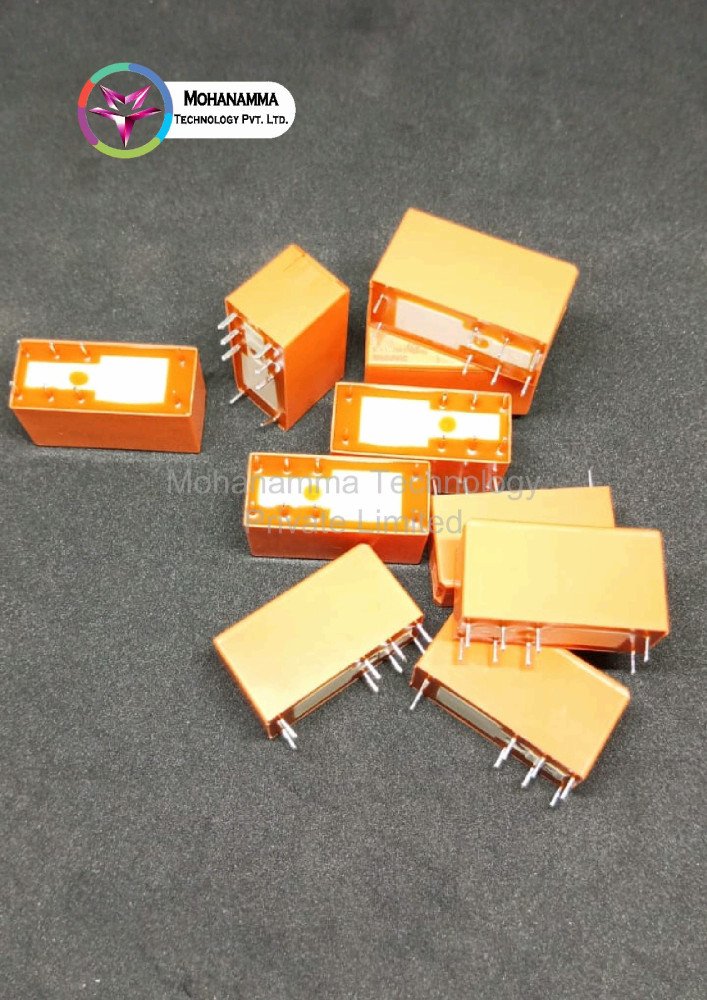

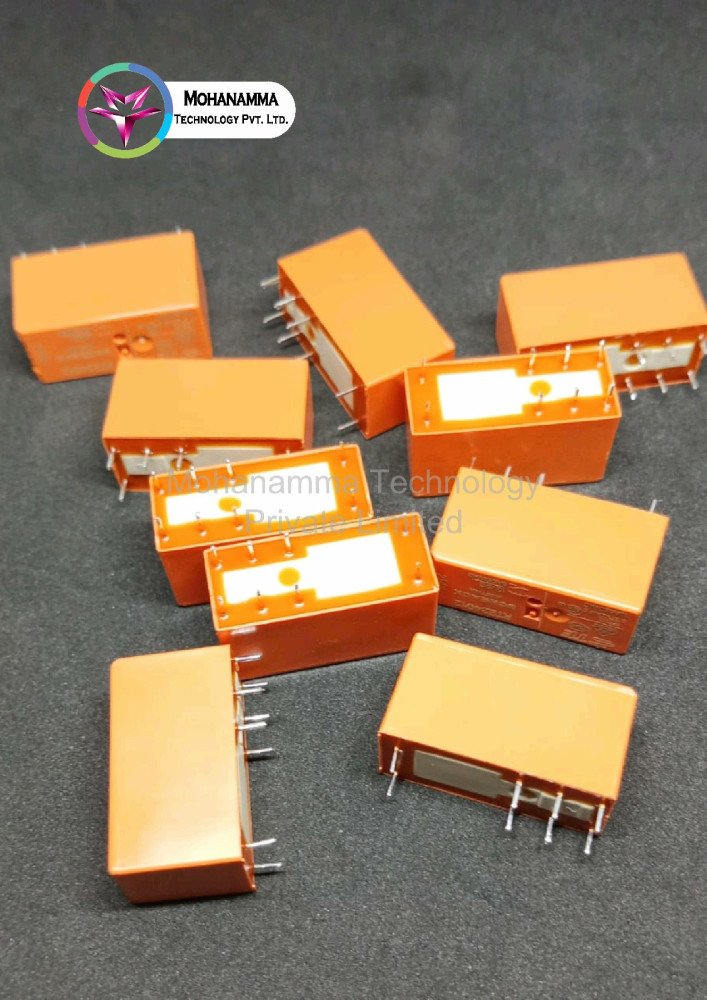

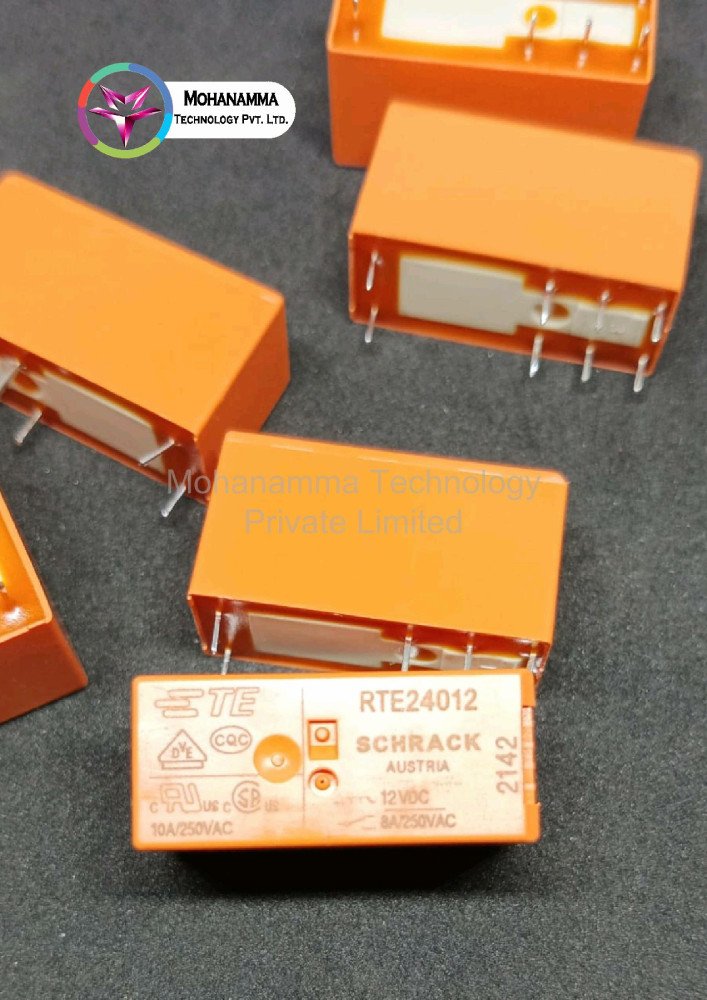

RTE24012 Mohanamma-Technology-TE-connectivity

In stock

RTE24012 Mohanamma-Technology-TE-connectivity

SKU: RTE24012

Category: Power Connectors

Availability: Unlimited

0.00/5 (0 Review)

₹ 280.52

Tag: teconnectivity , powerrelay

Quantity:

Total: ₹ 280.52

Add to wishlist Add To Compare

Share on:

Description

Power Relays, Standard, Monostable, DC, 400 mW Coil Power Rating DC, 360 Ω Coil Resistance, UL Coil Insulation Class F, SCHRACK Power PCB Relay RT2

Product Specifications

Brand: TE Connectivity

Model Number: RTE24012

Availability: In stock

Product SKU: RTE24012

Minimum order quantity: 1

Maximum order quantity:

Listed date: 21st Feb, 2024

Product Type Features

Power Relay Type : Standard

Electrical Characteristics

Contact Limiting Breaking Current (A): 8
Coil Magnetic System : Monostable, DC
Coil Power Rating DC (mW): 400
Coil Resistance (Ω): 360
Coil Special Features : UL Coil Insulation Class F
Coil Voltage Rating (VDC): 12
Contact Switching Voltage (Max) (VAC): 400
Contact Voltage Rating (VAC): 250
Insulation Creepage Between Contact & Coil : 10 mm [ .394 in ]
Insulation Initial Dielectric Between Contacts & Coil (Vrms): 5000
Insulation Initial Dielectric Between Adjacent Contacts (Vrms): 2500
Coil Power Rating Class (mW): 300 – 400
Insulation Creepage Class (mm): 8
Contact Limiting Continuous Current (A): 8
Contact Limiting Making Current (A): 15
Insulation Initial Dielectric Between Open Contacts (Vrms): 1000
Insulation Initial Dielectric Between Coil & Contact Class (V): 4000 – 5000

Body Features

Product Weight : 13 g [ .459 oz ]
Insulation Special Features : Tracking Index of Relay Base PTI250

Contact Features

Contact Arrangement : 2 Form C (CO)
Contact Current Class (A): 16
Contact Current Rating (Max) (A): 8
Contact Material : AgNi90/10
Contact Number of Poles : 2
Relay Terminal Type : PCB-THT, Plug-In

Mechanical Attachment

Relay Mounting Type : Printed Circuit Board, Socket

Dimensions

Product Height : 15.7 mm [ .618 in ]
Product Length : 29 mm [ 1.142 in ]
Product Width : 12.7 mm [ .5 in ]
Width Class (Mechanical) (mm): 12 – 16
Insulation Clearance Between Contact & Coil : 10 mm [ .394 in ]
Height Class (Mechanical) (mm): 15 – 16
Insulation Clearance Class (mm): 8
Length Class (Mechanical) (mm): 25 – 30

Usage Conditions

Environmental Ambient Temperature (Max) : 85 °C [ 185 °F ]

Packaging Features

Packaging Method : Carton, Tube

Pdf Specifications
