282191‑1 3‑Pole Splash‑Proof Receptacle Housing | TE J

In stock

TE Connectivity / AMP 282191-1

SKU: TE Connectivity / AMP 282191-1

Category: Automotive Connectors

Availability: 1000

0.00/5 (0 Review)

₹ 137.87

Tag: 282191‑1 , te connectivity , junior power timer , 3‑pole connector housing , splash‑proof connector , ip54k receptacle housing , 3‑way sealed connector , automotive power connector , pa 66 housing , wire‑to‑device connector , te amp 3‑pin connector , vibration‑resistant connector

Quantity:

Total: ₹ 6,893.50

Add to wishlist Add To Compare

Share on:

Description

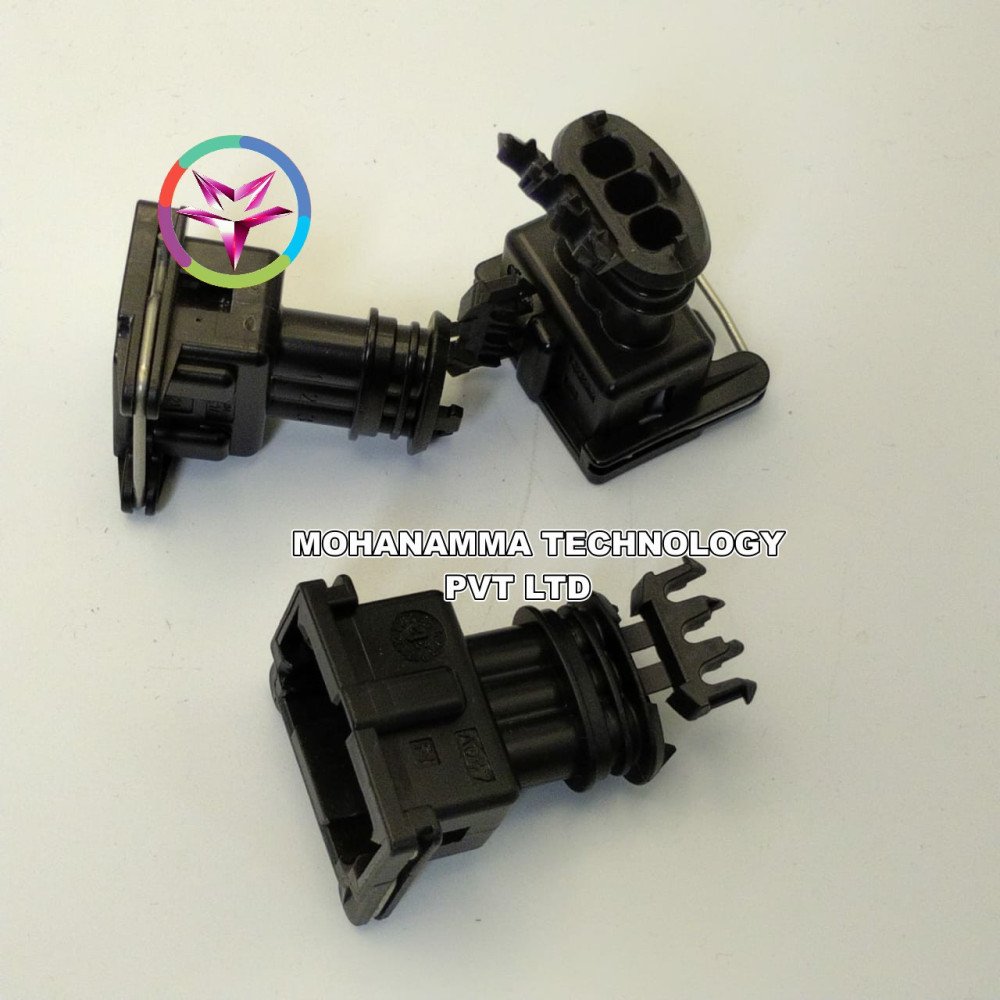

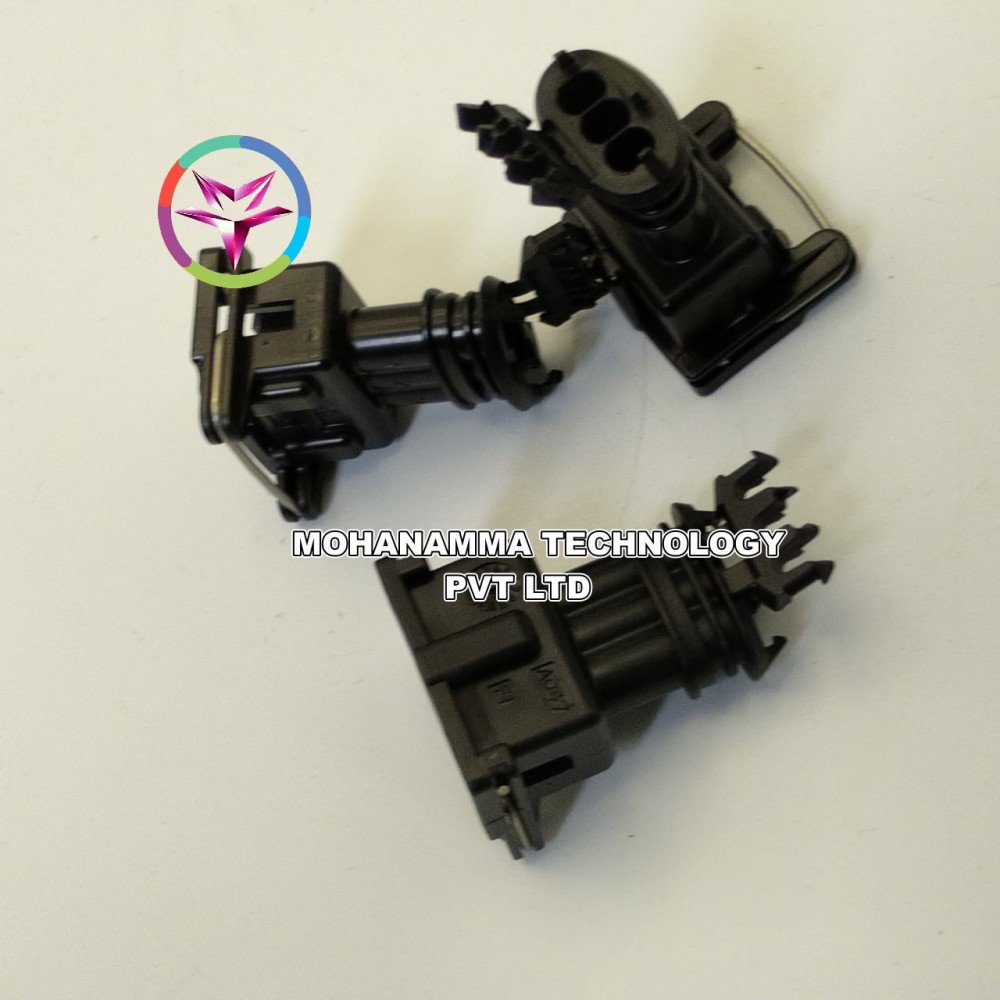

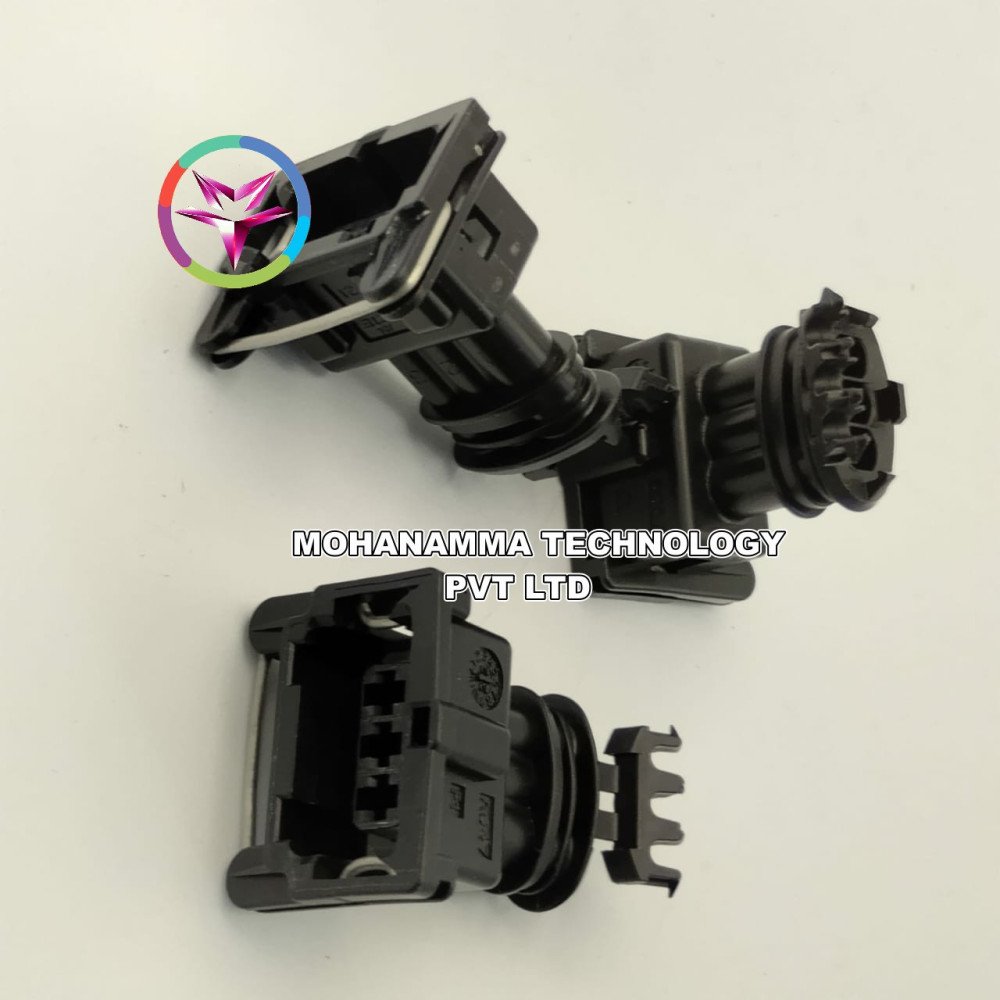

The 282191‑1 is a 3-position sealed receptacle housing from TE Connectivity’s Junior Power Timer (JPT) series. With a robust PA 6.6 nylon construction, 5 mm pitch, and splash‑proof design, it ensures reliable wire‑to‑board or wire‑to‑device connections in harsh automotive and industrial environments. The housing features polarization, locking lance, and IP54K protection when mated, making it suitable for engine compartments, control units, and other vibration‑prone locations

Product Specifications

Brand: TE Connectivity

Model Number: 282191-1

Availability: In stock

Product SKU: TE Connectivity / AMP 282191-1

Minimum order quantity: 50

Maximum order quantity:

Listed date: 30th Jul, 2025

Parameter	Details
Part Number	282191‑1
Manufacturer	TE Connectivity
Series	Junior Power Timer (JPT)
Connector Type	Receptacle Housing (female/socket)
Number of Positions	3
Pitch (Centerline)	5.0 mm (0.197 in)
Mounting Style	Cable mount / free‑hanging
Sealing	Yes (splash‑proof, IP54K)
Contact Type & Size	Socket flat, 2.8 mm (tab width)
Rated Current	Up to ~20 A (single circuit in free air)
Rated Voltage	24 V DC (nominal 12 V/24 V architectures)
Operating Temperature	–30 °C to +125 °C (–22 °F to +257 °F)
Housing Material	PA 66 (glass‑filled nylon)
Cable Exit Angle	180° (straight)
Color	Black
Locking Mechanism	Locking lance, polarization slot
Protection Rating	IP54K (splash proof)
Application	Power wire harnesses in automotive and industrial settings
