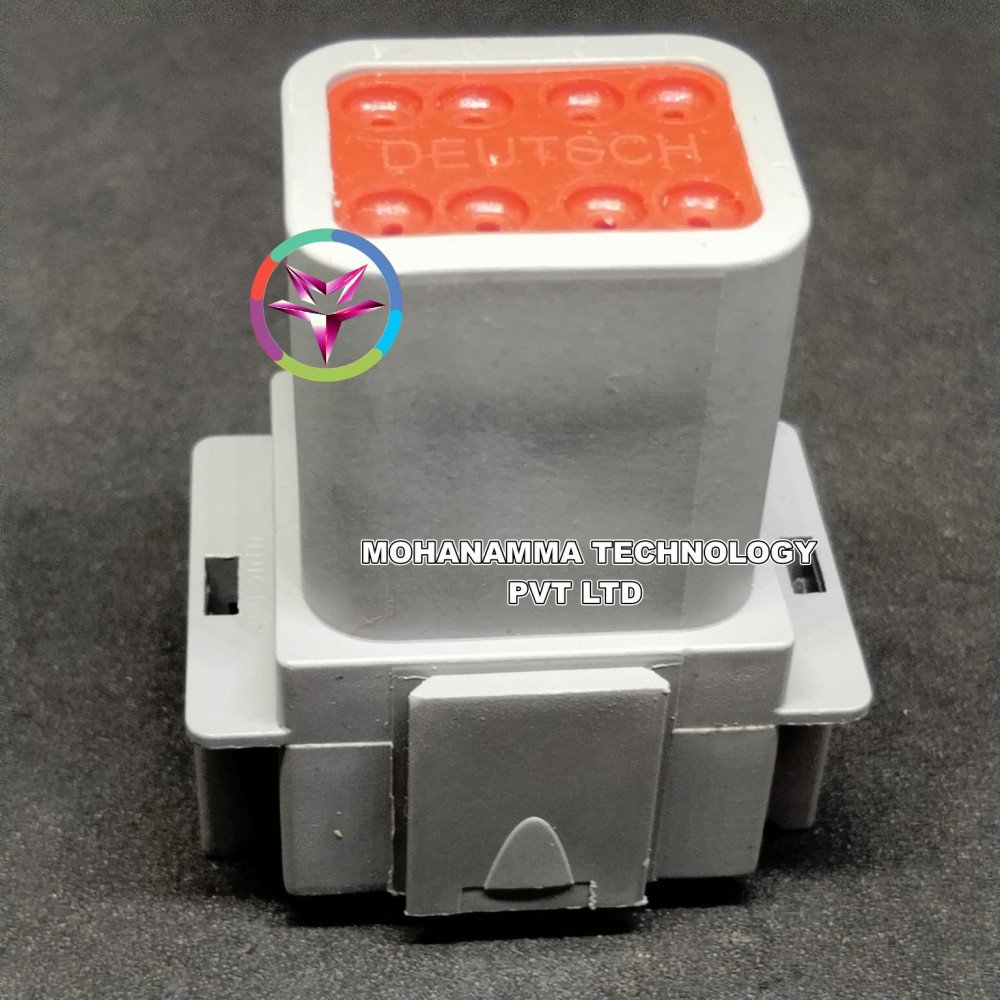

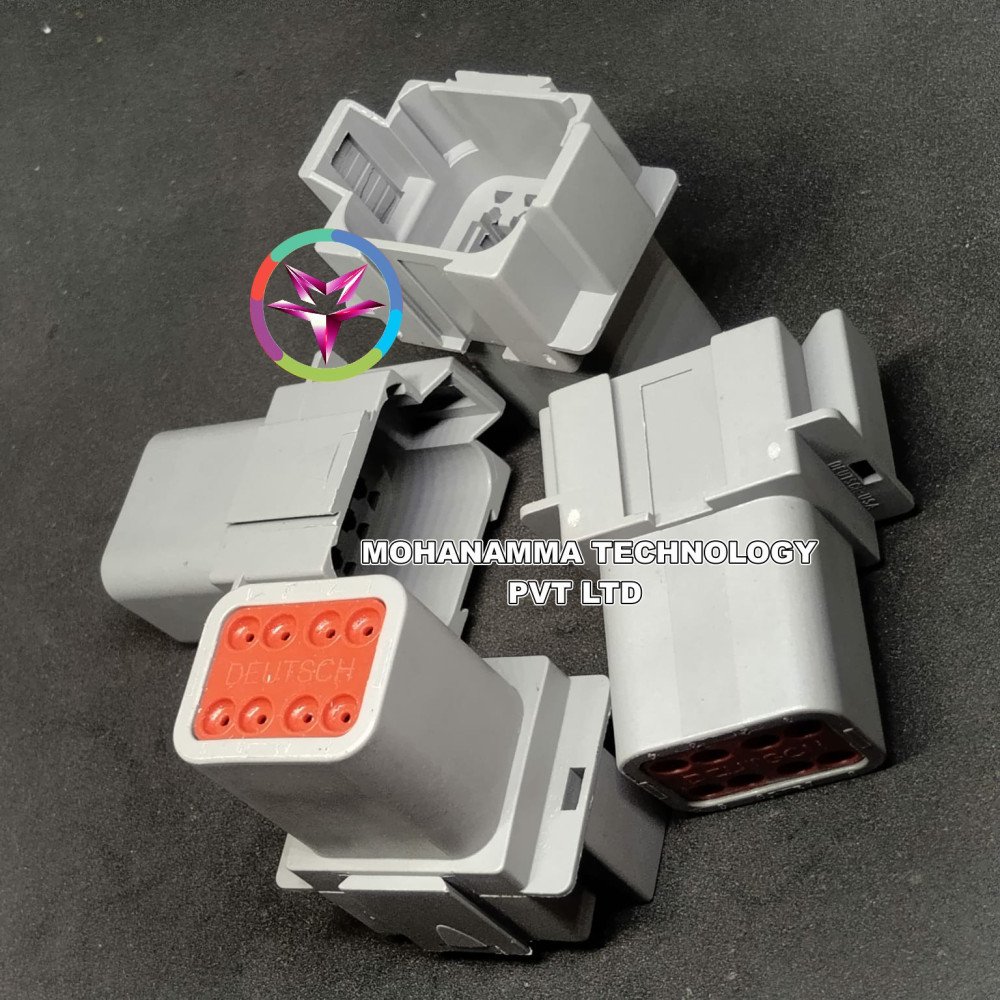

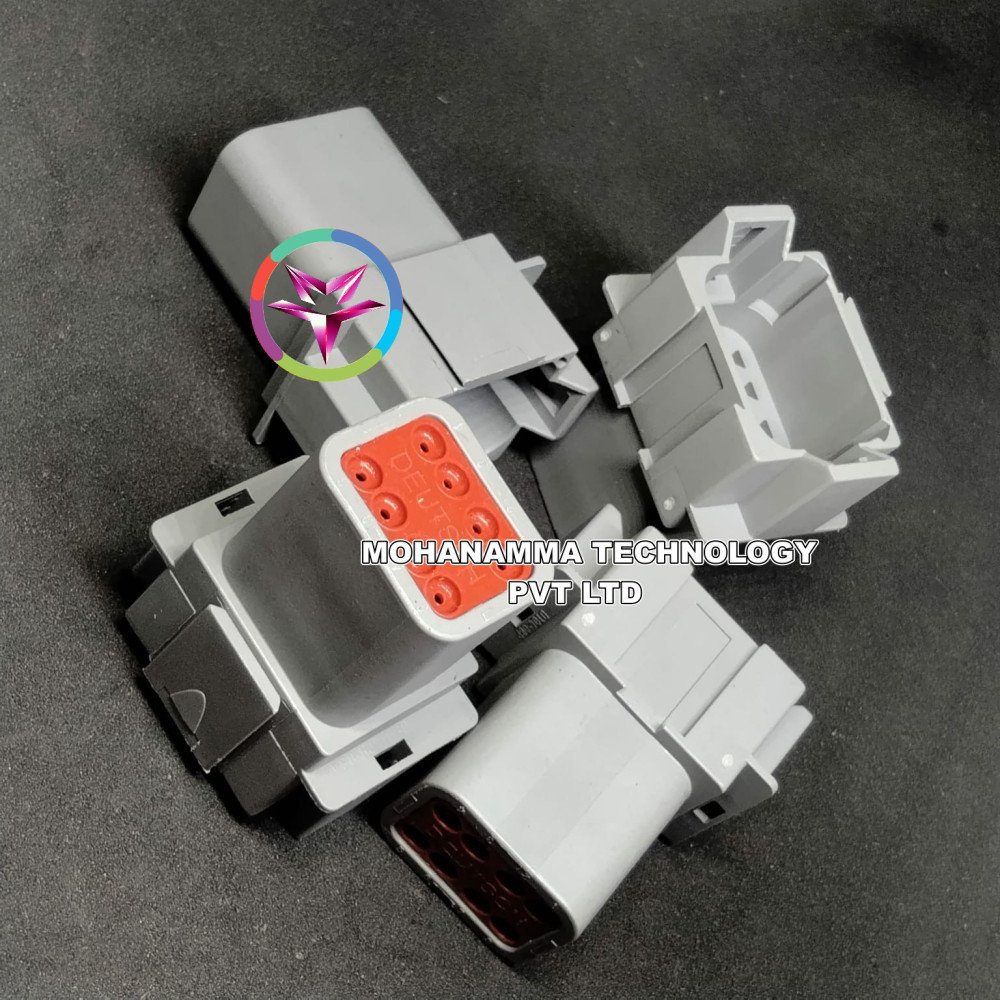

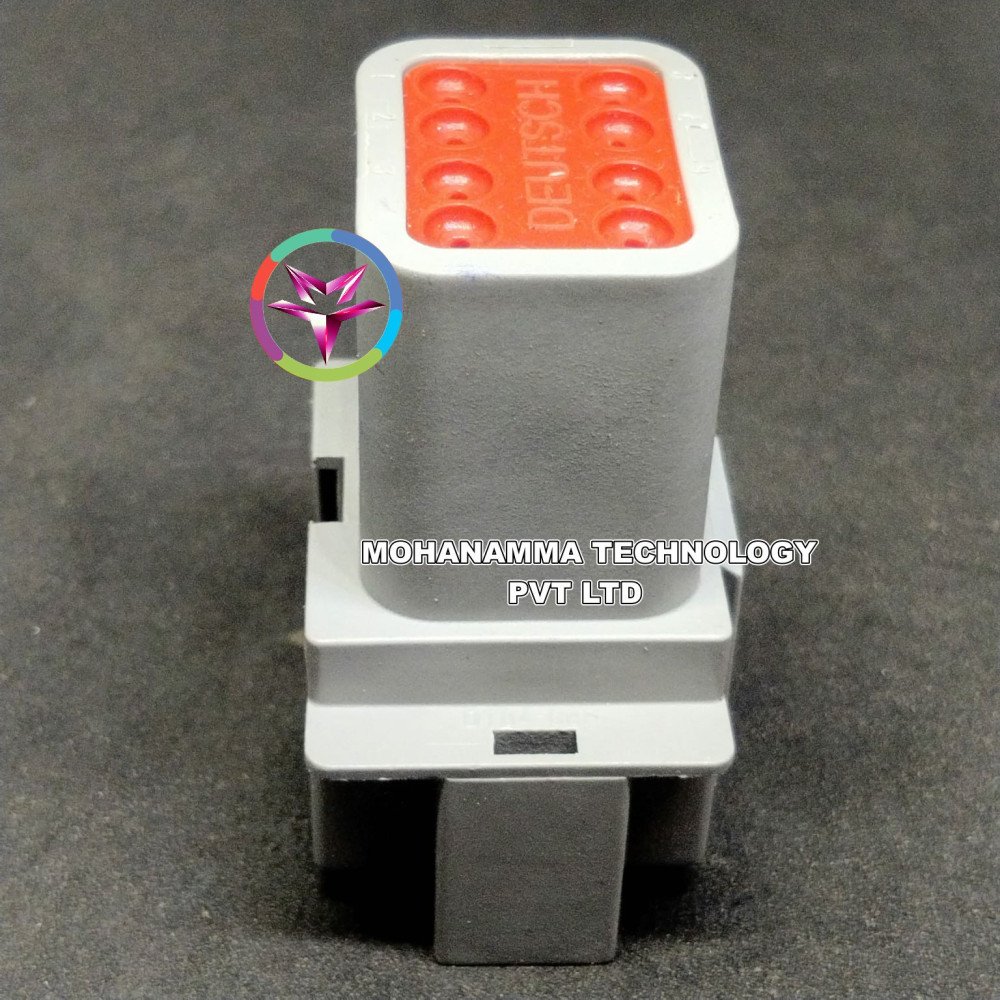

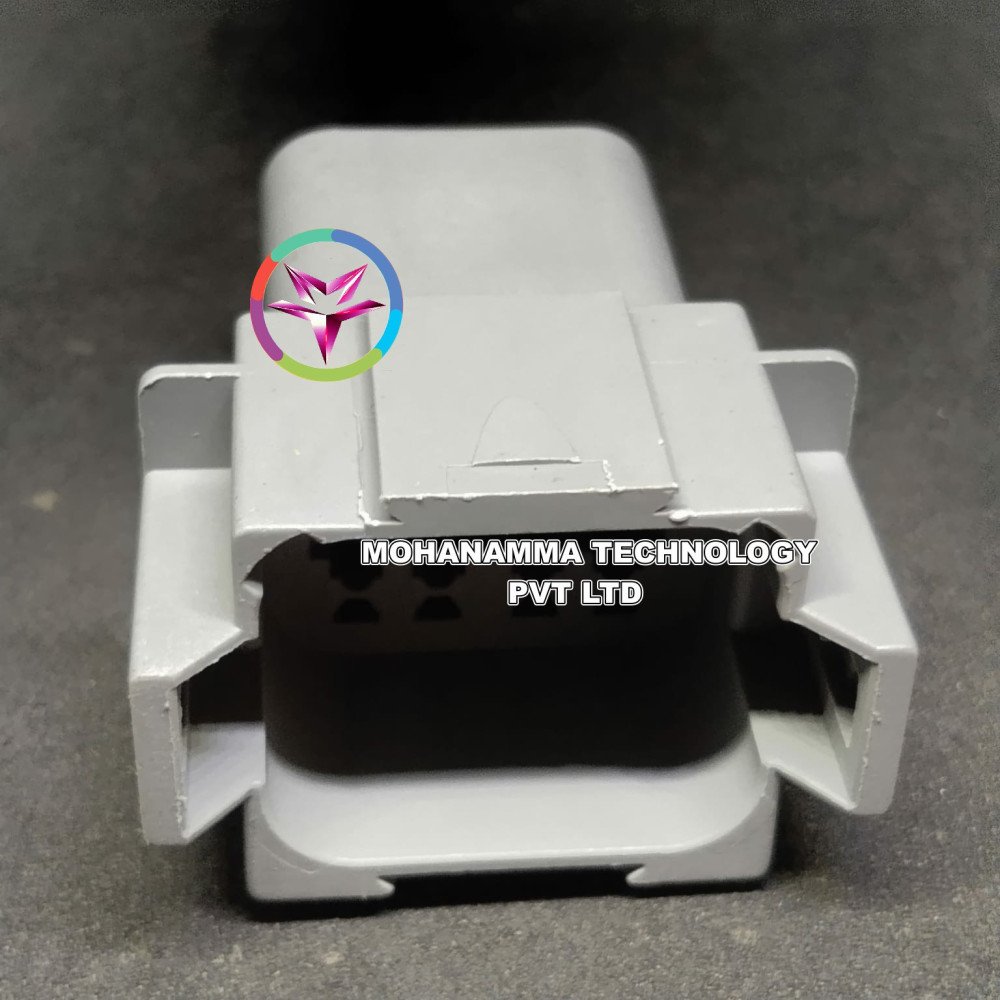

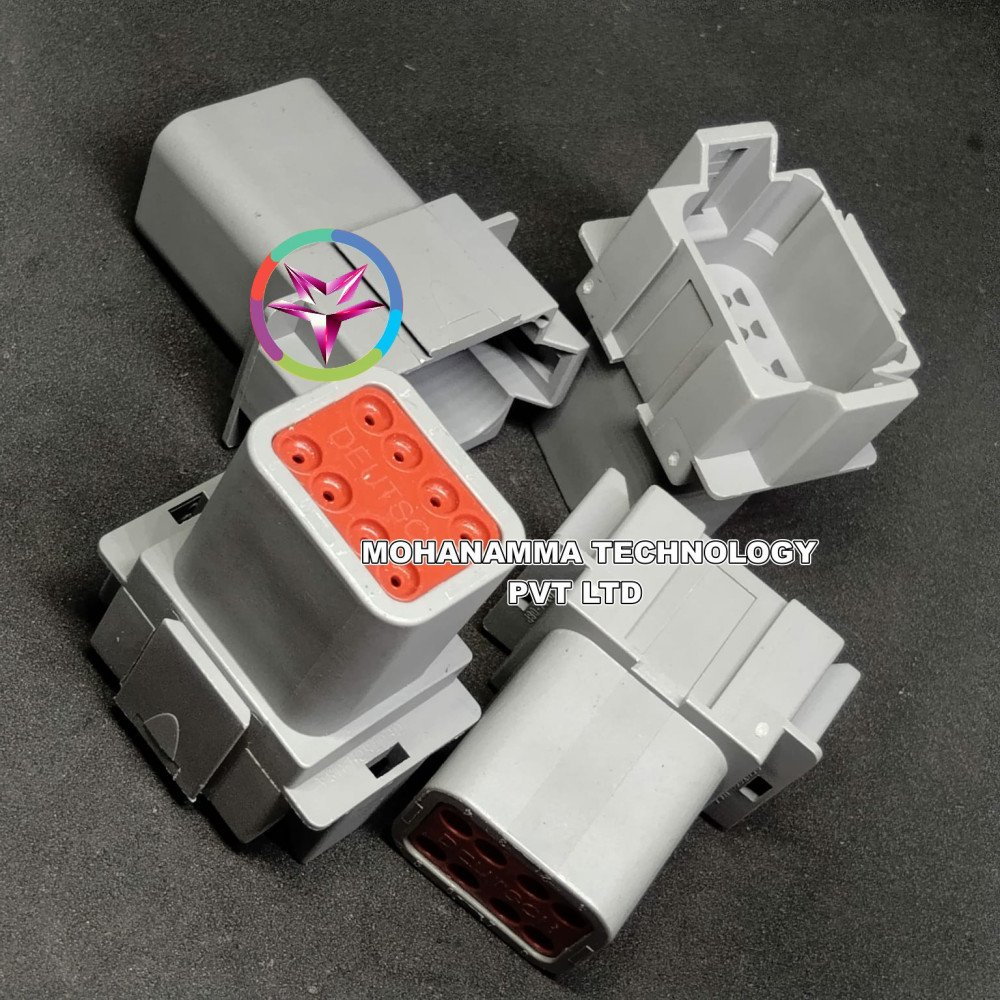

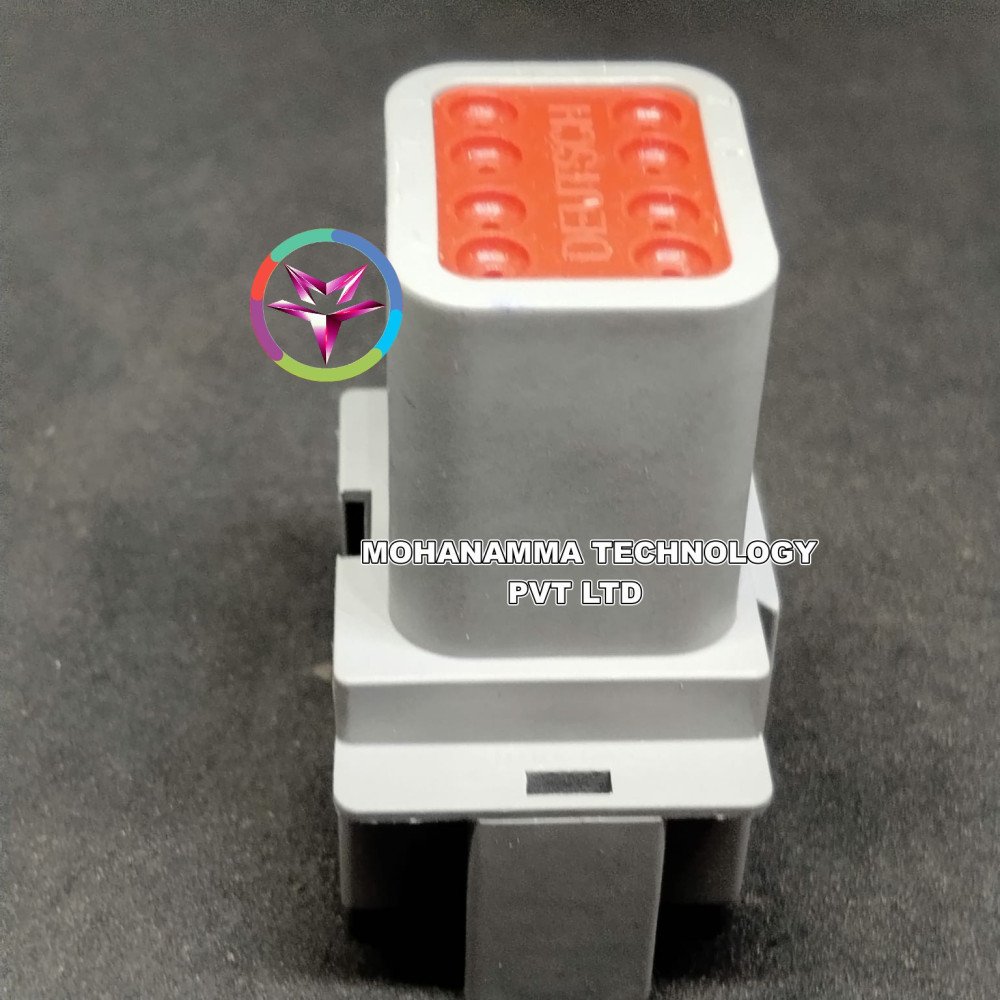

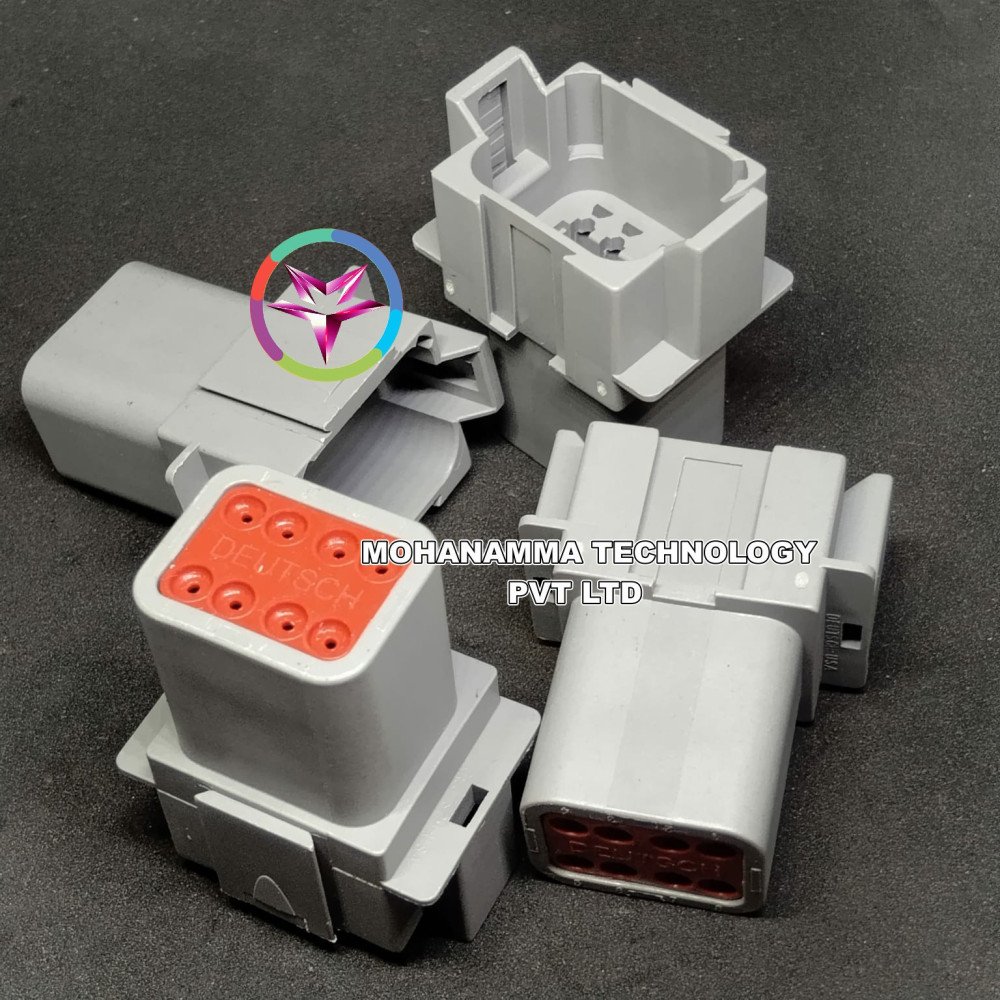

TE Connectivity / DEUTSCH DT04-08PA

In stock

TE Connectivity / DEUTSCH DT04-08PA

SKU: DT04-08PA

Category: Automotive Connectors

Availability: 1000

0.00/5 (0 Review)

₹ 294.93

Tag: te connectivity / deutsch dt04-08pa , automotive connectors dt recp 8 way a key , te connectivity , automotive connectors , 8 position , connectors

Quantity:

Total: ₹ 14,746.50

Add to wishlist Add To Compare

Share on:

Description

8 Position Housing, Housing for Male Terminals, Wire-to-Wire, 4.44 mm [.175 in] Centerline, Sealable, Gray, Wire & Cable, Power, DEUTSCH DT

Product Specifications

Brand: Deutsch

Model Number: DT04-08PA

Availability: In stock

Product SKU: DT04-08PA

Minimum order quantity: 50

Maximum order quantity:

Listed date: 28th Jun, 2025

Manufacturer:	TE Connectivity
Product Category:	Automotive Connectors
Product:	Connectors
Number of Positions:	8 Position
Pitch:	9.12 mm (0.359 in)
Gender:	Receptacle (Female)
Mounting Style:	Cable Mount / Free Hanging
Termination Style:	Crimp
Wire Gauge Min:	20 AWG
Wire Gauge Max:	14 AWG
Color:	Gray
Packaging:	Bulk
Application:	Wire to Wire
Attachment Hole Diameter:	1.5 mm
Brand:	TE Connectivity / DEUTSCH
Contact Gender:	Pin (Male)
Current Rating:	13 A
Dimensions:	36.45 mm x 23.88 mm x 45.67 mm
Height:	23.88 mm
Housing Gender:	Receptacle (Female)
Housing Material:	Plastic
Ingress Protection:	IP68, IP6K9K
Insulation:	Insulated
Length:	45.67 mm
Locking Mechanism:	Integrated in Housing
Material:	Plastic
Mating Gender:	Plug
Mating Part Number:	DT06-08SA
Maximum Operating Temperature:	+ 125 C
Minimum Operating Temperature:	- 55 C
Mounting Angle:	Straight
Number of Rows:	2 Row
Product Type:	Automotive Connectors
Row Spacing:	4.45 mm
Subcategory:	Automotive Connectors
Type:	8-Way
Voltage Rating:	250 V
Width:	36.45 mm
Wire Gauge Range:	14 AWG to 20 AWG
Part # Aliases:	ZPF000000000130407 6-1899776-1
Unit Weight:	16.330 g

Pdf Specifications

download file
