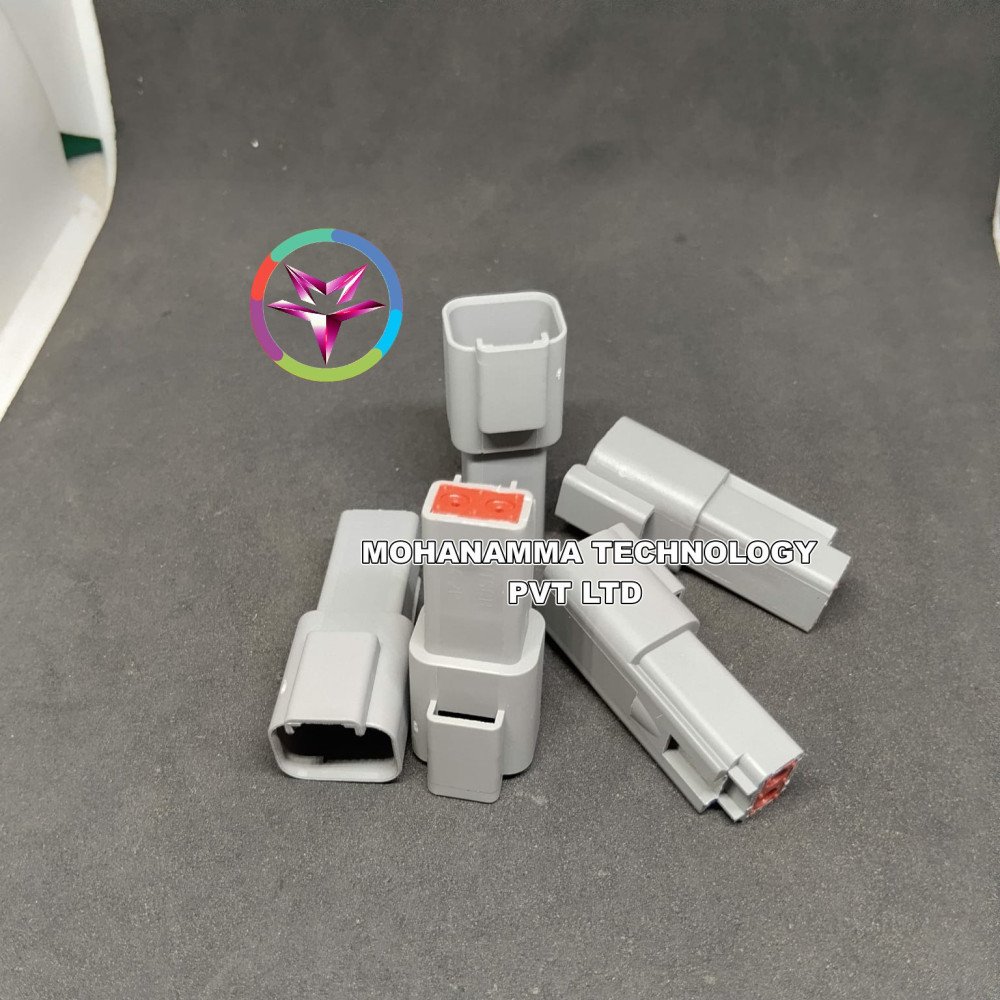

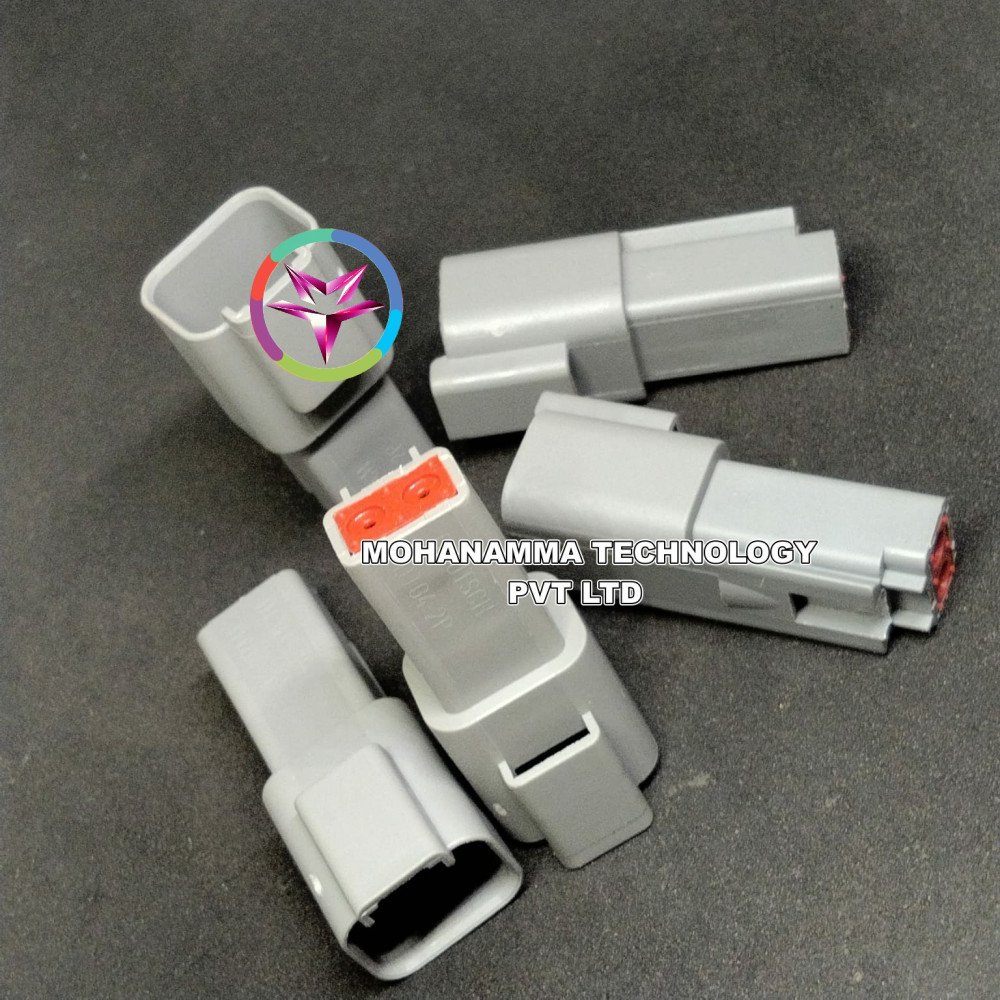

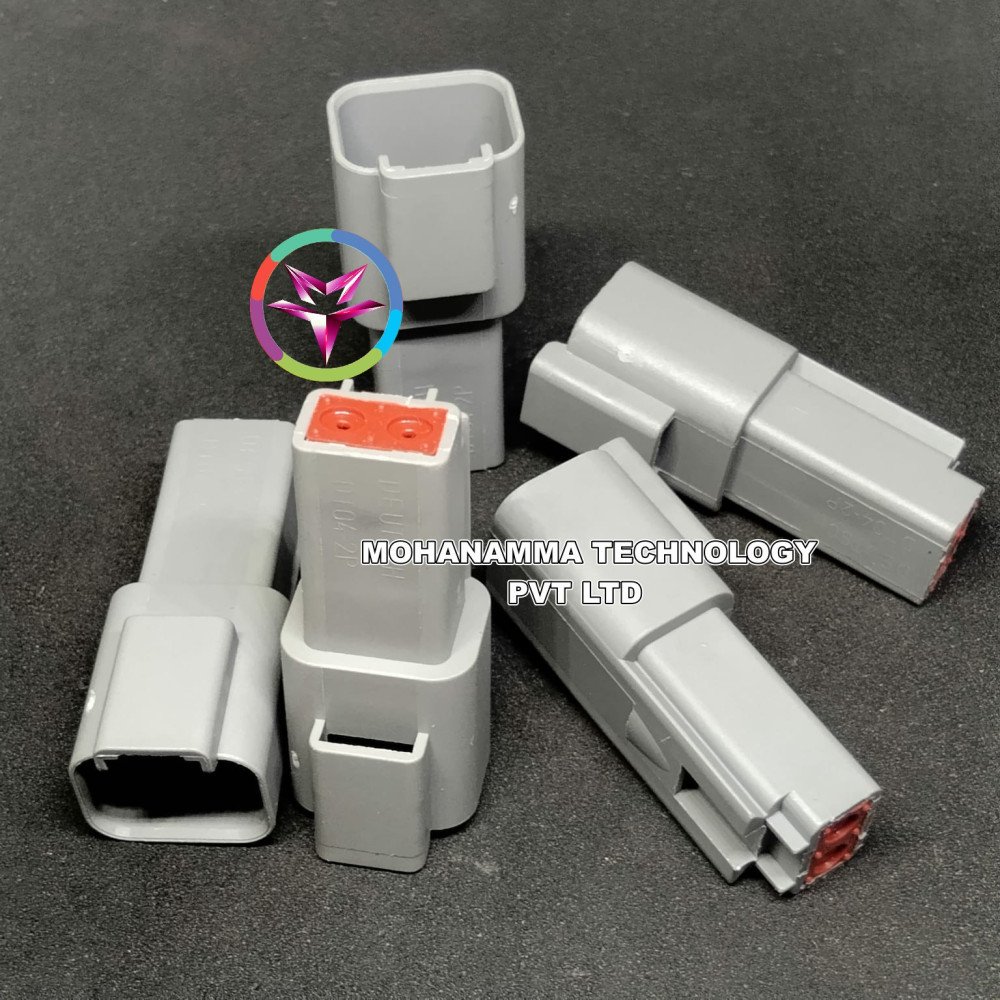

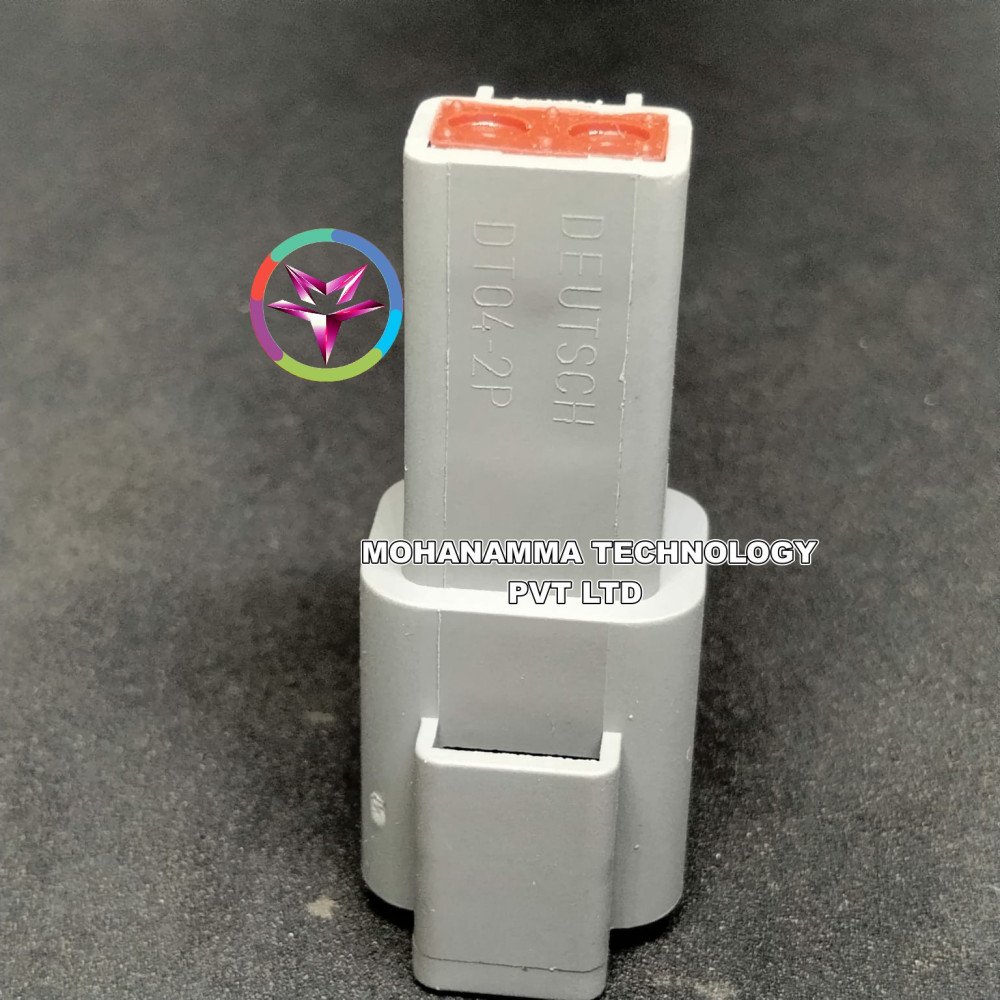

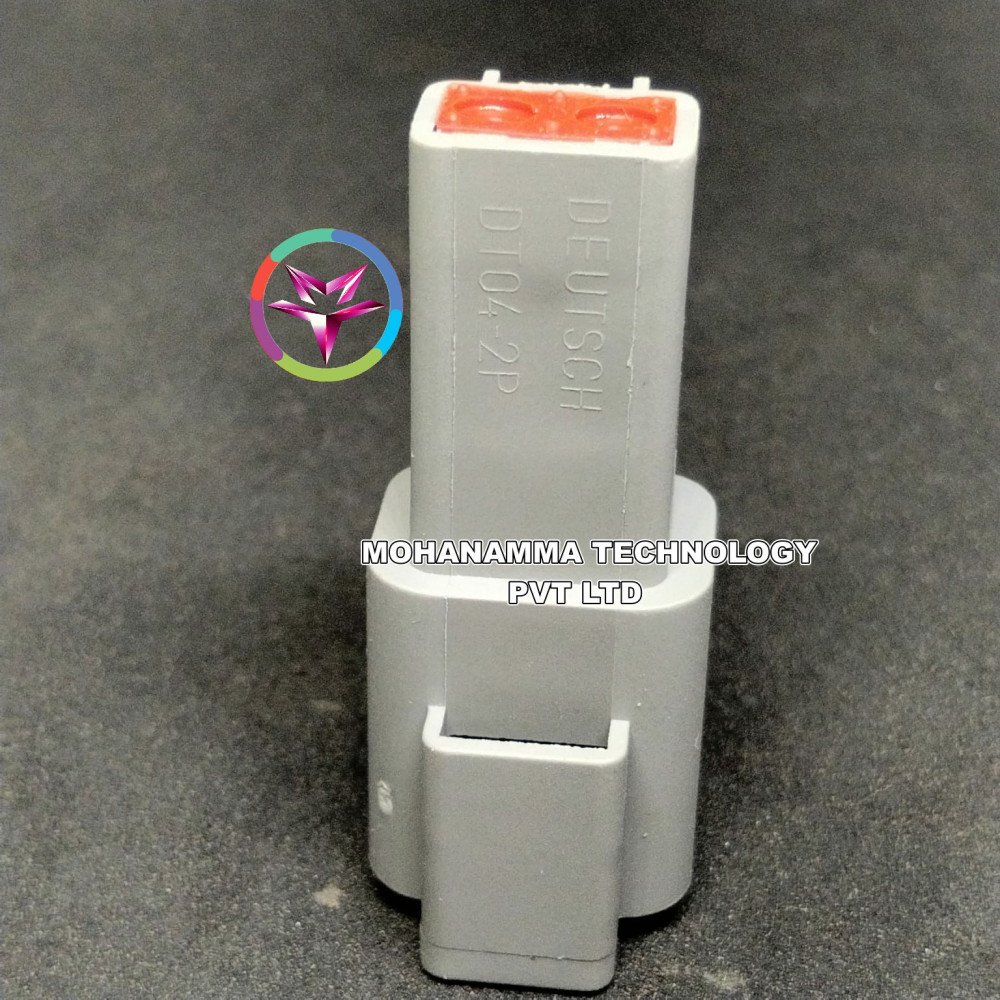

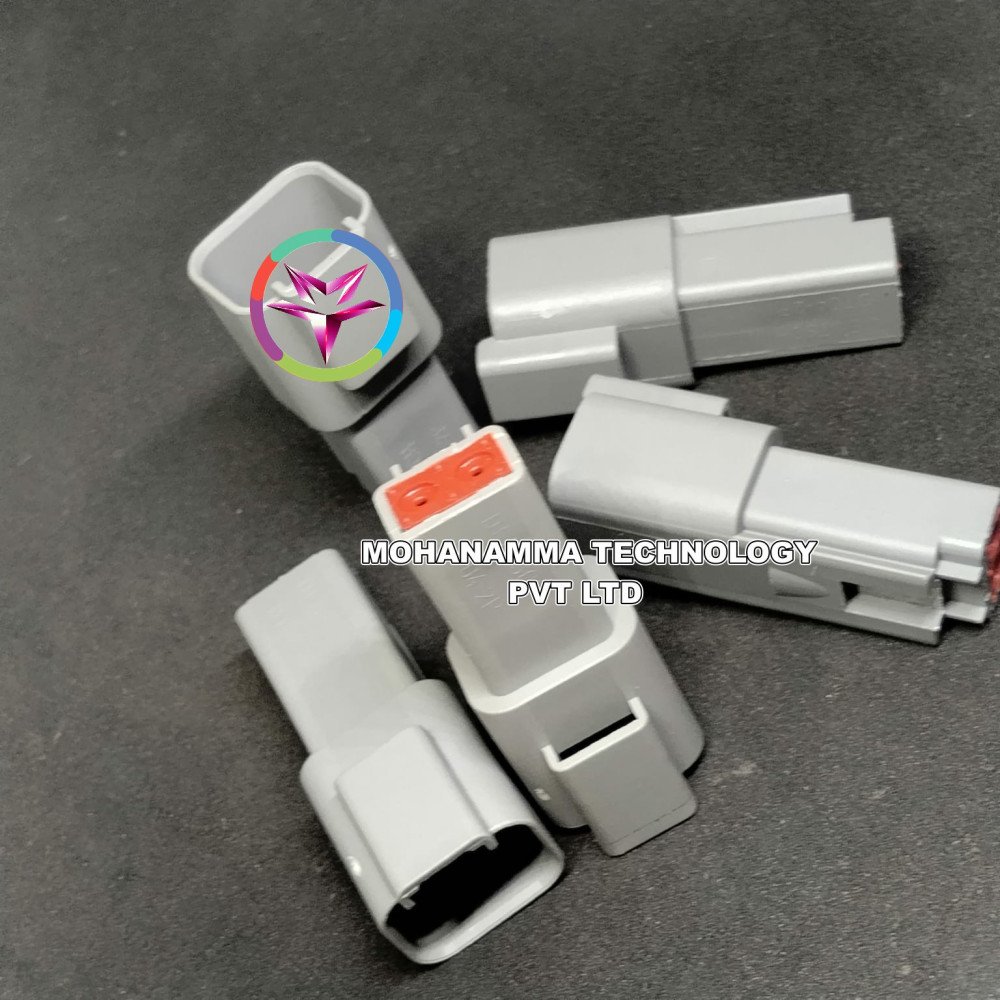

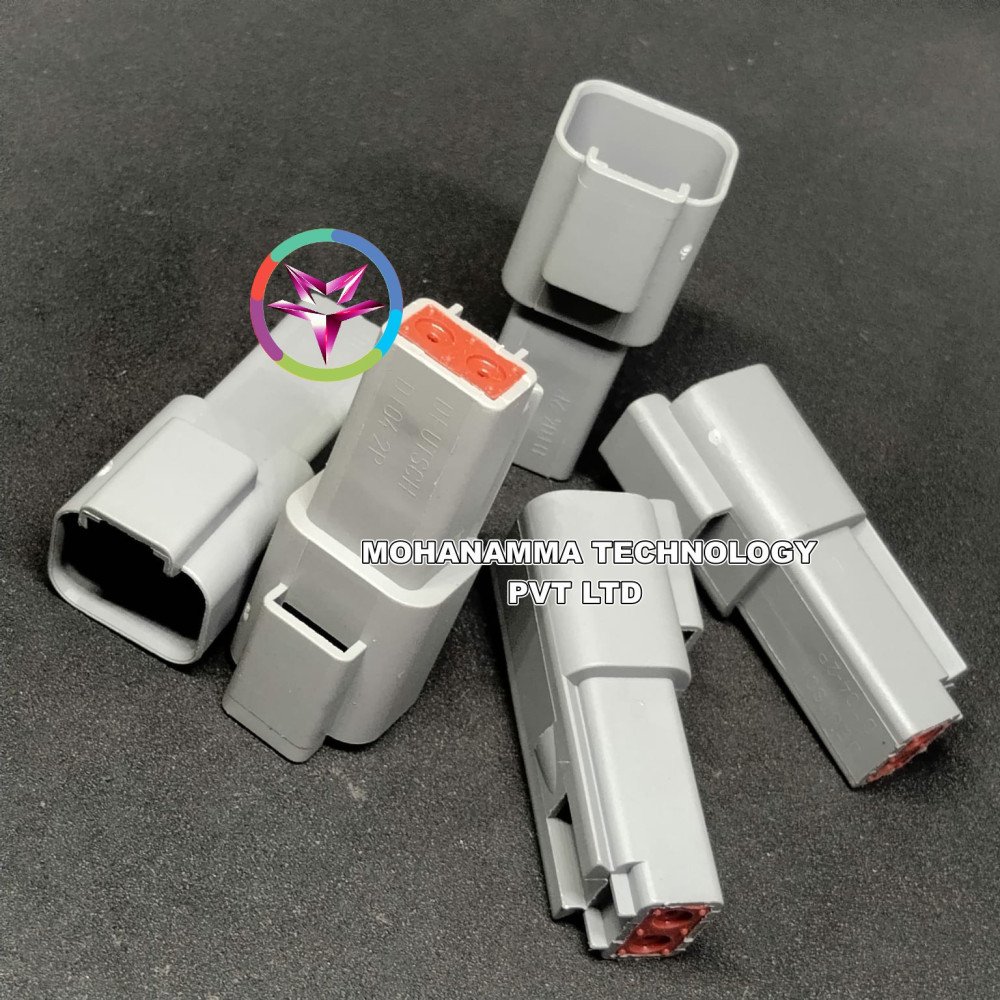

TE Connectivity / DEUTSCH DT04-2P

In stock

SKU: DT04-2P

Category: Automotive Connectors

Availability: 10000

0.00/5 (0 Review)

₹ 62.64

Share on:

0 Verified ratings

No review found.

Manufacturer:	TE Connectivity
Product Category:	Automotive Connectors
RoHS:
REACH - SVHC:
Product:	Connectors
Number of Positions:	2 Position
Pitch:	5.46 mm (0.215 in)
Gender:	Receptacle (Female)
Mounting Style:	Cable Mount / Free Hanging
Termination Style:	Crimp
Wire Gauge Min:	20 AWG
Wire Gauge Max:	14 AWG
Color:	Gray
Series:	DT
Packaging:	Bulk
Application:	Wire to Wire
Attachment Hole Diameter:	1.5 mm
Brand:	TE Connectivity / DEUTSCH
Contact Gender:	Without Pin Contacts
Current Rating:	13 A
Height:	17.02 mm
Housing Material:	Polyamide (PA)
Ingress Protection:	IP68, IP6K9K
Length:	43.38 mm
Locking Mechanism:	Integrated in Housing
Material:	Plastic
Maximum Operating Temperature:	+ 125 C
Minimum Operating Temperature:	- 55 C
Mounting Angle:	Straight
Number of Rows:	1 Row
Product Type:	Automotive Connectors
	1
Subcategory:	Automotive Connectors
Tradename:	DT
Type:	Receptacle
Voltage Rating:	250 V
Width:	17.15 mm
Wire Gauge Range:	14 AWG to 20 AWG
Part # Aliases:	DT04-2P-L DT04-2P-LD DT04-2P-LS ZPF000000000130153
Unit Weight:	4 g
