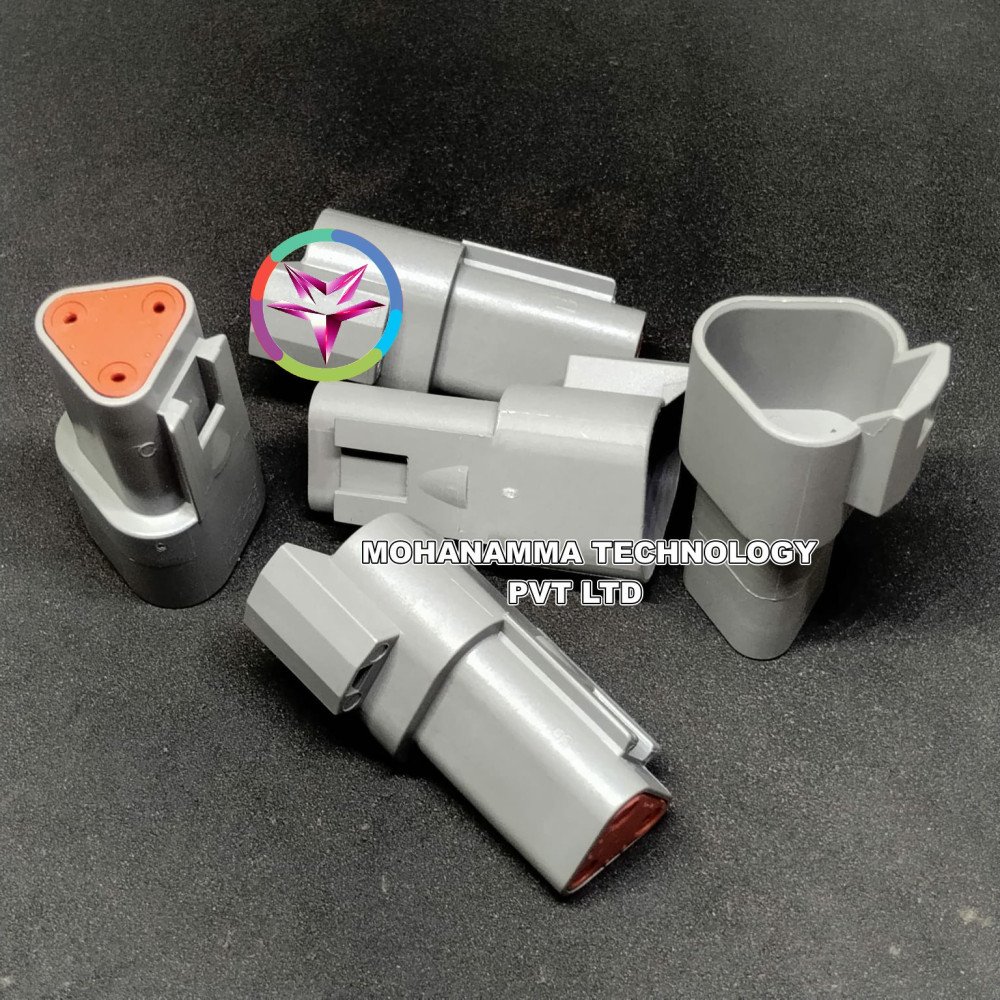

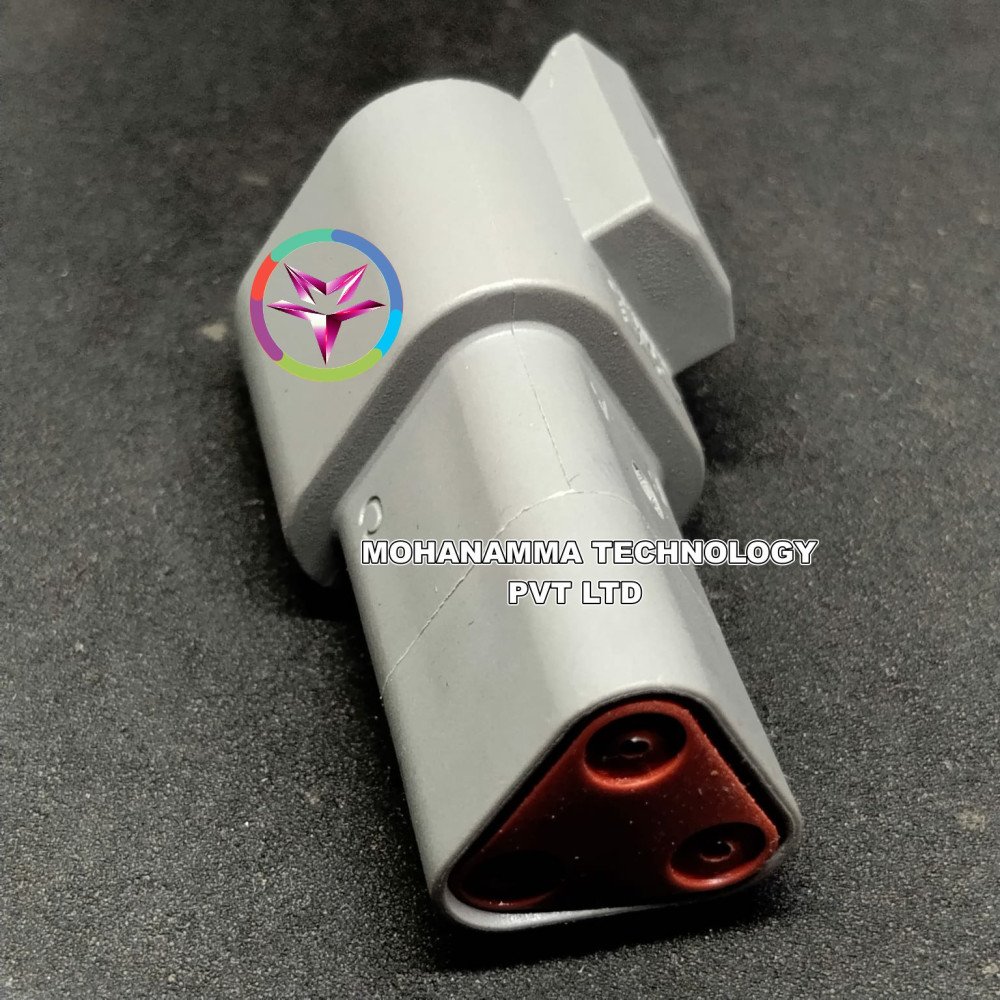

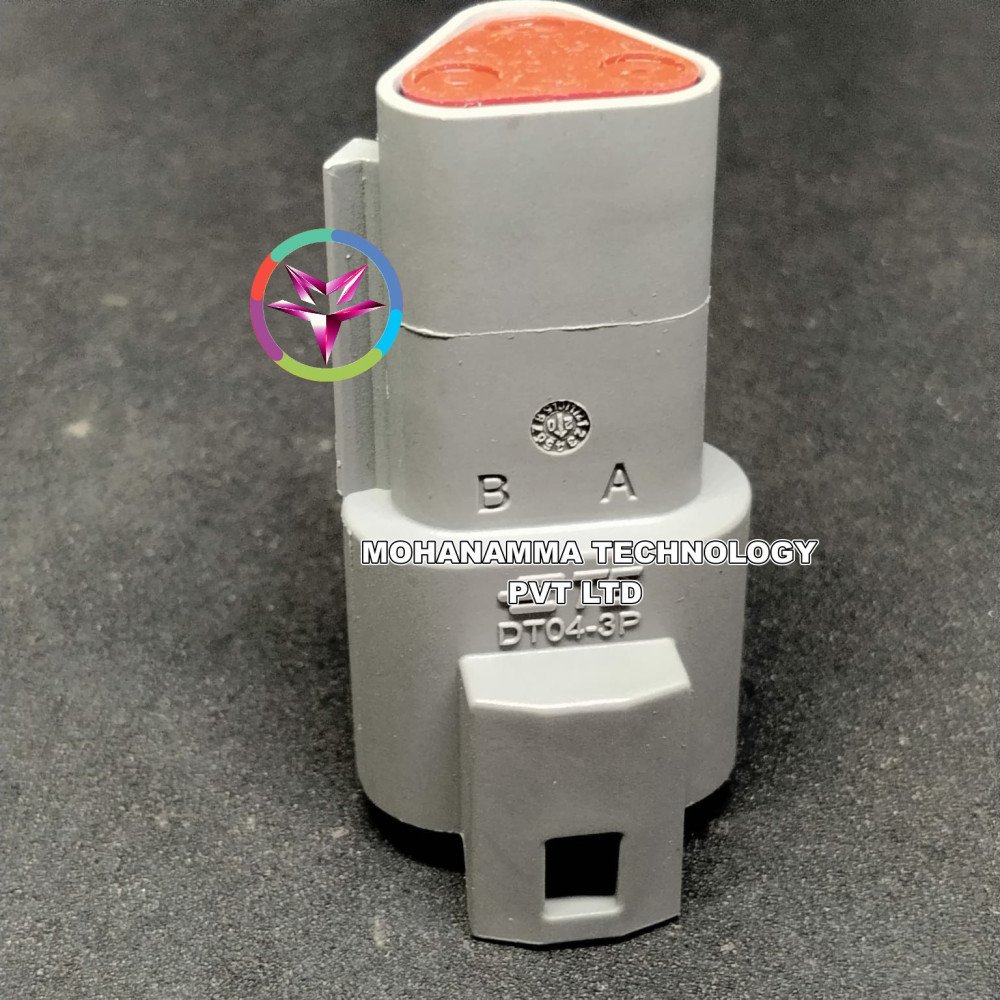

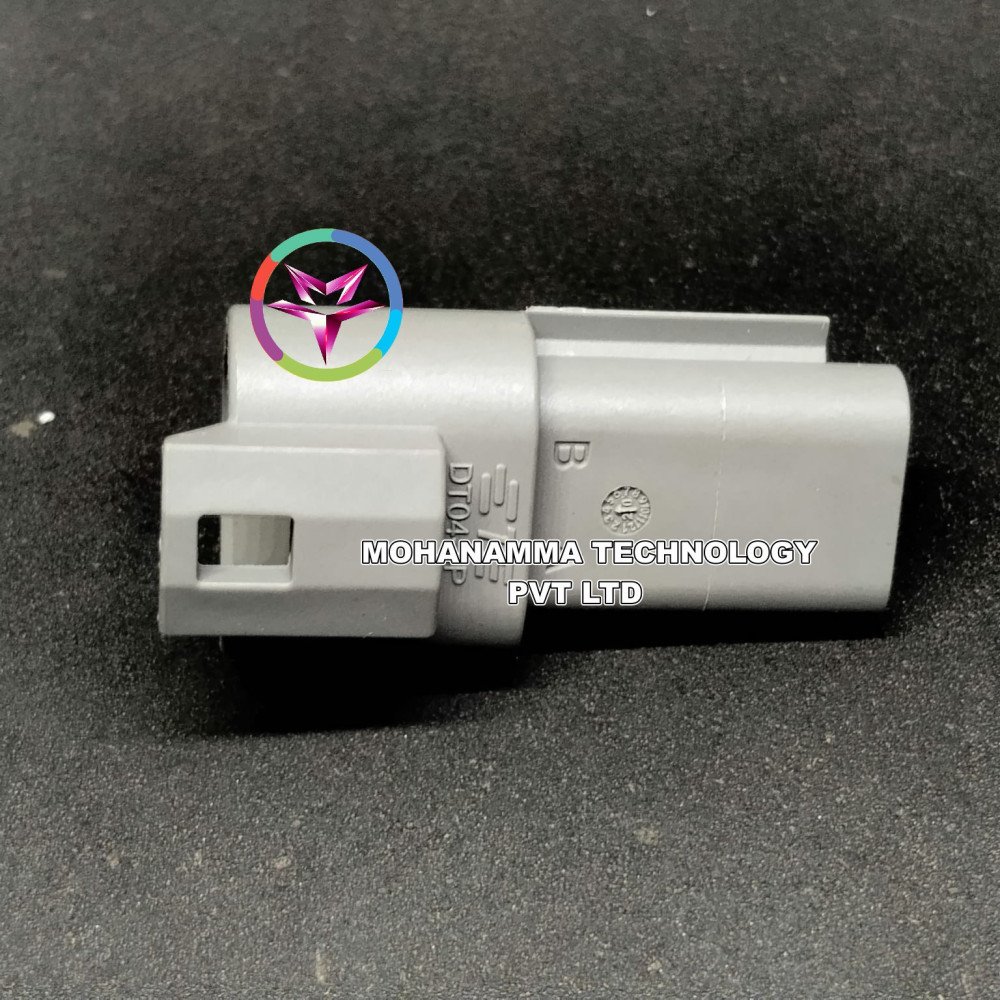

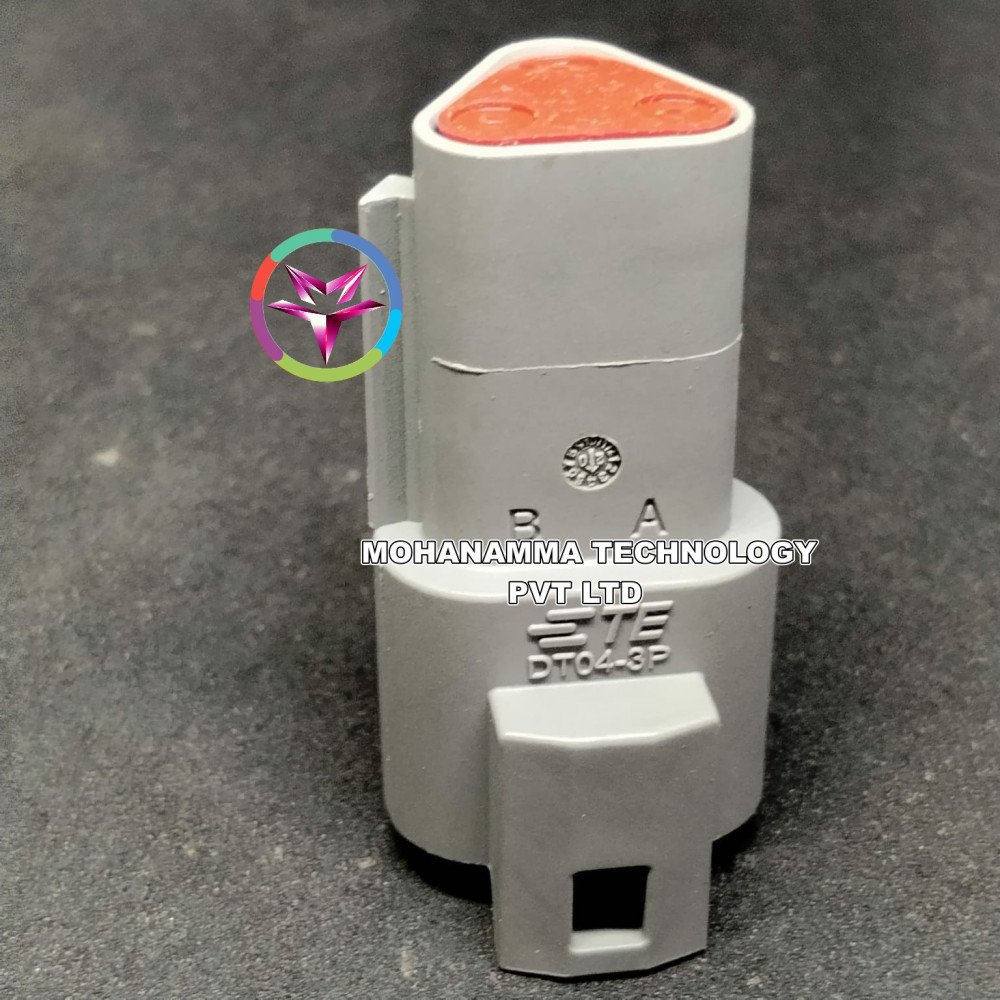

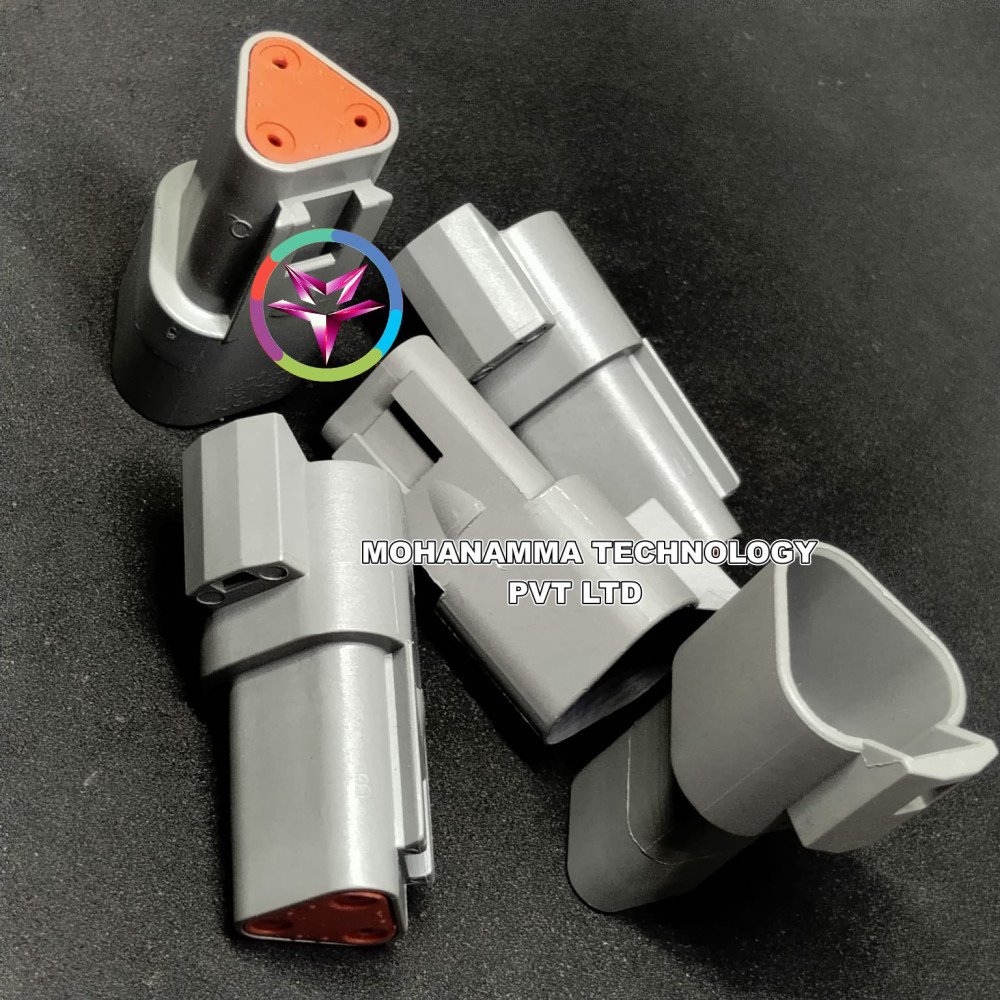

TE Connectivity / DEUTSCH DT04-3P

In stock

SKU: DT04-3P

Category: Automotive Connectors

Availability: 10000

0.00/5 (0 Review)

₹ 110.49

Share on:

0 Verified ratings

No review found.

Manufacturer:	TE Connectivity
Product Category:	Automotive Connectors
Product:	Connectors
Number of Positions:	3 Position
Pitch:	10.01 mm (0.394 in)
Gender:	Receptacle (Female)
Mounting Style:	Cable Mount / Free Hanging
Termination Style:	Crimp
Wire Gauge Min:	20 AWG
Wire Gauge Max:	14 AWG
Color:	Gray
Packaging:	Bulk
Application:	Wire to Wire
Attachment Hole Diameter:	1.5 mm
Brand:	TE Connectivity / DEUTSCH
Contact Gender:	Pin (Male)
Current Rating:	13 A
Dimensions:	21.13 mm x 24.71 mm x 43.13 mm
Height:	24.71 mm
Housing Gender:	Receptacle (Female)
Housing Material:	Polyamide (PA)
Ingress Protection:	IP68, IP6K9K
Insulation:	Insulated
Length:	43.13 mm
Locking Mechanism:	Integrated in Housing
Material:	Plastic
Mating Gender:	Plug
Mating Part Number:	DT06-3S
Maximum Operating Temperature:	+ 125 C
Minimum Operating Temperature:	- 55 C
Mounting Angle:	Straight
Product Type:	Automotive Connectors
Subcategory:	Automotive Connectors
Type:	3-Way
Voltage Rating:	250 V
Width:	21.13 mm
Wire Gauge Range:	14 AWG to 20 AWG
Part # Aliases:	DT04-3P-LD DT04-3P-LS ZPF000000000130205 DT04-3P-AS DT04-3P-L
Unit Weight:	6.292 g
