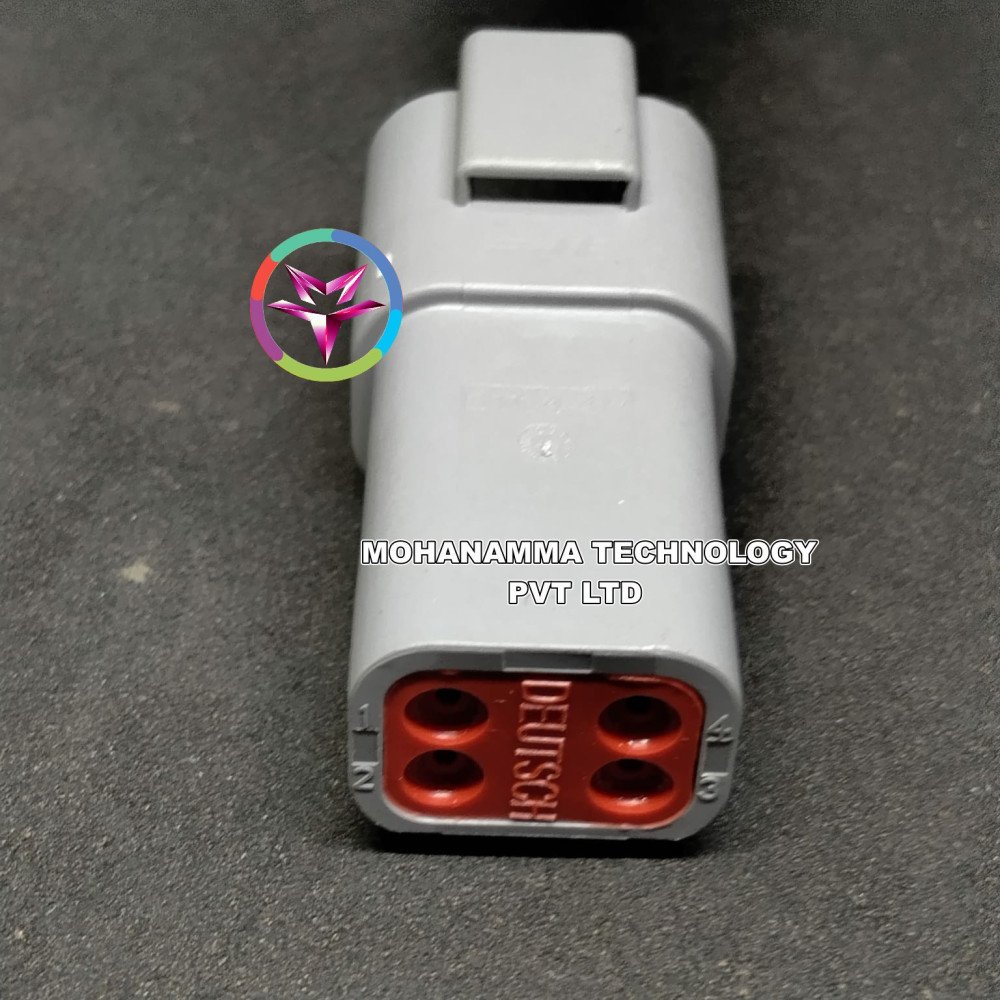

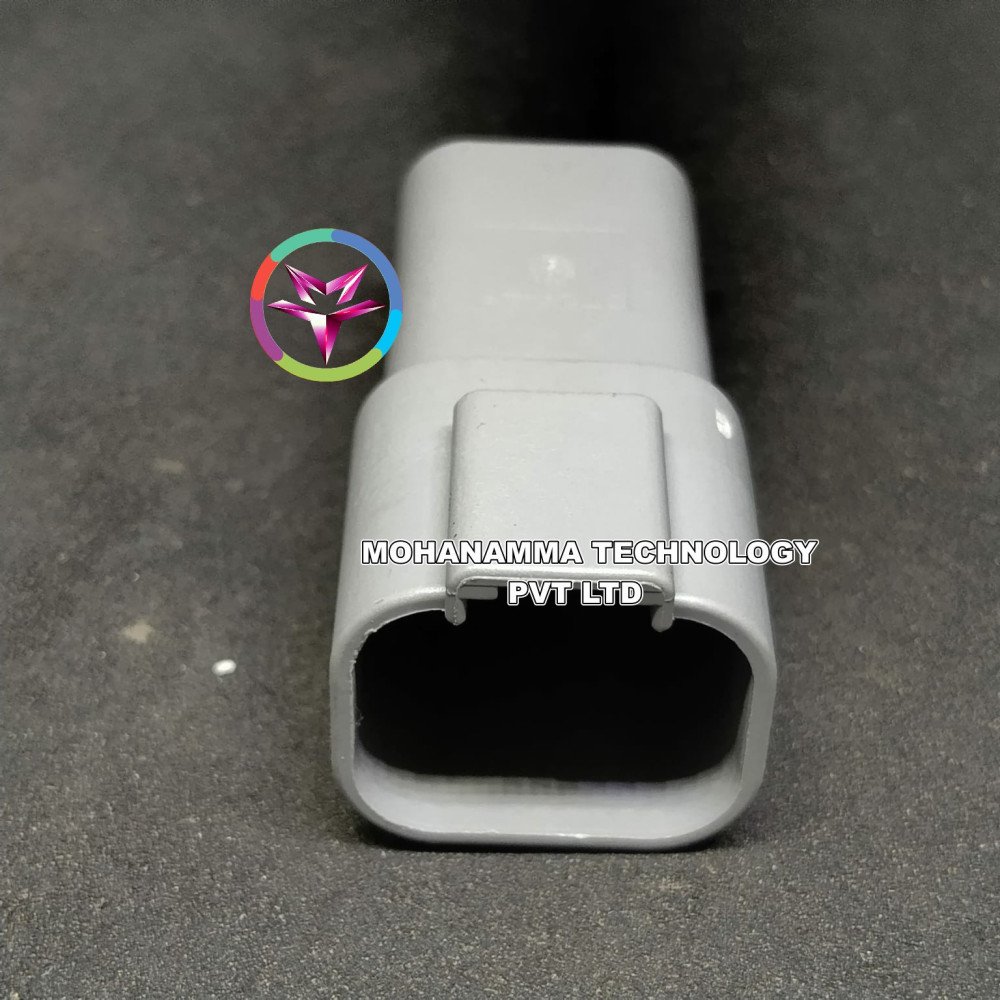

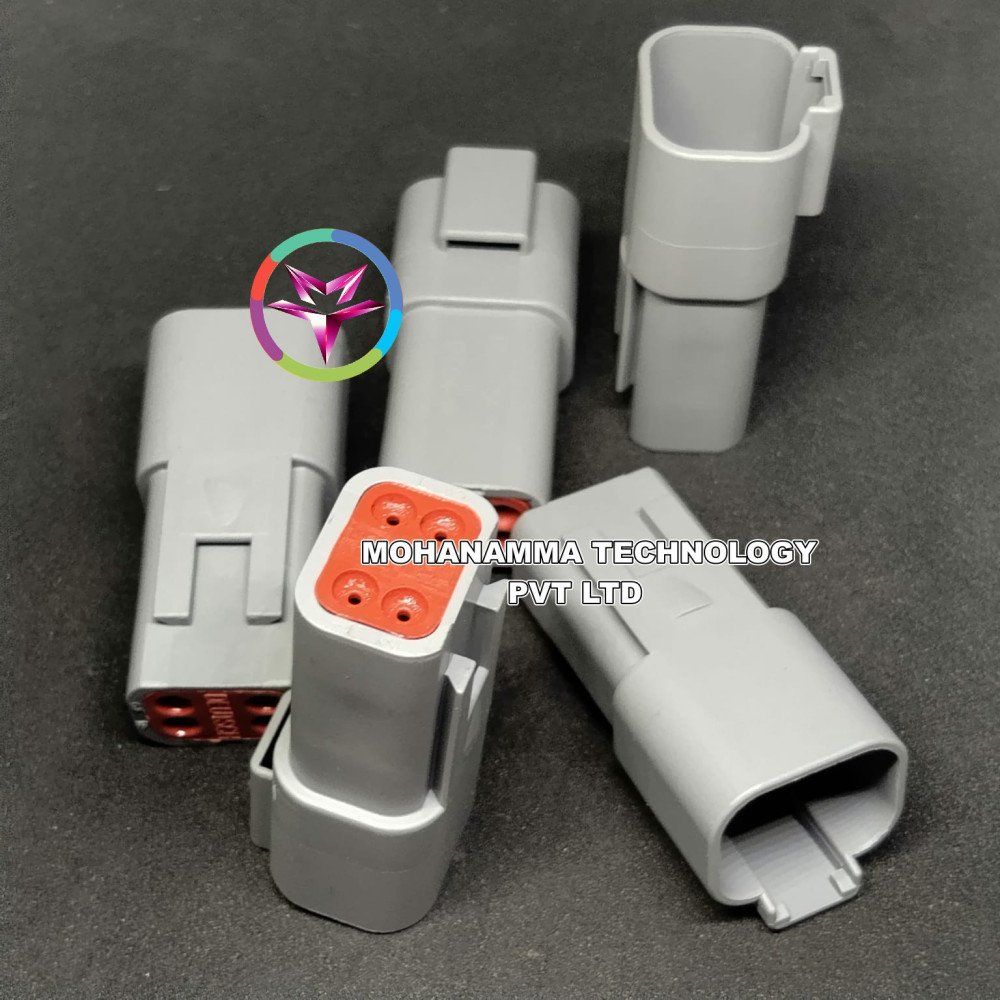

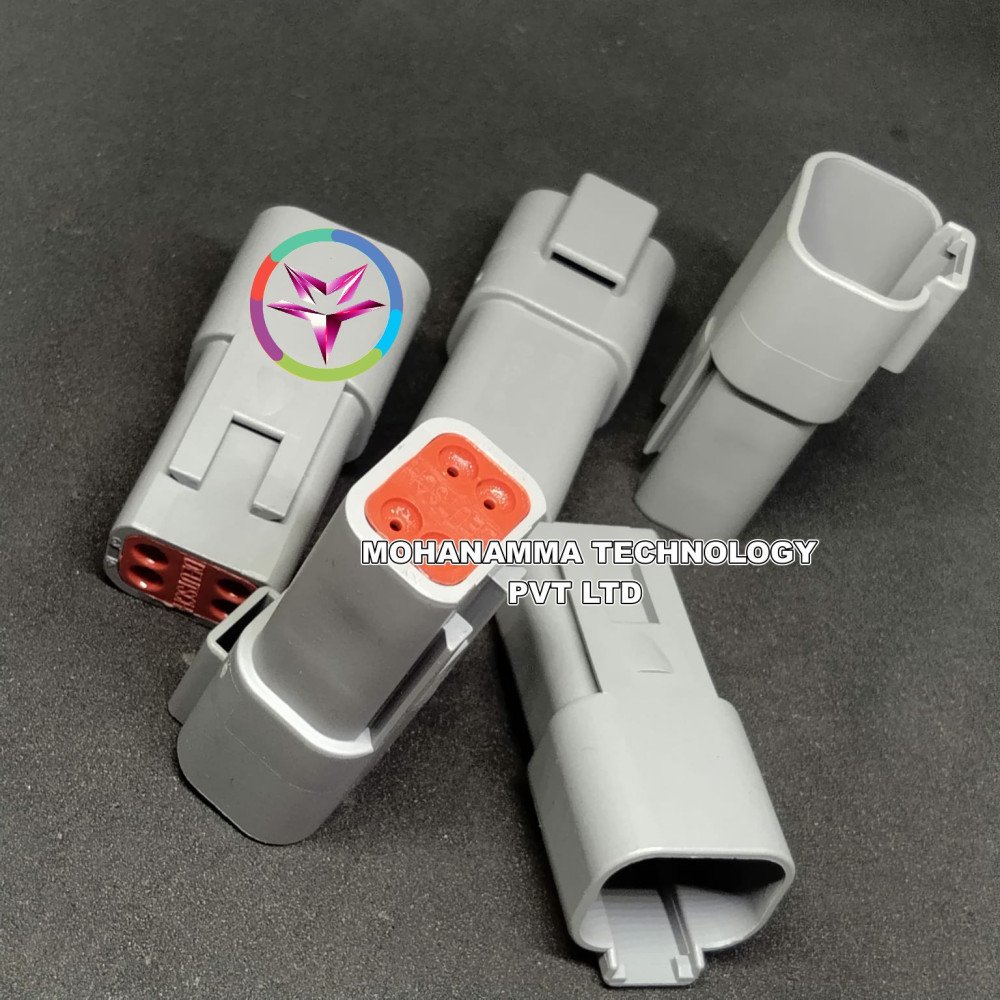

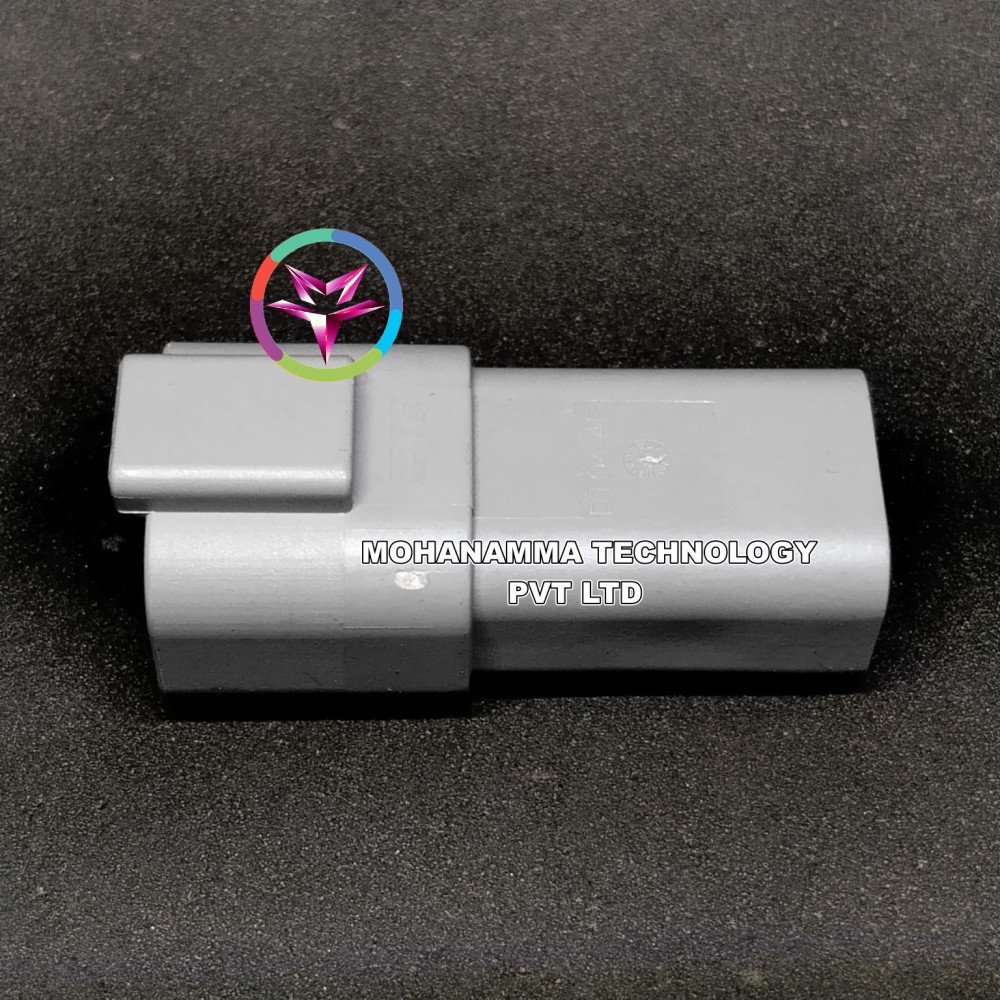

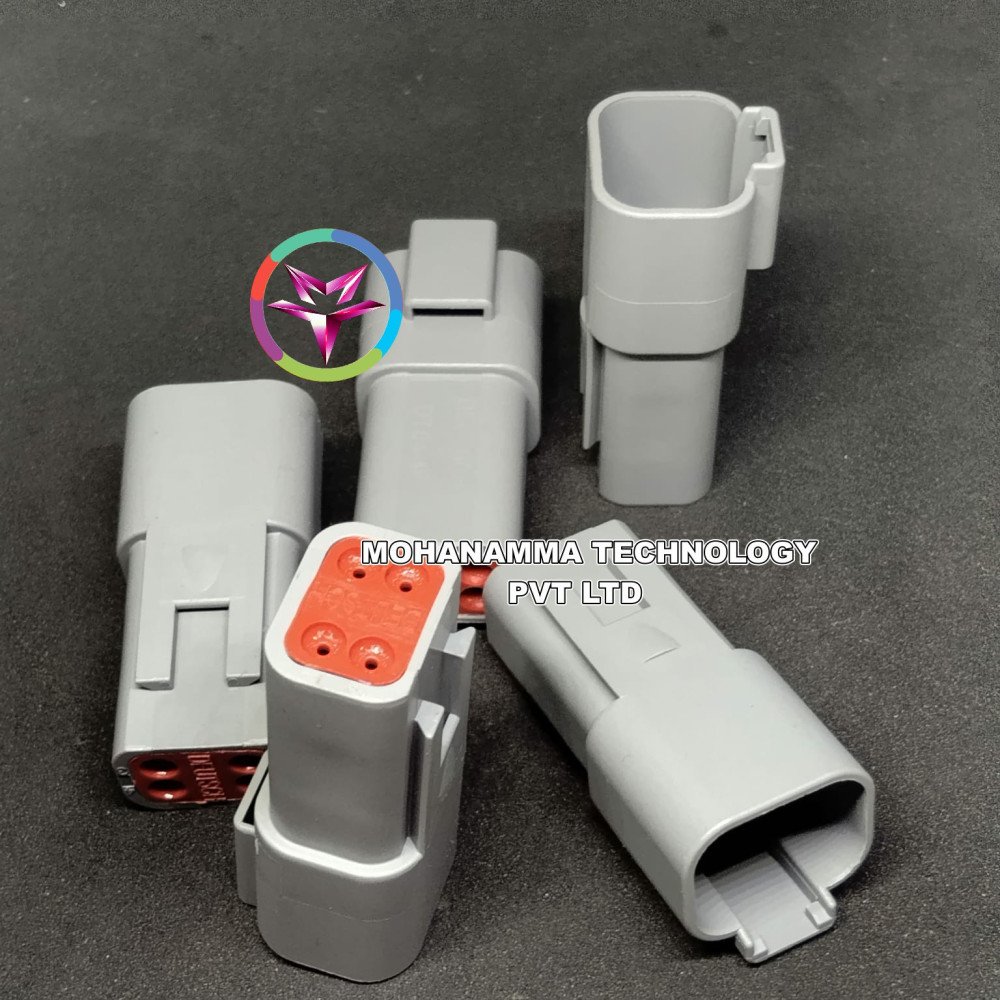

TE Connectivity / DEUTSCH DT04-4P

Out of stock

TE Connectivity / DEUTSCH DT04-4P

SKU: DT04-4P

Category: Automotive Connectors

Availability: 0

0.00/5 (0 Review)

₹ 140.07

Tag: te connectivity / deutsch dt04-4p , automotive connectors , integrated in housing , plastic , polyamide (pa) , without pin contacts , wire to wire , gray

Quantity:

Total: ₹ 7,003.50

Add to wishlist Add To Compare

Share on:

Description

4 Position Housing, Housing for Male Terminals, Wire-to-Wire, 4.47 mm [.176 in] Centerline, Sealable, Gray, Wire & Cable, Power, DEUTSCH DT

Product Specifications

Brand: Deutsch

Model Number: DT04-4P

Availability: Out Of Stock.

Product SKU: DT04-4P

Minimum order quantity: 50

Maximum order quantity:

Listed date: 28th Jun, 2025

Manufacturer:	TE Connectivity
Product Category:	Automotive Connectors
Product:	Connectors
Number of Positions:	4 Position
Pitch:	4.45 mm (0.175 in)
Gender:	Receptacle (Female)
Mounting Style:	Cable Mount / Free Hanging
Termination Style:	Crimp
Wire Gauge Min:	20 AWG
Wire Gauge Max:	14 AWG
Color:	Gray
Packaging:	Bulk
Application:	Wire to Wire
Attachment Hole Diameter:	1.5 mm
Brand:	TE Connectivity / DEUTSCH
Contact Gender:	Without Pin Contacts
Current Rating:	13 A
Dimensions:	20.83 mm x 19.71 mm x 45.92 mm
Height:	19.71 mm
Housing Material:	Polyamide (PA)
Ingress Protection:	IP68, PI6K9K
Length:	45.92 mm
Locking Mechanism:	Integrated in Housing
Material:	Plastic
Maximum Operating Temperature:	+ 125 C
Minimum Operating Temperature:	- 55 C
Mounting Angle:	Straight
Number of Rows:	2 Row
Product Type:	Automotive Connectors
Row Spacing:	9.12 mm
Subcategory:	Automotive Connectors
Type:	4-Way
Voltage Rating:	250 V
Width:	20.83 mm
Wire Gauge Range:	14 AWG to 20 AWG
Part # Aliases:	DT04-4P-L DT04-4P-AS ZPF000000000130283 DT04-4P-LD DT04-4P-LS
Unit Weight:	8 g
