TE Connectivity / DEUTSCH DT06-08SA

In stock

TE Connectivity / DEUTSCH DT06-08SA

SKU: DT06-08SA

Category: Automotive Connectors

Availability: 1000

0.00/5 (0 Review)

₹ 351.48

Tag: te connectivity / deutsch dt06-08sa , deutsch , te connectivity , dt06-08sa , automotive connectors dt plug 8 way a key , automotive connectors , 8positions

Quantity:

Total: ₹ 17,574.00

Add to wishlist Add To Compare

Share on:

Description

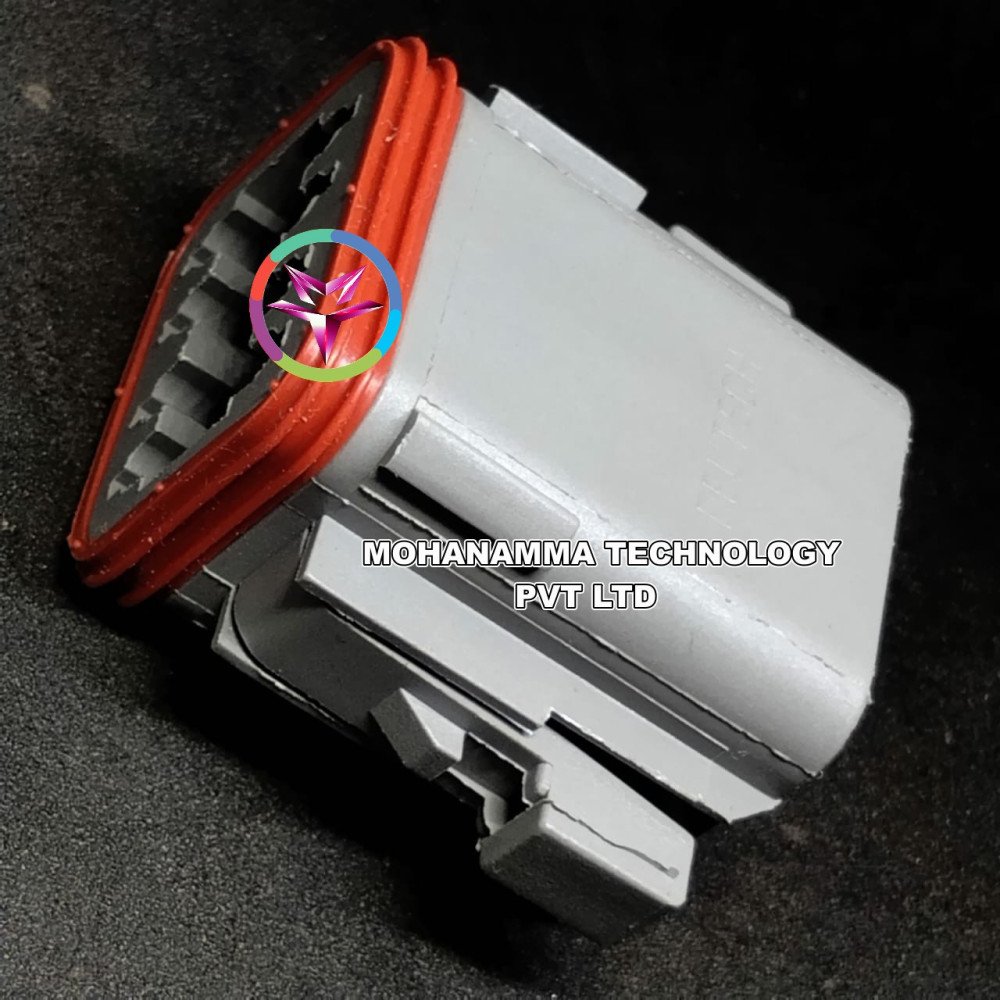

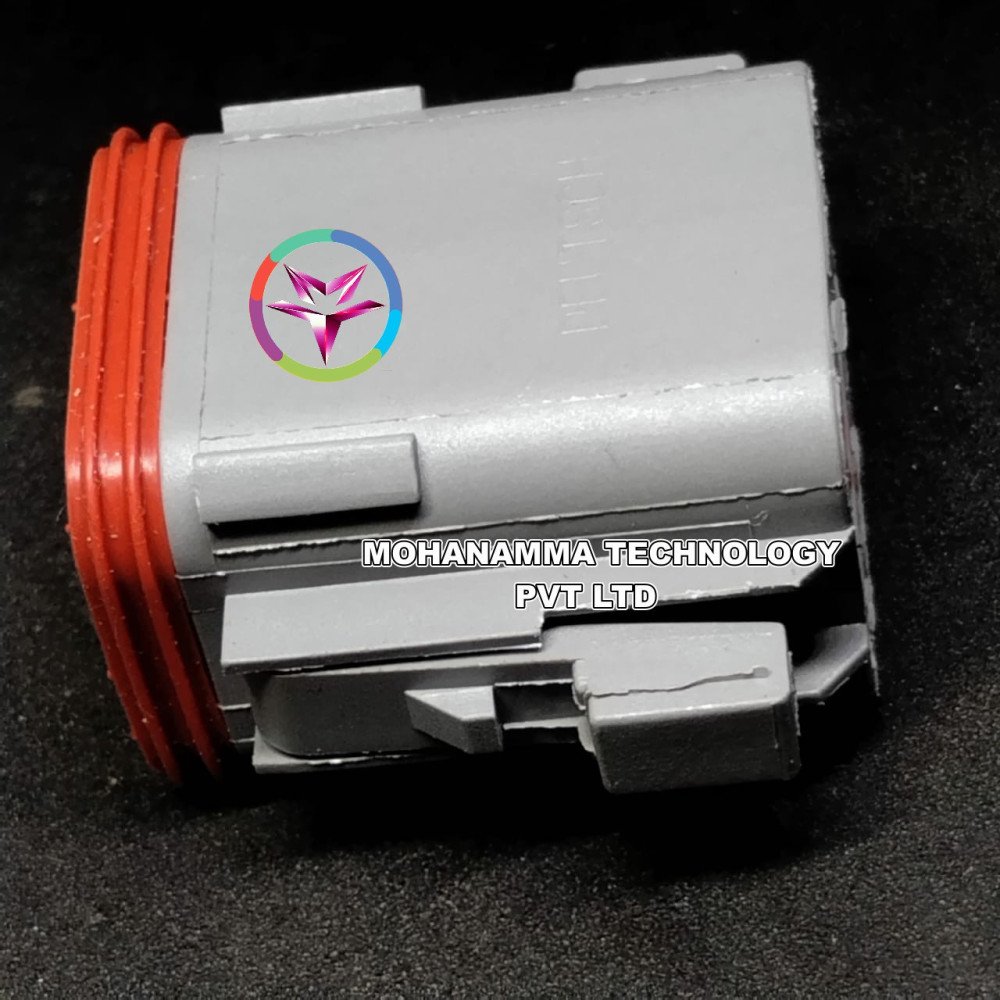

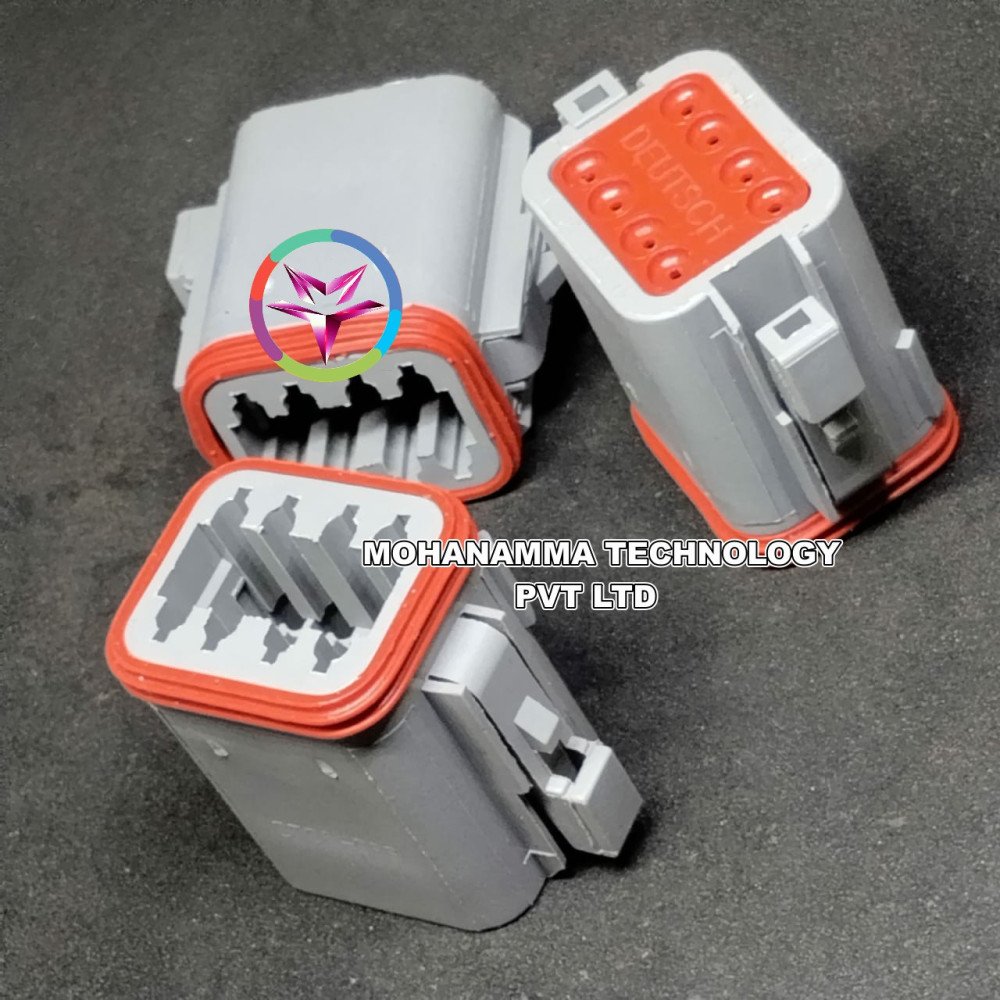

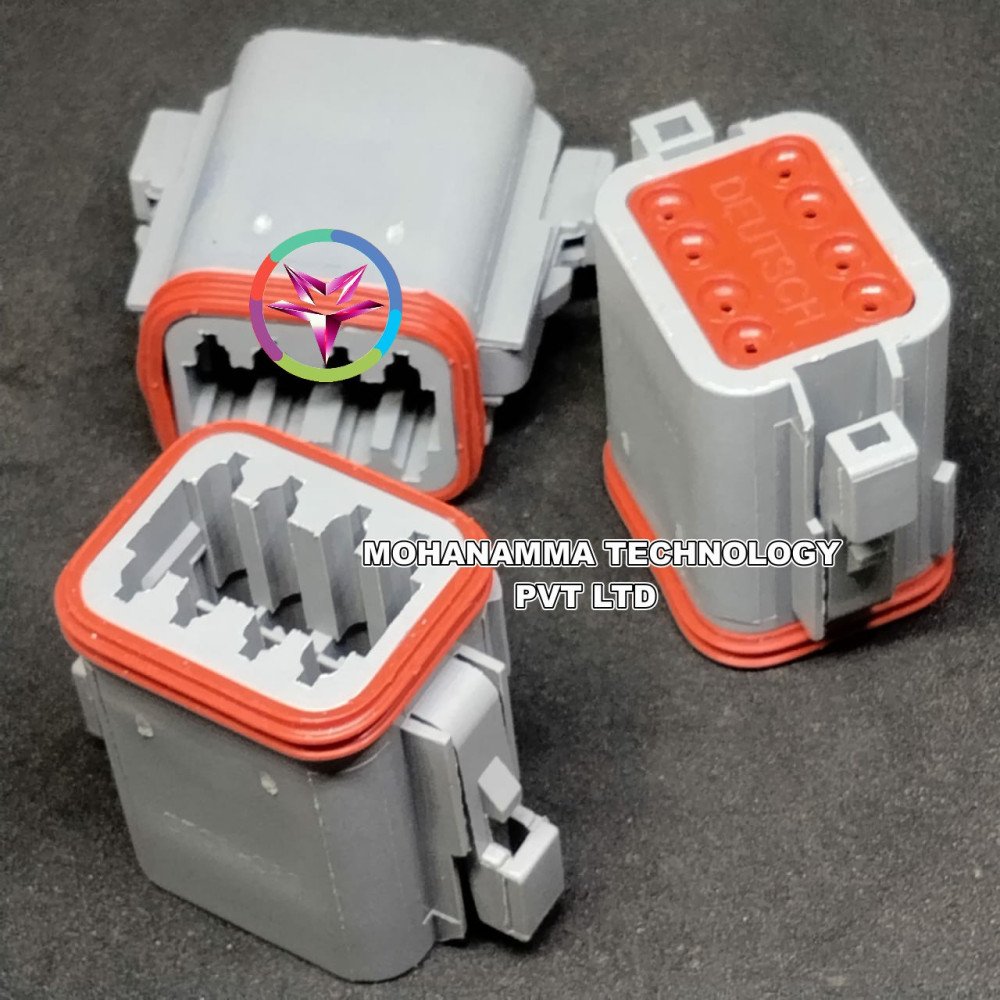

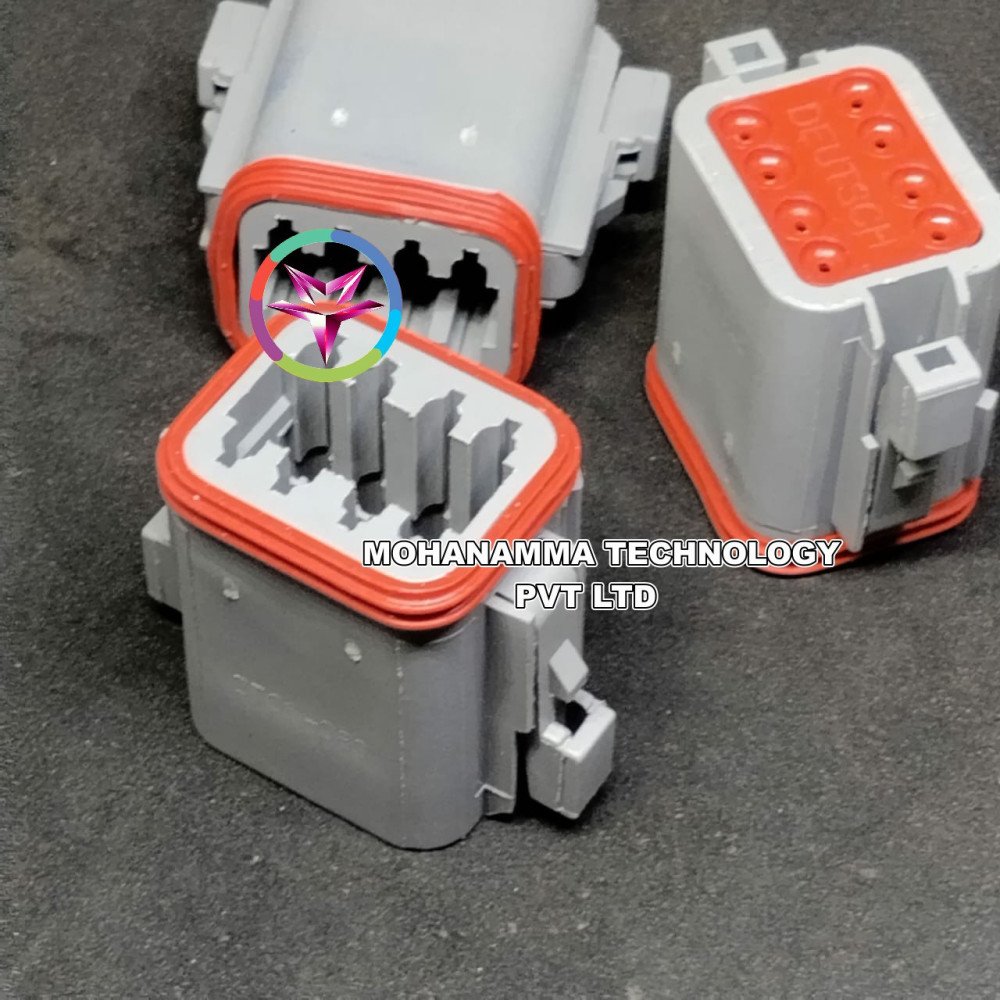

8 Position Housing, Housing for Female Terminals, Wire-to-Wire, 4.44 mm [.175 in] Centerline, Sealable, Gray, Wire & Cable, Power, DEUTSCH DT

Product Specifications

Brand: Deutsch

Model Number: DT06-08SA

Availability: In stock

Product SKU: DT06-08SA

Minimum order quantity: 50

Maximum order quantity:

Listed date: 30th Jun, 2025

Manufacturer:	TE Connectivity
Product Category:	Automotive Connectors
Product:	Connectors
Number of Positions:	8 Position
Pitch:	9.12 mm (0.359 in)
Gender:	Plug (Male)
Mounting Style:	Cable Mount / Free Hanging
Termination Style:	Crimp
Wire Gauge Min:	20 AWG
Wire Gauge Max:	14 AWG
Color:	Gray
Packaging:	Bulk
Application:	Wire to Wire
Attachment Hole Diameter:	1.5 mm
Brand:	TE Connectivity / DEUTSCH
Contact Gender:	Socket (Female)
Current Rating:	13 A
Dimensions:	19.71 mm x 37.21 mm x 30.91 mm
Height:	19.71 mm
Housing Gender:	Plug (Male)
Housing Material:	Polyamide (PA)
Ingress Protection:	IP68
Length:	30.91 mm
Locking Mechanism:	Integrated in Housing
Material:	Plastic
Mating Gender:	Receptacle
Mating Part Number:	DT04-08PA
Maximum Operating Temperature:	+ 125 C
Minimum Operating Temperature:	- 55 C
Mounting Angle:	Straight
Number of Rows:	2 Row
Product Type:	Automotive Connectors
Row Spacing:	4.45 mm
Subcategory:	Automotive Connectors
Type:	8-Way
Voltage Rating:	250 V
Width:	37.21 mm
Wire Gauge Range:	14 AWG to 20 AWG
Part # Aliases:	DT06-08SA-SC DT06-08SA-S ZPF000000000130439
Unit Weight:	13 g
