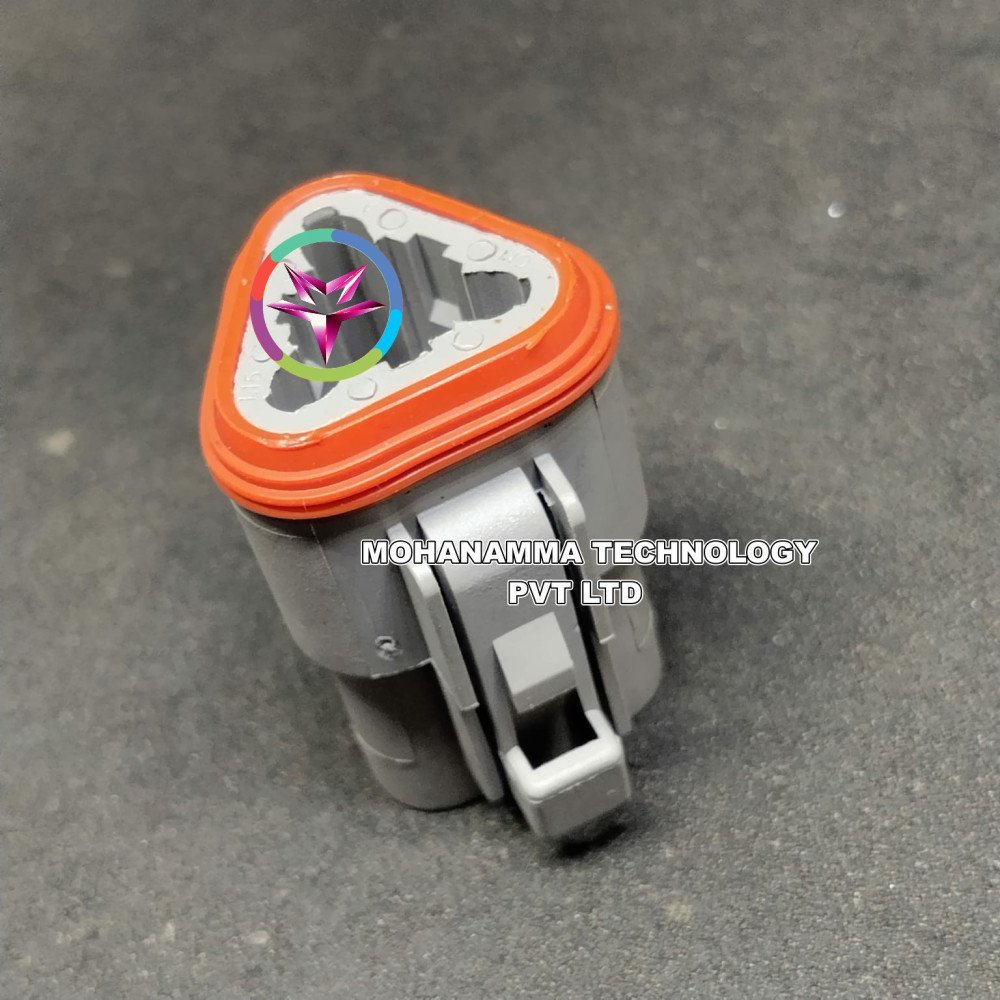

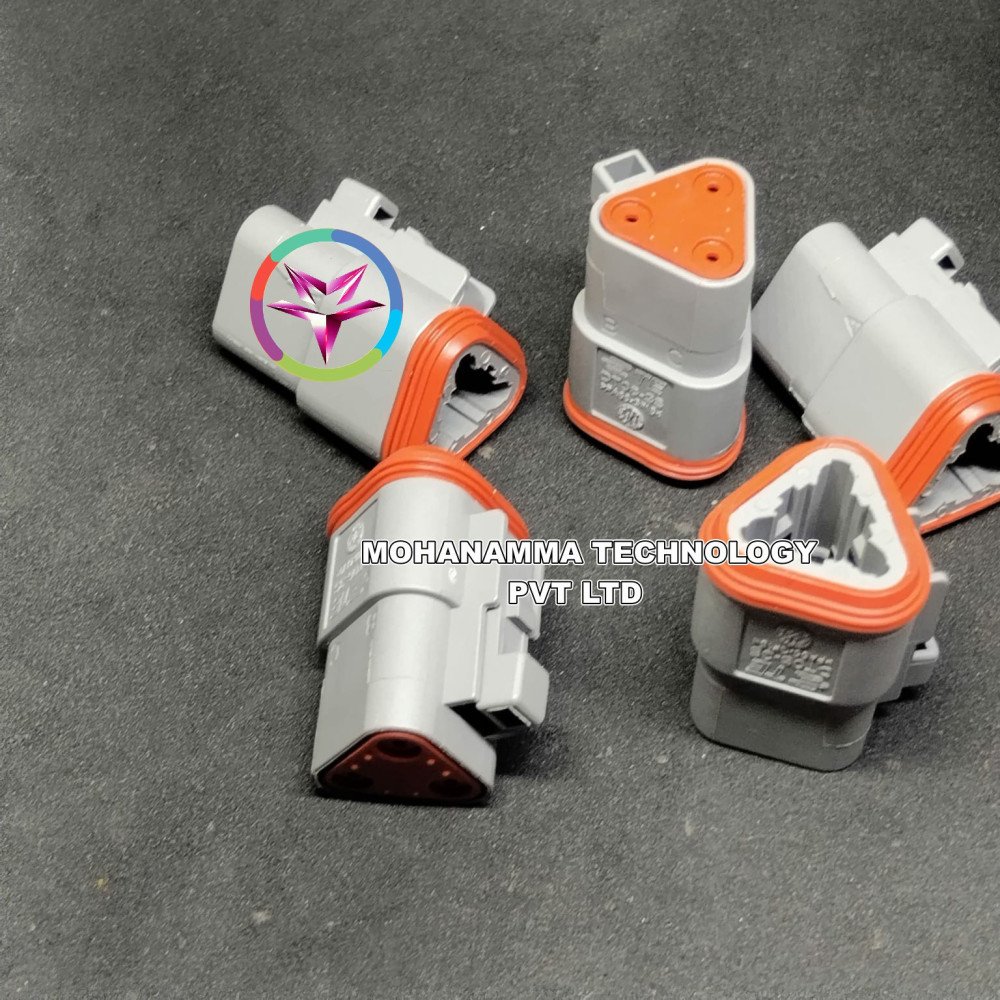

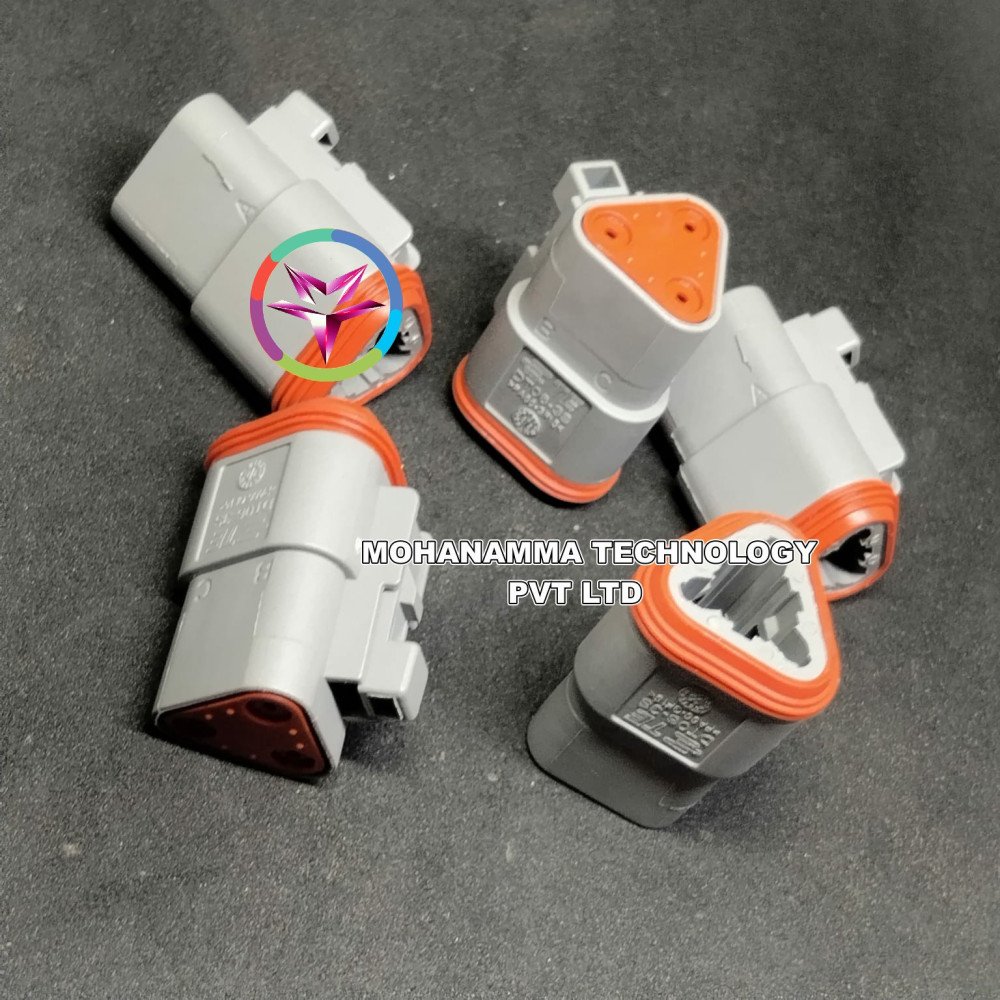

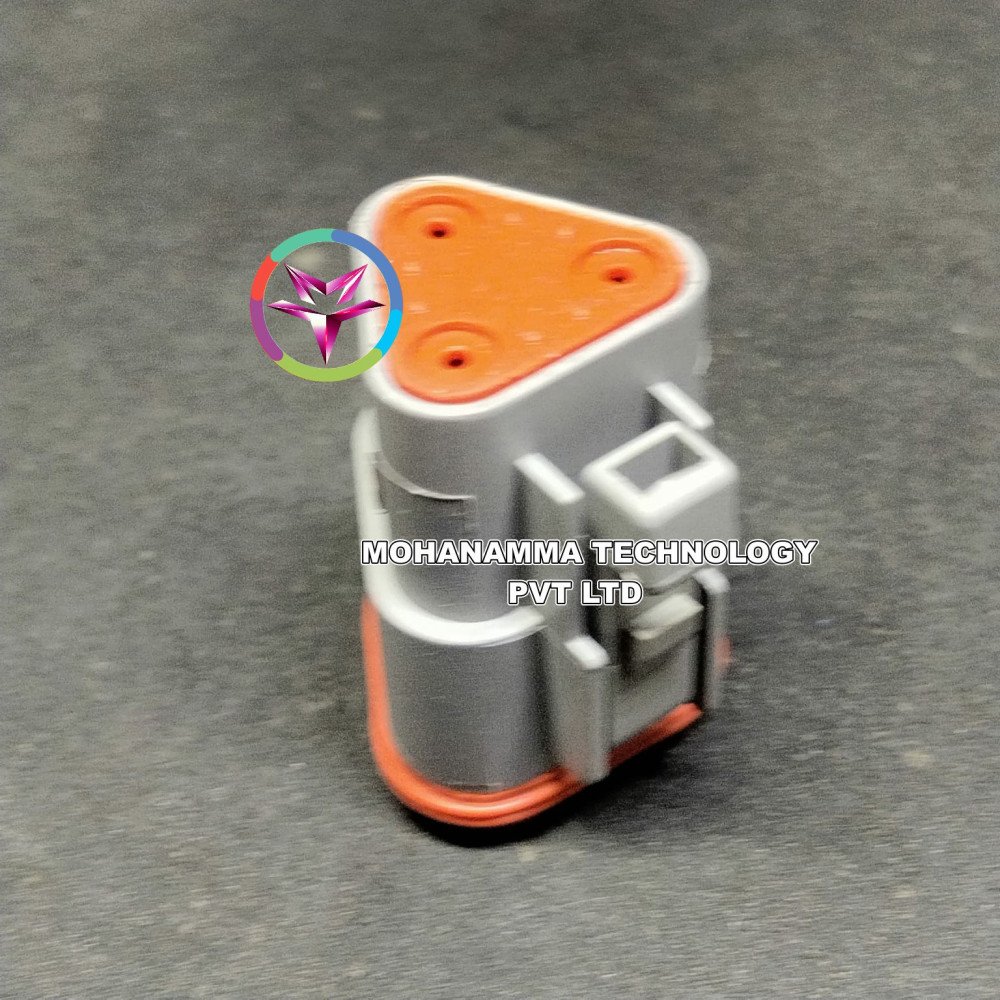

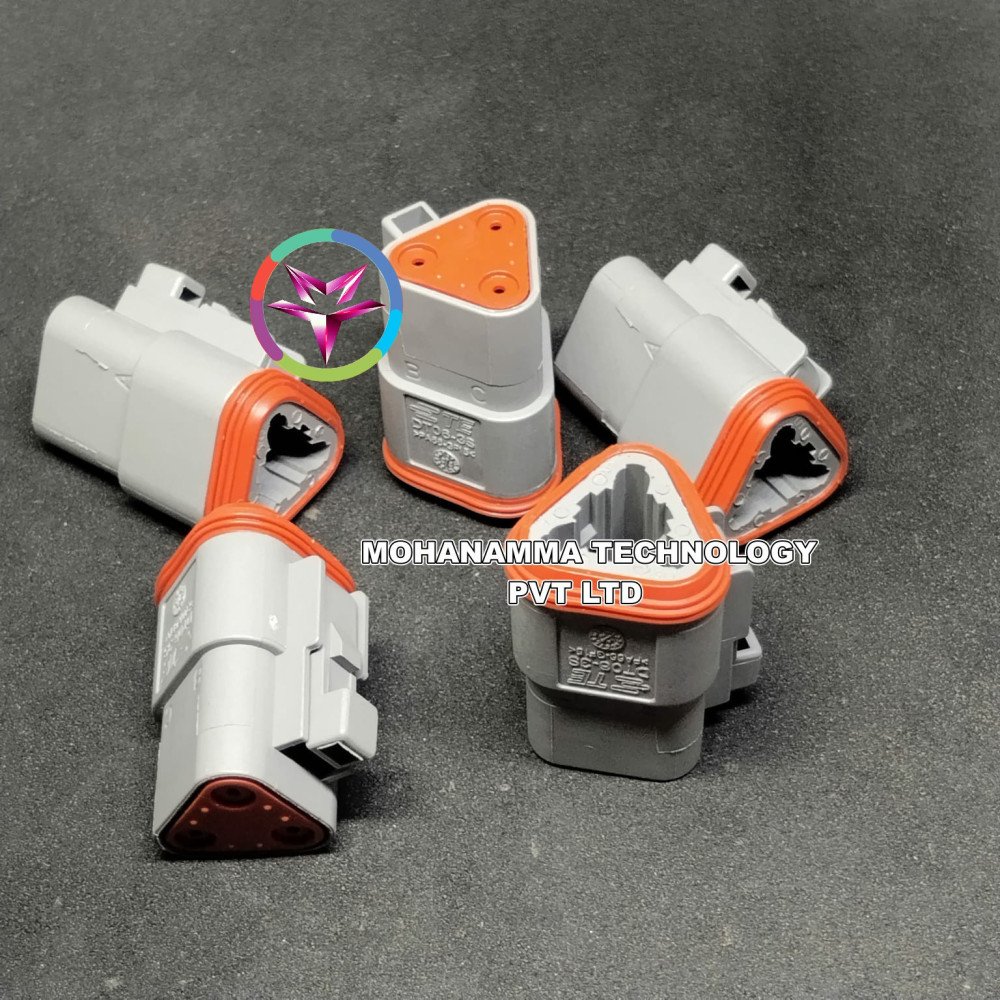

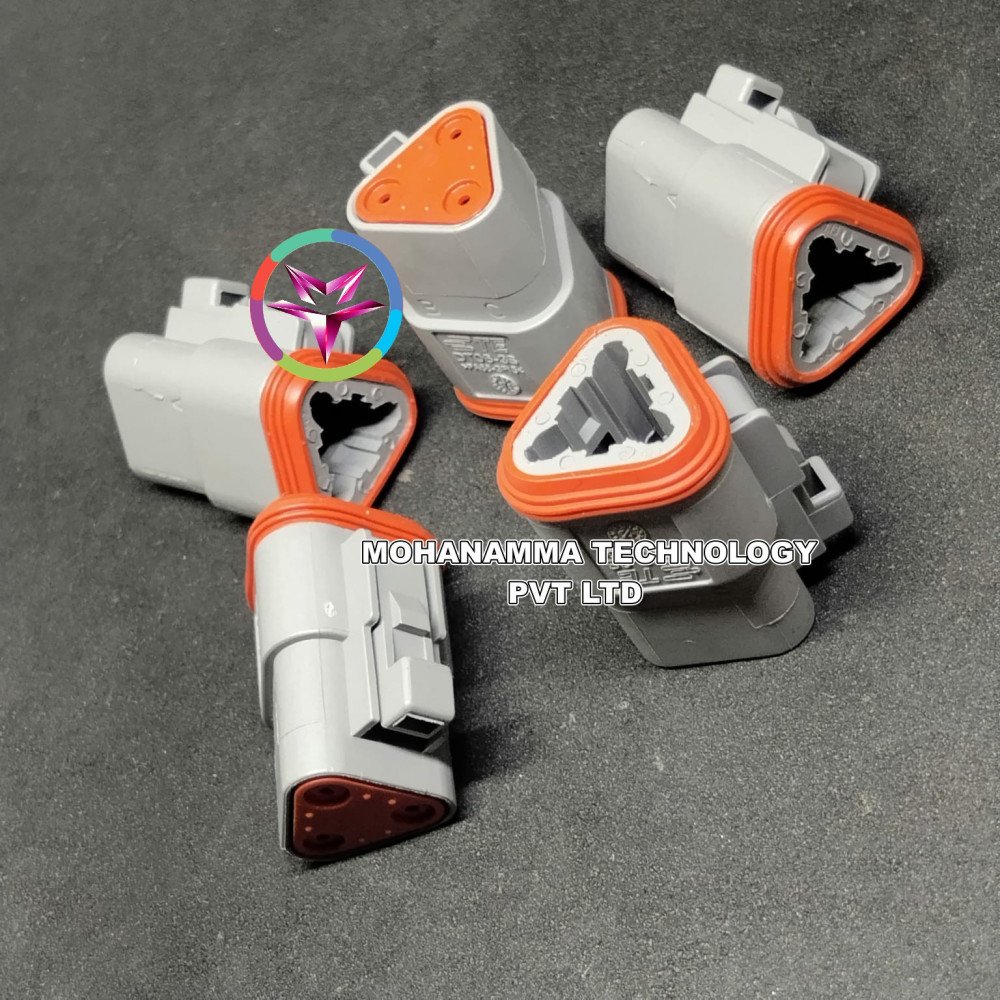

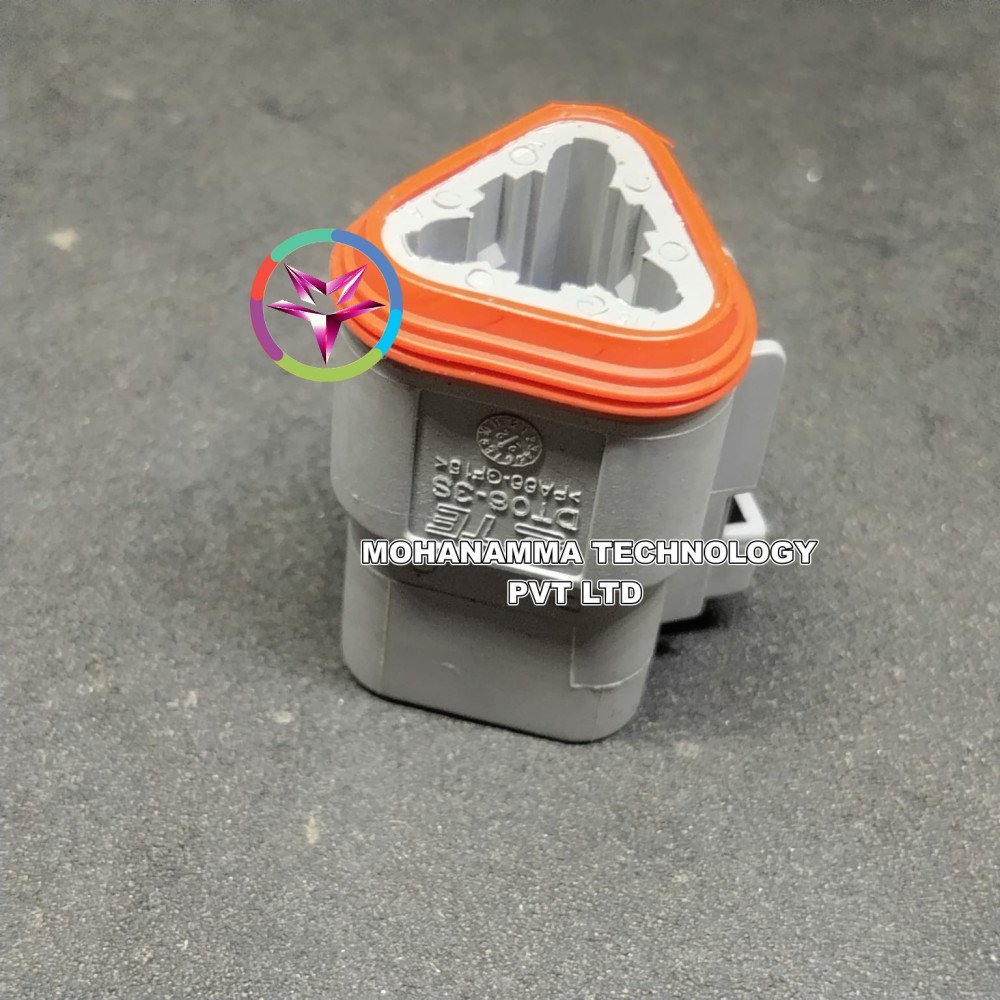

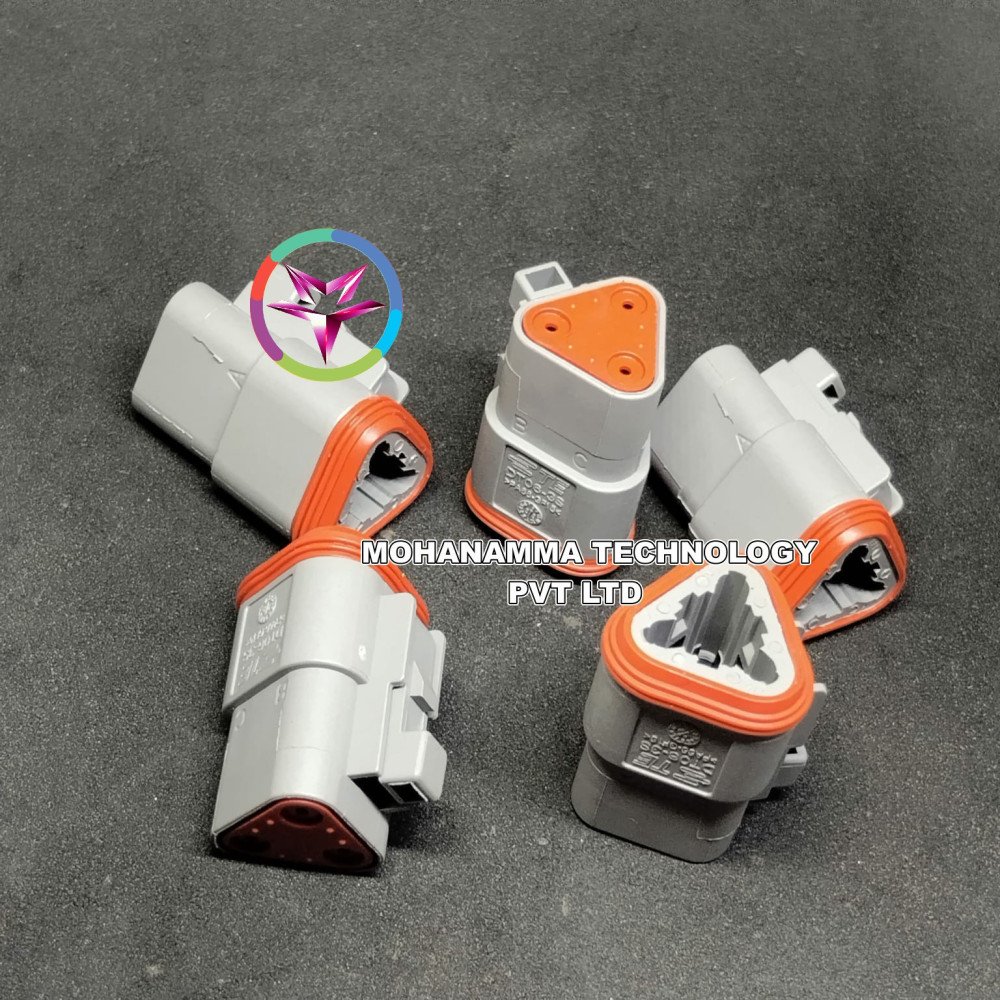

TE Connectivity / DEUTSCH DT06-3S

In stock

TE Connectivity / DEUTSCH DT06-3S

SKU: DT06-3S

Category: Automotive Connectors

Availability: 1000

0.00/5 (0 Review)

₹ 110.49

Tag: te connectivity / deutsch dt06-3s , te connectivity , automotive connectors , connectors , 3 position , plug (male) , cable mount / free hanging

Quantity:

Total: ₹ 5,524.50

Add to wishlist Add To Compare

Share on:

Description

3 Position Housing, Housing for Female Terminals, Wire-to-Wire, 8.66 mm [.341 in] Centerline, Sealable, Gray, Wire & Cable, Power, DEUTSCH DT

Product Specifications

Brand: Deutsch

Model Number: DT06-3S

Availability: In stock

Product SKU: DT06-3S

Minimum order quantity: 50

Maximum order quantity:

Listed date: 28th Jun, 2025

Manufacturer:	TE Connectivity
Product Category:	Automotive Connectors
Product:	Connectors
Number of Positions:	3 Position
Pitch:	10.01 mm (0.394 in)
Gender:	Plug (Male)
Mounting Style:	Cable Mount / Free Hanging
Termination Style:	Crimp
Wire Gauge Min:	20 AWG
Wire Gauge Max:	14 AWG
Color:	Gray
Packaging:	Bulk
Application:	Wire to Wire
Attachment Hole Diameter:	1.5 mm
Brand:	TE Connectivity / DEUTSCH
Contact Gender:	Socket (Female)
Current Rating:	13 A
Dimensions:	18.37 mm x 23.73 mm x 28.4 mm
Height:	23.73 mm
Housing Gender:	Plug (Male)
Housing Material:	Polyamide (PA)
Ingress Protection:	IP68, IP6K9K
Insulation:	Insulated
Length:	28.4 mm
Locking Mechanism:	Integrated in Housing
Material:	Plastic
Mating Gender:	Plug
Mating Part Number:	DT04-3P
Maximum Operating Temperature:	+ 125 C
Minimum Operating Temperature:	- 55 C
Mounting Angle:	Straight
Product Type:	Automotive Connectors
Subcategory:	Automotive Connectors
Type:	3-Way
Voltage Rating:	250 V
Width:	18.37 mm
Wire Gauge Range:	14 AWG to 20 AWG
Part # Aliases:	DT06-3S-AS DT06-3S-E ZPF000000000130225
Unit Weight:	5.500 g
