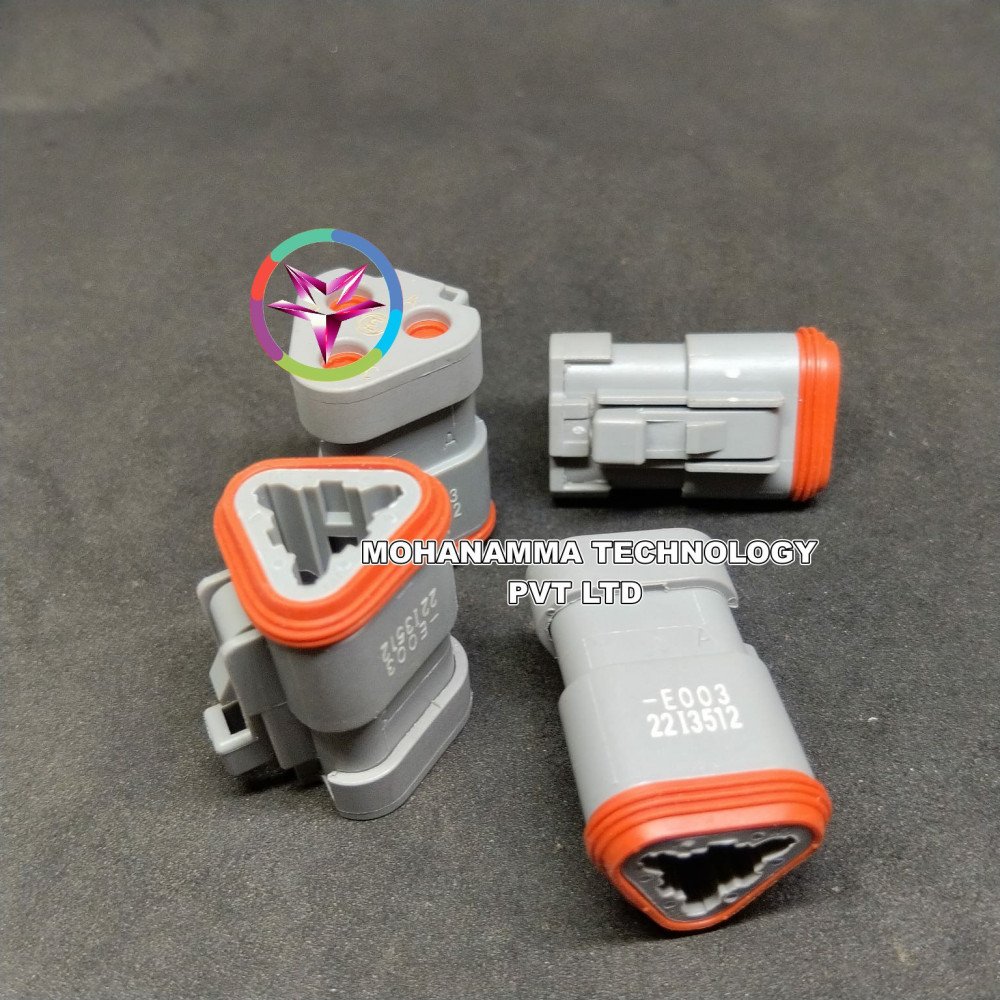

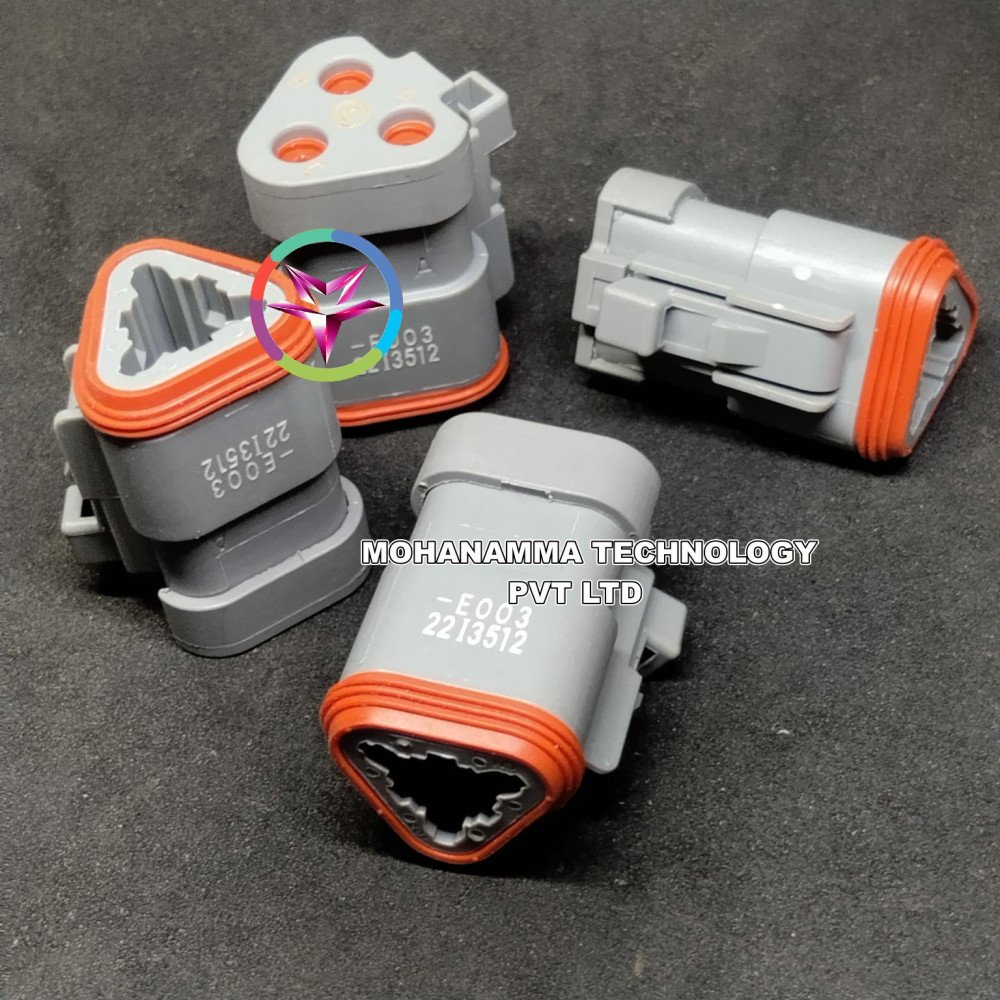

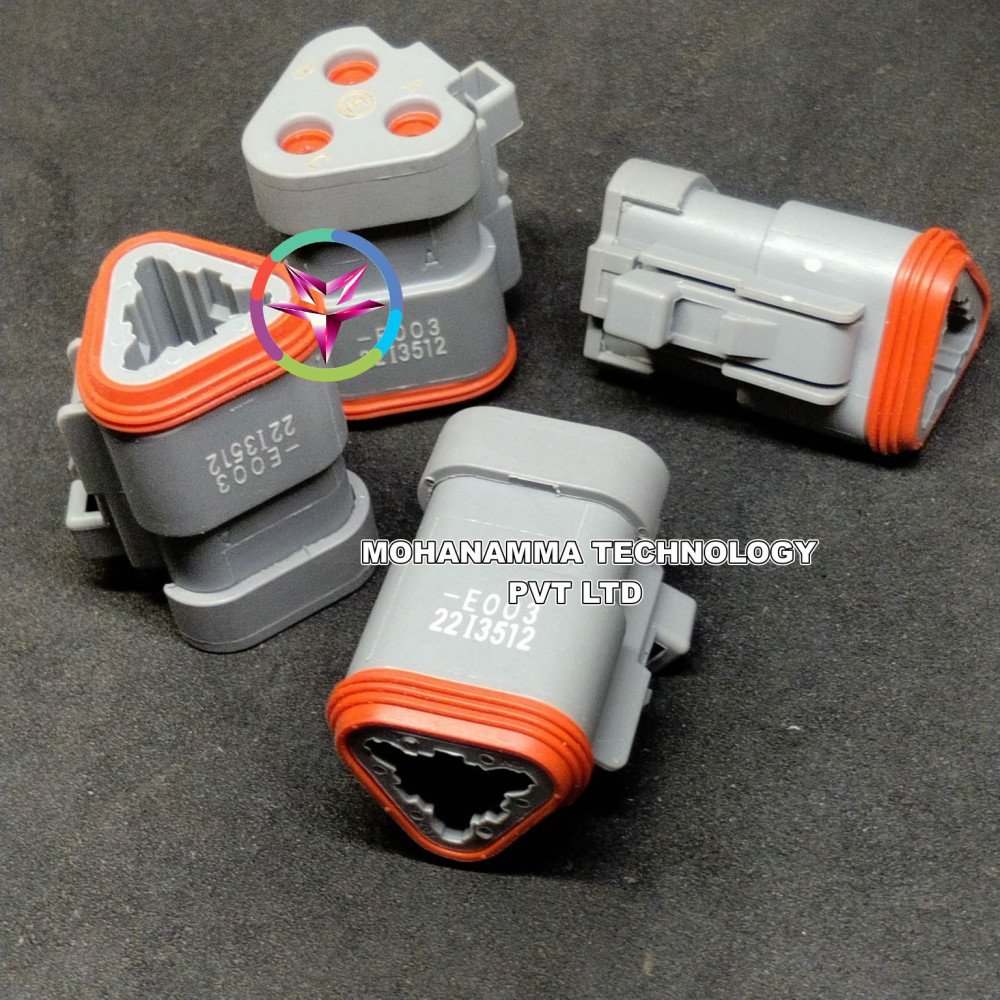

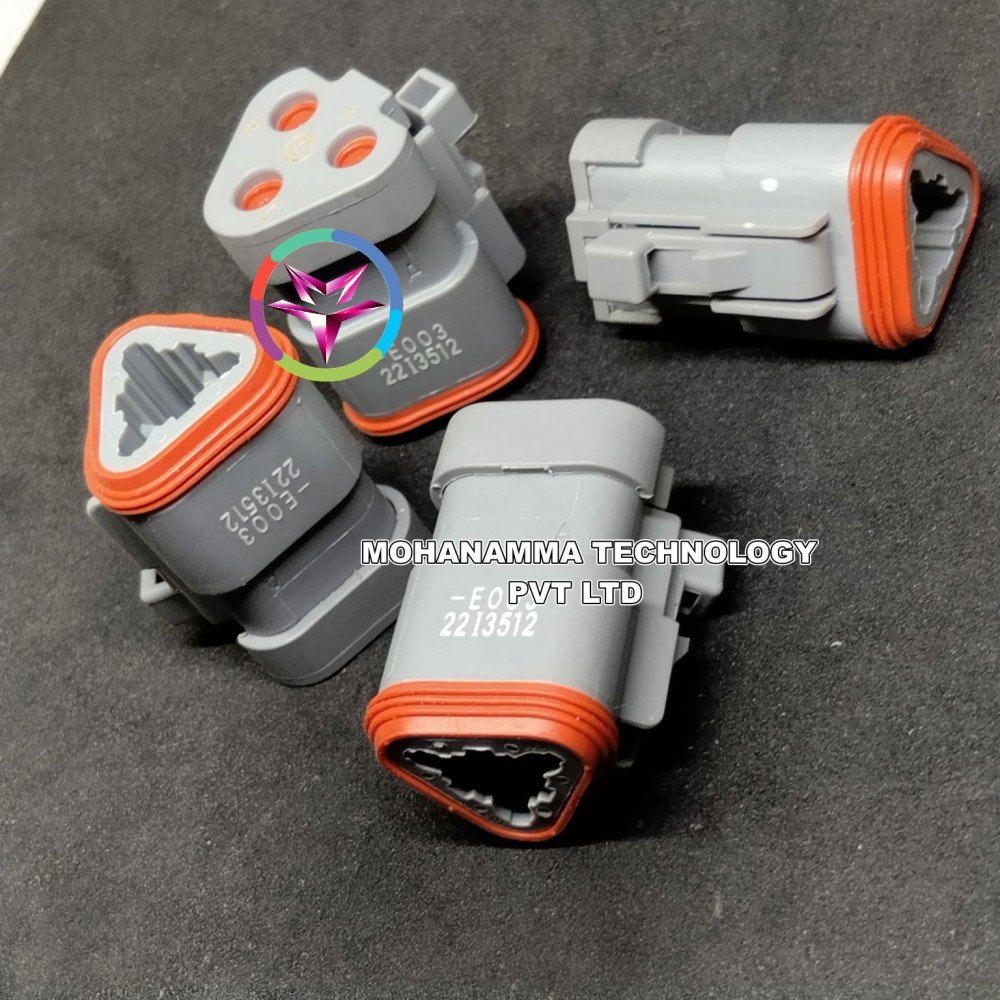

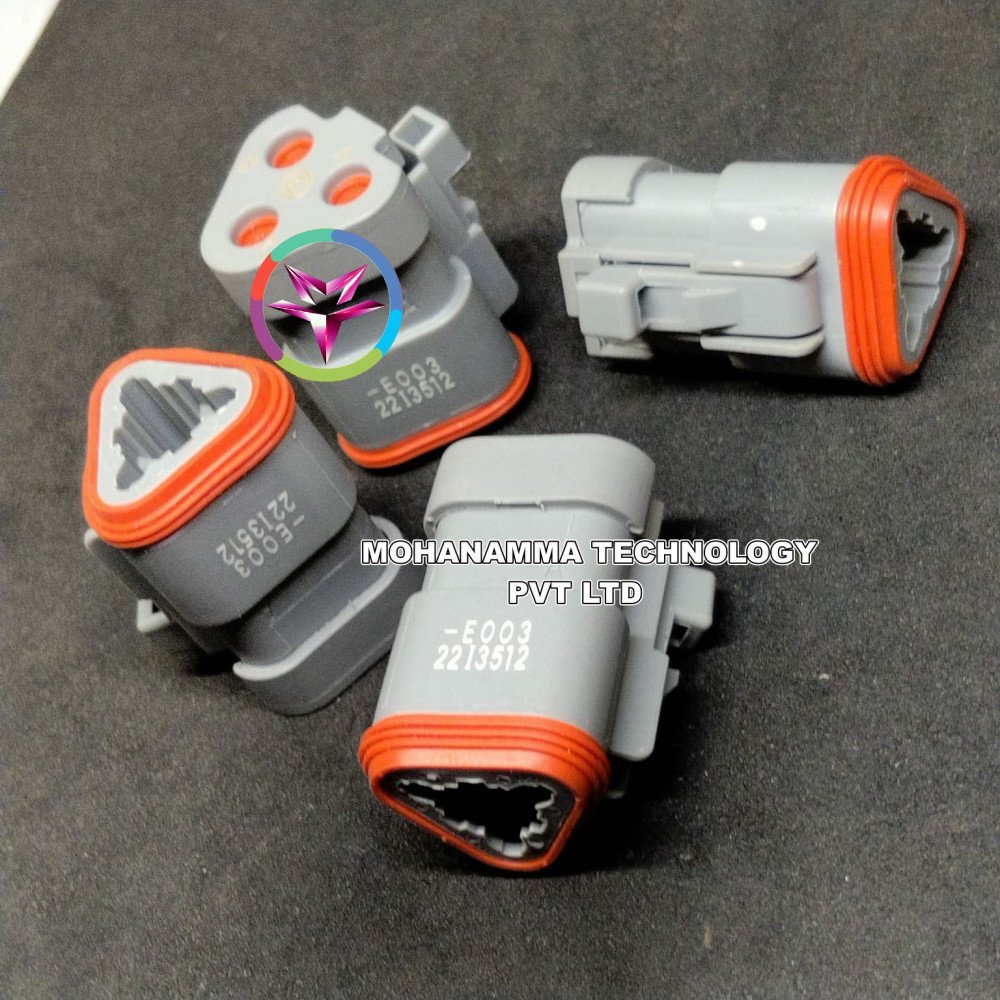

SKU: DT06-3S-E003
Category: Automotive Connectors
Availability: 1000
Tag: te connectivity / deutsch , deutsch , te , deutsch , connectivity , connectors , automotive connectors , wire to wire , gray color , 3 positions
Brand: Deutsch
Model Number: DT06-3S-E003
Availability: In stock
Product SKU: DT06-3S-E003
Minimum order quantity: 50
Maximum order quantity:
Listed date: 2nd Jul, 2025
| Manufacturer: | TE Connectivity | |
| Product Category: | Automotive Connectors | |
| Product: | Connectors | |
| Number of Positions: | 3 Position | |
| Pitch: | 10.01 mm (0.394 in) | |
| Gender: | Plug (Male) | |
| Mounting Style: | Cable Mount / Free Hanging | |
| Termination Style: | Crimp | |
| Wire Gauge Min: | 20 AWG | |
| Wire Gauge Max: | 14 AWG | |
| Color: | Gray | |
| Packaging: | Bulk | |
| Application: | Wire to Wire | |
| Attachment Hole Diameter: | 1.5 mm | |
| Brand: | TE Connectivity / DEUTSCH | |
| Contact Gender: | Socket (Female) | |
| Current Rating: | 13 A | |
| Dimensions: | 18.37 mm x 23.73 mm x 28.4 mm | |
| Height: | 23.73 mm | |
| Housing Gender: | Plug (Male) | |
| Housing Material: | Polyamide (PA) | |
| Ingress Protection: | IP68, IP6K9K | |
| Insulation: | Insulated | |
| Length: | 28.4 mm | |
| Locking Mechanism: | Integrated in Housing | |
| Material: | Plastic | |
| Mating Gender: | Plug | |
| Mating Part Number: | DT04-3P | |
| Maximum Operating Temperature: | + 125 C | |
| Minimum Operating Temperature: | - 55 C | |
| Mounting Angle: | Straight | |
| Product Type: | Automotive Connectors | |
| Subcategory: | Automotive Connectors | |
| Type: | 3-Way | |
| Voltage Rating: | 250 V | |
| Width: | 18.37 mm | |
| Wire Gauge Range: | 14 AWG to 20 AWG | |
| Part # Aliases: | ZPF000000000130244 | |
| Unit Weight: | 7 g |
