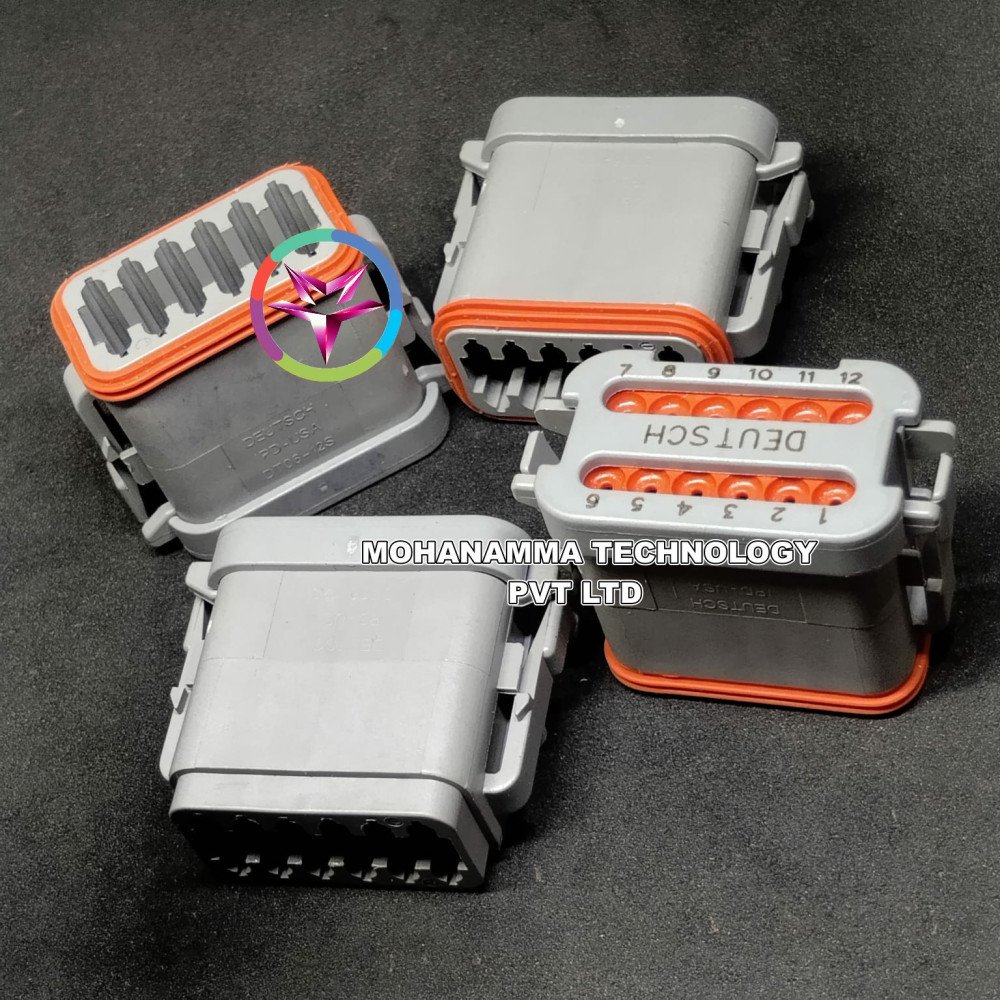

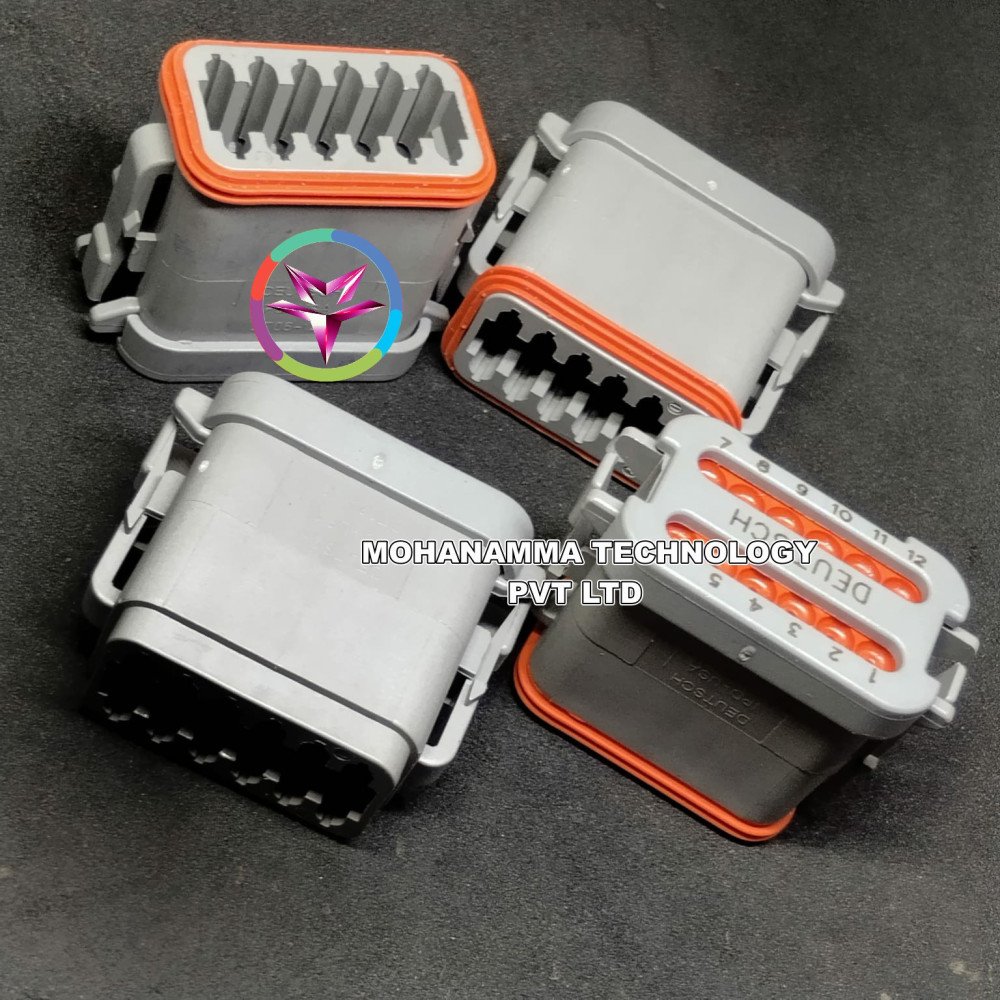

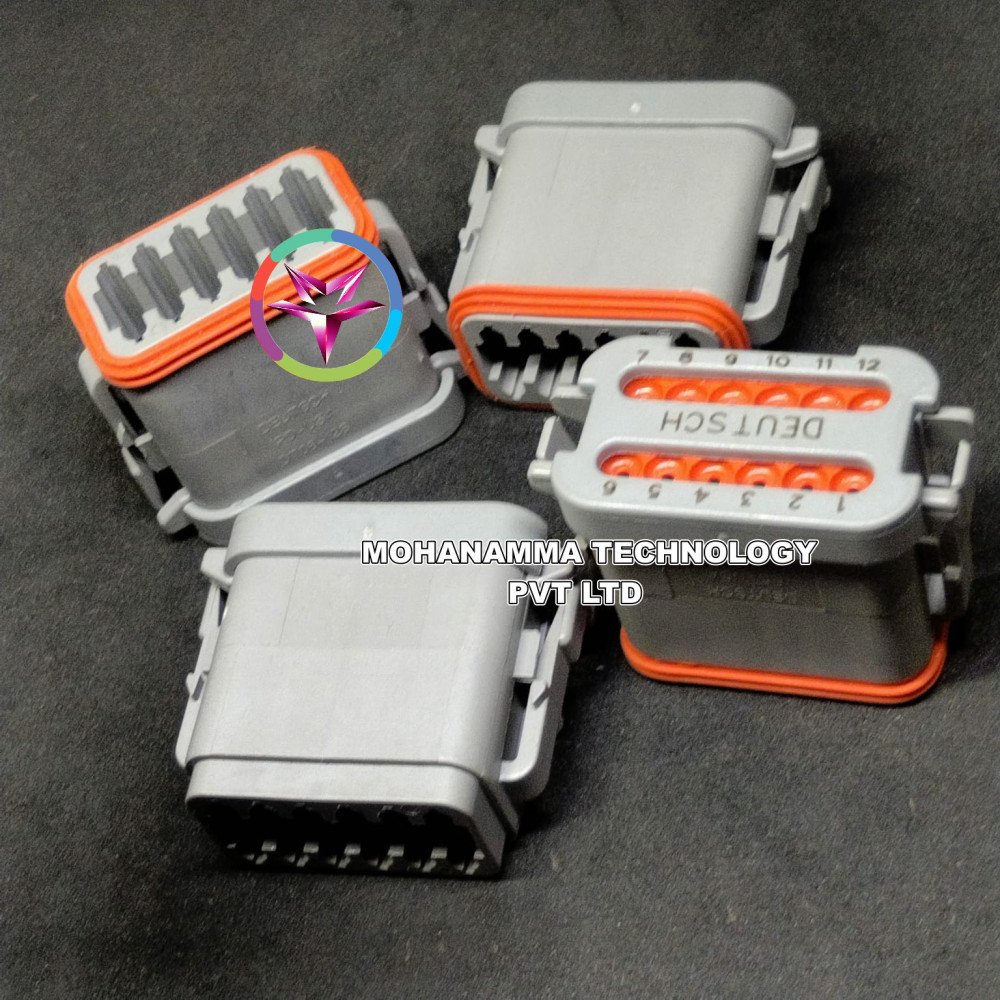

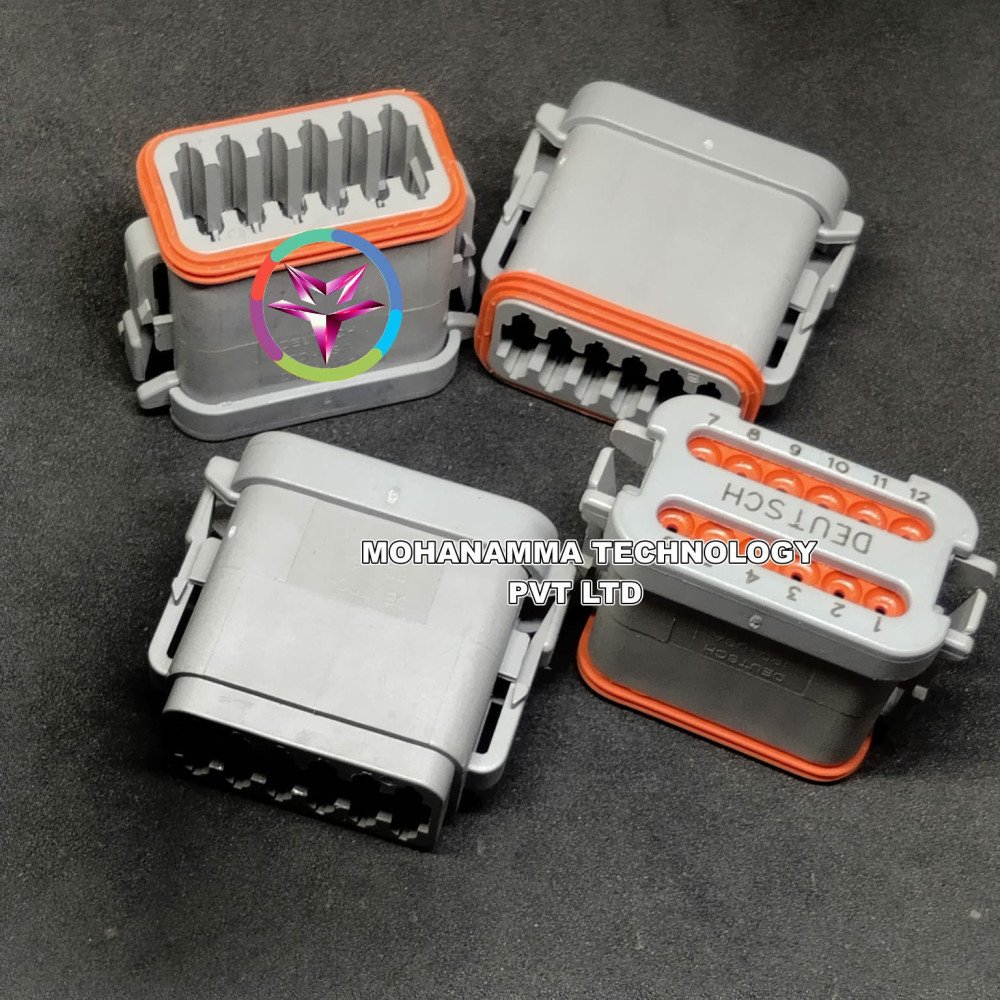

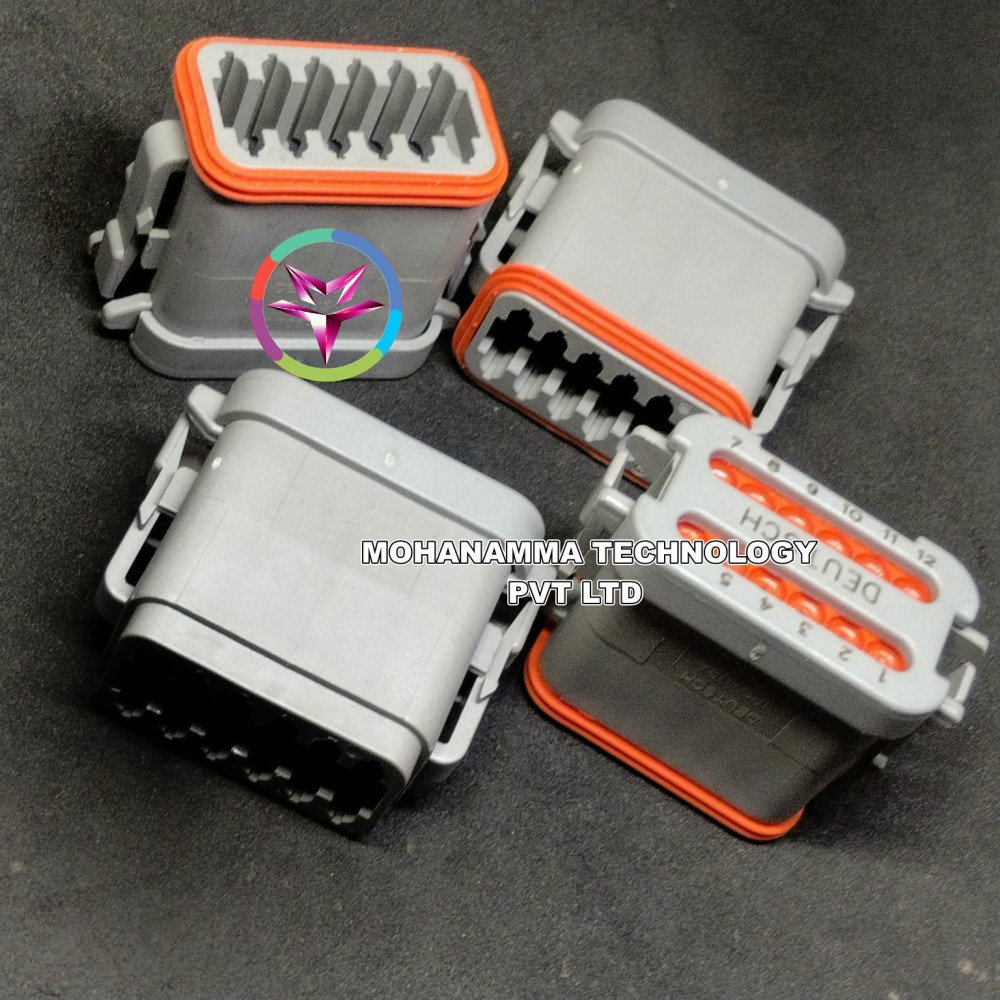

SKU: DTM06-12SA-E003
Category: Automotive Connectors
Availability: 1000
Tag: te connectivity / deutsch , dtm , dt , deutsch , te , connector , automotive connectors , wire to wire , gray
Brand: Deutsch
Model Number: DTM06-12SA-E003
Availability: In stock
Product SKU: DTM06-12SA-E003
Minimum order quantity: 50
Maximum order quantity:
Listed date: 2nd Jul, 2025
| Manufacturer: | TE Connectivity | |
| Product Category: | Automotive Connectors | |
| Product: | Connectors | |
| Number of Positions: | 12 Position | |
| Pitch: | 4.19 mm (0.165 in) | |
| Gender: | Plug (Male) | |
| Mounting Style: | Cable Mount / Free Hanging | |
| Termination Style: | Crimp | |
| Wire Gauge Min: | 22 AWG | |
| Wire Gauge Max: | 16 AWG | |
| Color: | Gray | |
| Application: | Wire to Wire | |
| Attachment Hole Diameter: | 1 mm | |
| Brand: | TE Connectivity / DEUTSCH | |
| Contact Gender: | Without Socket Contacts | |
| Current Rating: | 7.5 A | |
| Dimensions: | 15.24 mm x 40.01 mm x 30.1 mm | |
| Height: | 40.01 mm | |
| Housing Material: | Polyamide (PA) | |
| Ingress Protection: | IP68, IP6K9K | |
| Insulation: | Insulated | |
| Length: | 30.1 mm | |
| Locking Mechanism: | Integrated in Housing | |
| Material: | Plastic | |
| Mating Gender: | Receptacle | |
| Mating Part Number: | DTM04-12SA | |
| Maximum Operating Temperature: | + 125 C | |
| Minimum Operating Temperature: | - 55 C | |
| Mounting Angle: | Straight | |
| Number of Rows: | 2 Row | |
| Product Type: | Automotive Connectors | |
| Row Spacing: | 7.11 mm | |
| Subcategory: | Automotive Connectors | |
| Type: | 12-Way | |
| Voltage Rating: | 250 V | |
| Width: | 15.24 mm | |
| Wire Gauge Range: | 22 AWG to 16 AWG | |
| Part # Aliases: | ZPF000000000130576 DTM06-12SA-E003-RU | |
| Unit Weight: | 11.190 g |
