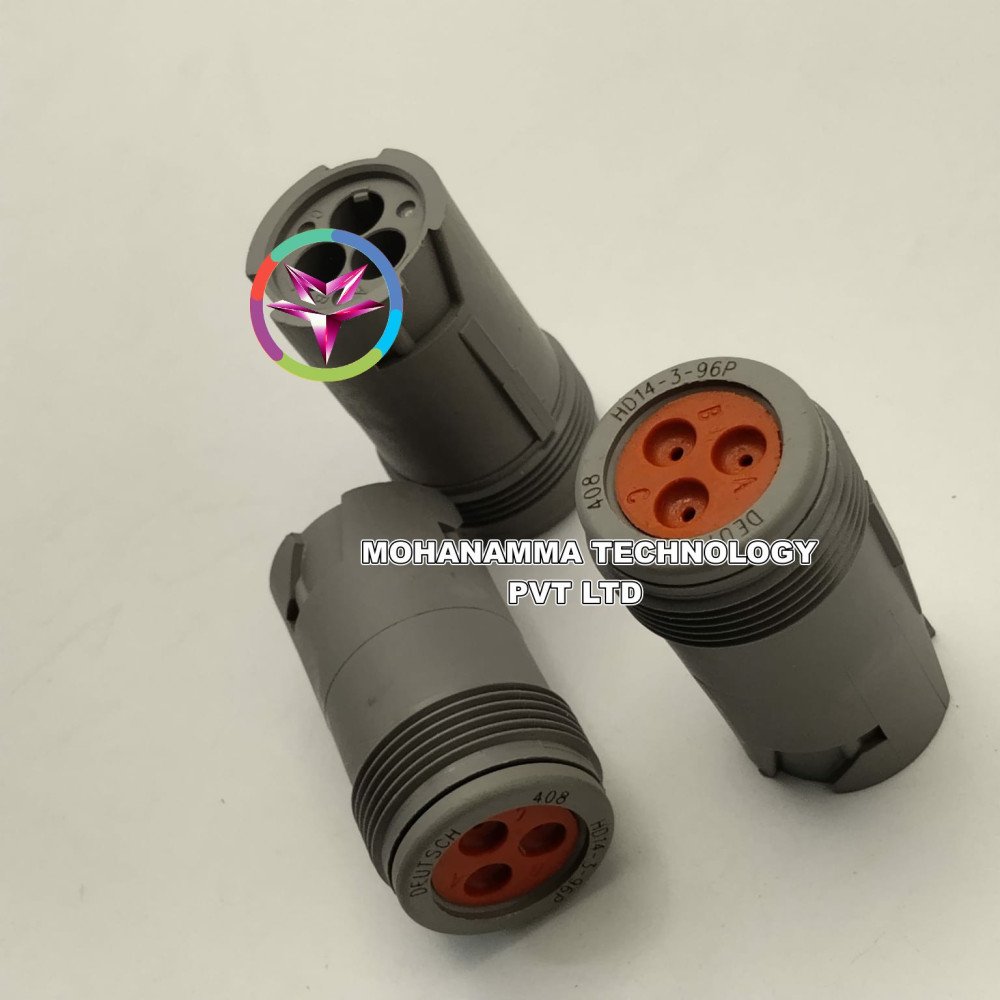

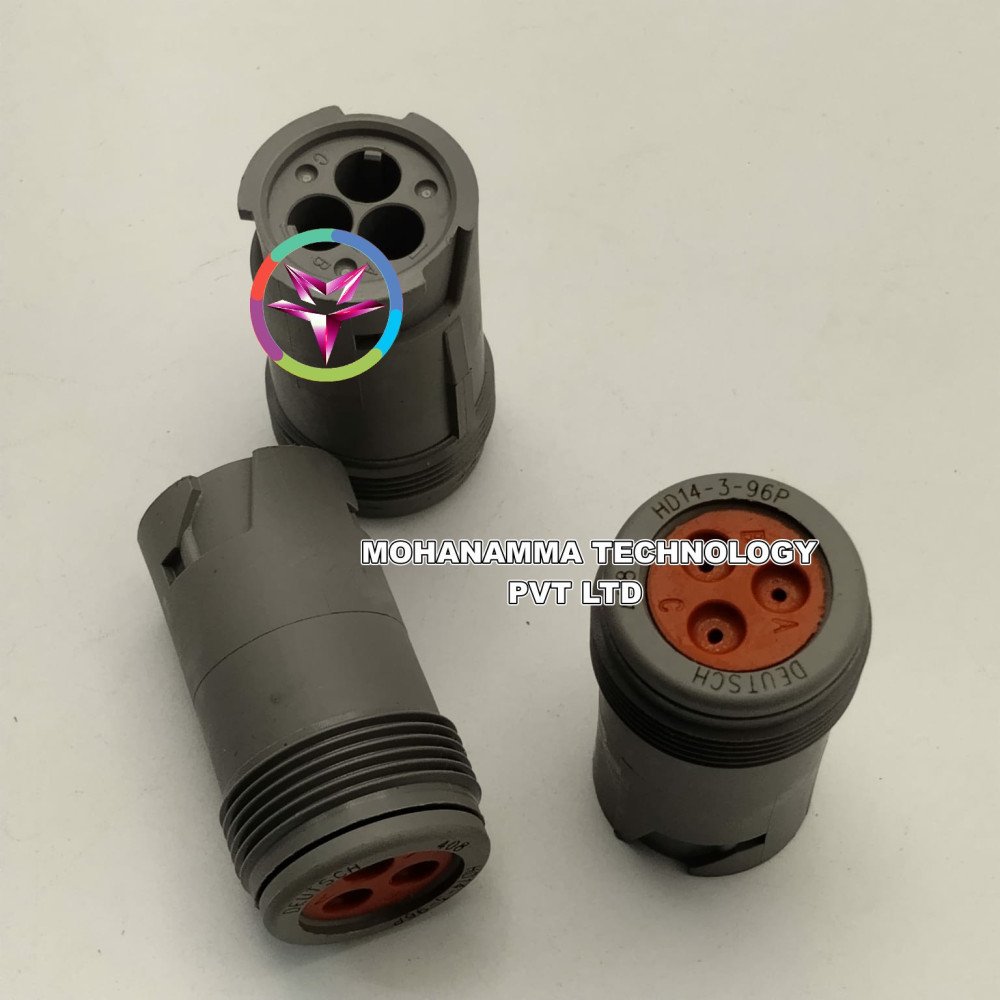

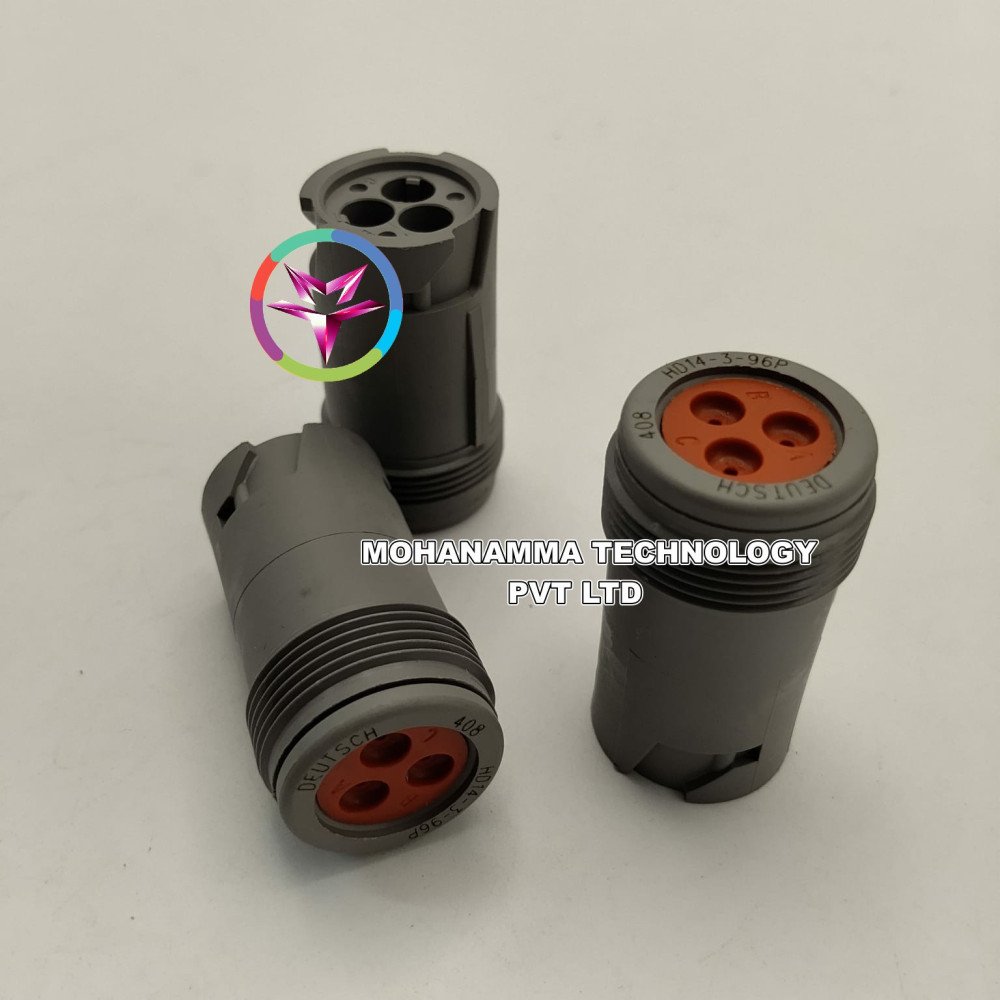

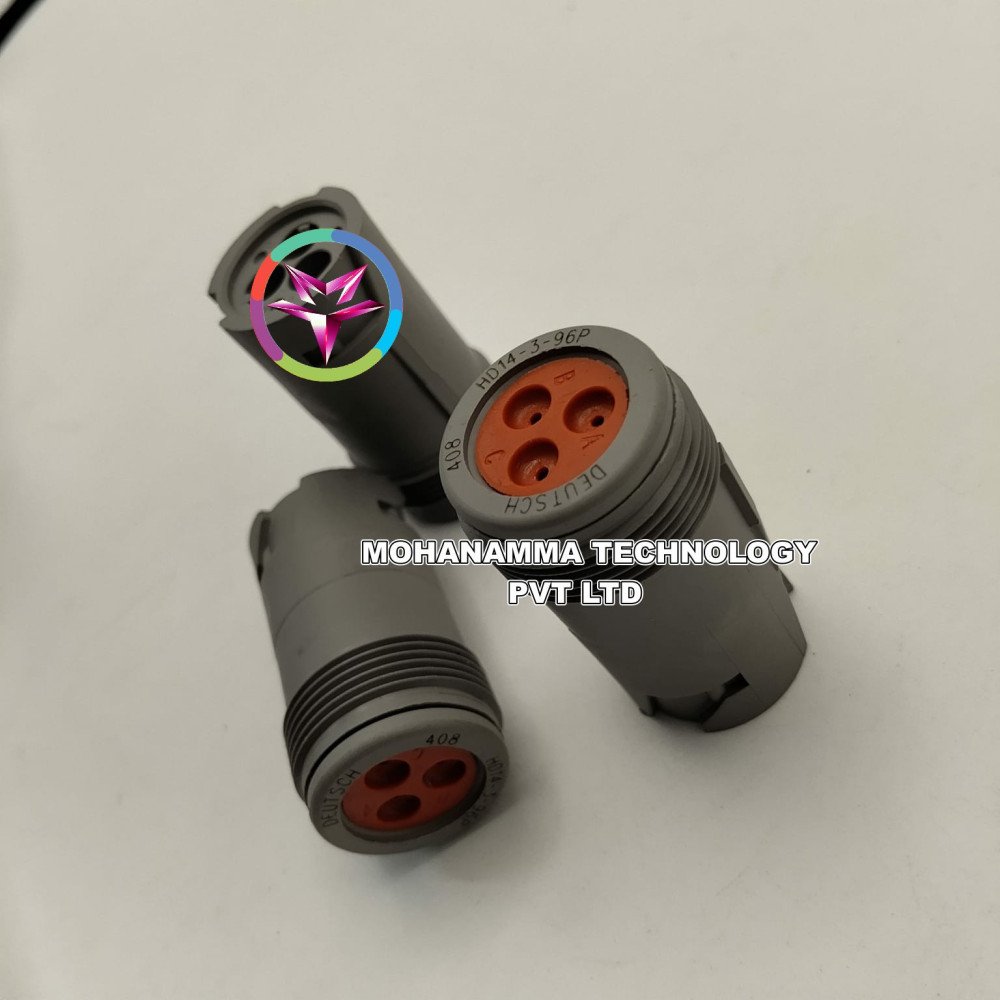

SKU: TE Connectivity / DEUTSCH HD14-3-96P
Category: Automotive Connectors
Availability: 1000
Brand: Deutsch
Model Number: HD14-3-96P
Availability: In stock
Product SKU: TE Connectivity / DEUTSCH HD14-3-96P
Minimum order quantity: 50
Maximum order quantity:
Listed date: 14th Jul, 2025
| TE Connectivity | |
| Product Category: | Automotive Connectors |
| RoHS: | |
| Connectors | |
| 3 Position | |
| Receptacle (Female) | |
| Cable Mount / Free Hanging | |
| Crimp | |
| 20 AWG | |
| 14 AWG | |
| Gray | |
| HD10 | |
| Application: | Wire to Wire |
| Attachment Hole Diameter: | 1.5 mm |
| Brand: | TE Connectivity / DEUTSCH |
| Contact Gender: | Without Pin Contacts |
| Current Rating: | 13 A |
| Dimensions: | 21.77 mm x 21.77 mm x 41.63 mm |
| Flammability Rating: | UL 94 V-1 |
| Height: | 21.77 mm |
| Housing Material: | Polyamide (PA) |
| Ingress Protection: | IP68, IP6K9K |
| Insulation: | Insulated |
| Length: | 41.63 mm |
| Locking Mechanism: | Integrated in Housing |
| Material: | Plastic |
| Mating Gender: | Plug |
| Mating Part Number: | HD16-3-96SX-XXXX |
| Maximum Operating Temperature: | + 125 C |
| Minimum Operating Temperature: | - 55 C |
| Mounting Angle: | Straight |
| Product Type: | Automotive Connectors |
| 1 | |
| Subcategory: | Automotive Connectors |
| Tradename: | HD |
| Voltage Rating: | 250 V |
| Width: | 21.77 mm |
| Wire Gauge Range: | 14 AWG to 20 AWG |
| Part # Aliases: | ZPF000000000130255 |
| Unit Weight: | 8.025 g |
