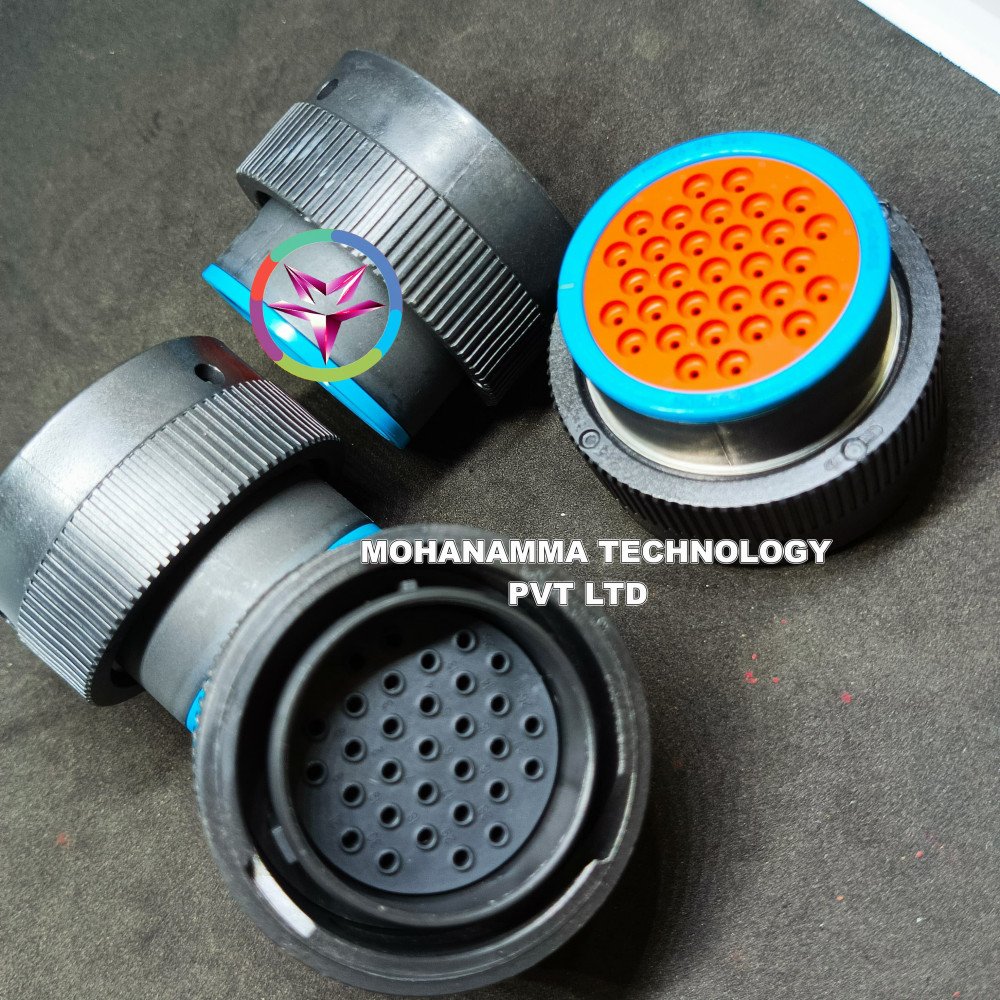

SKU: HDP24-24-31PE
Category: Automotive Connectors
Availability: 1000
Tag: te connectivity , deutsch , hdp24 , 31pe , te connectivity / deutsch , automotive connector
Brand: TE Connectivity
Model Number: HDP24-24-31PE
Availability: In stock
Product SKU: HDP24-24-31PE
Minimum order quantity: 50
Maximum order quantity:
Listed date: 4th Jul, 2025
| TE Connectivity | |
| Product Category: | Automotive Connectors |
| Housings | |
| Plug Housing | |
| 31 Position | |
| Plug (Male) | |
| Panel Mount | |
| Crimp | |
| 20 AWG | |
| 14 AWG | |
| Black | |
| Bulk | |
| Application: | Wire to Wire |
| Attachment Hole Diameter: | 1.5 mm |
| Brand: | TE Connectivity / DEUTSCH |
| Contact Gender: | Without Pin Contacts |
| Current Rating: | 13 A |
| Dimensions: | 50.8 mm x 47.63 mm x 41.86 mm |
| Flammability Rating: | UL 94 V-1 |
| Height: | 50.8 mm |
| Housing Material: | Polyamide (PA) |
| Ingress Protection: | IP67 |
| Length: | 41.86 mm |
| Locking Mechanism: | Integrated in Housing |
| Material: | Plastic |
| Mating Gender: | Plug |
| Mating Part Number: | HDP26-24-31 |
| Maximum Operating Temperature: | + 125 C |
| Minimum Operating Temperature: | - 55 C |
| Mounting Angle: | Straight |
| Product Type: | Automotive Connectors |
| Subcategory: | Automotive Connectors |
| Type: | Receptacle |
| Voltage Rating: | 250 V |
| Width: | 50.8 mm |
| Wire Gauge Range: | 14 AWG to 20 AWG |
| Unit Weight: | 41.320 g |
